- 500W RMS High-Excursion Subwoofer: the RAGE8-D4-V3 delivers deep, responsive bass from a compact 8-inch design made for space-limited installations.
- Strong Motor and Suspension: features a 175 oz ferrite motor, RNPP cone, tall U-shaped foam surround, and 13 mm one-way Xmax for controlled low-frequency output.
- Includes MANI 600 Amplifier: the compact Class-D monoblock produces up to 600W RMS at the subwoofer’s recommended 2-ohm wiring configuration.
- Flexible Enclosure Options: works in sealed, ported, or fourth-order bandpass boxes for daily systems, small trunks, and custom audio builds.
- Complete B2 Audio Bass Package: includes the subwoofer, monoblock amplifier, remote level control, and high-level input connector.

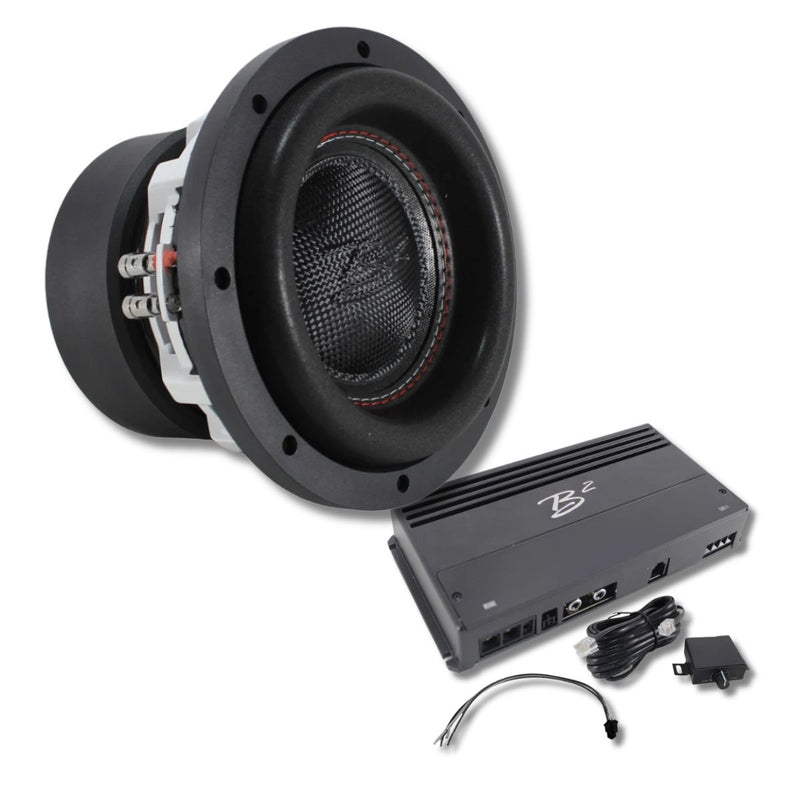

B2 Audio RAGE8-D4-V3 8" 500W RMS Subwoofer with MANI 600 Amplifier
This Listing Includes:
- (1) B2 Audio RAGE8-D4-V3 8" Dual 4-Ohm Subwoofer
- (1) B2 Audio MANI 600 Monoblock Amplifier

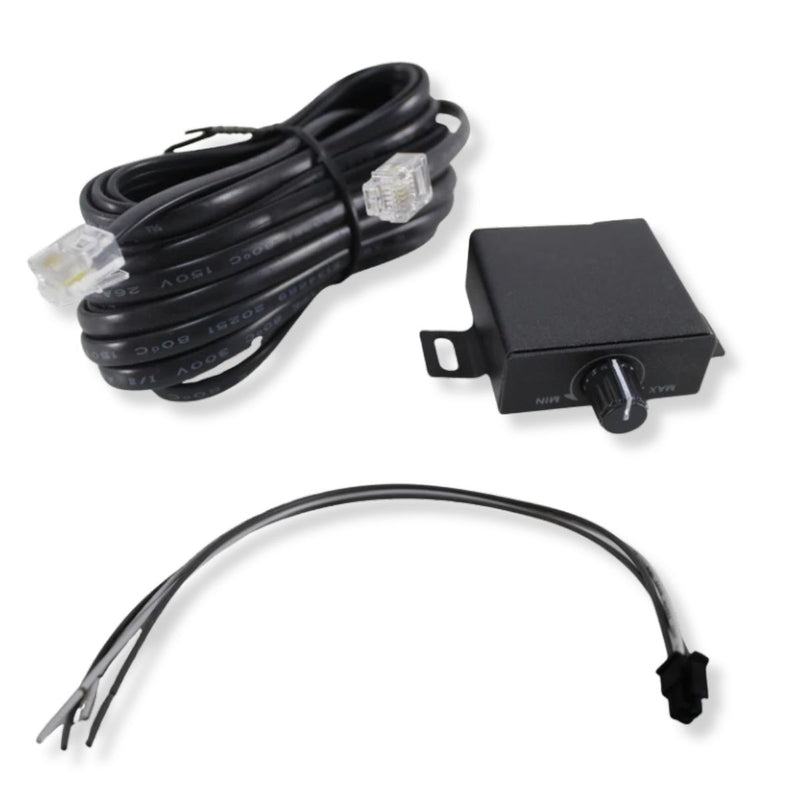

- (1) Remote Level Control
- (1) High-Level Input Connector
The B2 Audio RAGE8-D4-V3 8-inch subwoofer delivers powerful, controlled bass from a compact high-excursion design. This package includes the MANI 600 monoblock amplifier, giving you a properly matched power source for building a complete B2 Audio bass system.
The RAGE8-D4-V3 handles 500 watts RMS and features dual 4-ohm voice coils that can be wired in parallel to create a 2-ohm final load. Its RNPP cone, tall U-shaped foam surround, 13 mm one-way Xmax, and 175 oz ferrite motor help produce deep, responsive bass without requiring a large enclosure.
At the recommended 2-ohm configuration, the included MANI 600 amplifier produces up to 600 watts RMS. Its adjustable low-pass crossover and subsonic filter allow you to tune the system for the selected enclosure. A remote level control and high-level input connector are also included for additional installation flexibility.
This compact subwoofer and amplifier package is ideal for daily drivers, small trunks, and custom builds using sealed, ported, or fourth-order bandpass enclosures.
Features
- 8-inch RAGE Series V3 high-excursion subwoofer
- 500W RMS and 1500W peak power handling
- Dual 4-ohm 2-inch copper voice coils
- Wires to a 2-ohm final load for the included amplifier
- 13 mm one-way Xmax for increased cone movement
- RNPP cone with a tall U-shaped foam surround
- Powerful 175 oz ferrite motor assembly
- Compatible with sealed, ported, and bandpass enclosures
- MANI 600 compact Class-D monoblock amplifier
- Adjustable low-pass crossover and subsonic filter
- Remote level control and high-level input included
Specifications

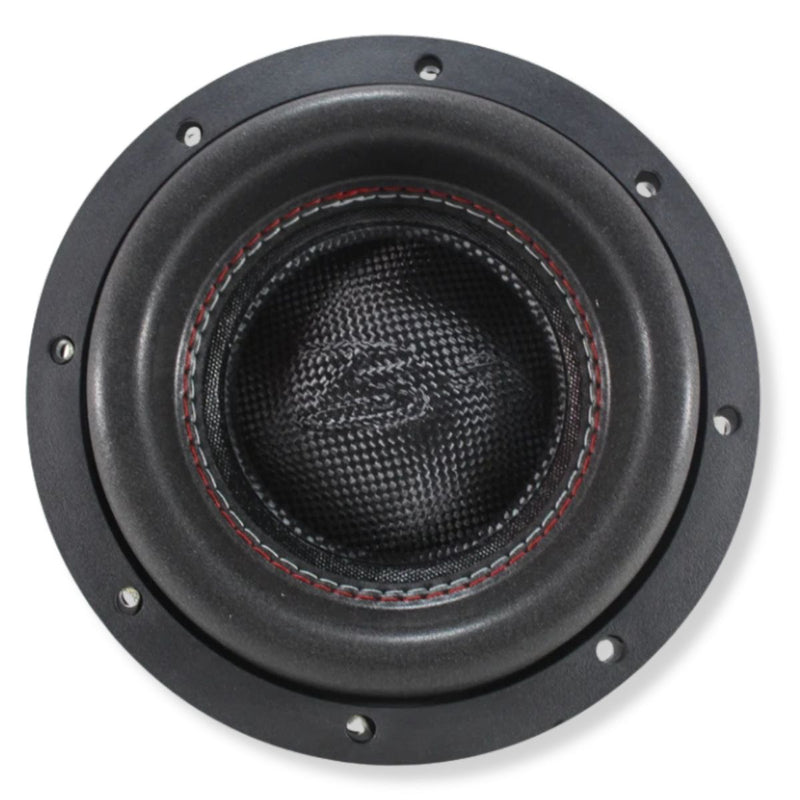

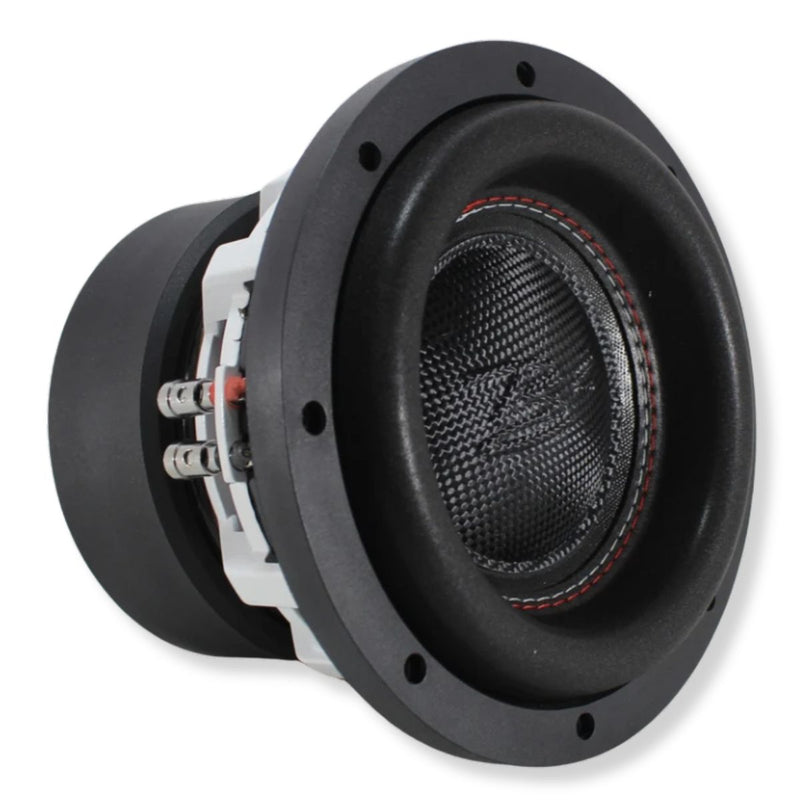

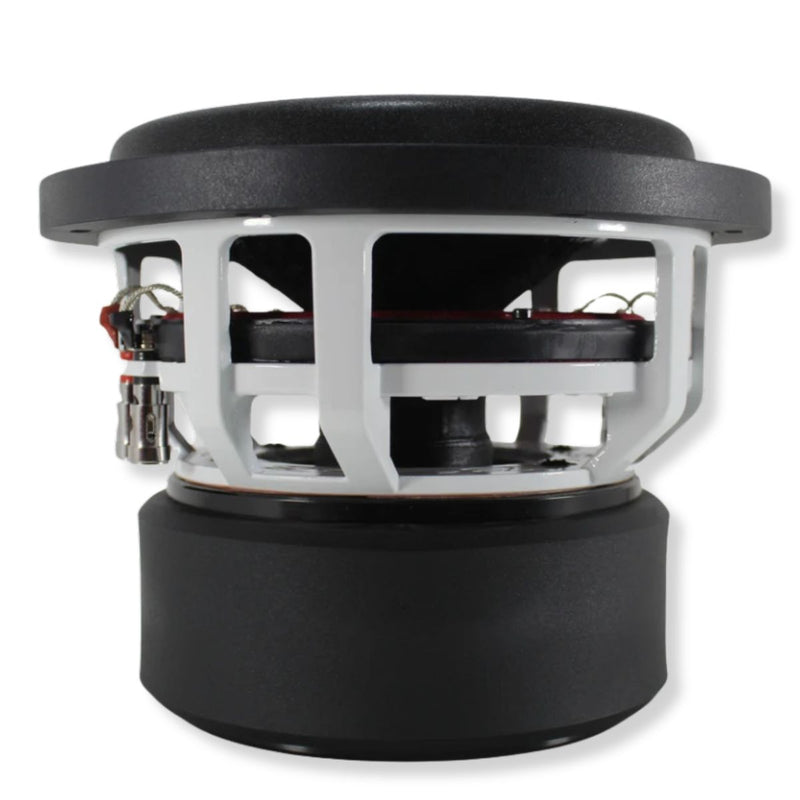

RAGE8-D4-V3 Subwoofer
- Size: 8 inches
- RMS Power Handling: 500 watts
- Peak Power Handling: 1500 watts
- Impedance: Dual 4 ohms
- Recommended Final Load: 2 ohms
- Voice Coil: 2 inches
- Frequency Response: 10 Hz to 500 Hz
- Sensitivity: 80.6 dB
- Xmax: 13 mm one way
- Cone Material: RNPP
- Surround: Tall U-shaped foam
- Magnet Type: Ferrite
- Motor Assembly Weight: 175 oz
- Overall Diameter: 8.66 inches
- Baffle Cutout Diameter: 7.23 inches
- Mounting Depth: 5.315 inches
- Total Depth: 6.18 inches
- Weight: 14.33 lb
Suggested Enclosures
- Sealed: 0.274 cubic feet
- Compact Ported: 0.53 cubic feet, tuned to 42 Hz
- Ported: 0.99 cubic feet, tuned to 35 Hz
- Fourth-Order Bandpass Ratio: 3:1

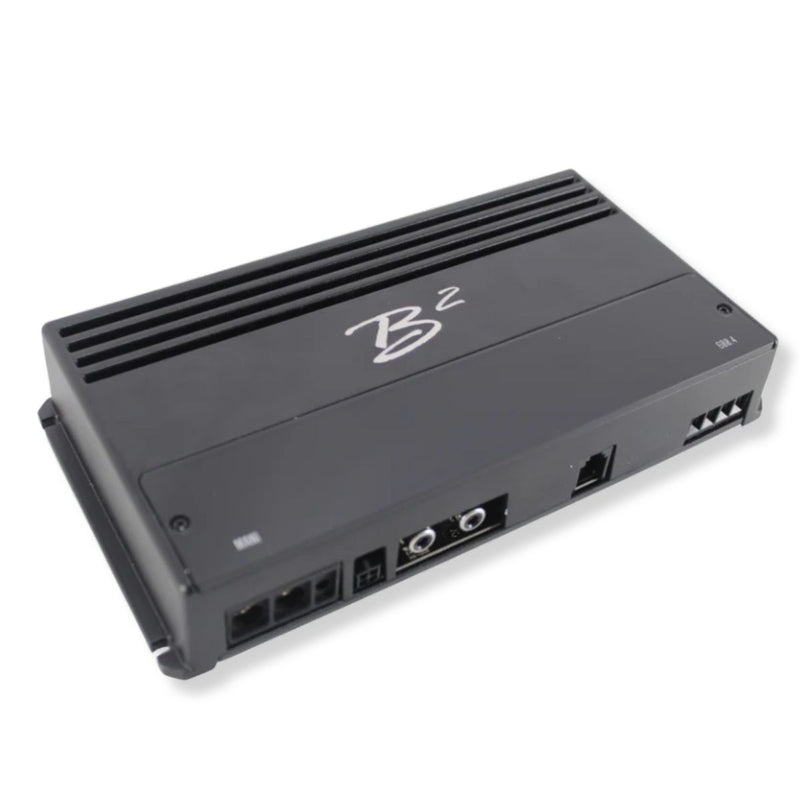

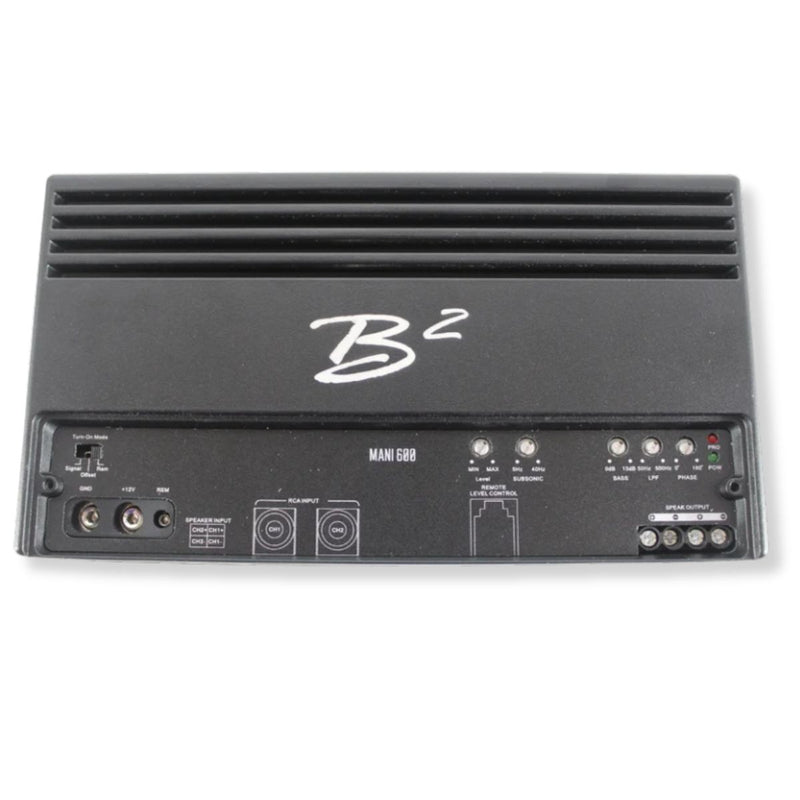

MANI 600 Amplifier
- Amplifier Type: Class-D Monoblock
- RMS Power at 4 Ohms: 450 watts x 1
- RMS Power at 2 Ohms: 600 watts x 1
- RMS Power at 1 Ohm: 600 watts x 1
- Frequency Response: 10 Hz to 500 Hz
- Signal-to-Noise Ratio: Greater than 90 dB
- Input Sensitivity: 0.35V to 5V
- Damping Factor: Greater than 400
- Low-Pass Crossover: 50 Hz to 500 Hz
- Subsonic Filter: 5 Hz to 40 Hz
- Crossover Slope: 24 dB per octave
- High-Level Input: Yes
- Power Terminal Size: 6 gauge
- Fuse Rating: 70 amps
- Dimensions: 10.6 x 6.45 x 2.28 inches
- Weight: 3.3 lb
Some amplifiers may have a cover plate marked "600.4" instead of "600." The included amplifier is still the MANI 600 monoblock version.
Compact subwoofer. Complete system. Serious B2 Audio bass.
