B2 Audio RAGE15-D1-V3 15" 2000W RMS Subwoofer with RAGE 3500 Amp

• 2000W RMS High-Output Subwoofer: the 15-inch RAGE15-D1-V3 is built for powerful daily systems, demo vehicles, and SPL-capable installations.
• Carbon-Fiber Cone and Tall Surround: the rigid cone, integrated dust cap, and high-excursion suspension provide controlled movement under heavy power.
• Matched at 2 Ohms: wire the dual 1-ohm coils in series so the included RAGE 3500 amplifier delivers between 1850 and 2150 watts RMS.
• Heavy-Duty Motor Platform: a 3-inch copper voice coil, 600 oz ferrite motor, 20 mm Xmax, and 4-gauge terminals support demanding bass output.
• Multiple Enclosure Options: compatible with sealed, compact ported, and larger ported boxes for different space, output, and extension goals.

B2 Audio RAGE15-D1-V3 15" 2000W RMS Subwoofer with RAGE 3500 Amp

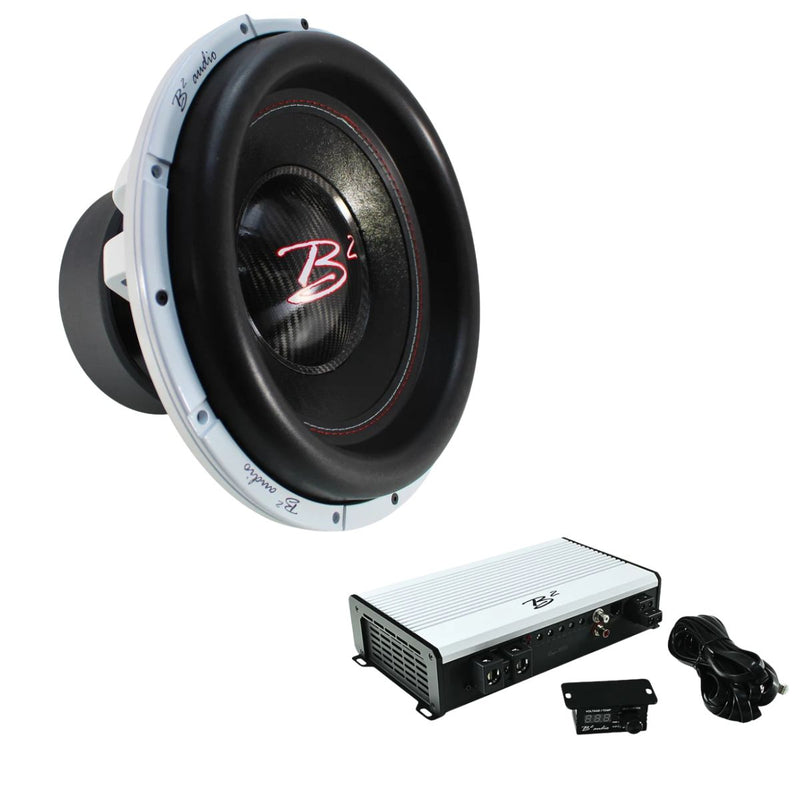

This Listing Includes:

• (1) B2 Audio RAGE15-D1-V3 15" Dual 1-Ohm Subwoofer


• (1) B2 Audio RAGE 3500 Monoblock Amplifier

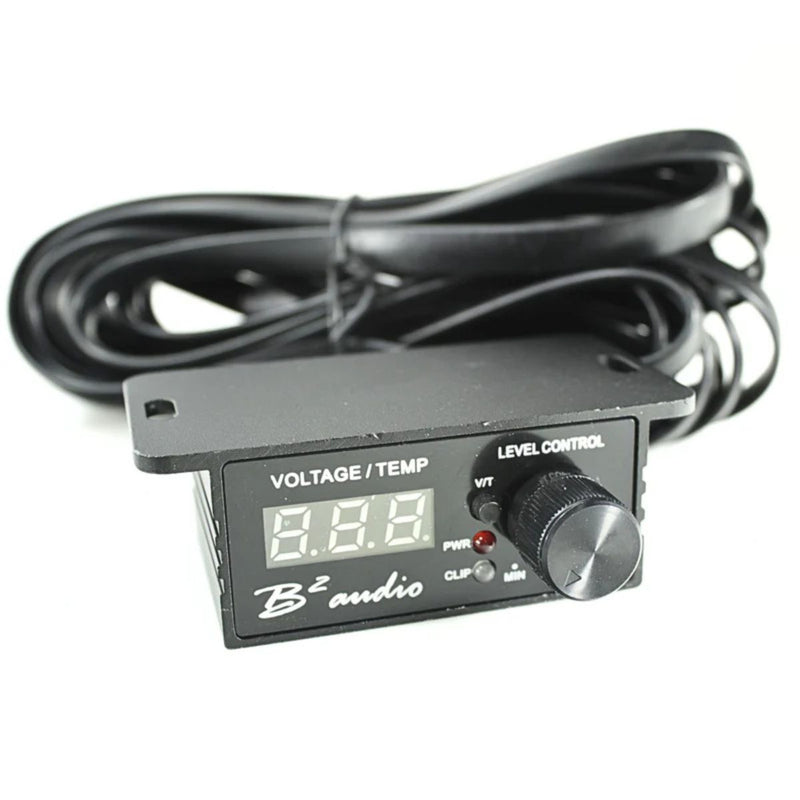

• (1) Bass Knob with Voltage and Temperature Display


• (1) Remote Wire


• Mounting Hardware

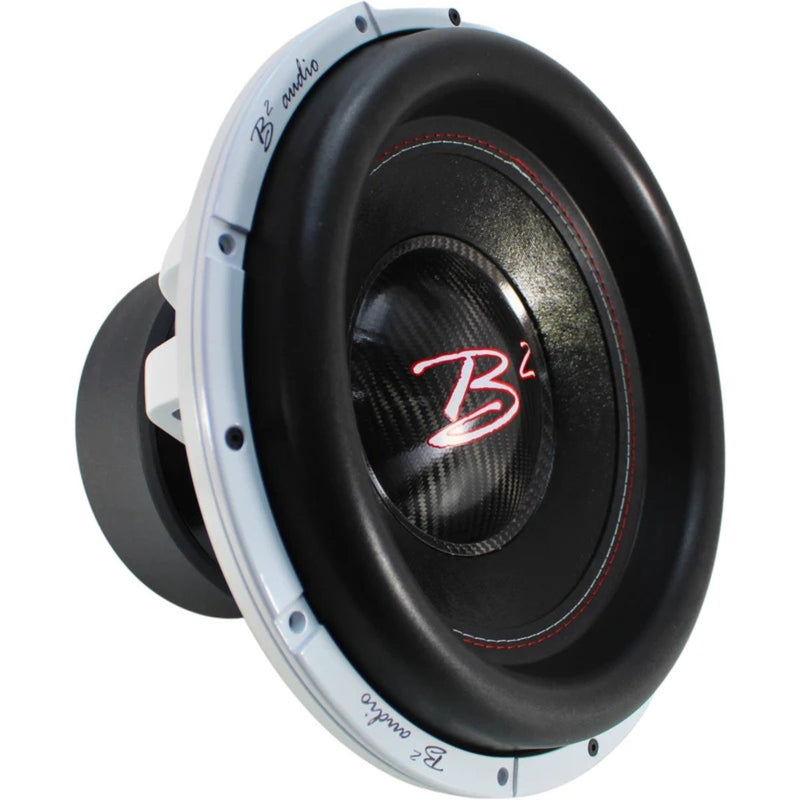

The B2 Audio RAGE15-D1-V3 delivers powerful low-frequency output with 2000 watts RMS of power handling, a carbon-fiber cone, tall surround, and 20 mm of one-way Xmax. This package includes the B2 Audio RAGE 3500 monoblock amplifier, creating a strong power match for daily high-power systems, demo vehicles, and SPL-capable builds.

The subwoofer’s dual 1-ohm voice coils should be wired in series to create a 2-ohm final load. At 2 ohms, the included amplifier produces between 1850 and 2150 watts RMS, closely matching the subwoofer’s 2000W RMS rating.

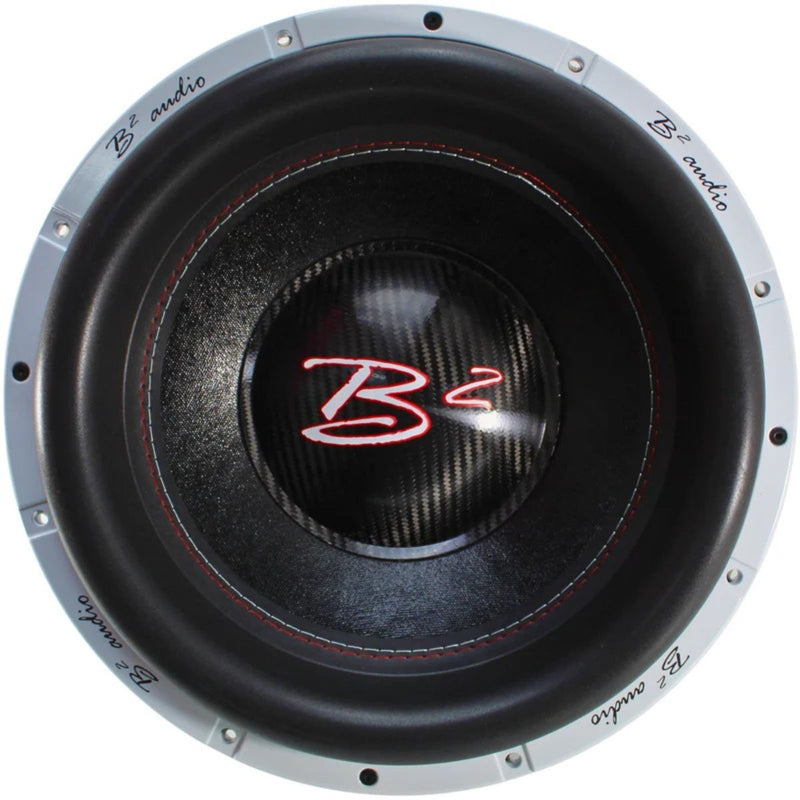

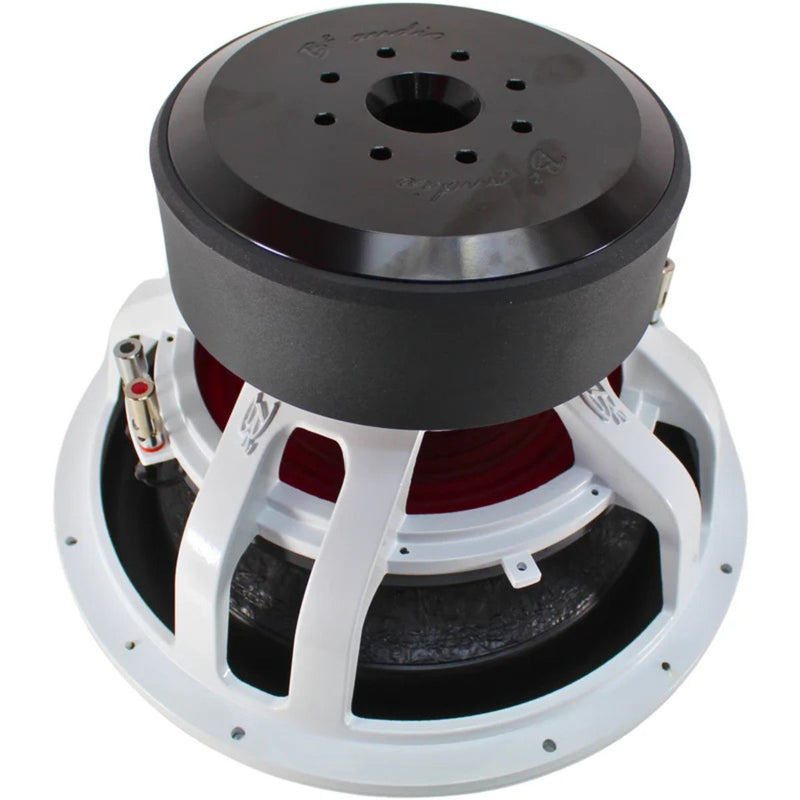

Version 3 features a rigid carbon-fiber cone with an integrated dust cap and a taller surround for improved excursion control. A high-temperature 3-inch copper voice coil, 600 oz ferrite motor, and 4-gauge push terminals support reliable operation under demanding power levels.

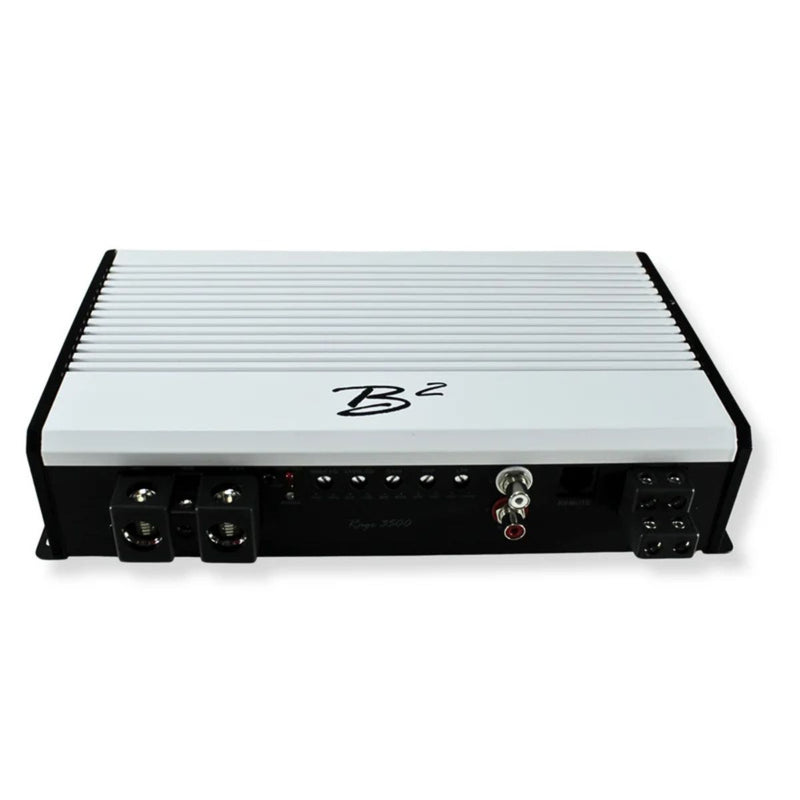

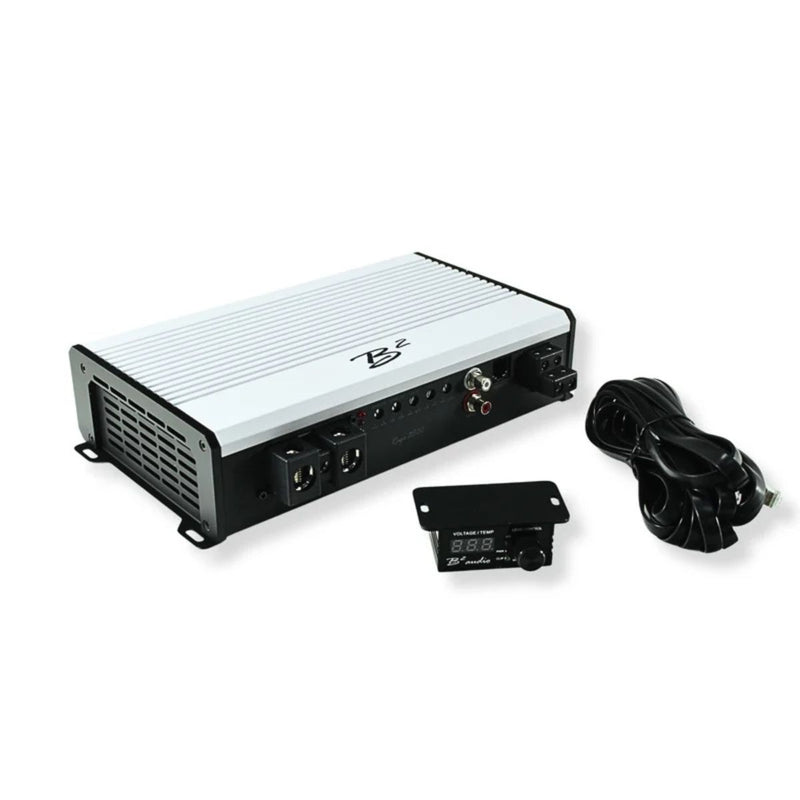

The included full-range Class-D amplifier features adjustable low-pass, high-pass, and subsonic crossovers. Its remote bass knob lets you control the output while monitoring vehicle voltage and amplifier temperature.

The voice coils must not be wired in parallel with this amplifier. A parallel connection creates a 0.5-ohm load, which is below the amplifier’s rated 1-ohm minimum impedance.

Features

• 15-inch RAGE Series V3 high-excursion subwoofer


• 2000W RMS and 4000W maximum power handling


• Dual 1-ohm voice coils wire in series to 2 ohms


• High-temperature 3-inch copper voice coil


• Carbon-fiber cone with integrated dust cap


• Tall surround for improved excursion control


• 20 mm one-way Xmax


• Massive 600 oz ferrite motor


• Heavy-duty 4-gauge push terminals


• Compatible with sealed and ported enclosures


• RAGE 3500 full-range Class-D monoblock amplifier


• 1850 to 2150 watts RMS at the recommended 2-ohm load


• Bass knob with voltage and temperature display included

Specifications

RAGE15-D1-V3 Subwoofer

• Size: 15 inches


• RMS Power Handling: 2000 watts


• Maximum Power Handling: 4000 watts


• Nominal Impedance: Dual 1 ohm


• Recommended Final Load: 2 ohms


• Voice Coil Diameter: 3 inches


• Voice Coil Material: Copper


• Frequency Response: 10 Hz to 500 Hz


• Sensitivity: 82.4 dB


• Xmax: 20 mm one way


• Magnet Type: Ferrite


• Magnet Weight: 600 oz


• Cone Material: Carbon fiber


• Terminal Type: 4-gauge push terminals


• Displacement Volume: 10.7 L / 0.37 cubic feet


• Overall Diameter: 15.35 inches


• Mounting Diameter: 13.77 inches


• Bolt Pattern Diameter: 14.76 inches


• Mounting Depth: 8.89 inches


• Overall Depth: 10.24 inches

Thiele and Small Parameters

• Free-Air Resonance: 26.8 Hz


• Resistance: 1 ohm


• Qms: 5.11


• Qes: 0.41


• Qts: 0.38


• Vas: 67.1 L


• Cms: 70 m/N


• BL/Re: 200


• Moving Mass: 476.3 g


• Xmax: 20 mm one way

Suggested Enclosures

• Sealed Volume: 1.77 cubic feet


• Sealed Qtc: 0.464


• Compact Ported Volume: 3.5 cubic feet


• Compact Ports: Two 4-inch ports


• Compact Port Length: 11.2 inches


• Compact Tuning Frequency: 35 Hz


• Ported Volume: 5.0 cubic feet


• Port Area: 43.4 square inches


• Port Length: 22.2 inches


• Ported Tuning Frequency: 30 Hz

Enclosure volumes are net internal volumes. Account for the displacement of the subwoofer, ports, and internal bracing when constructing the enclosure.

RAGE 3500 Amplifier

• Amplifier Type: Full-Range Class-D Monoblock


• RMS Power at 4 Ohms: 1050 to 1200 watts


• RMS Power at 2 Ohms: 1850 to 2150 watts


• RMS Power at 1 Ohm: 3000 to 3500 watts


• Frequency Response: 10 Hz to 20 kHz


• Signal-to-Noise Ratio: Greater than 90 dB


• Input Sensitivity: 0.2V to 6V


• Power Terminal Size: 0 gauge


• Fuse Rating: 250 amps


• Bass Control Frequency: 30 Hz to 80 Hz


• Low-Pass Crossover: 50 Hz to 20 kHz


• High-Pass Crossover: 10 Hz to 2 kHz


• Subsonic Crossover: 10 Hz to 2 kHz


• Length: 11.5 inches


• Width: 7.25 inches


• Height: 2.5 inches


• Weight: 7.25 lb

Carbon-fiber construction, 2000 watts RMS, and matched amplification for serious 15-inch bass.
