- 2000W RMS High-Excursion Subwoofer: the RAGE Series V4 uses a larger surround, 3-inch voice coil, and 20 mm Xmax for powerful low-frequency output.
- Properly Matched at 2 Ohms: wire the dual 1-ohm voice coils in series so the included amplifier can deliver between 1850 and 2150 watts RMS.
- Heavy-Duty Construction: a 630 oz magnet assembly, 4-gauge push terminals, and upgraded suspension support demanding high-power applications.
- Flexible Enclosure Options: works with sealed, compact ported, and full-size ported boxes for different space and bass-response requirements.
- Includes Monitoring Bass Knob: adjust the bass level while viewing amplifier temperature and vehicle voltage from the included remote display.

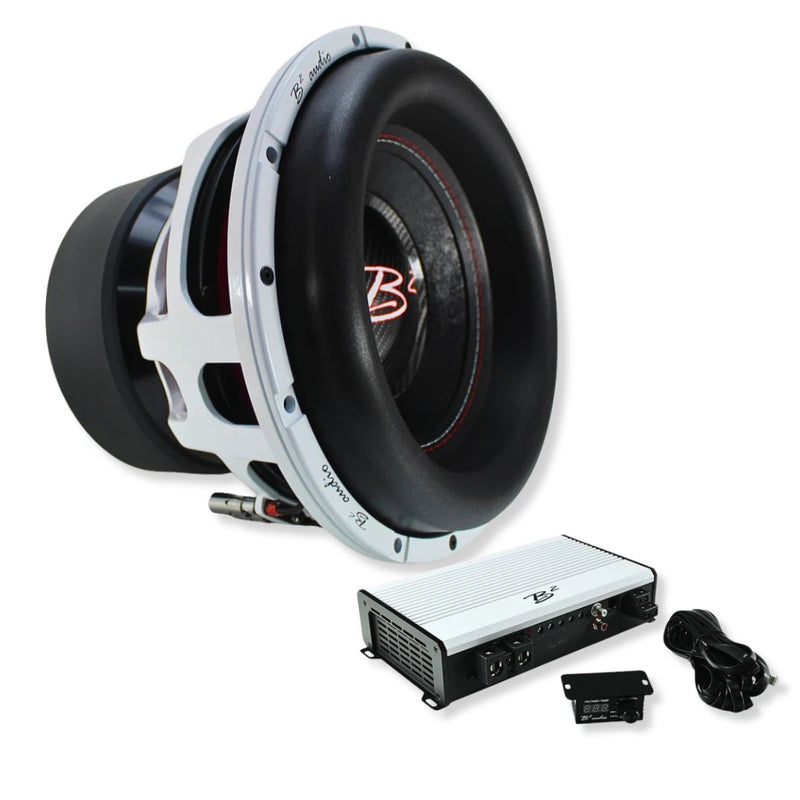

B2 Audio RAGE12-D1-V4 12" 2000W RMS Subwoofer with RAGE 3500 Amp
This Listing Includes:
- (1) B2 Audio RAGE Series V4 12" Dual 1-Ohm Subwoofer
- (1) B2 Audio RAGE 3500 Monoblock Amplifier

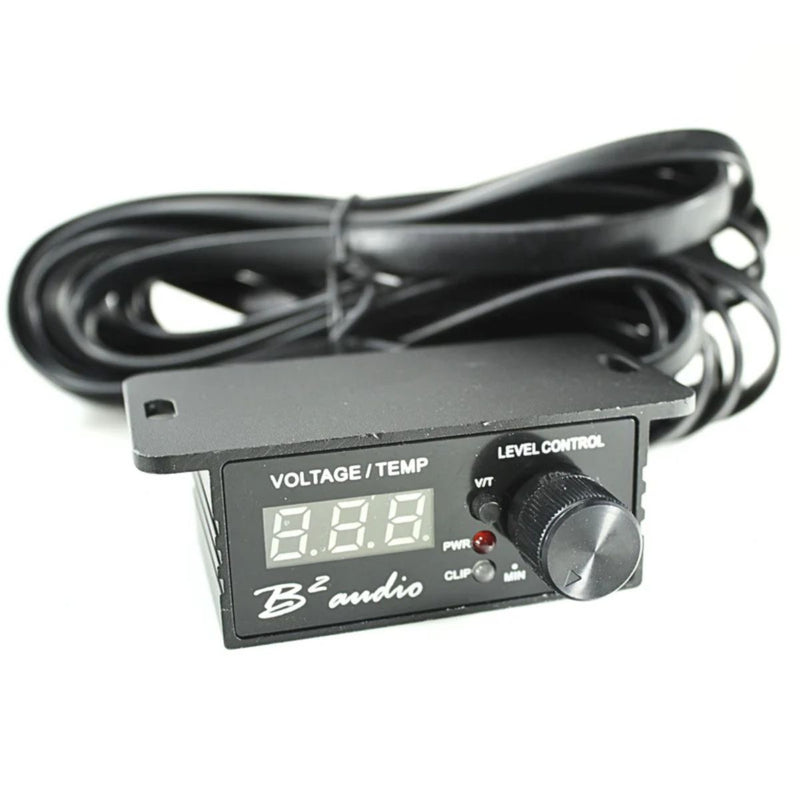

- (1) Bass Knob with Voltage and Temperature Display
- (1) Remote Wire
- Mounting Hardware

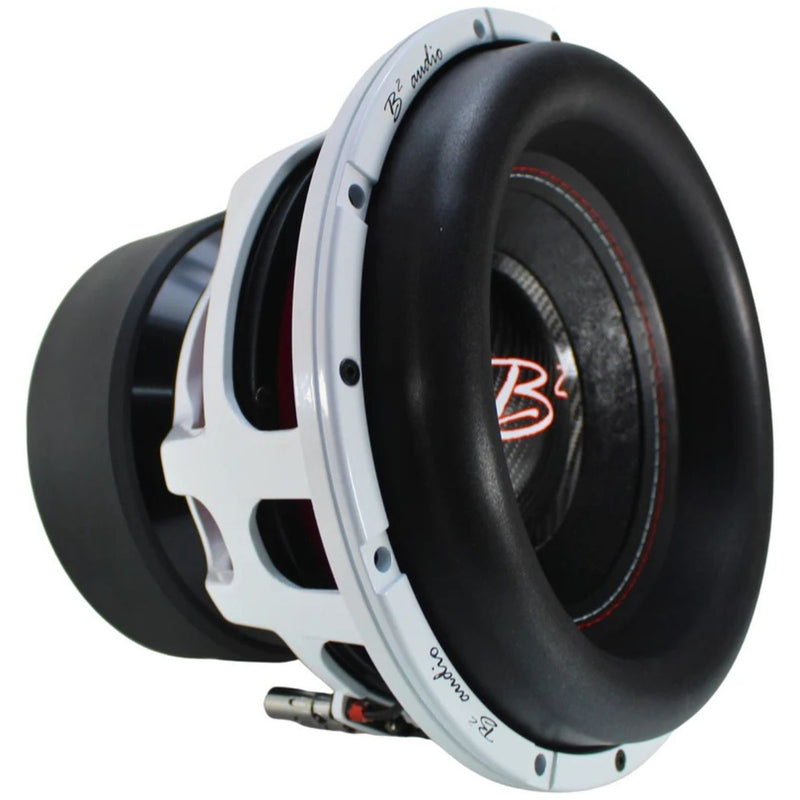

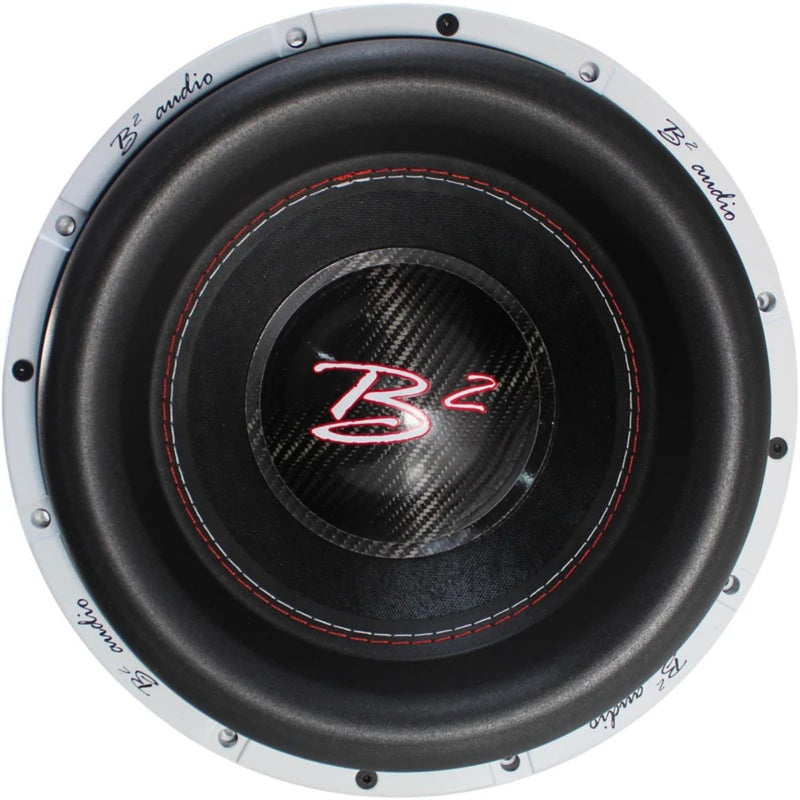

The B2 Audio RAGE Series V4 12-inch subwoofer delivers 2000 watts RMS of high-excursion bass from an upgraded design featuring a larger surround, 3-inch voice coil, and 20 mm Xmax. This package includes the B2 Audio RAGE 3500 monoblock amplifier, providing a strong power match when the subwoofer is wired correctly.
The subwoofer’s dual 1-ohm voice coils should be wired in series to create a 2-ohm final load. At 2 ohms, the RAGE 3500 amplifier produces between 1850 and 2150 watts RMS, closely matching the subwoofer’s 2000W RMS power rating.

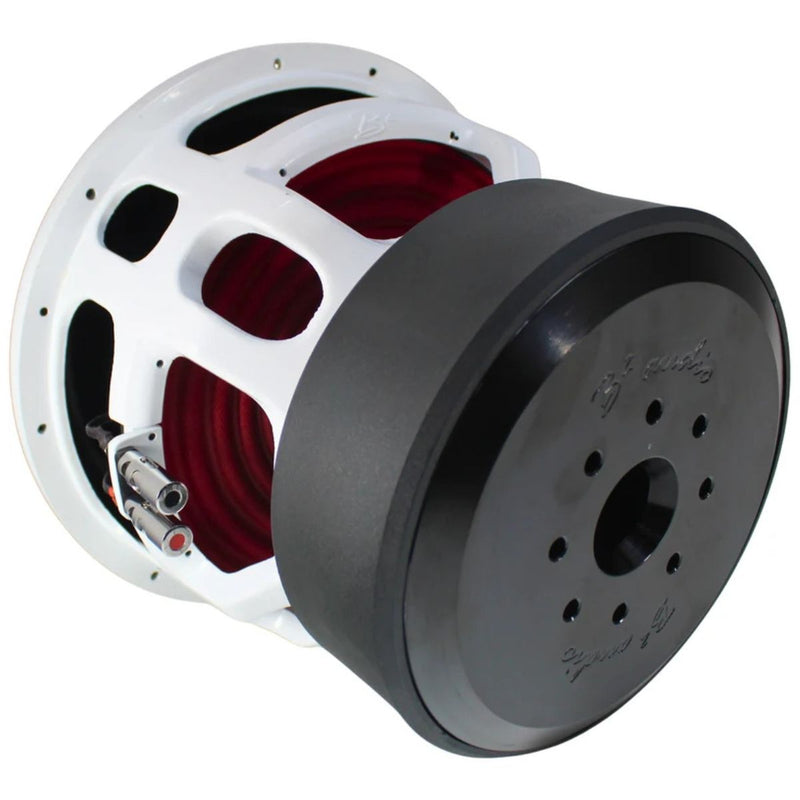

The V4 design features a larger surround for increased excursion and improved low-frequency output. Its 630 oz magnet assembly, 4-gauge push terminals, and heavy-duty motor structure are built to handle demanding daily and high-output applications.

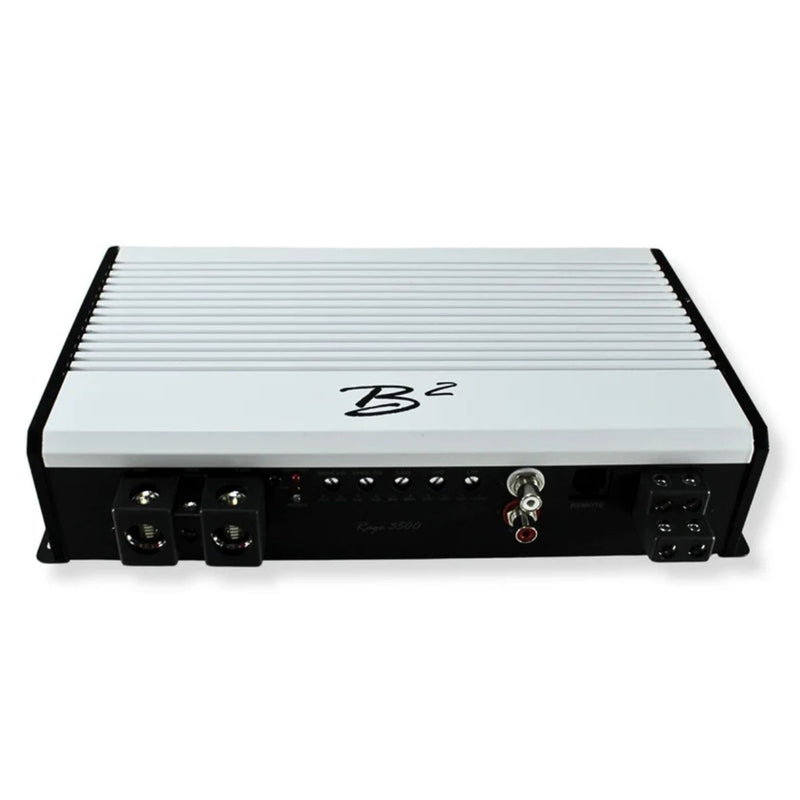

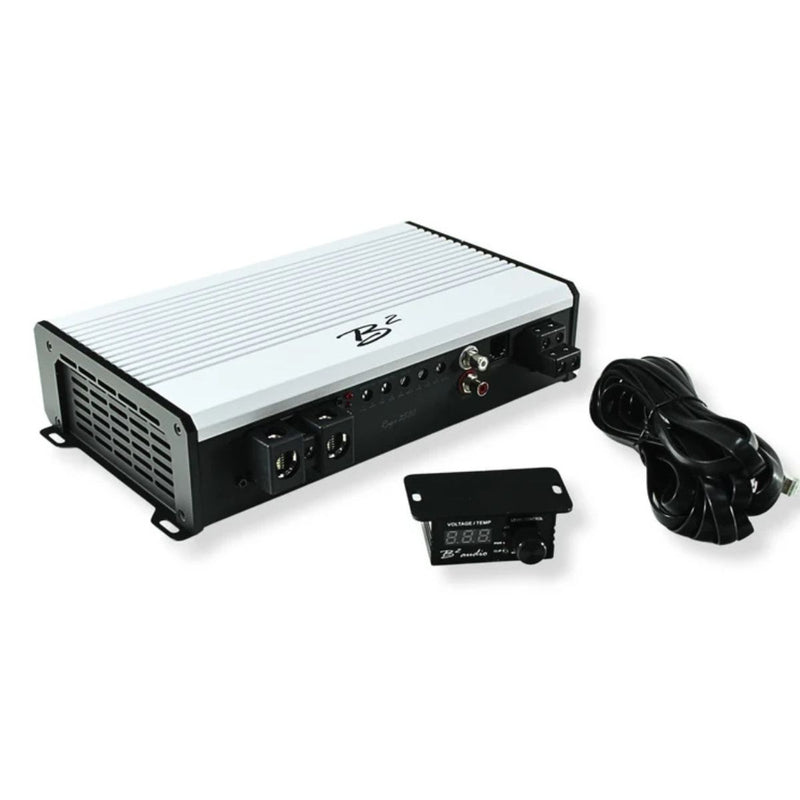

The included full-range Class-D monoblock amplifier offers adjustable low-pass, high-pass, and subsonic crossovers. Its remote bass knob allows convenient output adjustment while displaying vehicle voltage and amplifier temperature.
The voice coils must not be wired in parallel with this amplifier. A parallel connection creates a 0.5-ohm final load, which is below the amplifier’s rated 1-ohm minimum impedance.
Features
- 12-inch RAGE Series V4 high-excursion subwoofer
- 2000W RMS and 4000W maximum power handling
- Dual 1-ohm voice coils wire in series to 2 ohms
- Heavy-duty 3-inch voice coil
- Upgraded larger surround for increased excursion
- 20 mm Xmax for strong low-frequency output
- Massive 630 oz magnet assembly
- Heavy-duty 4-gauge push terminals
- Compatible with sealed and ported enclosures
- RAGE 3500 full-range Class-D monoblock amplifier
- 1850 to 2150 watts RMS at the recommended 2-ohm load
- Adjustable low-pass, high-pass, and subsonic crossovers
- Bass knob with voltage and temperature display included
Specifications
RAGE12-D1-V4 Subwoofer
- Size: 12 inches
- RMS Power Handling: 2000 watts
- Maximum Power Handling: 4000 watts
- Nominal Impedance: Dual 1 ohm
- Recommended Final Load: 2 ohms
- Voice Coil Diameter: 3 inches
- Frequency Response: 10 Hz to 500 Hz
- Sensitivity: 91.2 dB
- Xmax: 20 mm
- Magnet Weight: 630 oz
- Push Terminal Capacity: 4 gauge
- Displacement Volume: 7.4 L / 0.26 cubic feet
- Overall Diameter: 12.24 inches
- Mounting Diameter: 11.11 inches
- Bolt Pattern Diameter: 11.57 inches
- Mounting Depth: 8.85 inches
- Overall Depth: 10.21 inches
Thiele and Small Parameters
- Free-Air Resonance: 29.5 Hz
- Resistance: 1 ohm
- Qms: 5.19
- Qes: 0.44
- Qts: 0.4
- Vas: 29.4 L
- Cms: 80 um/N
- BL Factor: 151.38
- Moving Mass: 334.6 g
- Xmax: 20 mm
Suggested Enclosures
- Sealed Volume: 1.05 cubic feet
- Sealed Qtc: 0.451
- Compact Ported Volume: 1.13 cubic feet
- Compact Port Diameter: 4 inches
- Compact Port Length: 13.2 inches
- Compact Tuning Frequency: 42 Hz
- Ported Volume: 2.25 cubic feet
- Port Area: 18.6 square inches
- Port Length: 19.7 inches
- Ported Tuning Frequency: 32 Hz
Enclosure volumes are net internal volumes. Account for the displacement of the subwoofer, port, and internal bracing when constructing the enclosure.
RAGE 3500 Amplifier
- Amplifier Type: Full-Range Class-D Monoblock
- RMS Power at 4 Ohms: 1050 to 1200 watts
- RMS Power at 2 Ohms: 1850 to 2150 watts
- RMS Power at 1 Ohm: 3000 to 3500 watts
- Frequency Response: 10 Hz to 20 kHz
- Signal-to-Noise Ratio: Greater than 90 dB
- Input Sensitivity: 0.2V to 6V
- Power Terminal Size: 0 gauge
- Fuse Rating: 250 amps
- Bass Control Frequency: 30 Hz to 80 Hz
- Low-Pass Crossover: 50 Hz to 20 kHz
- High-Pass Crossover: 10 Hz to 2 kHz
- Subsonic Crossover: 10 Hz to 2 kHz
- Length: 11.5 inches
- Width: 7.25 inches
- Height: 2.5 inches
- Weight: 7.25 lb
A properly matched 2000W RMS package built for powerful, controlled bass at 2 ohms.
