- Power-Packed Performance: Experience unparalleled bass performance with the B2 Audio RAGE15-D2-V3 subwoofer, featuring 2000 watts RMS power handling and a massive 600 oz magnet weight for thunderous sound reproduction.
- Dual Voice Coil Design: Equipped with a 3" voice coil and dual 2-ohm impedance, this subwoofer offers versatile wiring options and exceptional flexibility in audio configurations.
- High Sensitivity: With a sensitivity rating of 90.7 dB, the RAGE15-D2-V3 efficiently converts power into sound, delivering deep, impactful bass with clarity and precision.
- Precision Engineering: Engineered with precision Thiele & Small parameters and premium materials, this subwoofer ensures optimized performance and durability for long-lasting enjoyment.
- Versatile Enclosure Options: With enclosure suggestions for sealed, ported compact, and ported setups, the RAGE15-D2-V3 adapts to various audio environments, delivering optimal bass response.

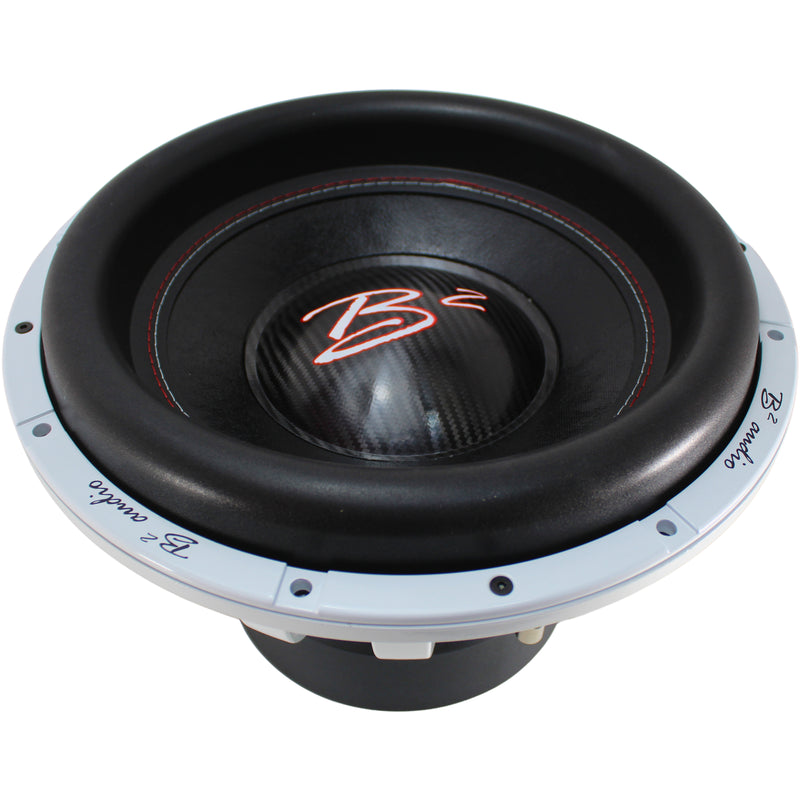

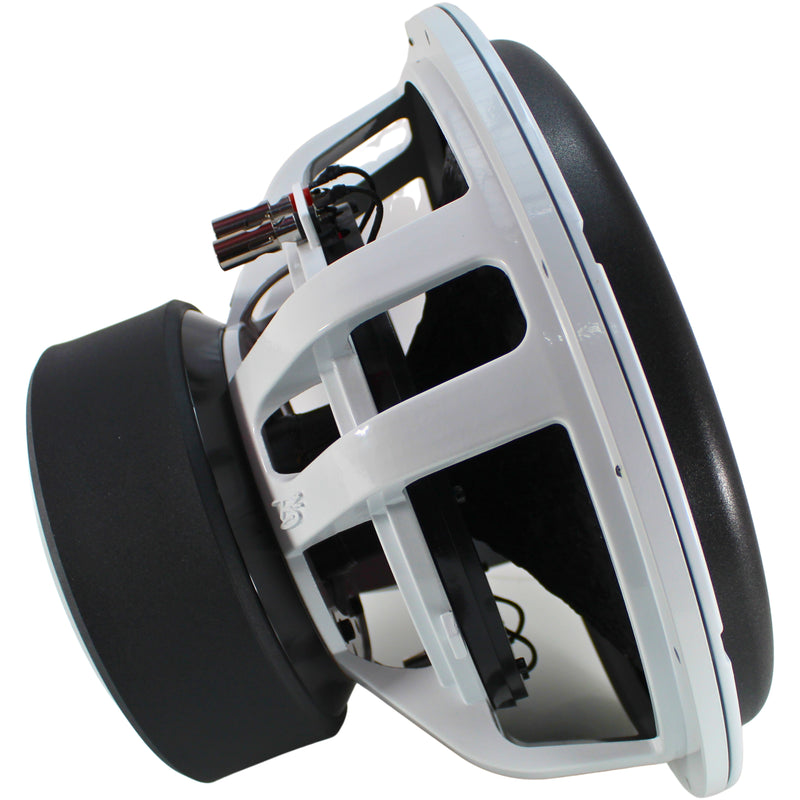

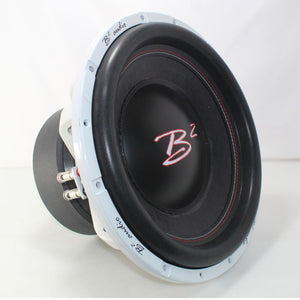

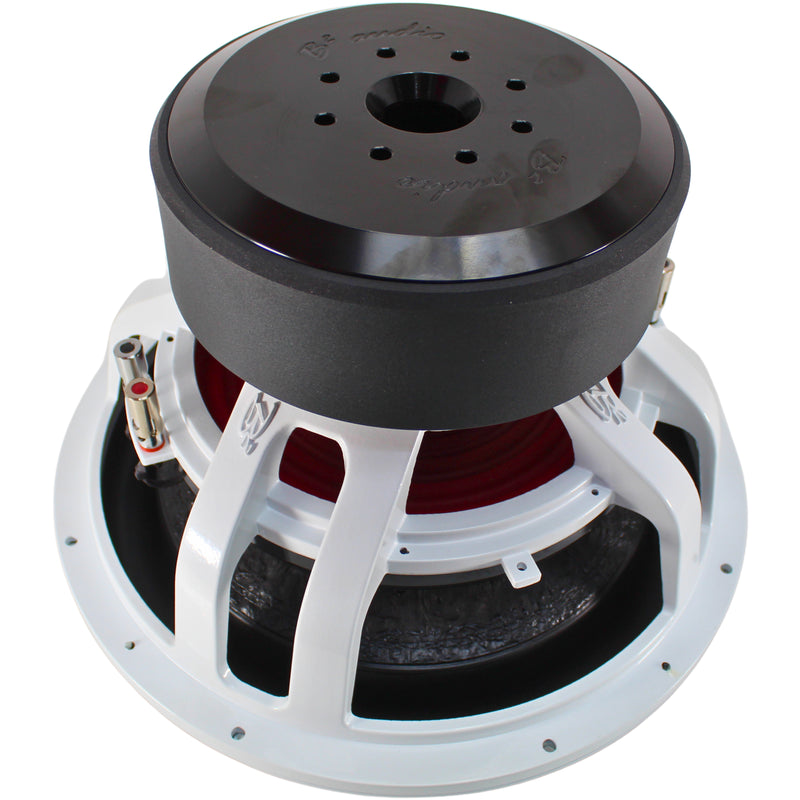

B2 Audio RAGE Series v3 15" 2000 Watt RMS Dual 2-Ohm 3" Voice Coil Subwoofer
This Listing includes:
- (1) 15" DVC 2-Ohm RAGE Subwoofer
Unleash pure pressure. The B2 Audio RAGE15 D2 V3 is a heavy-hitting 15" subwoofer engineered for violent low-frequency output, clean control, and uncompromising durability. With a 3" high-temp voice coil, dual 2-ohm configuration, and a monstrous 600 oz motor, this woofer delivers thunderous bass with the finesse of true high-end design.
The updated V3 platform features a carbon fiber cone, integrated dust cap, and a taller surround for increased excursion and output. Drop it in sealed, ported, or full-sized SPL enclosures and experience the signature RAGE tone: deep, loud, and unapologetically aggressive.

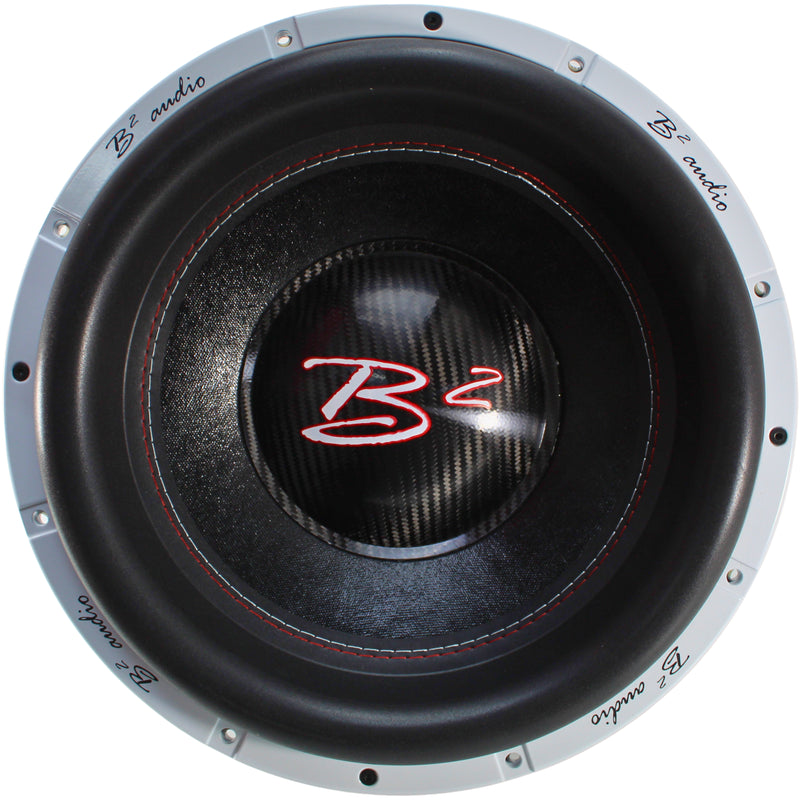

Version 3 features a carbon fiber cone with a dust cap and a noticeably taller surround for enhanced performance.
Features
- 2000W RMS / 4000W Max output for extreme low-frequency performance
- 3" High-Temperature Voice Coil built for long-term, high-power abuse
- Dual 2-Ohm Configuration provides flexible wiring and amplifier matching
- Carbon Fiber Cone + Tall Surround increases rigidity, excursion, and accuracy
- Massive 600 oz Ferrite Motor delivers tight motor control and brutal authority
- 4 Gauge Push Terminals support serious power delivery.
- Optimized T/S Parameters tuned for sealed, ported compact, and high-output ported enclosures
- Built for daily drivers, demo builds, and SPL-heavy setups
Specifications:
Power Handling
Impedance & Coil
- Dual 2 Ohm
- Voice Coil Diameter: 3"
Performance
- Frequency Response: 10-500 Hz
- Sensitivity: 90.6 dB
- Xmax: 20 mm
Motor & Structure
- Magnet Weight: 600 oz
- Displacement: 10.7 L / 0.37 cu ft
- Terminals: 4 Ga push terminal
Thiele & Small Parameters
- Fs: 25.5 Hz
- Re: 1.9 ohm
- Qms: 5.38
- Qes: 0.35
- Qts: 0.33
- Vas: 67 L
- Cms: 70 m/N
- BL: 262.3
- Mms: 524.2 g
Enclosure Suggestions
- Sealed: 50 L / 1.77 cu ft, Qtc: 0.41
- Ported Compact Volume: 100 L / 3.5 cu ft, Port: (2) 4", Length: 11.2" (28.5 cm), Tuning: 35 Hz
- Standard Ported: Volume: 142 L / 5 cu ft, Port Area: 43.4 sq in, Length: 22.2" (56 cm), Tuning: 30 Hz
Dimensions:
- Overall Diameter: 15.35" (390 mm)
- Mounting Diameter: 13.77" (350 mm)
- Bolt Pattern: 14.76" (375 mm)
- Overall Depth: 9.92" (252 mm)
- Mounting Depth: 8.66" (220 mm)
