- 2000W RMS / 4000W Max Power Handling: Built for high-output bass systems and sustained power delivery.
- Dual 1-Ohm Voice Coils: Flexible wiring options for matching high-power amplifiers.
- Carbon Fiber Cone with Tall Surround: Increased rigidity and excursion control for improved low-frequency performance.
- 600 oz Ferrite Motor & 20 mm Xmax: Strong motor force and long excursion for deep, controlled sub-bass output.

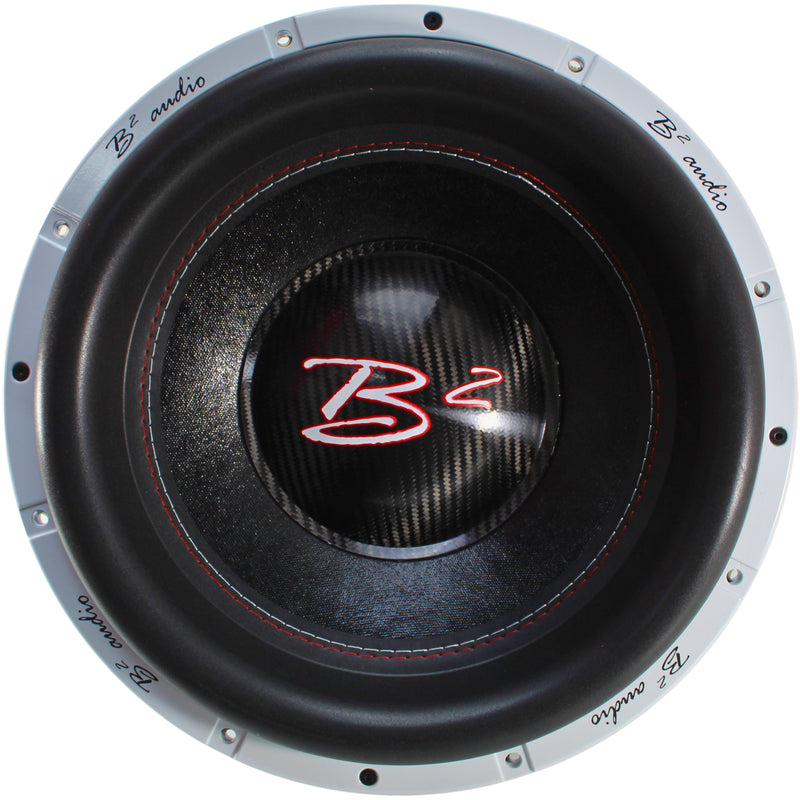

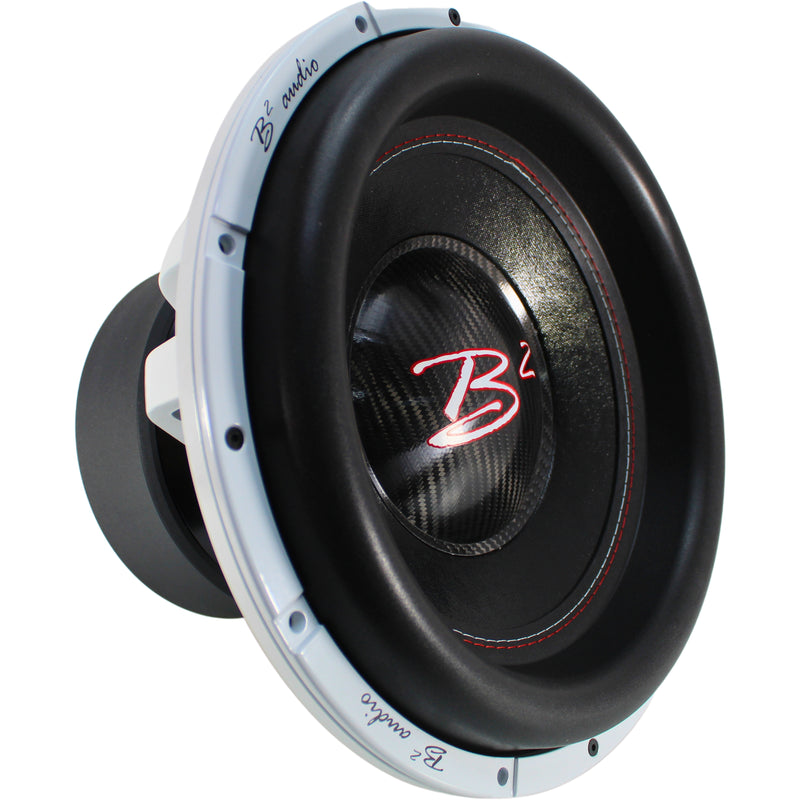

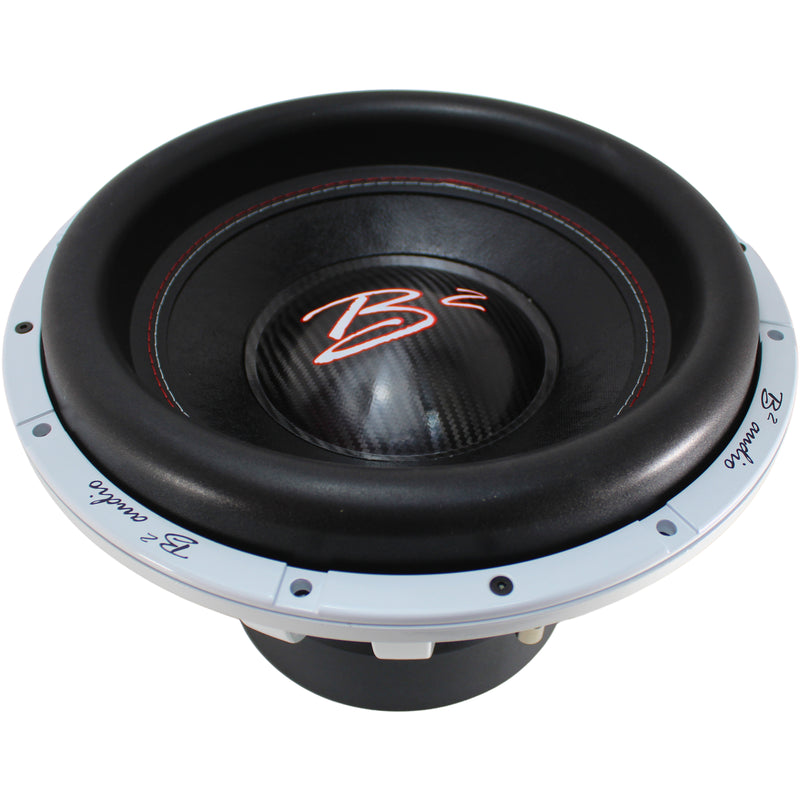

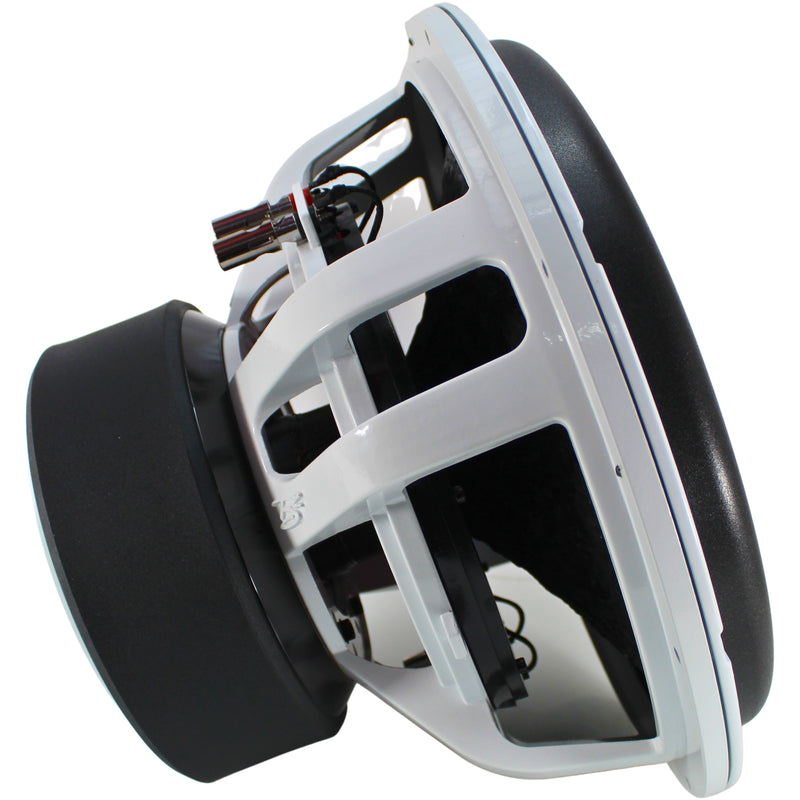

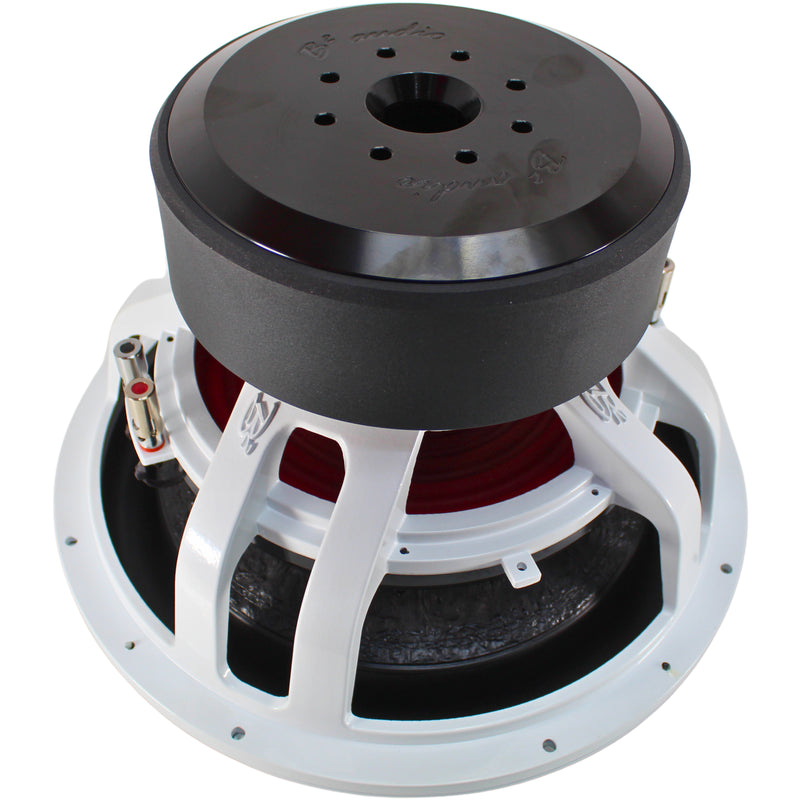

B2 Audio RAGE Series V3 15" 2000 Watt RMS Dual 1-Ohm Subwoofer
This Listing Includes:
- (1) B2 Audio RAGE Dual 1 Ohm 15" Subwoofer
The B2 Audio RAGE Series V3 15" Subwoofer is engineered for high-output bass systems that demand strong low-frequency performance, durability, and consistent power handling. Rated at 2000W RMS, this subwoofer is designed for daily high-power builds, demo vehicles, and SPL-capable systems where control and output matter.

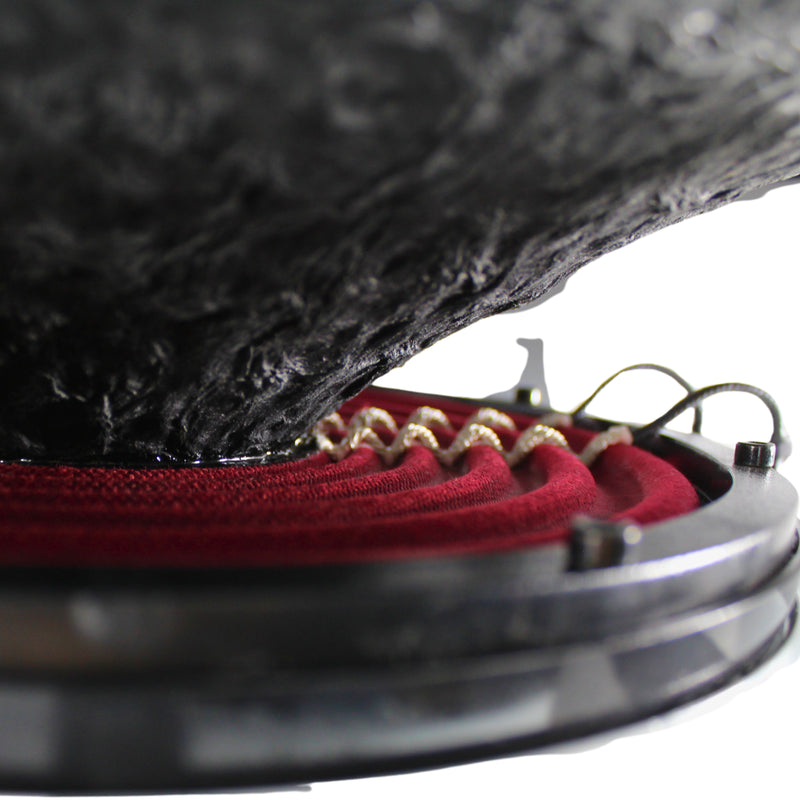

Version 3 features a carbon fiber cone with integrated dust cap and a taller surround, improving rigidity and excursion capability under high power. A large 3-inch high-temperature voice coil and massive 600 oz ferrite motor provide strong motor force, thermal stability, and reliable performance when driven hard.
With dual 1-ohm voice coils, the RAGE15-D1-V3 offers flexible wiring options for a wide range of amplifier configurations. Its broad 10 Hz – 500 Hz frequency response allows it to perform effectively in sealed, compact ported, and large ported enclosures depending on system goals.
Subwoofer Features
- High-temperature 3" copper voice coil for thermal stability under heavy load
- High-excursion suspension designed for sealed and ported enclosures
- 4 Ga push terminals for secure, high-current connections
- Engineered for daily high-power use, demo builds, and SPL-capable systems
Specifications
- Size: 15 inch
- RMS Power Handling: 2000 watts
- Max Power Handling: 4000 watts
- Nominal Impedance: Dual 1 ohm
- Voice Coil Diameter: 3 inch
- Frequency Response: 10 Hz – 500 Hz
- Sensitivity: 82.4 dB
- Magnet Weight: 600 oz
- Displacement Volume: 10.7 L / 0.37 ft
- Terminal Type: 4 Ga push terminals
Thiele & Small Parameters
- Fs: 26.8 Hz
- Re: 1 ohm
- Qms: 5.11
- Qes: 0.41
- Qts: 0.38
- Vas: 67.1 L
- Cms: 70 m/N
- BL/Re: 200
- Mms: 476.3 g
- Xmax (one way): 20 mm
Enclosure Suggestions:
Sealed:
- 50 L / 1.77 cu.ft
- Otc: 0.464
Ported Compact:
- 100 L / 3.5 cu.ft
- Port: 2 x 4"
- Length: 11.2" / 28.5 cm
- FB: 35 Hz
Ported:
- 142 L / 5 cu.ft
- Port Area: 43.4 sq.in
- Length: 22.2" / 56 cm
- FB: 30 Hz
Dimensions:
- Overall Diameter: 15.35 in (390 mm)
- Mounting Diameter: 13.77 in (350 mm)
- Bolt Pattern Diameter: 14.76 in (375 mm)
- Mounting Depth: 8.66 in (220 mm)
- Overall Depth: 9.92 in (252 mm)
