- Powerful RAGE Combo Upgrade: Includes the B2 Audio RAGE 1200.4 V2 4-channel amplifier paired with two RAGE8-D4-V3 8-inch subwoofers, delivering a strong, hard-hitting bass upgrade for any system.
- High-Output 8" V3 Subwoofers: Each RAGE8 V3 handles 500W RMS and 1500W peak, featuring dual 4-ohm 2-inch copper voice coils, a tall U-shaped surround, RNPP cone, and a 175 oz ferrite motor for tight, controlled, deep bass.
- Clean and Efficient Amplifier Power: The RAGE 1200.4 V2 produces up to 1200W RMS with efficient Class D technology, providing clean output, excellent control, and strong performance for both daily driving and high-performance builds.
- Built for Real Performance: High-excursion design with 13 mm one-way Xmax, durable construction, and wide 10 Hz to 500 Hz frequency response allow the subs to deliver impressive low-end impact in compact enclosures.
- Perfect for Serious Car Audio Builds: Ideal for sealed, ported, or bandpass setups, this combo delivers the clarity, punch, and reliability B2 Audio is known for, making it a powerful upgrade for enthusiasts who want bass they can feel.

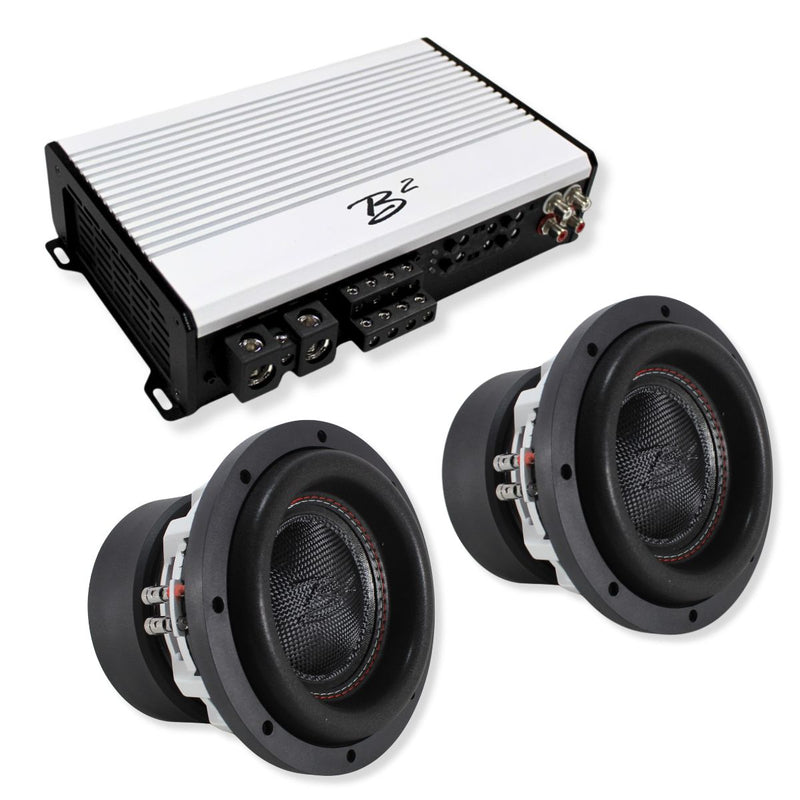

B2 Audio RAGE 1200.4 V2 4-Channel Amplifier + 2 RAGE8 D4 V3 Subwoofers COMBO-20
This Listing Includes:
- (1) B2 Audio RAGE Series B2-RAGE-1200.4-V2 Amplifier
- (2) B2 Audio RAGE8-D4-V3 8" Dual 4-Ohm Subwoofers

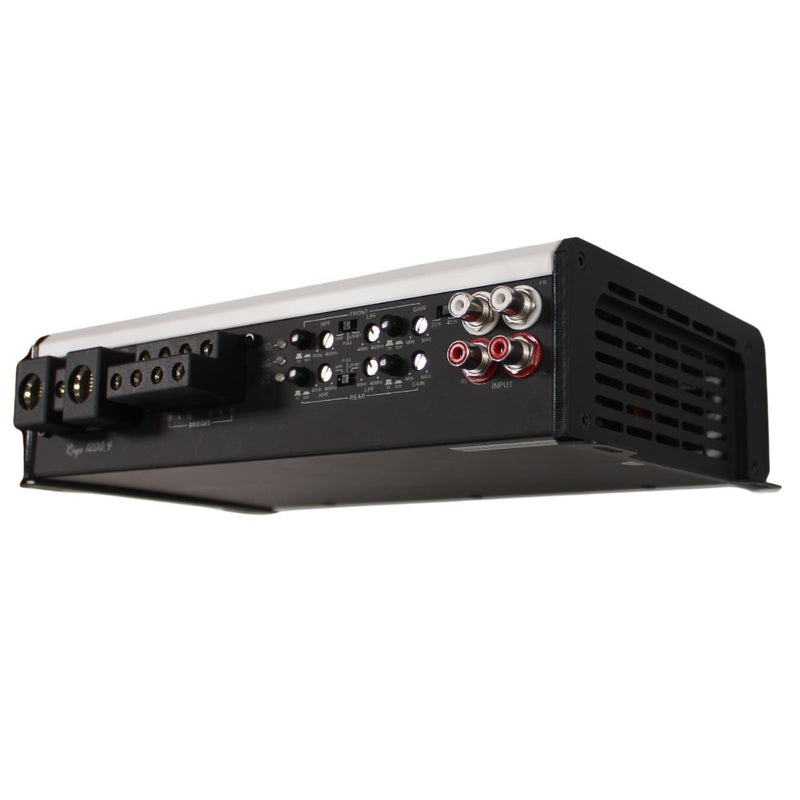

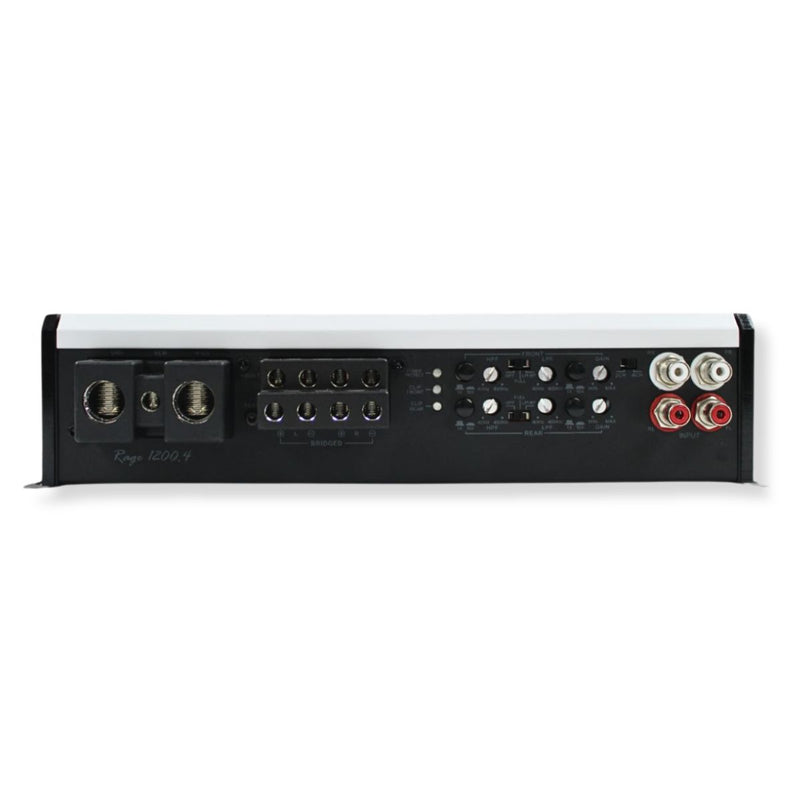

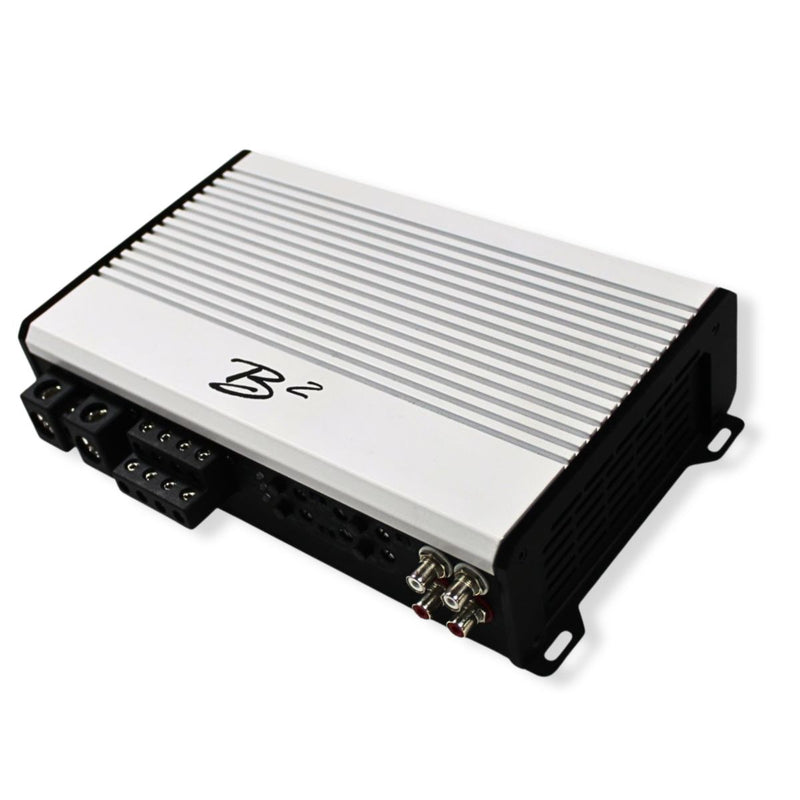

The B2 Audio RAGE Combo-20 has been upgraded, now pairing the powerful RAGE 1200.4 V2 full-range amplifier with the new RAGE8 V3 8-inch subwoofers to deliver a stronger, deeper, and more flexible bass experience. The RAGE1200.4 V2 amplifier delivers up to 1200 watts RMS across 4 channels with efficient Class D performance, giving you clean output, excellent control, and plenty of headroom for demanding setups.

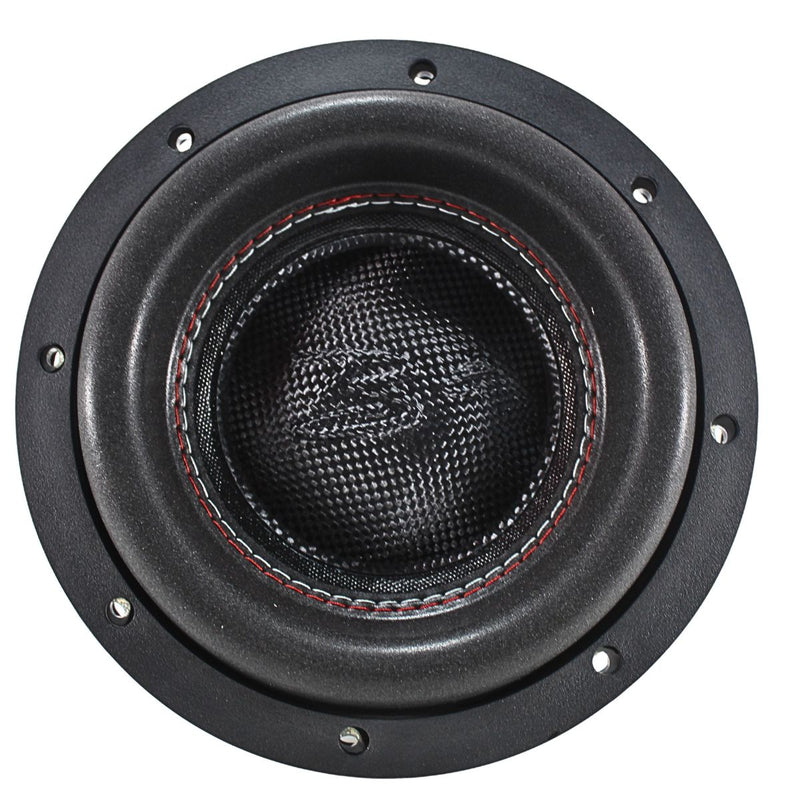

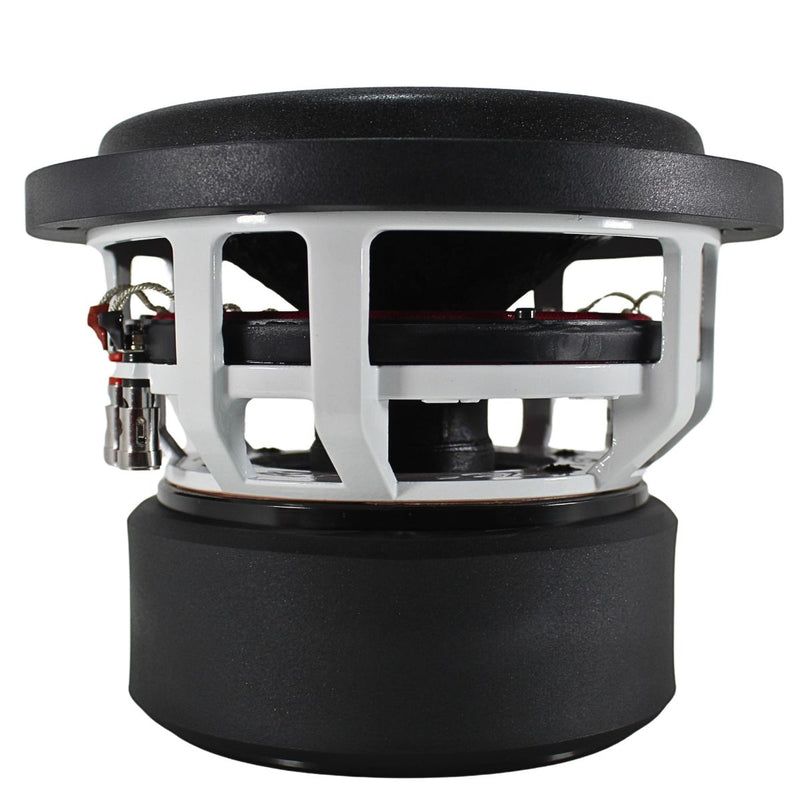

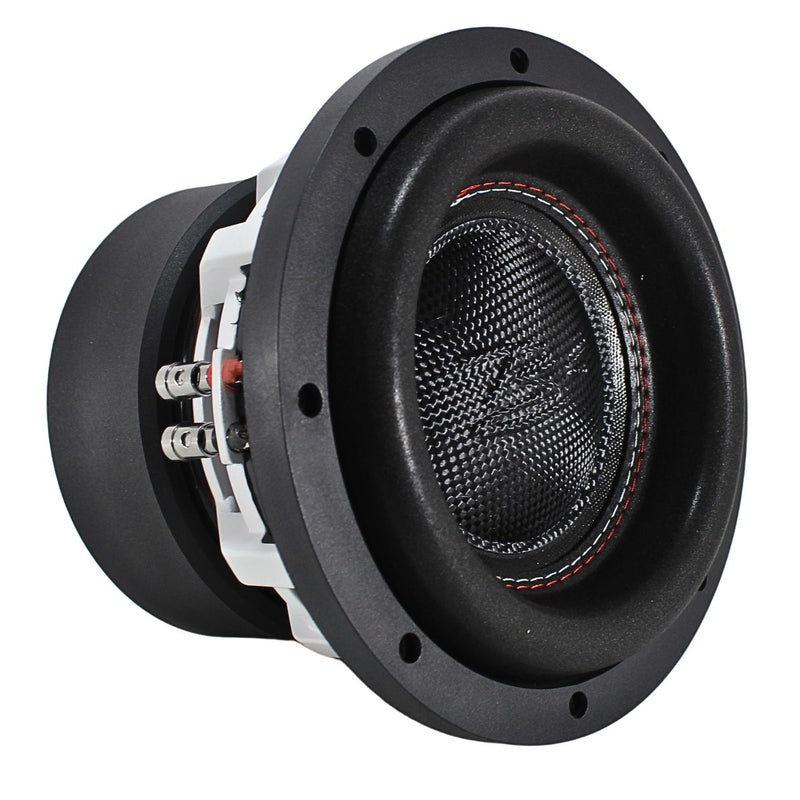

Matched with the new RAGE8-D4-V3 subwoofers, this combo brings serious low-end authority in a compact footprint. Each RAGE8 V3 handles 500 watts RMS with a long-excursion suspension, dual 4-ohm 2-inch copper voice coils, a tall U-shaped surround, RNPP cone, and a heavy-duty 175 oz ferrite motor for tight, impactful, and controlled bass. Whether this is going into a daily driver, small trunk build, or a more serious custom setup, Combo-20 delivers output you can feel and reliability you can trust.
Subwoofer Specifications (RAGE8-D4-V3):
- RMS Power: 500 Watts
- Peak Power: 1500 Watts
- Impedance: Dual 4-Ohm
- Voice Coil: 2 inch Copper
- Frequency Response: 10 Hz to 500 Hz
- Sensitivity: 80.6 dB
- Magnet Type: Ferrite
- Motor Weight: 175 Oz
- Cone: RNPP
- Surround: Tall U-Shaped Foam
Thiele Small Parameters:
- FS: 42.8 Hz
- Vas: 4.7 L
- RE(series): 6.4 Ohm
- Qms: 5.93
- Qes: 0.59
- Qts: 0.53
- CMS: 90 um/N
- BL/RE: 70
- MMS: 153.6 G
- Xmax (one way): 13 mm
- SD: 194.3 cm
- Efficiency: 0.07%
- Le(1 KHz): 3.2 mH
- EBP: 73
Enclosure Suggestions:
- Sealed: 0.274 cu.ft
- Ported Compact: 0.53 cu.ft tuned to 42 Hz
- Ported: 0.99 cu.ft tuned to 35 Hz
- Bandpass: 4th order capable
Dimensions:
- Overall Diameter: 8.66 in
- Baffle Cutout: 7.23 in
- Mounting Depth: 5.63 in
- Total Depth: 6.18 in
- Weight: 14.33 lbs each
Amplifier Specifications (B2-RAGE-1200.4-V2):
- RMS Power @ 4 ohm: 4 x 200 W
- RMS Power @ 2 ohm: 4 x 300 W
- RMS Power @ 1 ohm: 2 x 1200 W (Bridged @ 4-Ohm)
- Circuit Type: HI-EF Class D
- Frequency Response: 20 Hz to 20 KHz
- Signal to Noise Ratio: > 90 dB
- Input Sensitivity: 6 V to 0.2 V
- Crossover: 12 dB / OCT
- Low Pass: 40 Hz to 4 KHz
- High Pass: 40 Hz to 4 KHz
- Damping Factor: > 200
- Power Terminals: 0 AWG
- Fuse Rating: 100 A
Measurements:
- Length: 10.9 in
- Width: 6.69 in
- Height: 2.26 in
