(1) B2 Audio RAGE-1200.4-V2 1200W 4-Channel Class D Amplifier
User Manual & Mounting Hardware

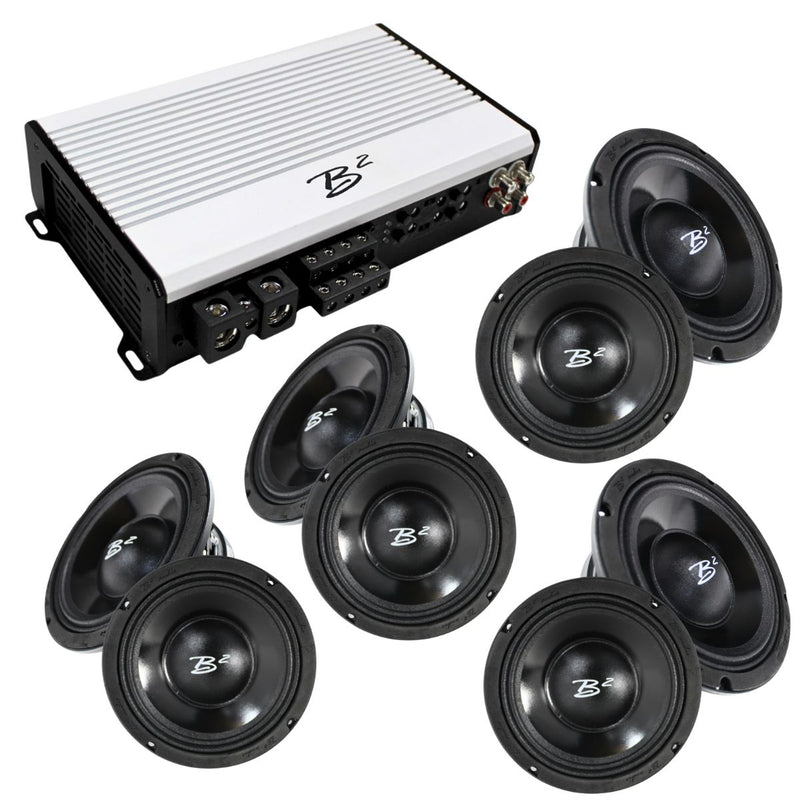

Unleash the full fury of your car audio system with this B2 Audio RAGE combo package. Designed for serious enthusiasts who demand power, clarity, and durability, this setup delivers everything you need to dominate the competition or elevate your daily ride.
Featuring 8 high-output RAGE8PWR midrange speakers paired with the RAGE-1200.4-V2 amplifier, you’ll experience earth-shaking volume, razor-sharp clarity, and unmatched efficiency. Built to withstand the elements and engineered for peak performance, this combo ensures your system performs flawlessly in any environment.

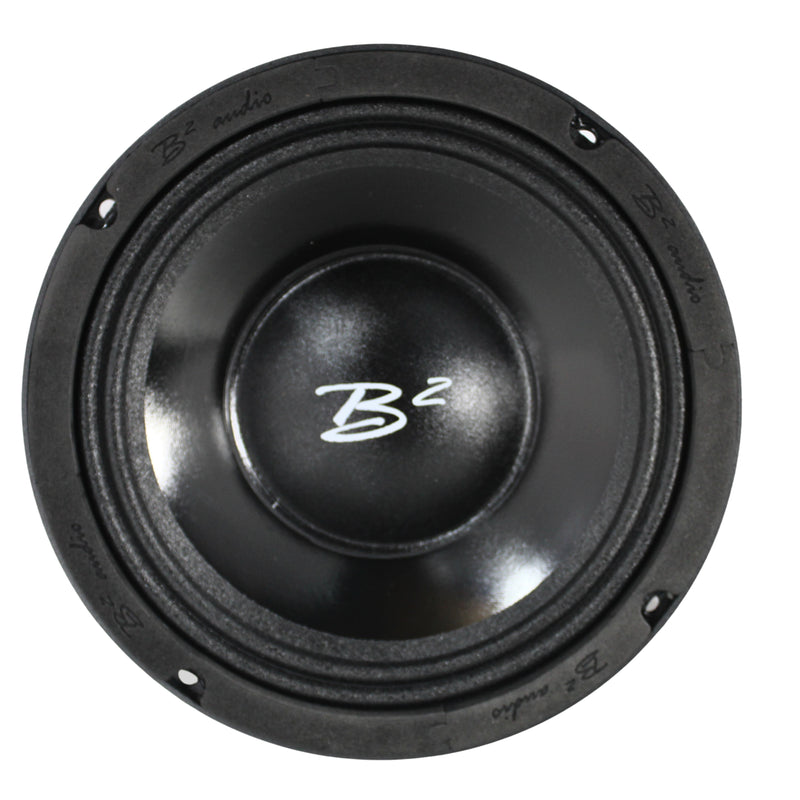

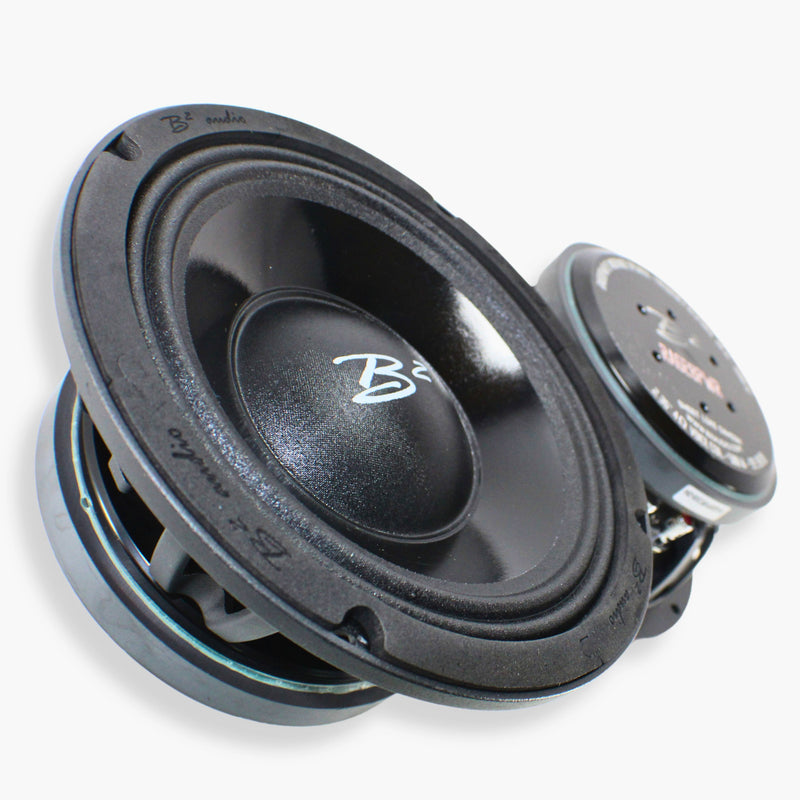

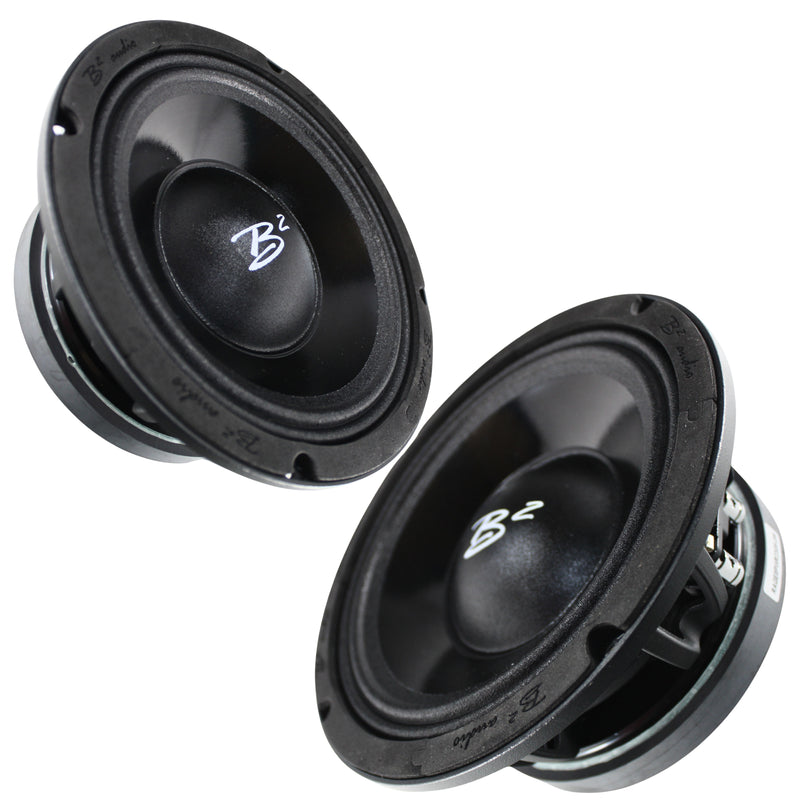

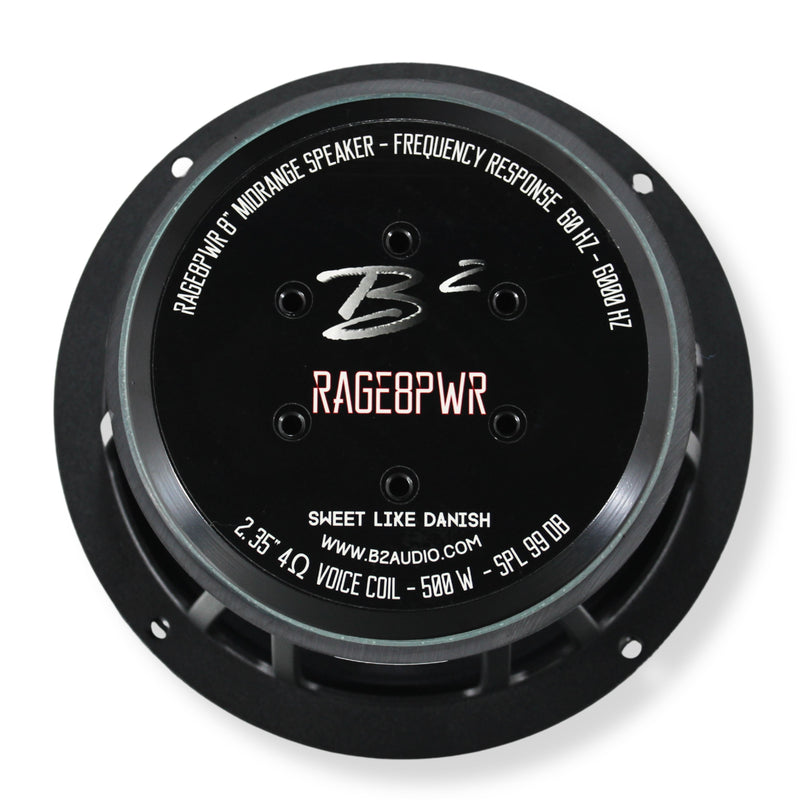

RAGE8PWR 8" Midrange Speakers (4 Pairs / 8 Total)
Key Features:
RMS Power Handling: 275W (per speaker)
Max Power Handling: 500W (per speaker)
Nominal Impedance: 4 Ohms
Voice Coil: 2"
Magnet: 30 oz
Frequency Response: 60 Hz - 6 KHz
Sensitivity: 99 dB
UV/Water Resistant Cone & Dust Cap
Measurements:
Overall Diameter: 8.38" (213mm)
Mounting Depth: 3.62" (92mm)
Front Baffle Cutout: 7.08" (180mm)
Sold as: (4 Pairs / 8 Total Speakers)

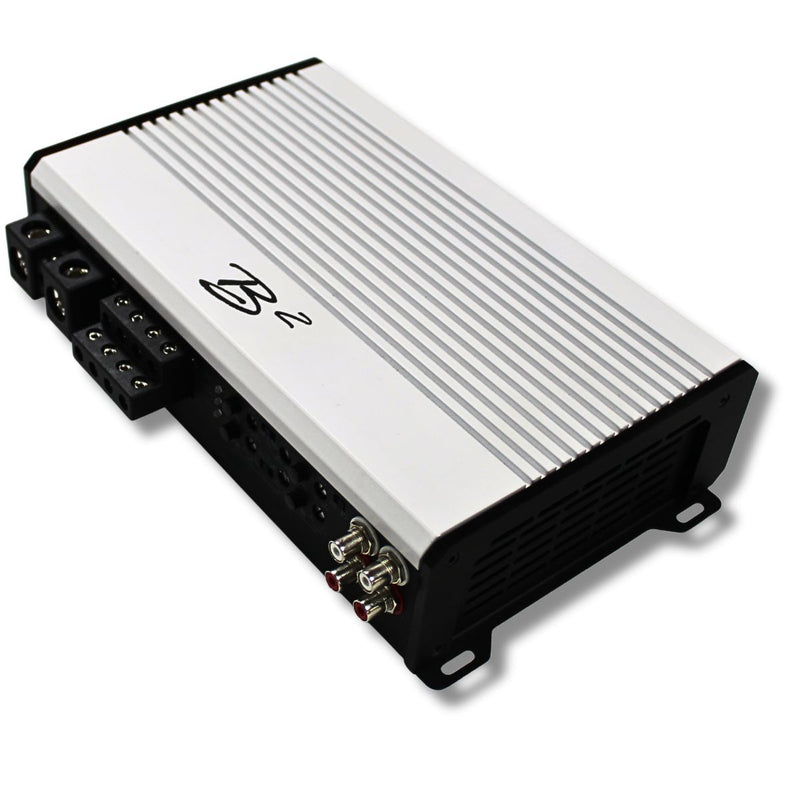

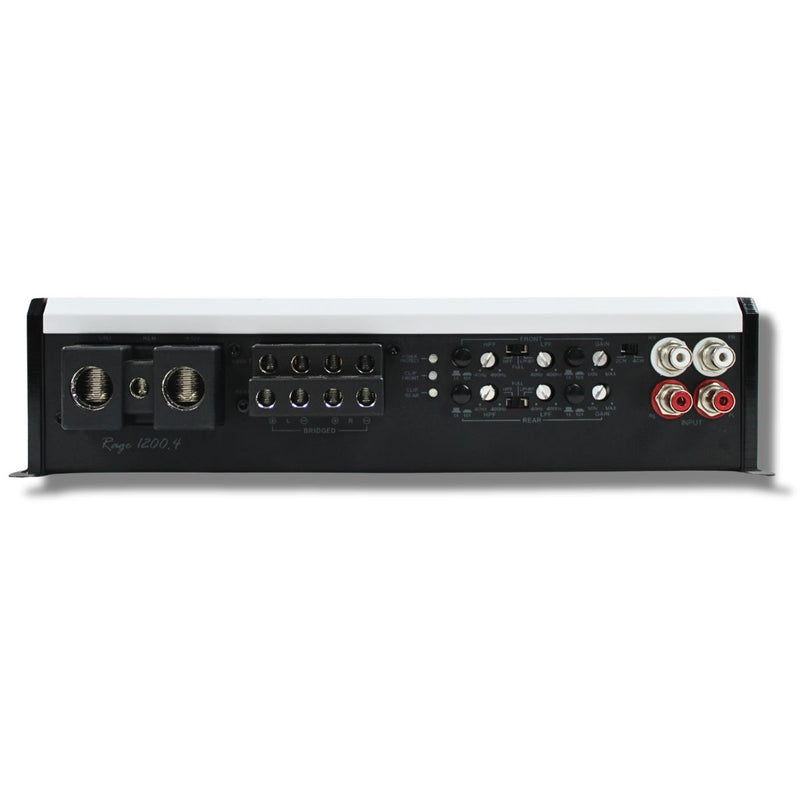

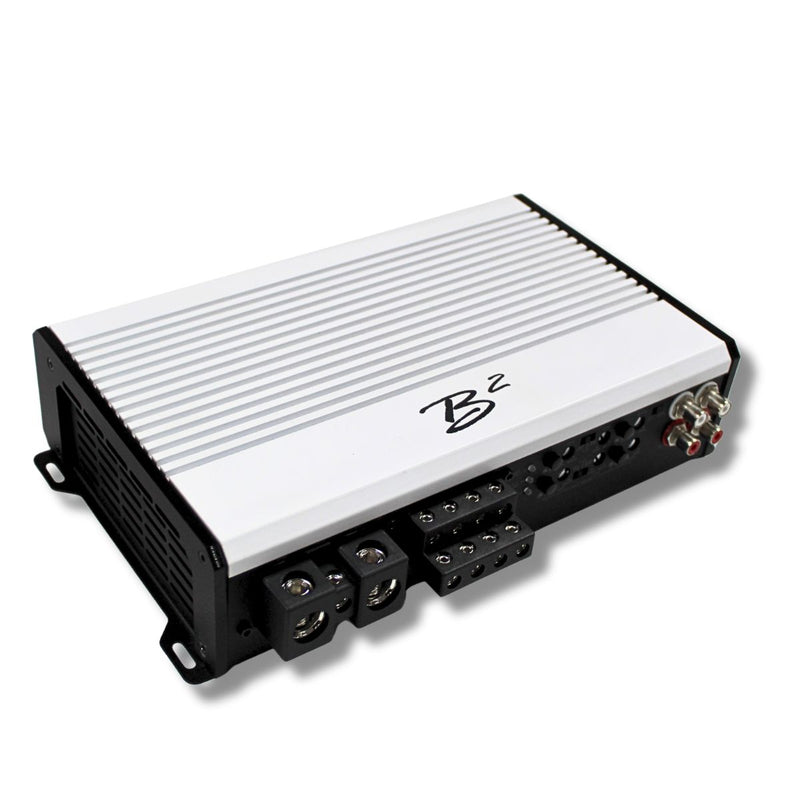

RAGE-1200.4-V2 1200W 4-Channel Amplifier
Key Features:
RMS Power @ 4 Ohm: 4 x 200W
RMS Power @ 2 Ohm: 4 x 300W
RMS Power (Bridged @ 4 Ohm): 2 x 1200W
Frequency Response: 20 Hz – 20 KHz
Signal-to-Noise Ratio: > 90 dB
Crossover Circuit: 12 dB/Oct
HPF/LPF: 40 Hz – 4 KHz
Damping Factor: > 200
Power Input: 0 AWG
Fuse Rating: 100A
Measurements:
Length: 10.9" (27.8 cm)
Width: 6.69" (17 cm)
Height: 2.26" (5.7 cm)
