- Balanced Mid & High Frequency System: Properly matched amplifier, midrange speakers, and tweeters for clean, controlled front-stage performance.
- Efficient Power Delivery: Hi-EF Class D amplifier design provides strong output with controlled heat and current draw.
- Clear, Detailed Sound: RIOT8P mids deliver punchy midrange output, while H1 Neo tweeters provide smooth, accurate high-frequency response.
- Built for Real-World Installs: Durable speaker construction, included tweeter capacitors, and amplifier protection circuitry support long-term reliability.

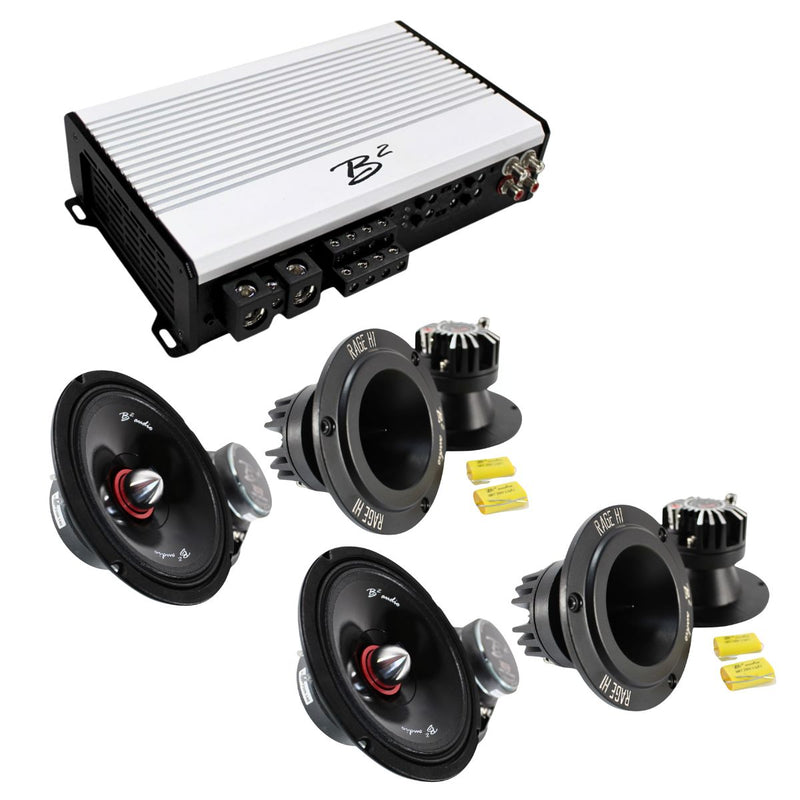

B2 Audio RAGE 1200.4 Amplifier + RIOT8P 8" Midrange + RAGE H1 Neo Tweeter Combo
This listing includes:
- (1) B2 Audio RAGE-1200.4-V2 4-Channel Amplifier
- (4) B2 Audio RIOT8P 8" 4-Ohm Midrange Speakers (2 Pairs)
- (4) B2 Audio RAGE H1 Neo 4-Ohm Tweeters (2 Pairs)
This combo pairs the B2 Audio RAGE 1200.4 4-channel amplifier with a set of RIOT8P 8" midrange speakers and RAGE H1 Neo tweeters to create a balanced, high-output mid and high frequency system. Designed for users who want strong midrange presence with smooth, controlled high-frequency detail, this setup delivers clarity, efficiency, and reliable power handling.
The RAGE 1200.4 amplifier provides flexible channel configuration, allowing mids and tweeters to be powered separately for improved tuning and control. Built on B2's Hi-EF Class D platform, the amplifier delivers consistent output with reduced heat and current draw, making it well suited for daily-driven or high-output systems.
The RIOT8P midrange speakers handle vocals and midband duties with high sensitivity and aggressive projection, while the RAGE H1 Neo tweeters add clean, detailed highs using a titanium diaphragm and neodymium motor structure. Compared to bullet-style tweeters, the H1 Neo offers a smoother top-end response while still maintaining strong output.
This combo is ideal for door builds, pods, or front-stage focused systems where clarity and efficiency are the priority.

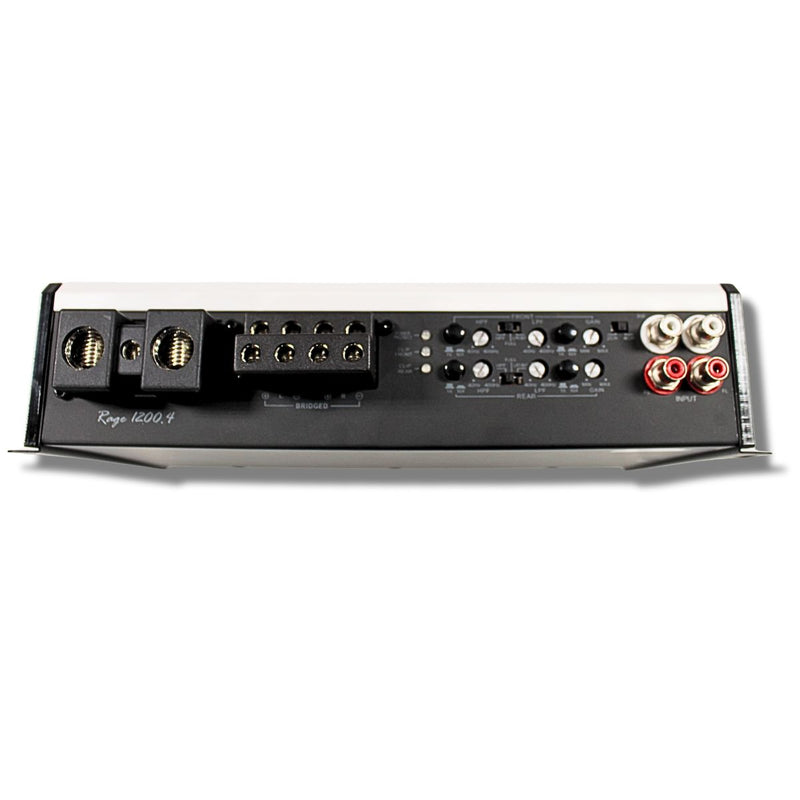

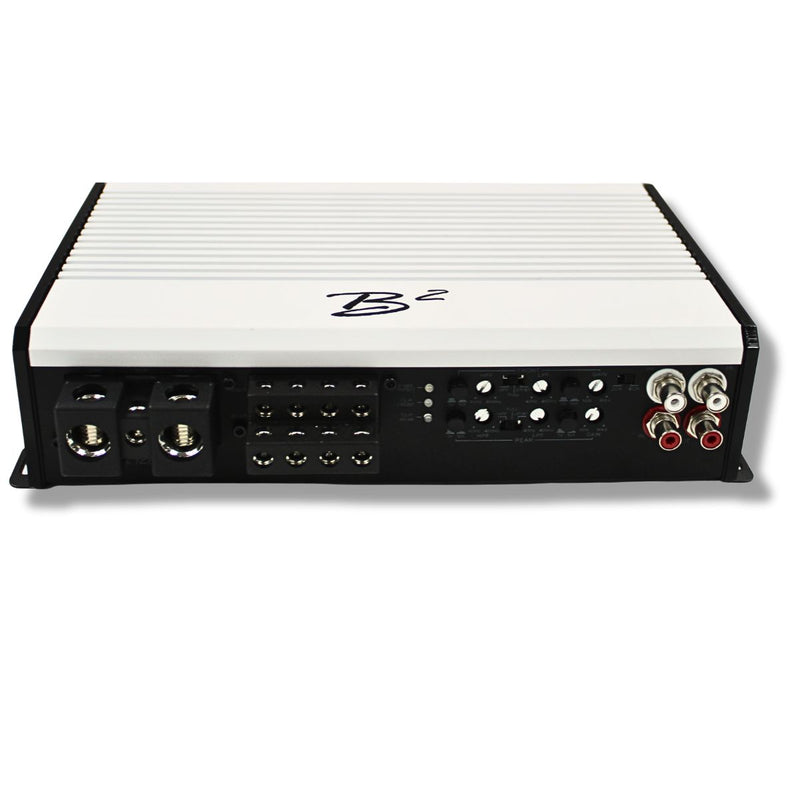

Amplifier Specifications - B2 Audio RAGE-1200.4-V2
- RMS Power @ 4 Ohm: 4 x 200 Watts
- RMS Power @ 2 Ohm: 4 x 300 Watts
- RMS Power @ 4 Ohm Bridged: 2 x 1200 Watts
- Circuit Type: Hi-EF Class D
- Frequency Response: 20 Hz - 20 kHz
- Signal-to-Noise Ratio: > 90 dB
- Input Sensitivity: 6V - 0.2V
- Crossover Slope: 12 dB / Octave
- Low-Pass Filter: 40 Hz - 4 kHz
- High-Pass Filter: 40 Hz - 4 kHz
- Damping Factor: > 200
- Power Terminals: 0 AWG Compatible
- Fuse Rating: 100A

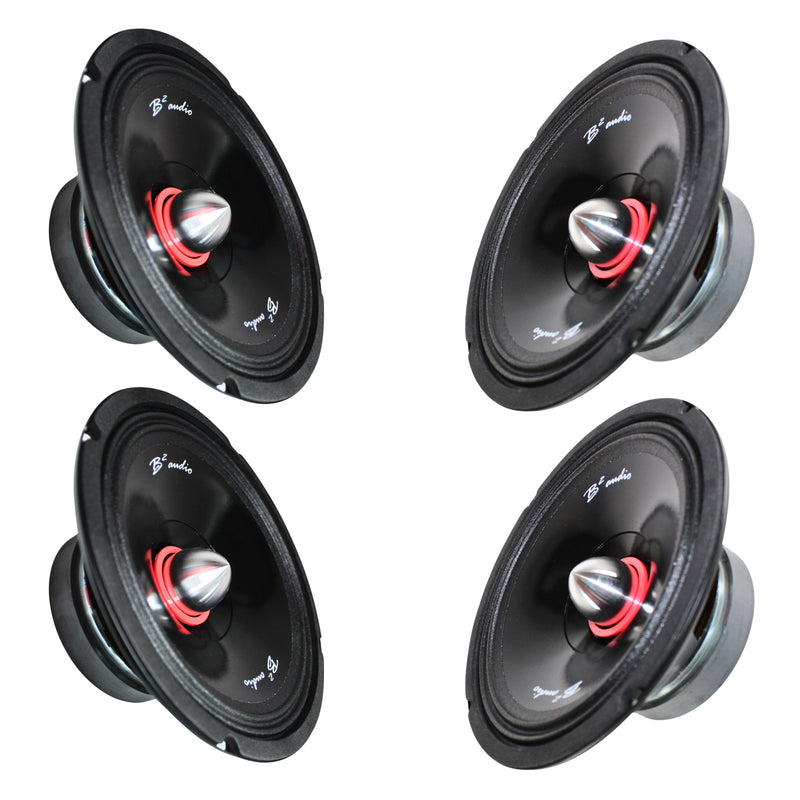

Speaker Specifications - B2 Audio RIOT8P (Each Speaker)
- RMS Power Handling: 150 Watts
- Maximum Power Handling: 300 Watts
- Nominal Impedance: 4 Ohm
- Frequency Response: 80 Hz - 10 kHz
- Sensitivity: 97 dB
- Mounting Depth: 3.23"
- Cutout Diameter: 7.2"

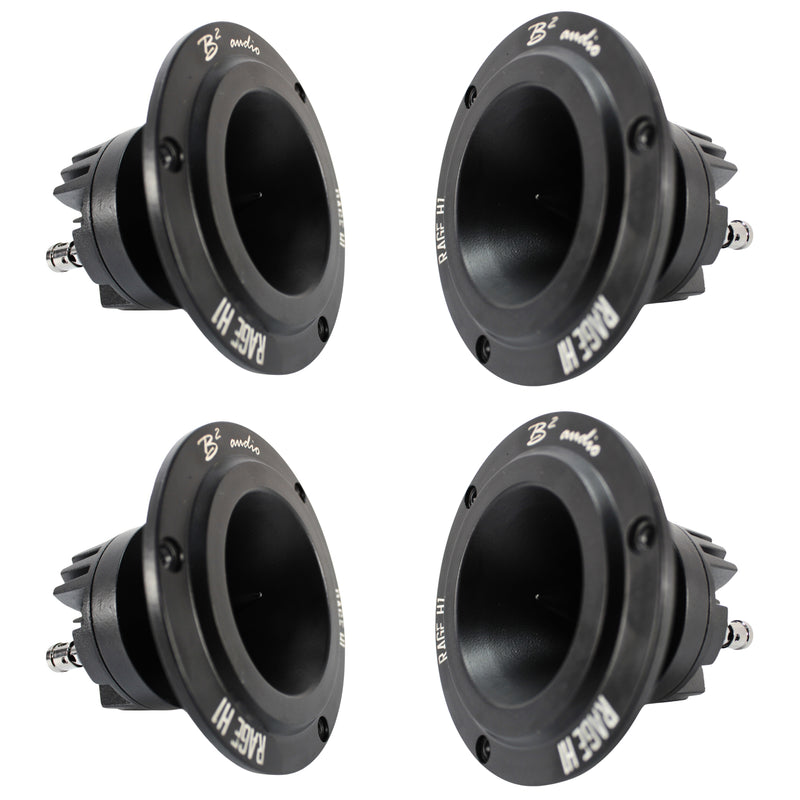

Tweeter Specifications - B2 Audio RAGE H1 Neo (Each Tweeter)
- RMS Power Handling: 100 Watts
- Maximum Power Handling: 200 Watts
- Nominal Impedance: 4 Ohm
- Frequency Response: 2 kHz - 20 kHz
- Sensitivity: 104 dB
- Diaphragm Type: Titanium
- Magnet Type: Neodymium
- Mounting Depth: 2.48"
Recommended Wiring Configuration
- Wire two RIOT8P midrange speakers per channel in parallel for a 2-ohm load on two amplifier channels
- Wire two RAGE H1 Neo tweeters per channel in parallel for a 2-ohm load on the remaining two channels

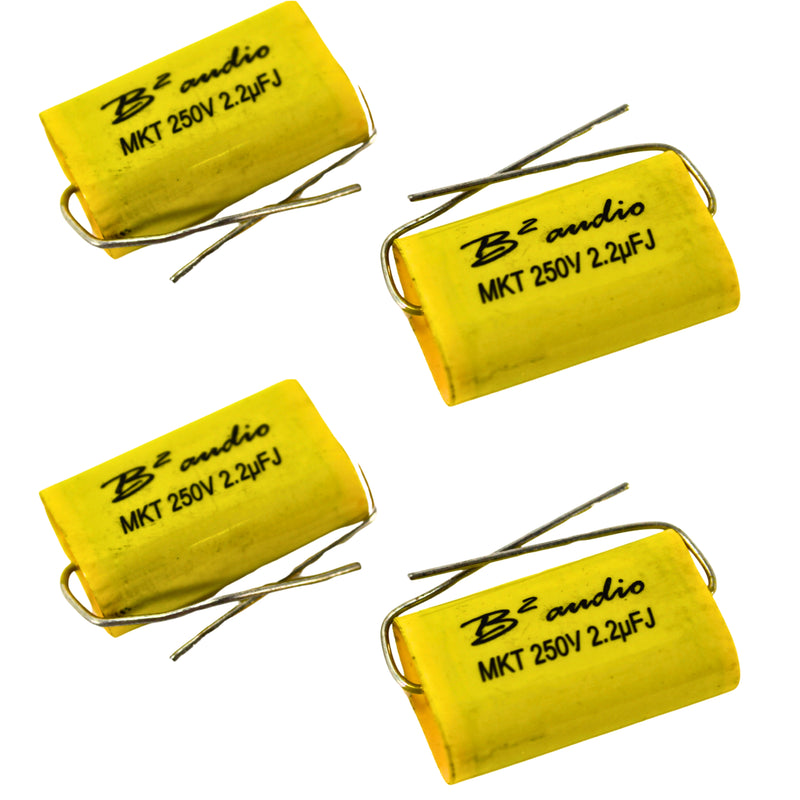

- Install the included capacitors inline with each tweeter for high-pass protection
- Set appropriate high-pass crossover points and tune gains carefully to maintain clean output and speaker longevity
