- Everything You Need in One Combo: Comes complete with amplifier, speakers, tweeters, crossovers, and grilles, making this an ideal upgrade package for enthusiasts who want a reliable, high-quality car audio system from a trusted performance brand.
- Powerful Complete Audio Upgrade: This combo includes the B2 Audio RAGE 4-Channel 1.2K amplifier paired with two RIOT61-V2 component sets, giving you everything you need to dramatically improve clarity, volume, and overall sound quality in your vehicle.
- High-Performance 4-Channel Amplifier: The RAGE 1200W full-range amplifier delivers up to 4 x 200W RMS at 4 ohms or 4 x 300W RMS at 2 ohms, using HI-EF Class D technology for efficient, powerful, and clean sound output with minimal distortion.
- Premium Component Speaker System: Includes four 6.5 inch midrange speakers rated at 100W RMS each, delivering strong mids and detailed sound reproduction, along with four silk dome tweeters for crisp, smooth, high-frequency clarity.
- Engineered for Clean, Balanced Sound: Integrated crossovers ensure proper frequency distribution between midrange drivers and tweeters, resulting in accurate sound staging, improved detail, and a more immersive listening experience inside your vehicle.

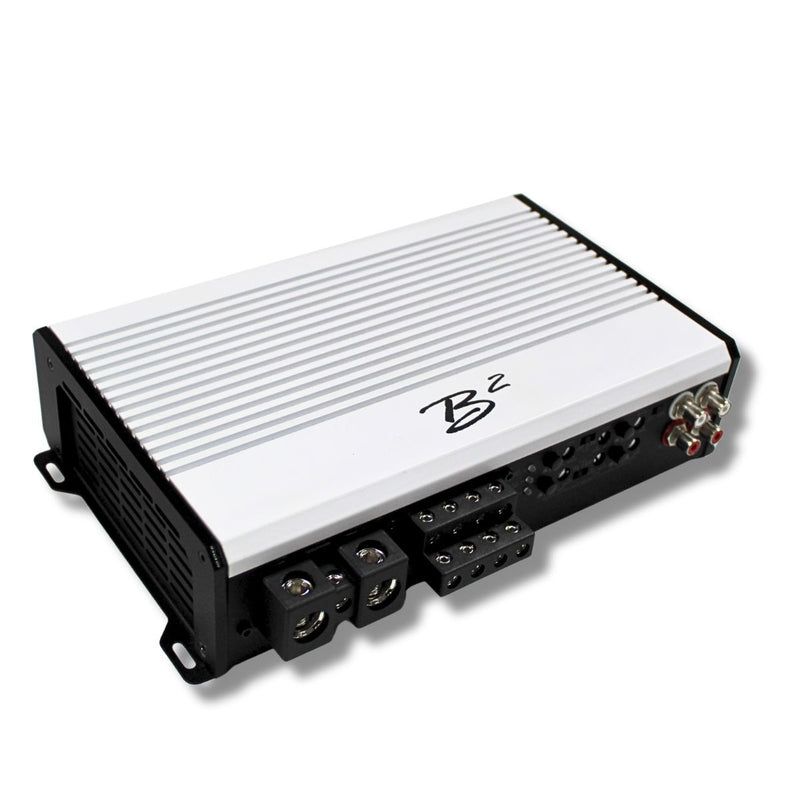

B2 Audio RAGE 4 Channel 1.2k Amp W/ 2 RIOT61-V2 Component Sets COMBO-15

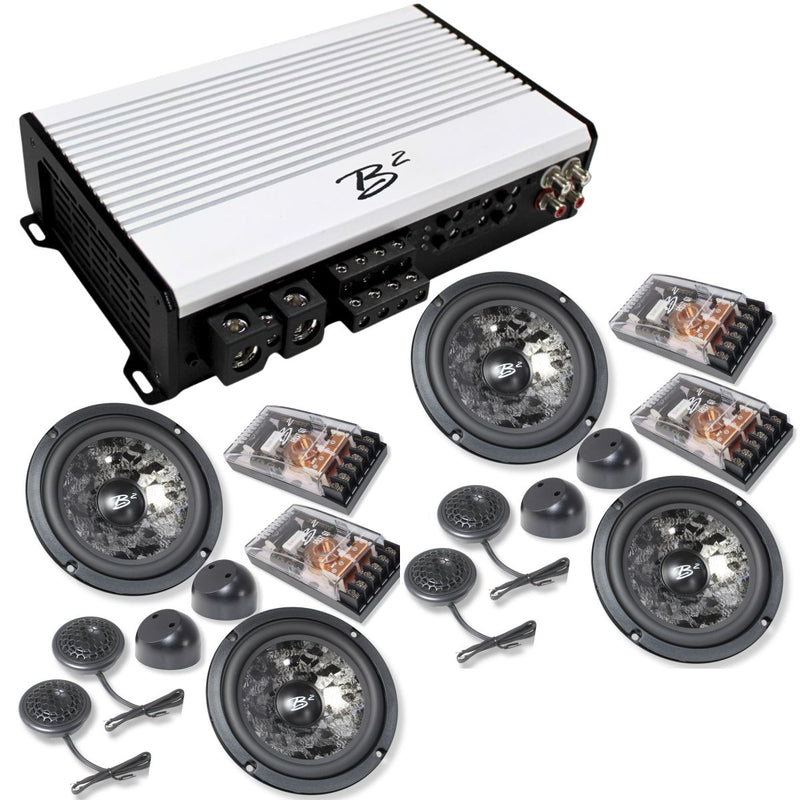

This Listing Includes:
- (1) 1200 Watt 4-Channel 4-Ohm Full Range Amplifier
- (4) 6.5" 100W RMS Midrange Speakers

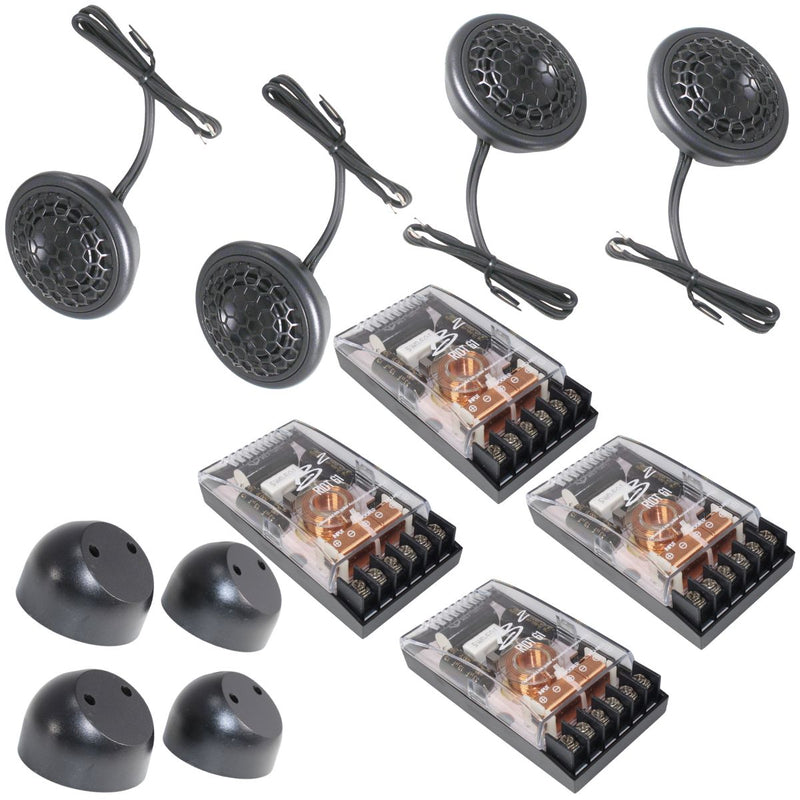

- (4) Silk Dome 10W RMS Tweeters
- (4) Crossovers
- (4) Grilles for the 6.5" Speakers
This combo pairs the proven power of the B2 Audio RAGE 4-Channel 1.2k amplifier with the updated RIOT61-V2 component speaker sets for a balanced, high-output full-range system. Designed for clean daily performance with aggressive tuning potential, this package delivers controlled midbass, smooth highs, and efficient power handling across all four channels.
The RAGE amplifier’s HI-EF Class D circuitry ensures stable, distortion-free output, while the RIOT61-V2 components feature a revised midrange and crossover design for improved clarity, durability, and installation flexibility.
Why This Combo Makes Sense
- Updated RIOT61-V2 components (not the original RIOT61)
- Proper power matching for 4-channel full-range systems
- Clean Class D efficiency with strong headroom
- Ideal for front/rear component builds or active soundstage layouts
- Everything needed for a complete mid/high upgrade in one package
Features:

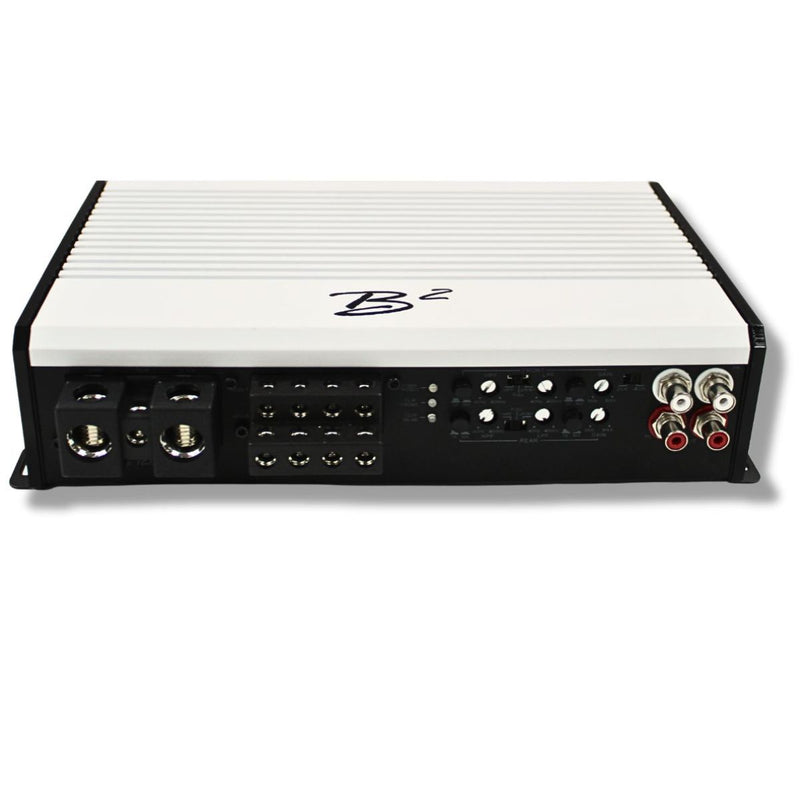

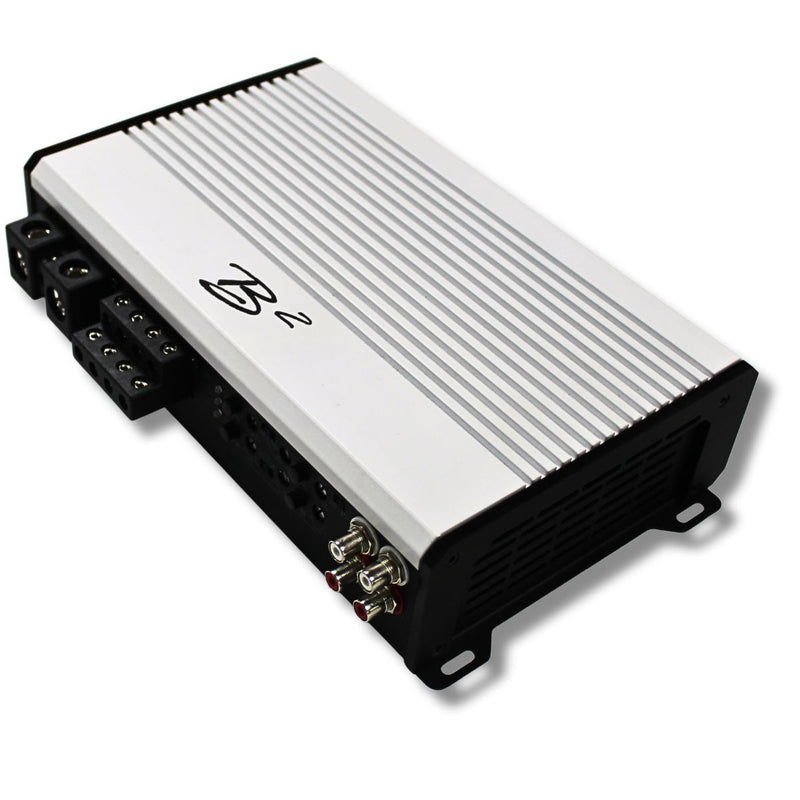

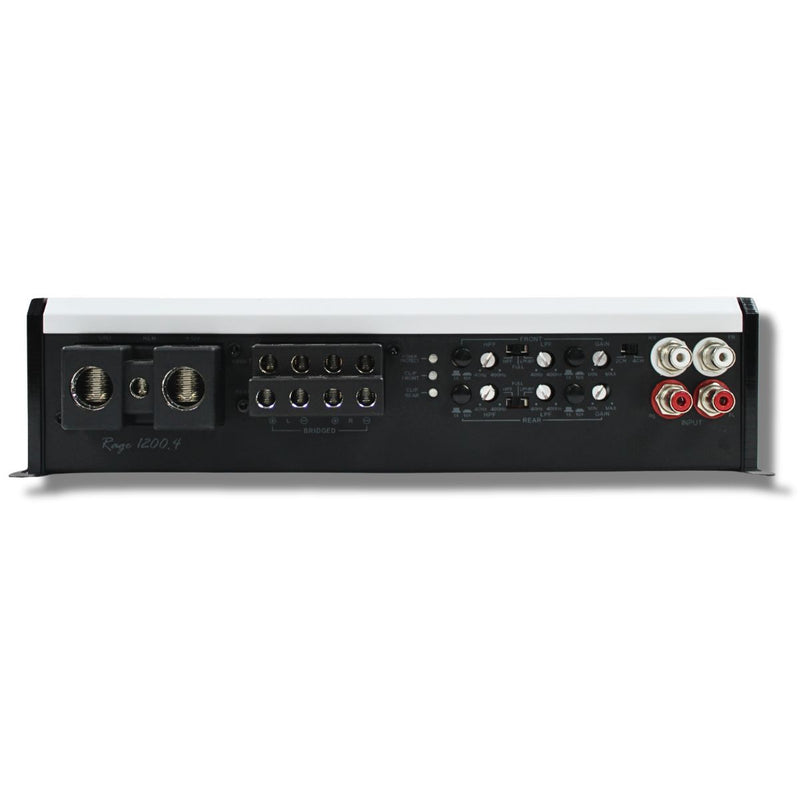

Amplifier Specifications:
- RMS Power @ 4 ohm: 4 x 200 W
- RMS Power @ 2 ohm: 4 x 300 W
- RMS Power @ 1 ohm: N/A / 2 x 600 W (Bridged @ 4-Ohm)
- Circuit Configuration: HI-EF CLASS D
- Frequency Response: 10 Hz - 24 KHz (+/- 3dB)
- Signal to Noise Ratio: > 90 dB
- Input Sensitivity: 6 V - 0.2 V
- Crossover Circuit: 12 dB / OCT
- Low Pass Crossover: 50 Hz - 5 KHz
- High Pass Crossover: 20 Hz - 4 KHz
- Damping Factor: > 200
- Power Terminal Guage: 0 AWG
- Fuse Rating: 100 A

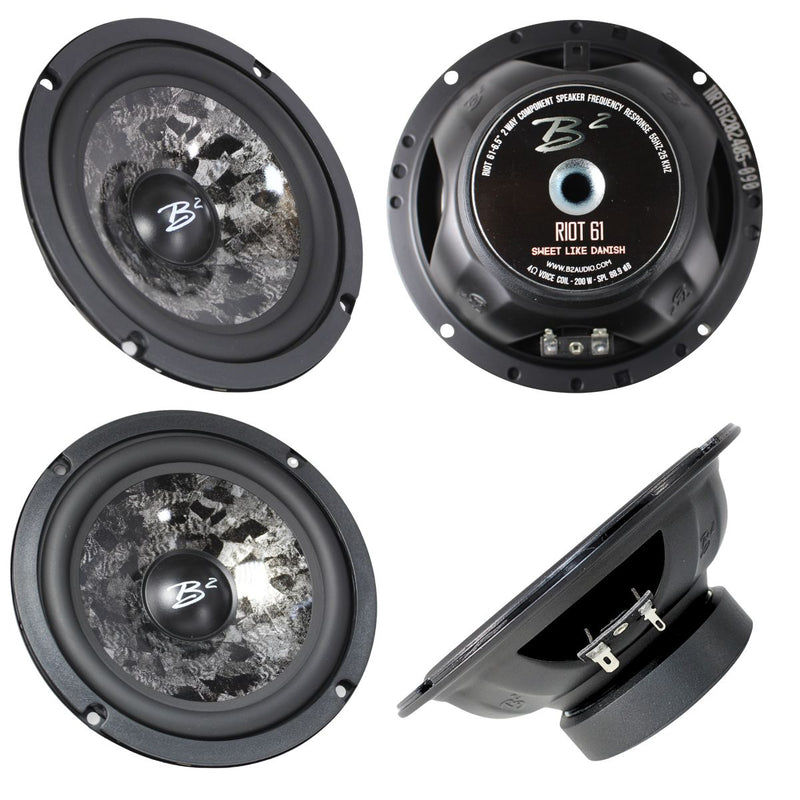

Midrange Specifications:
- Nominal Chassis Diameter: 6.5"
- RMS Power Handling: 75W
- Maximum Power Handling: 200W
- Nominal Impedance: 4 Ohm
- Resonance Frequency: 52 Hz
- Voice Coil Diameter: 1"
- Winding Material: CCA / Copper
- Magnet Type : Neo / Ferrite
- Magnet Weight: 11.7 Oz

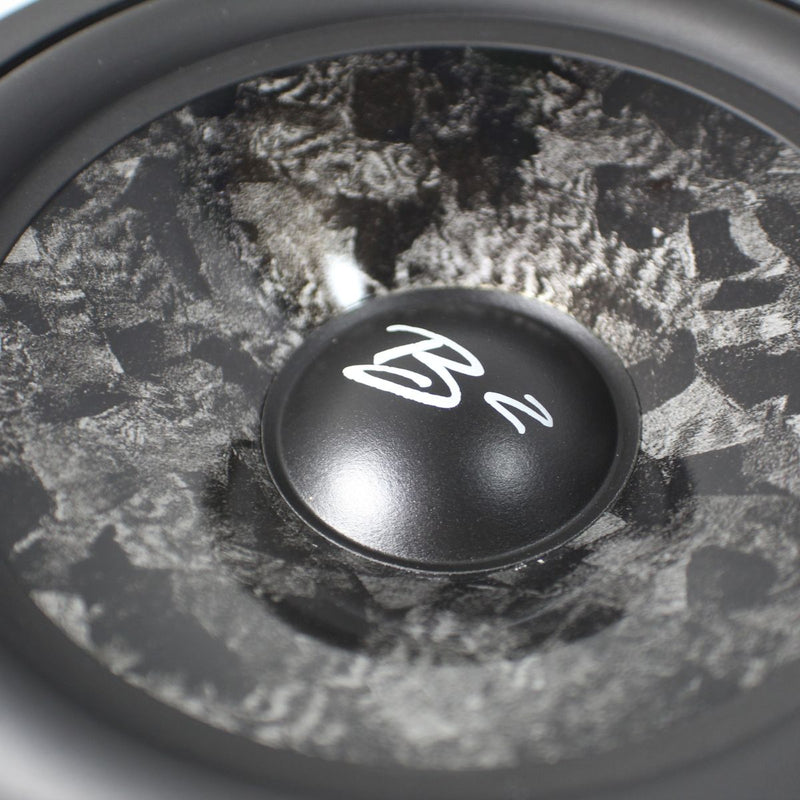

- Cone Material: IMWRP
- Frequency Response: 55 Hz ~ 25 KHz
- Sensitivity: 88.9 dB
- Surround Type: U Shaped Rubber
Tweeter Specs:
- RMS Power Handling: 10W
- Max Power Handling: 25W
- Nominal Impedance: 4 Ohm
- Voice Coil Diameter: 1"
- Sensitivity: 94 dB
- Free Air Resonance (Fs): 1.8 KHz
Thiele & Small Parameters:
Midrange:
- Free Air Resonance (Fs): 55 Hz
- Resistance (Re): 3.3 ohm
- Mechanical Factor (Qms): 5.54
- Electrical Factor (Qes): 0.666
- Total Factor (Qts): 0.595
- Equivalent Volume (Vas): 8.64 L
- Compliance (Cms): 560 um/N
- BL Factor (BL): 5.56 T/M
- Moving Mass (Mms): 18.89 g
- XMAX: 6.5 mm
- SD: 128.68 cm^2
- Efficiency: 0.241 Percent
- Le (1 KHz): 0.479 mH
- EBP: 82.58
Dimensions:
Midrange
- Overall Diameter: 6.53" / 166mm
- Baffle Cutout Diameter: 5.59 in / 142 mm
- Net Weight (1 pc): 0.96 kgs
- Shipping Weight (sets): 2.51 kgs
- Shipping Box (set): 385 x 195 x 100 mm
- Mounting Diameter: 5.66" / 144mm
- Front Mount Baffle Cutout: 5.55 / 141mm
- Overall Depth: 2.59 / 65.9mm
- Mounting Depth: 2.40" / 61mm
- Sold as: (Pair)
Tweeter
- Overall Diameter: 1.96" / 50mm
- Overall Depth: 1.00" / 25.6mm
- Mounting Depth: 0.63" / 16mm
