- Matched Mid & High Frequency System: Properly paired amplifier, midrange speakers, and tweeters for clean, high-output front-stage performance.
- Efficient Power Delivery: Hi-EF Class D amplifier design provides strong output with reduced heat and current draw.
- Clear and Aggressive Sound: RIOT8P mids deliver punchy midrange response, while RAGE T1 NEO tweeters provide crisp, detailed highs with high SPL capability.
- Built for Real-World Installs: Durable components, included tweeter capacitors, and amplifier protection circuitry support long-term reliability.

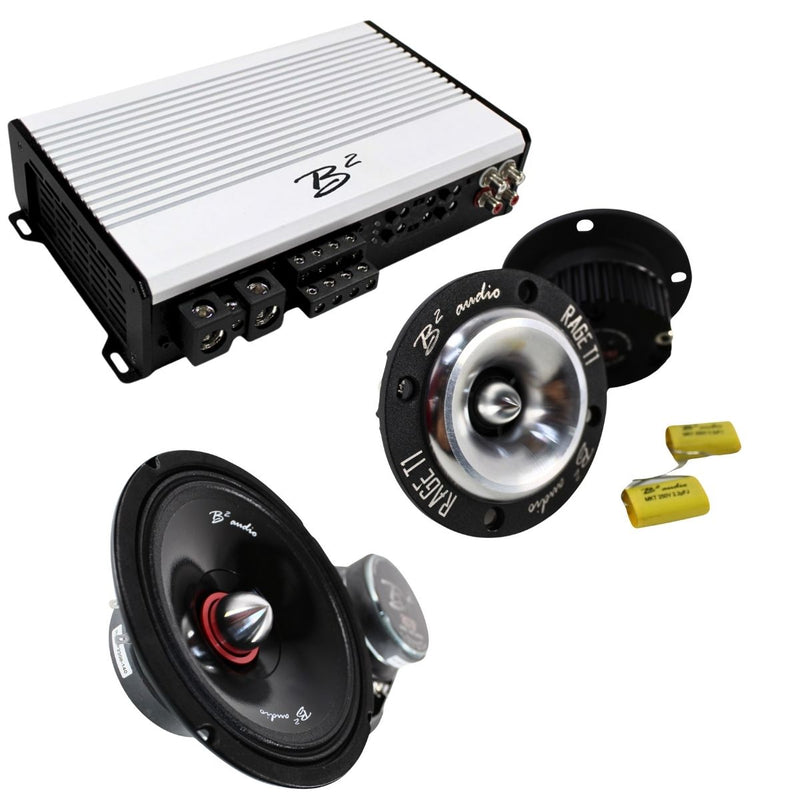

B2 Audio RAGE 1200.4 Amplifier + RIOT8P 8" Midrange + RAGE T1 NEO Tweeter Combo
This Listing Includes:
- (1) B2 Audio RAGE-1200.4-V2 4-Channel Amplifier
- (2) B2 Audio RIOT8P 8" 4-Ohm Midrange Speakers (1 Pair)
- (2) B2 Audio RAGE T1 NEO 4-Ohm Bullet Tweeters (1 Pair)
This combo pairs the B2 Audio RAGE 1200.4 4-channel amplifier with a set of RIOT8P 8" midrange speakers and RAGE T1 NEO bullet tweeters to create a loud, efficient, and well-balanced mid and high frequency system. Designed for users who want strong vocal presence and crisp high-frequency output, this setup delivers clarity and projection without excessive power demand.
The RAGE 1200.4 amplifier provides flexible channel configuration, allowing mids and tweeters to be powered separately for better control and tuning. Built on B2's Hi-EF Class D platform, it delivers consistent power while maintaining efficiency and thermal stability in both daily and high-output applications.
The RIOT8P midrange speakers handle vocal and midband duties with high sensitivity and aggressive output, while the RAGE T1 NEO tweeters add sharp, detailed highs using a titanium diaphragm and neodymium motor structure. With included capacitors, the tweeters are protected for simple and reliable integration.
This combo is ideal for door builds, pods, or front-stage focused systems where efficiency, clarity, and output are the priority.

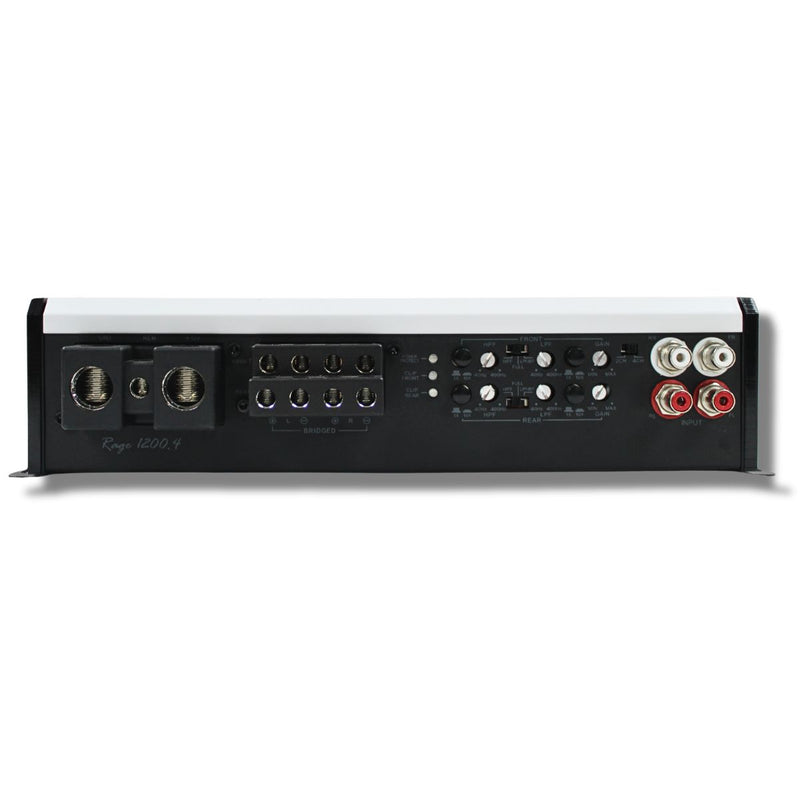

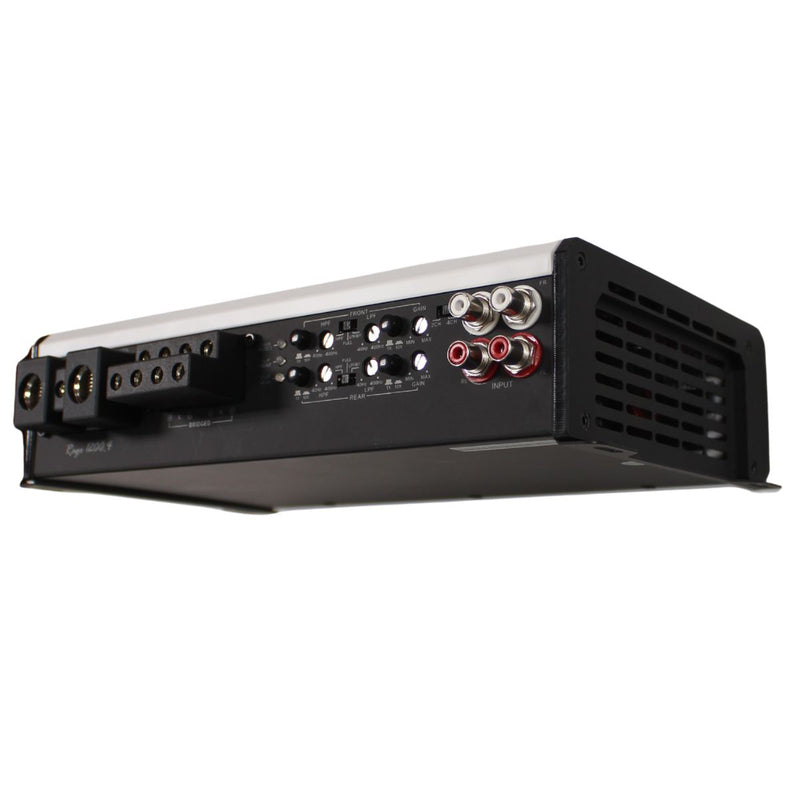

Amplifier Specifications - B2 Audio RAGE-1200.4-V2
- RMS Power @ 4 Ohm: 4 x 200 Watts
- RMS Power @ 2 Ohm: 4 x 300 Watts
- RMS Power @ 4 Ohm Bridged: 2 x 1200 Watts
- Circuit Type: Hi-EF Class D
- Frequency Response: 20 Hz - 20 kHz
- Signal-to-Noise Ratio: > 90 dB
- Input Sensitivity: 6V - 0.2V
- Crossover Slope: 12 dB / Octave
- Low-Pass Filter: 40 Hz - 4 kHz
- High-Pass Filter: 40 Hz - 4 kHz
- Damping Factor: > 200
- Power Terminals: 0 AWG Compatible
- Fuse Rating: 100A

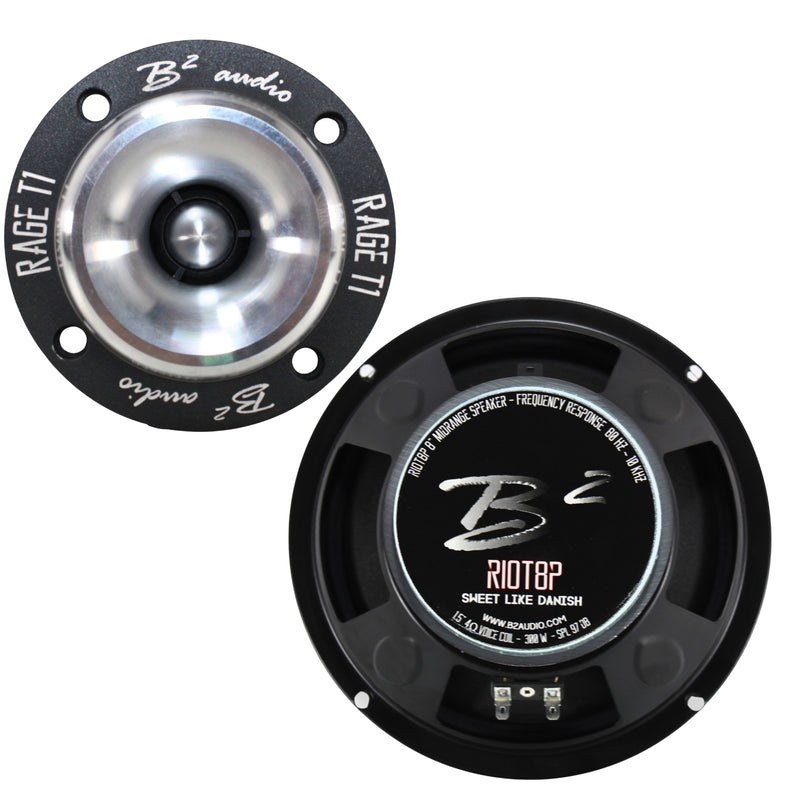

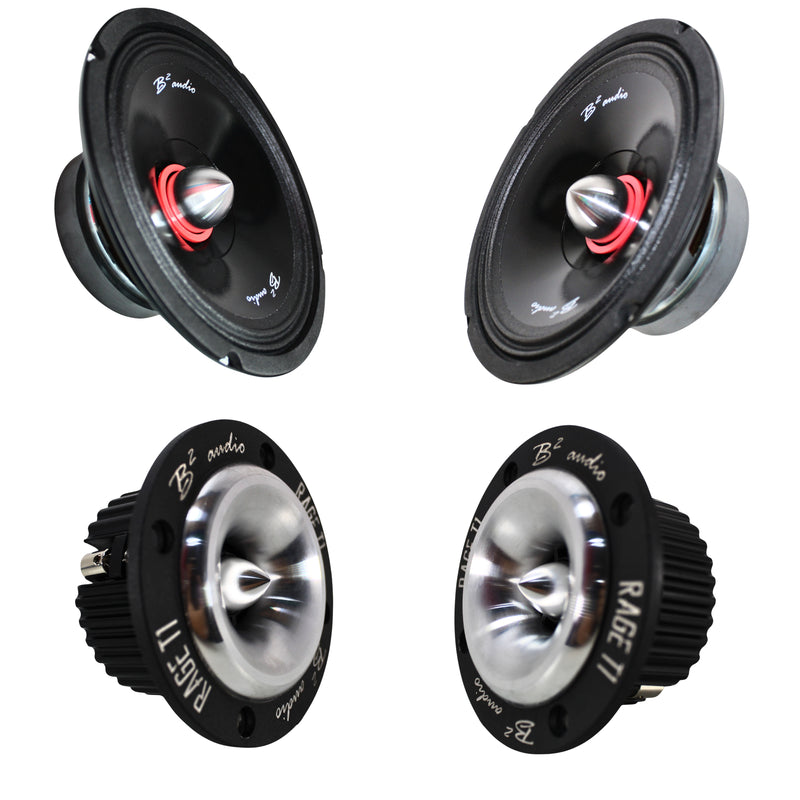

Speaker Specifications - B2 Audio RIOT8P (Each Speaker)
- RMS Power Handling: 150 Watts
- Maximum Power Handling: 300 Watts
- Nominal Impedance: 4 Ohm
- Frequency Response: 80 Hz - 10 kHz
- Sensitivity: 97 dB
- Mounting Depth: 3.23"
- Cutout Diameter: 7.2"
Tweeter Specifications - B2 Audio RAGE T1 NEO (Each Tweeter)
- RMS Power Handling: 100 Watts
- Maximum Power Handling: 200 Watts
- Nominal Impedance: 4 Ohm
- Frequency Response: 3 kHz - 20 kHz
- Sensitivity: 106 dB
- Diaphragm Type: Titanium
- Mounting Depth: 1.30"
Recommended Wiring Configuration
- Use two amplifier channels to power the RIOT8P midrange speakers at 4 ohms per channel
- Use the remaining two channels to power the RAGE T1 NEO tweeters at 4 ohms per channel
- Install the included capacitors inline with each tweeter for high-pass protection
- Set amplifier high-pass crossover settings appropriately and tune gains carefully for clean output and speaker longevity
