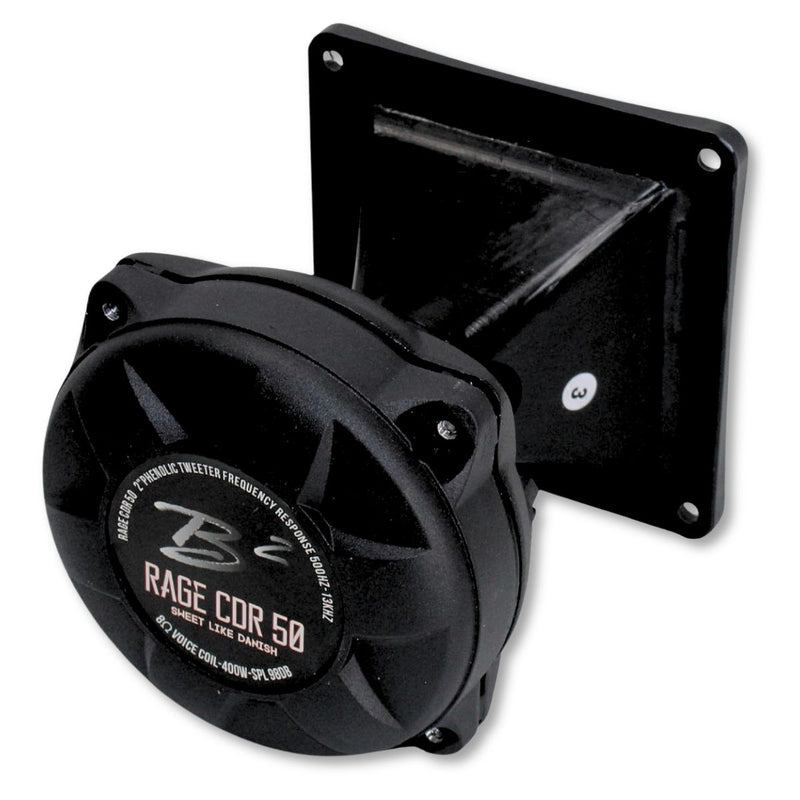

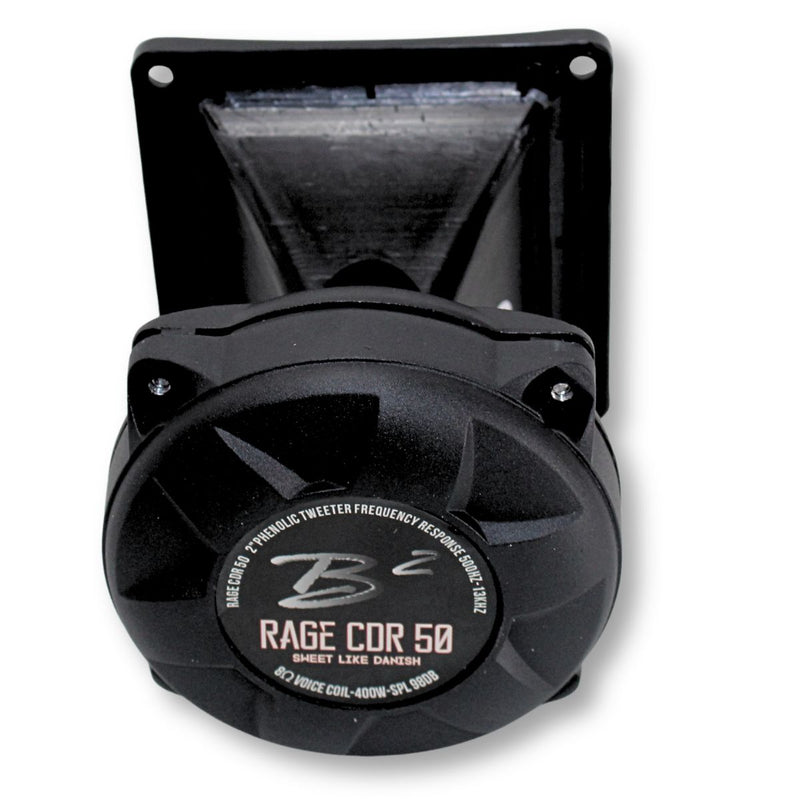

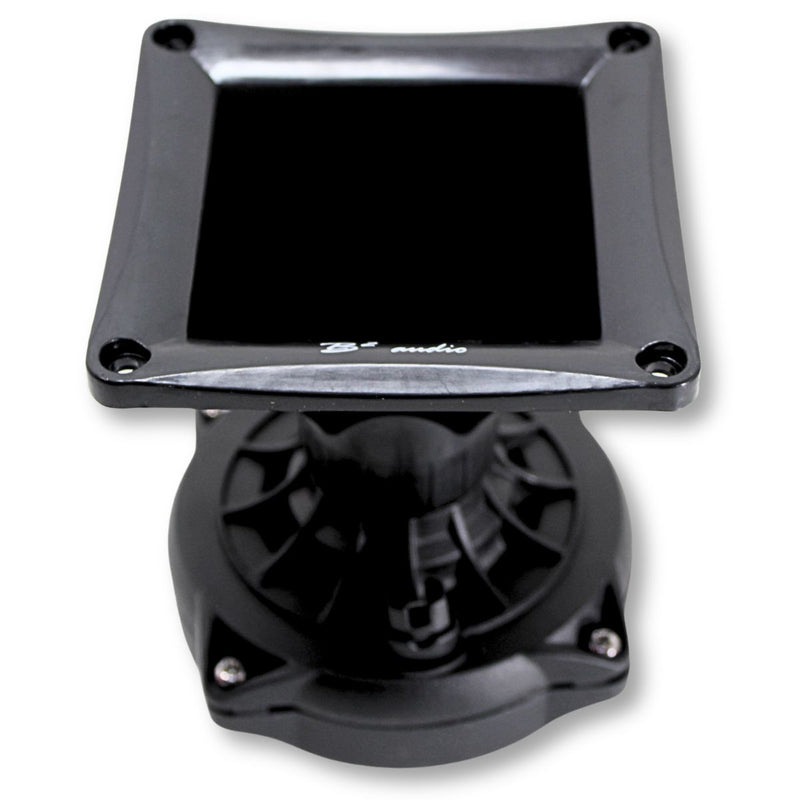

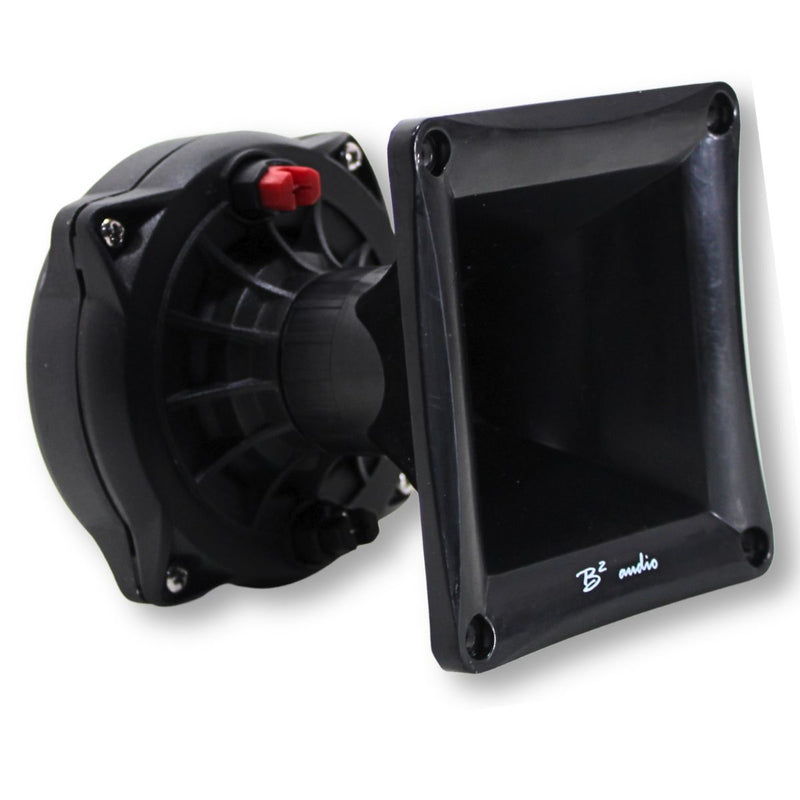

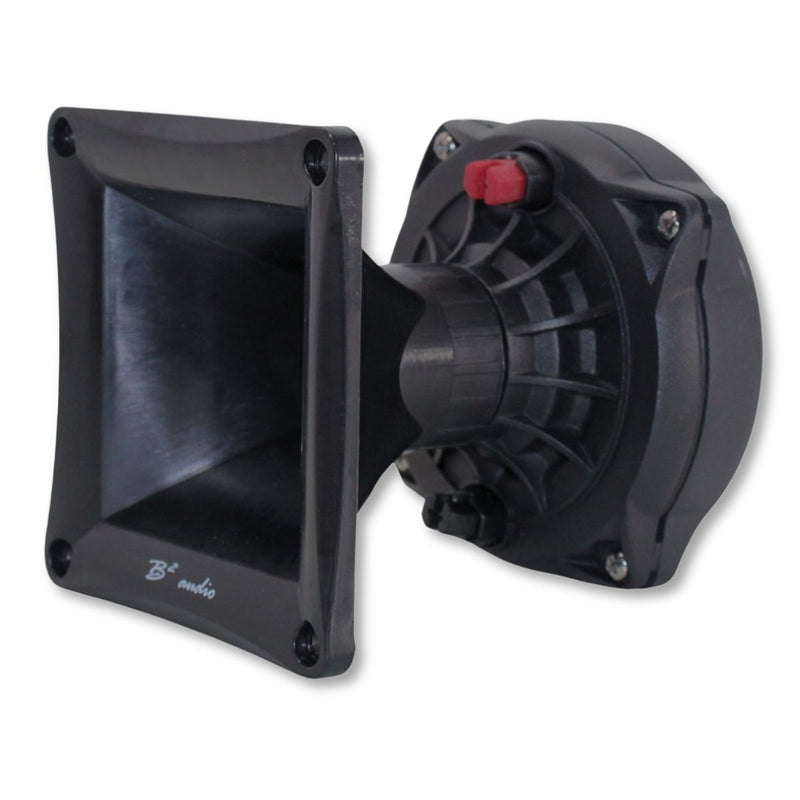

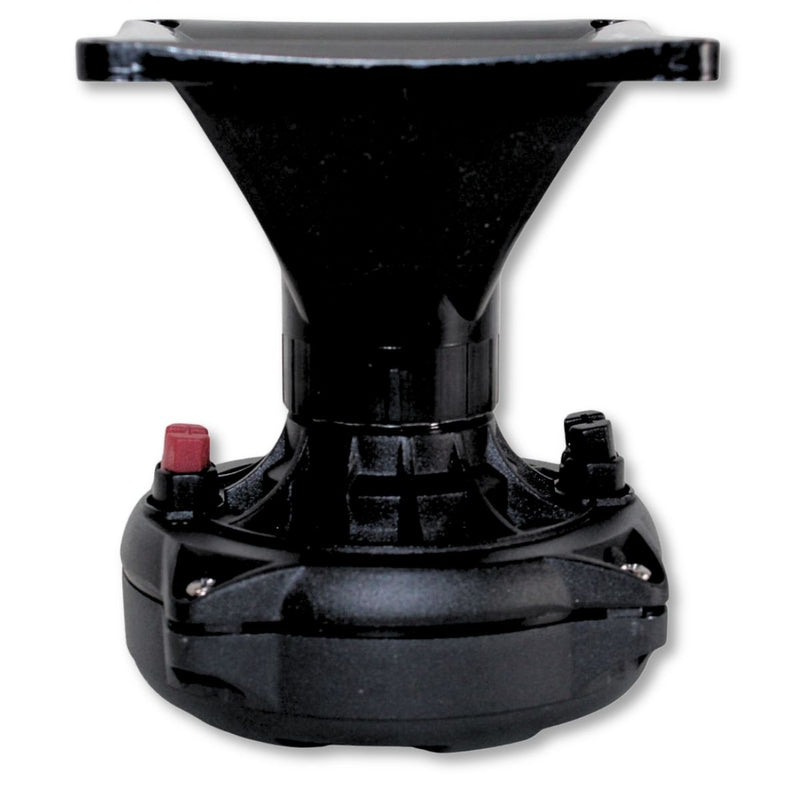

B2 Audio Twist On Compression Driver RAGE 200W RMS 8 Ohm 2" VC w/Horn

• HIGH OUTPUT COMPRESSION DRIVER SET: Includes (1) B2 Audio RAGECDR-50 compression drivers and (1) RAGECDH-120 horns designed for loud, clear vocals and strong high-frequency output in car audio systems.
• 200W RMS POWER HANDLING: Each driver features 200W RMS and 400W max power with a large 2" CCAW voice coil for strong output and durability.
• CLEAR HIGH FREQUENCY RESPONSE: Phenolic diaphragm and 98 dB sensitivity provide crisp vocals and detailed highs that cut through heavy bass systems.
• WIDE FREQUENCY RANGE: 500 Hz to 13 kHz response delivers strong mid-high and high-frequency performance for pro audio door builds.
• TWIST-ON DRIVER AND HORN: Standard twist-on mount pairs directly with the included CDH-120 horns for secure installation and efficient sound projection.

B2 Audio RAGE 200W RMS 8-Ohm 2" VC Twist-On Compression Driver with Horn

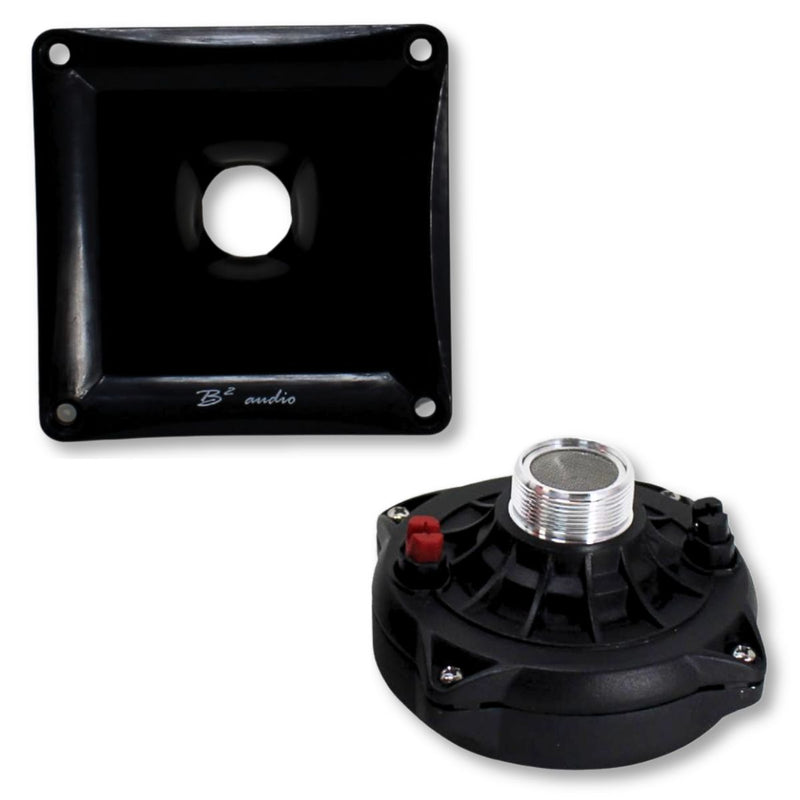

This Listing includes:

• (1) B2-RAGECDR-50 2" Driver


• (1) B2-RAGECDH-120 Horn

The B2 Audio RAGE CDR-50 Compression Driver with CDH-120 Horn delivers powerful, high-efficiency high-frequency performance for serious car audio systems. This pro audio horn tweeter setup is designed to produce loud, clear vocals and crisp high-frequency detail that can keep up with even the most aggressive bass builds.

Whether you're building a loud daily driver, pro audio door setup, or a full competition system, the B2 Audio RAGE CDR-50 compression driver with CDH-120 horn delivers powerful, aggressive high-frequency performance designed for high-output car audio systems.

Features

• 2" (51.2mm) CCAW Voice Coil


• 200W RMS / 400W MAX Power Handling


• 8 Ohm Impedance


• 500Hz - 13kHz Frequency Response


• 98 dB Sensitivity


• Phenolic Diaphragm for smooth high-frequency output


• Heavy-Duty Ferrite Magnet Structure


• Standard Bolt-On Mounting

Specifications:

Driver

• Manufacturer: B2 Audio


• Model: RAGECDR-50


• Speaker Type: Twist-On Compression Driver


• Throat Diameter: 34.2mm / 1.35"


• Impedance: 8 Ohms


• RMS Power Handling: 200 Watts


• Peak Power: 400 Watts


• Frequency Response: 500 Hz - 13 kHz


• Capacitors are not included; we recommend using 33 F Capacitors for best performance (~600 Hz cutoff for 8 Ohm)


• Sensitivity (1W/1m): 98 dB


• Voice Coil Diameter: 51.2mm / 2"


• Winding Material: CCAW


• Magnet: Ferrite


• Diaphragm Type: Phenolic


• Quantity Included: 1

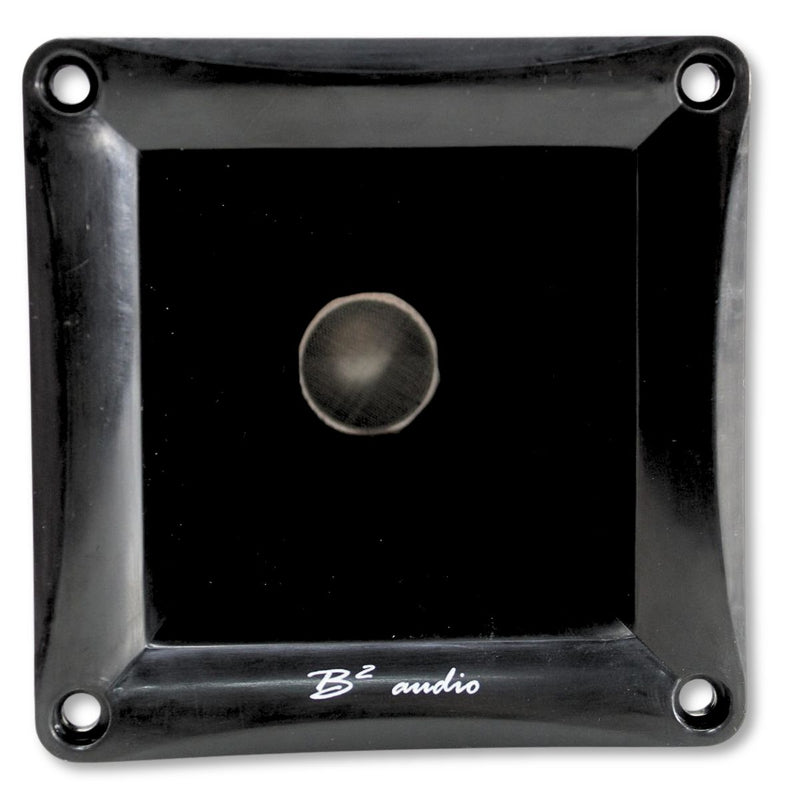

Horn:

• Brand: B2 Audio Model: B2-RAGECDH-120


• Product Type: Twist-On


• Horn Mouth Width: 120mm


• Mount Material: ABS Plastic


• Quantity Included: 1

Dimensions:

• Mounting Depth: 5"

Horn

• Length: 4.625" 120mm


• Width: 4.625" 120mm


• Mounting Diameter: 4"


• Screw on Diameter: 1.3"
