- 500W RMS / 1000W Max Power Handling: Built for high-output midbass and mid-bass performance.
- 6-Ohm Impedance: Ideal for flexible wiring and multi-speaker amplifier configurations.
- High Sensitivity (96.5 dB): Produces strong output with minimal amplifier power.
- Water-Resistant, Durable Construction: Coated paper cone and U-shaped surround for use in harsh environments.

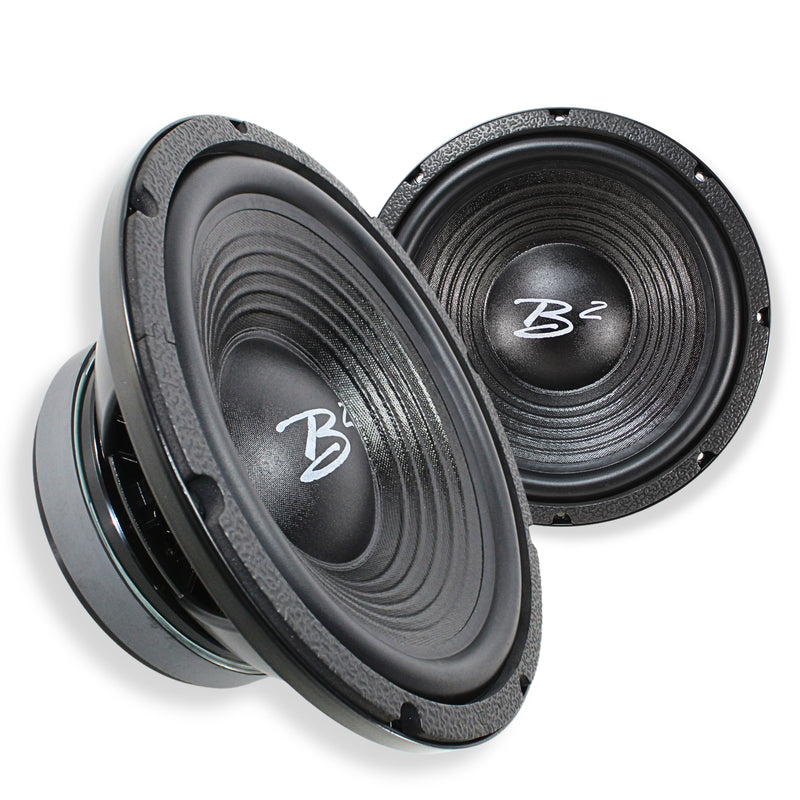

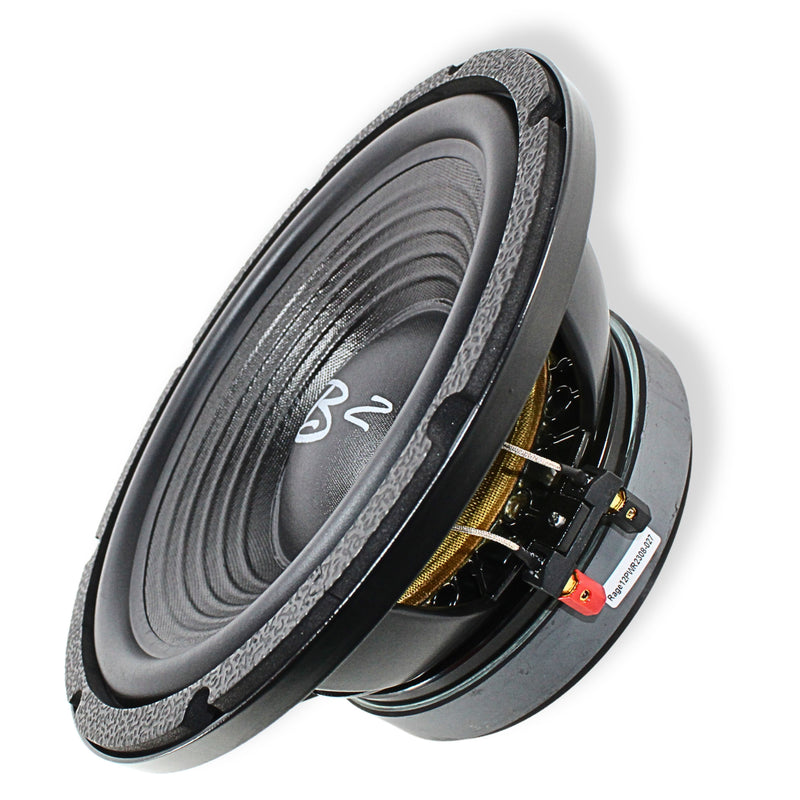

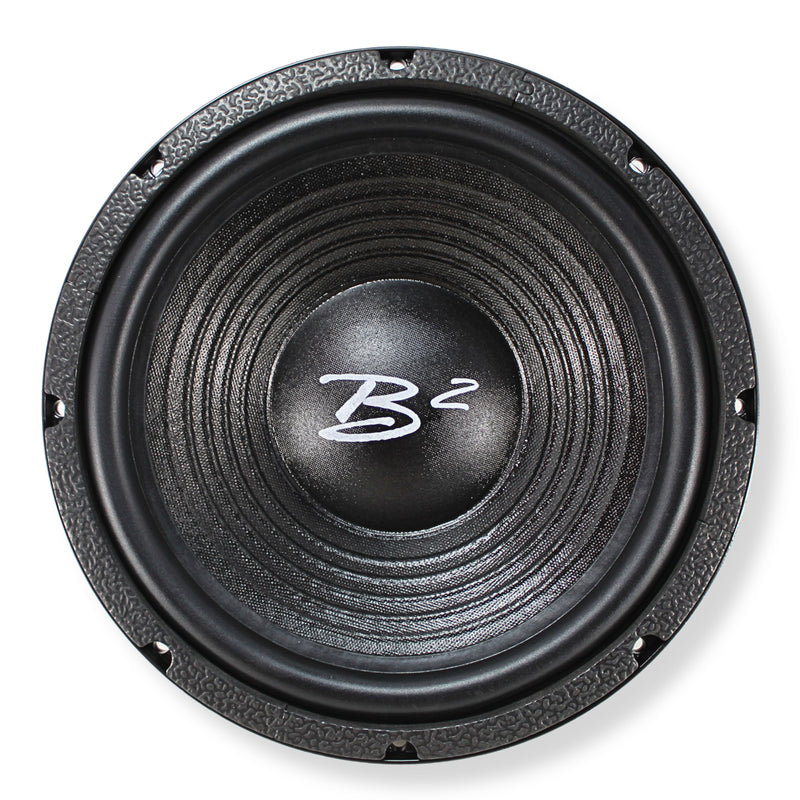

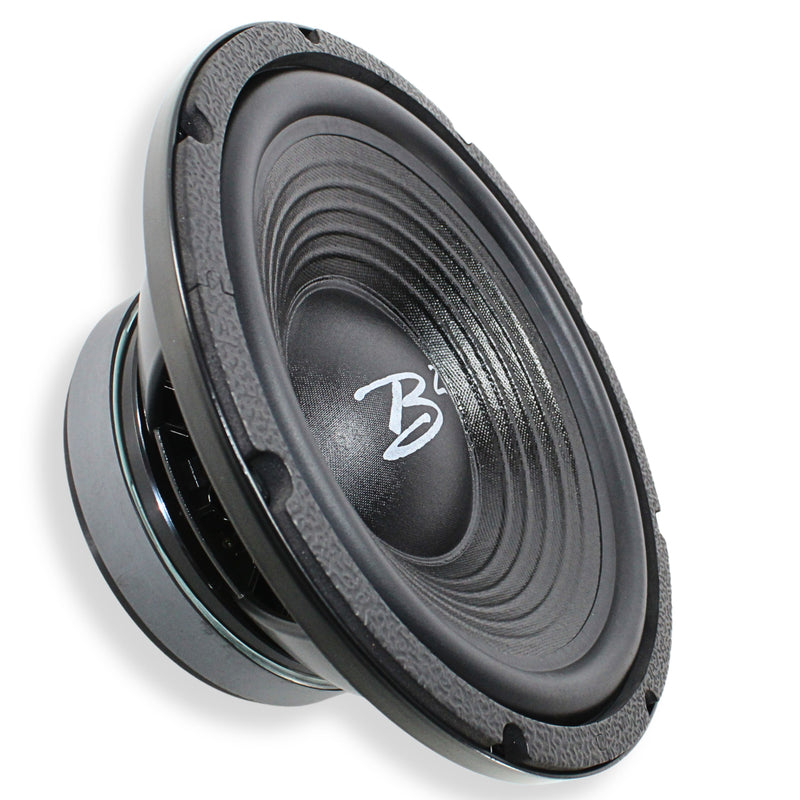

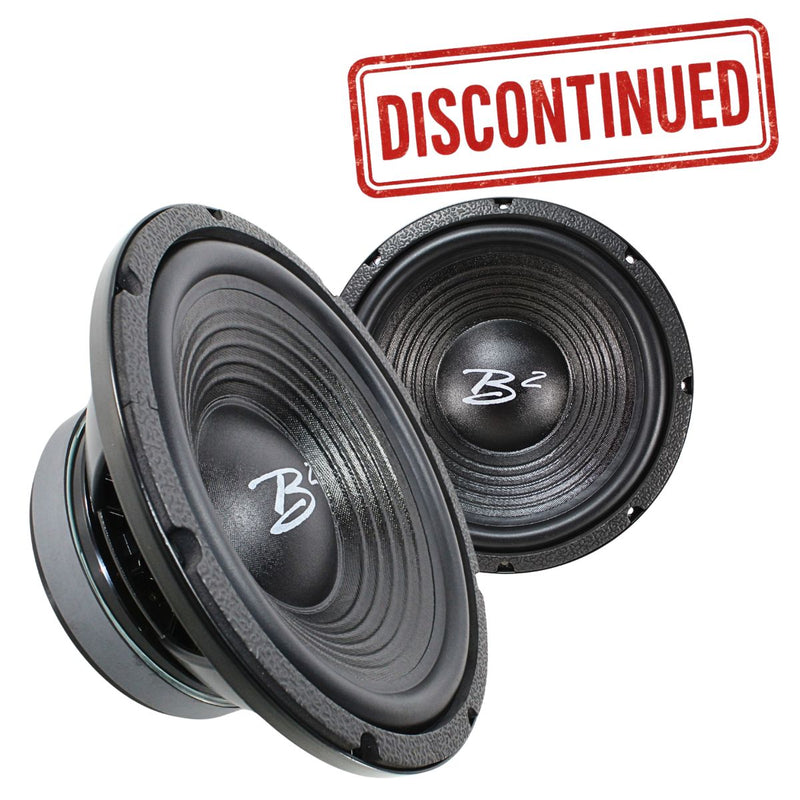

B2 Audio RAGE12PWR Pair of 12" 6-Ohm 500W RMS Water-Resistant Midbass Speakers
This Listing Includes:
- (2) B2 Audio Rage 12" Speakers RAGE12PWR
The B2 Audio RAGE12PWR is a high-efficiency 12-inch midbass driver engineered for loud, controlled low-to-mid frequency output in demanding audio environments. Designed with a coated paper cone and durable U-shaped surround, these speakers are built to perform in powersports systems, outdoor and marine applications, demo vehicles, and high-output car audio builds.

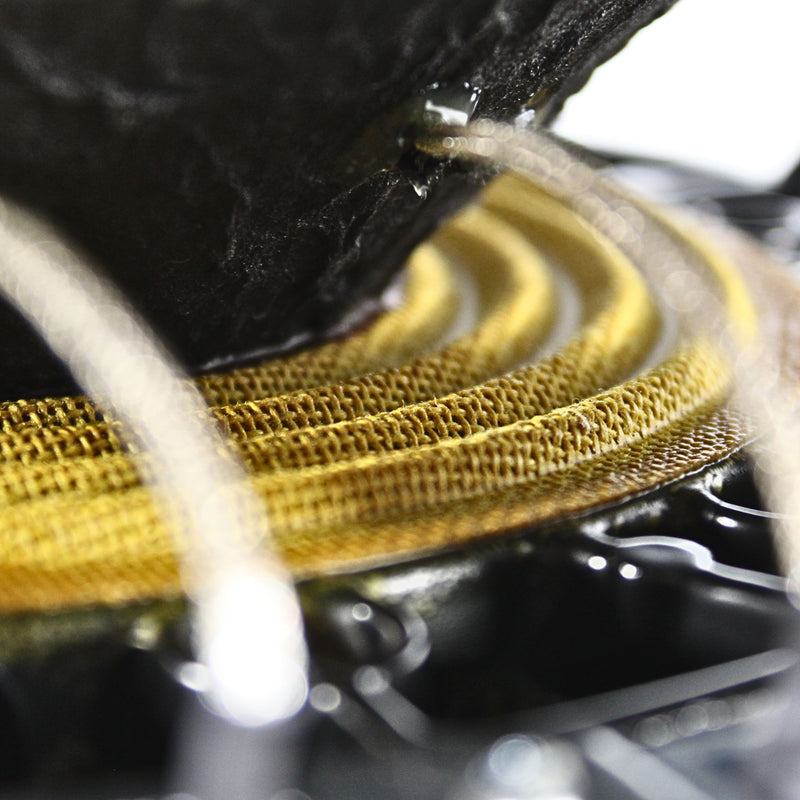

Rated at 500W RMS with a 6-ohm impedance, the RAGE12PWR allows flexible amplifier loading in multi-driver configurations while maintaining excellent efficiency. A large 3-inch voice coil and heavy 113 oz ferrite motor provide strong thermal handling and control, delivering aggressive mid-bass punch with clean midbass clarity.
With a wide 40 Hz – 4 kHz frequency response and high sensitivity, these speakers are ideal for pro-audio–style front stages and systems that require loud, efficient midbass performance without excessive power demand.
Sold as a pair.
Specifications:
- Size: 12 inch
- RMS Power: 500 watts
- Max Power: 1000 watts
- Impedance: 6 ohm
- Resonance Frequency (Fs): 40 Hz (spec sheet), 44 Hz (T/S)
- Frequency Response: 40 Hz – 4,000 Hz
- Sensitivity: 96.5 dB (1W / 2.83V)
- Voice Coil Diameter: 3 inch
- Magnet Type: Ferrite
- Motor Disc Weight: 113 oz
- Cone Material: Coated paper
- Surround Type: U-shaped
Important Impedance Information:
The RAGE12PWR is a 6-ohm nominal impedance speaker, as confirmed by the manufacturer. DC resistance measured with a multimeter will read lower than nominal impedance. Some packaging or speaker markings may reference 8 ohms; however, the correct operating impedance for this model is 6 ohms.
Thiele & Small Parameters
- Fs: 44 Hz
- Vas: 61 L
- Re: 4.65 ohm
- Qms: 7.7
- Qes: 0.37
- Qts: 0.35
- Cms: 141 m/N
- BL/Re: 65.3
- Mms: 81.8 g
- Xmax (one way): 7.3 mm
- Sd: 551.8 cm
- Efficiency: 1.6%
- EBP: 119
Dimensions & Mounting
- Overall Diameter: 12.4 in
- Cutout Diameter: 11.1 in
- Bolt Circle Diameter: 11.7 in
- Mounting Depth: 5.1 in
- Total Depth: 5.6 in
