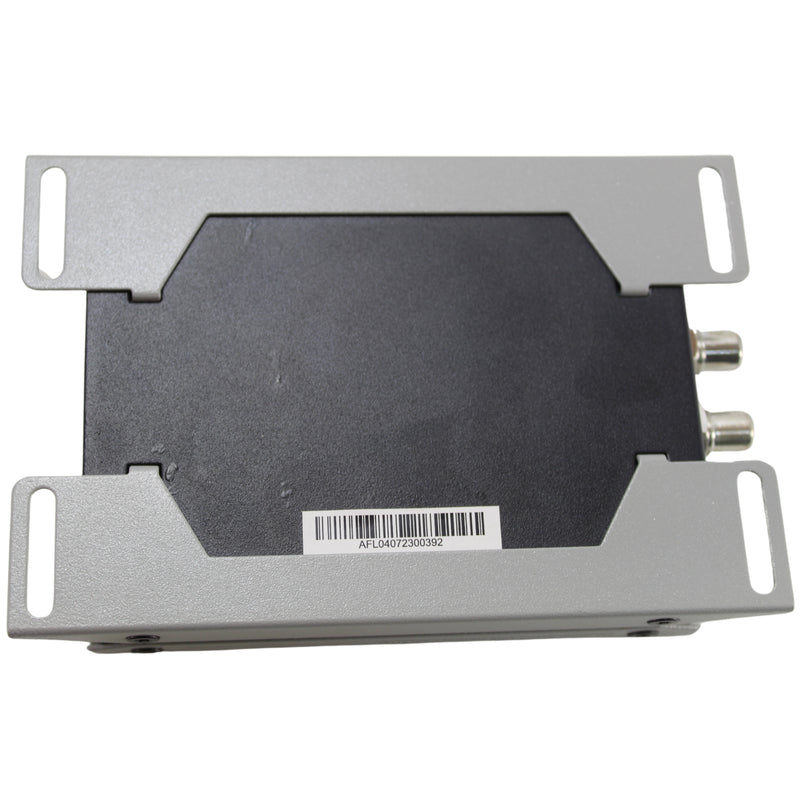

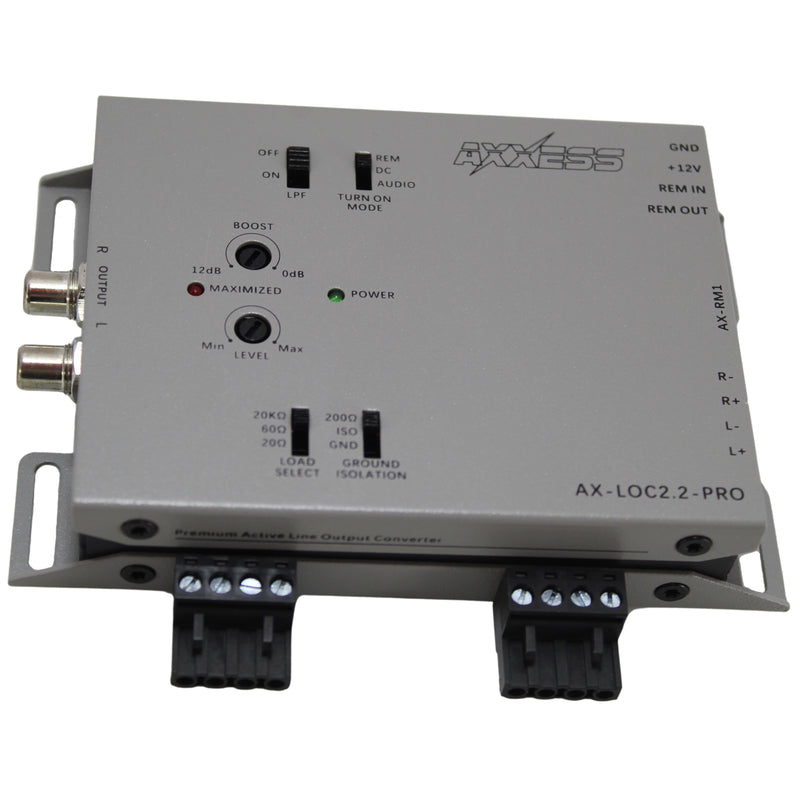

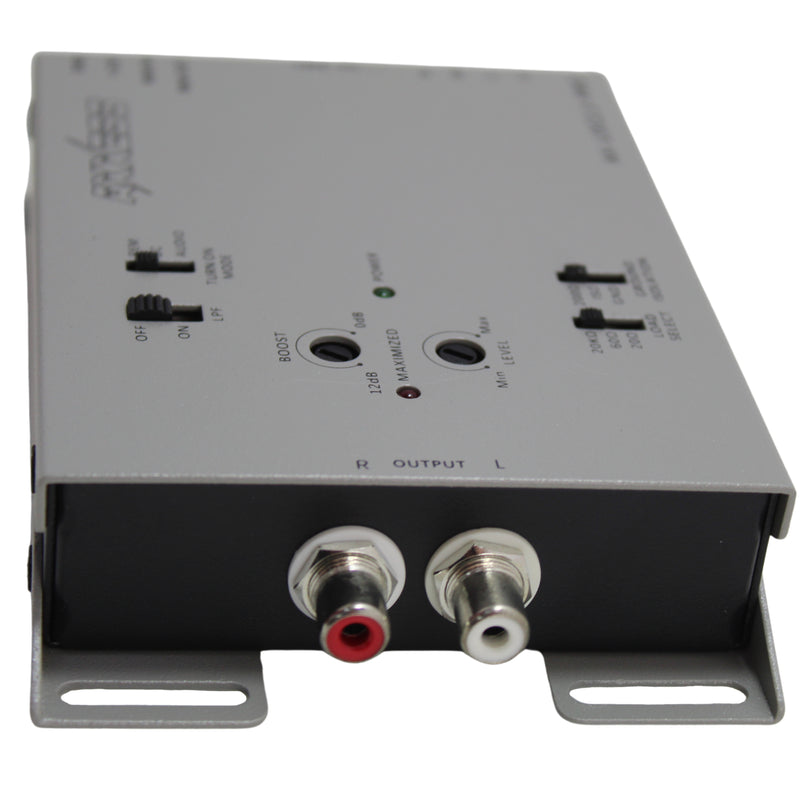

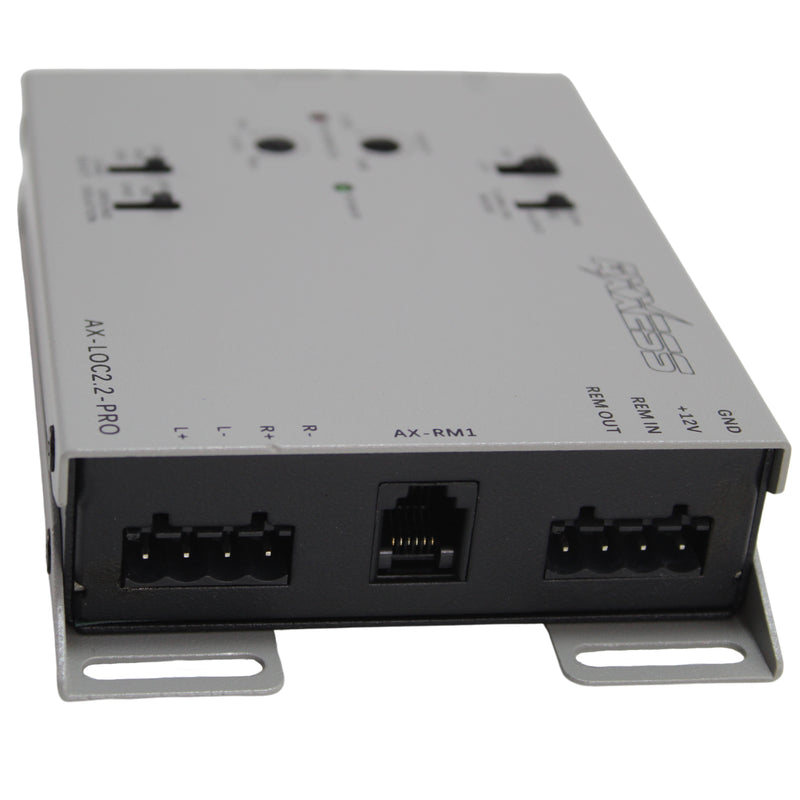

Axxess 2-Channel Active Line Output Converter with Bass Boost AX-LOC2.2-PRO

• Versatile Functionality: Enables integration of aftermarket amplifiers with OEM source units, expanding audio options.
• Advanced Features: Highlights include selectable trigger options, adjustable gain settings, and noise isolation.
• Convenient Installation: Compatible with Axxess PRO series LOCs and line drivers, facilitating straightforward setup.
• Tailored Sound: Customizable settings for input impedance, ground selection, and bass boost ensure personalized audio experience.

Axxess 2-Channel Active Line Output Converter with Bass Boost AX-LOC2.2-PRO

This Listing Includes:

• (1) Axxess Line Out Converter AX-LOC2.4-PRO

This 2-channel Active LOC with Bass Boost from Axxess has universal applications and enables installers to add aftermarket amplifiers to OEM source units for enhanced sound quality. This advanced technology features incredible input power capabilities, a load selector, clip indicator, enhanced output controls, and noise isolation countermeasures. Add the AX-RM1 external Bass knob for additional subwoofer adjustments. This supplemental product will directly plug into the Axxess PRO series LOC’s and line driver.

Features:

• 2-channel: 2 in, 2 out


• Max input level: 40V / 400W @ 20K Ohm


• Operating voltage: 9V-16V


• Optional AX-RM-1


• Trigger selection: REM / DC / AUDIO


• Turn on trigger (DC): 3V-7V


• Output max @13.8V: 9.5V RMS


• Input impedance selection: 20 / 60 / 20k Ohm


• Ground selection: GND / ISO / 200 Ohm


• Gain adjustment: – 28dB to +1dB


• Input sensitivity: 0.5V-20V


• Signal to noise: >110dB @6.4V output


• THD+N (Total Harmonic Distortion): <0.01%


• Frequency response: 20Hz-20kHz


• Low pass filter: <250Hz


• Bass boost: 0dB + 12dB


• Remote control: optional AX-RM1
