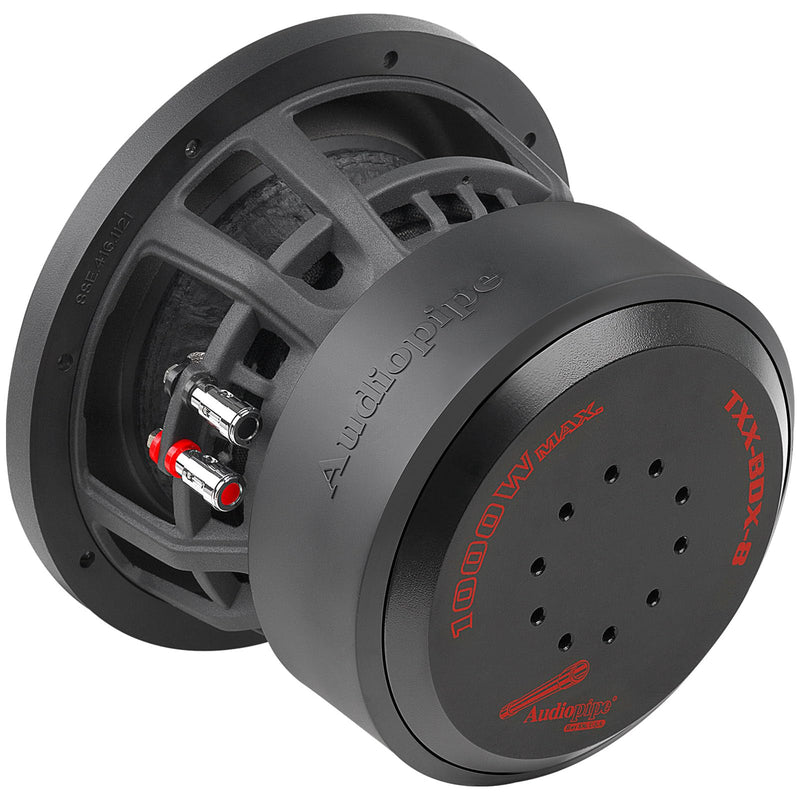

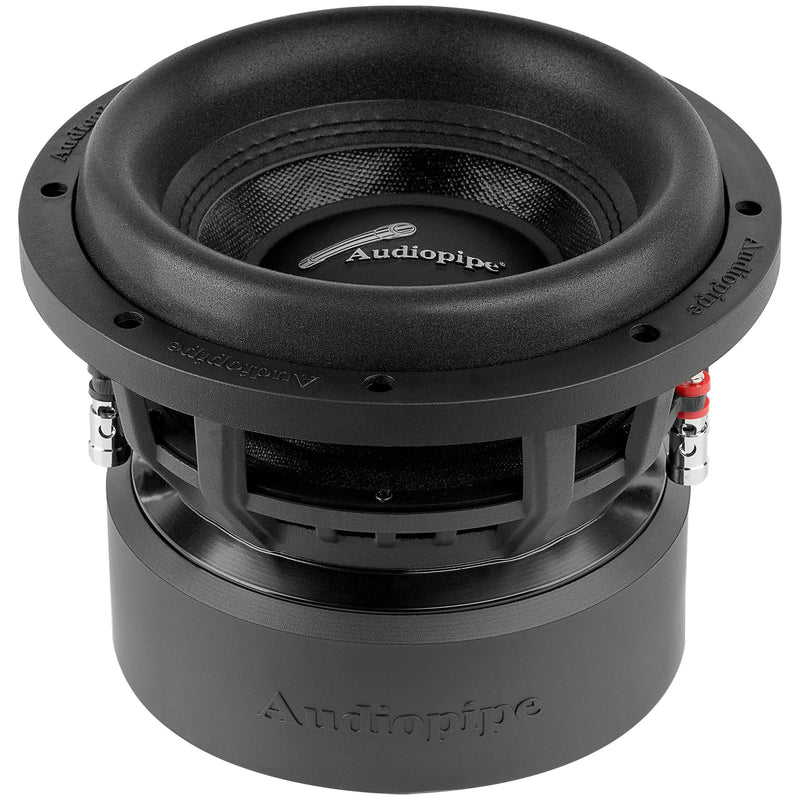

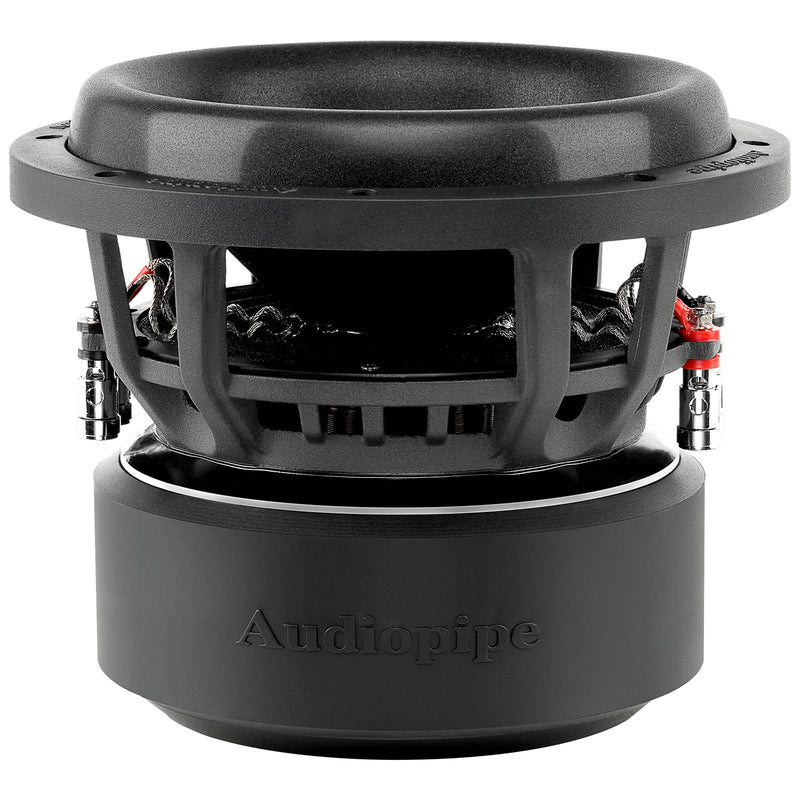

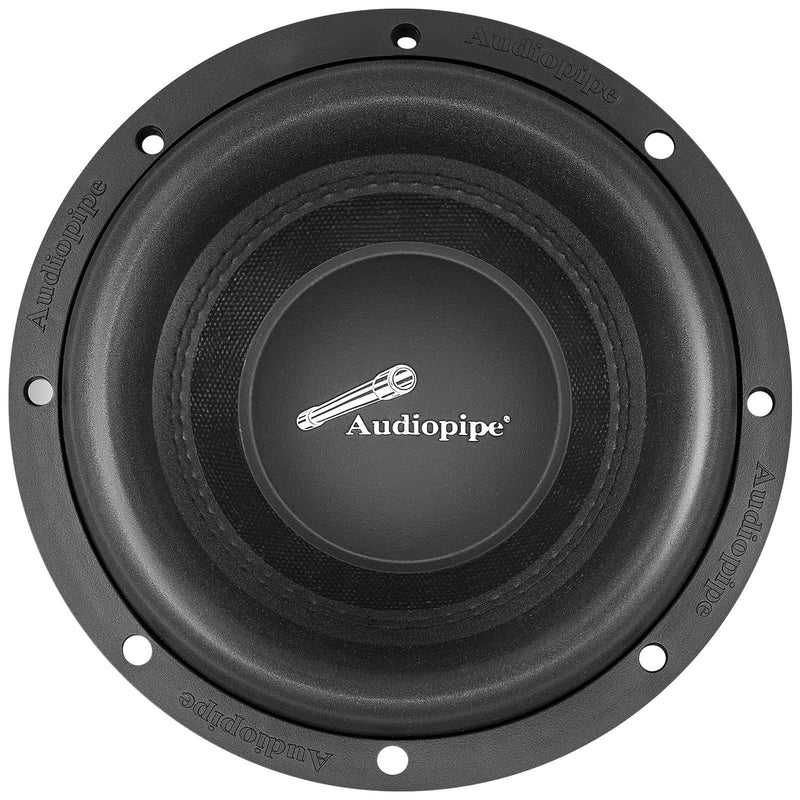

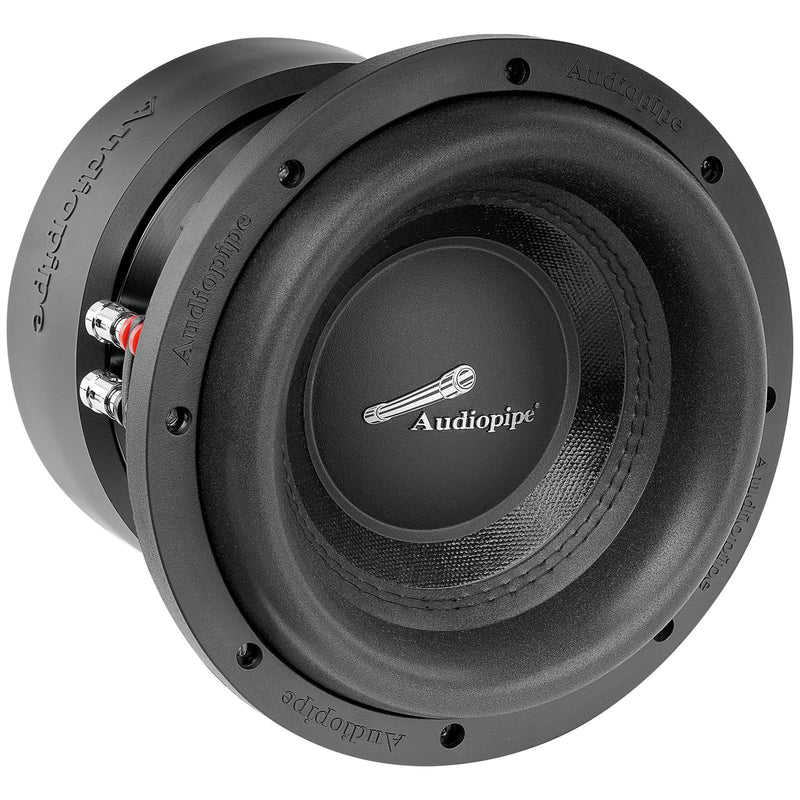

8" 500W RMS 4-Ohm DVC Competition Subwoofer Audiopipe TXX-BDX Series TXX-BDX-8

8" 500W RMS 4-Ohm DVC Competition Subwoofer Audiopipe TXX-BDX Series TXX-BDX-8

This Listing Includes:

• (1) AP-TXX-BDX-8 Subwoofer

Description:

Experience unrivaled performance with our 8" Competition Subwoofer. Featuring two powerful magnets, enhanced voice coil ventilation, and a dual 4-ohm, 2-inch, 4-layer BASV voice coil, this subwoofer is designed for exceptional sound quality. With 1000 watts peak power and 500 watts RMS power, it delivers impressive audio performance.

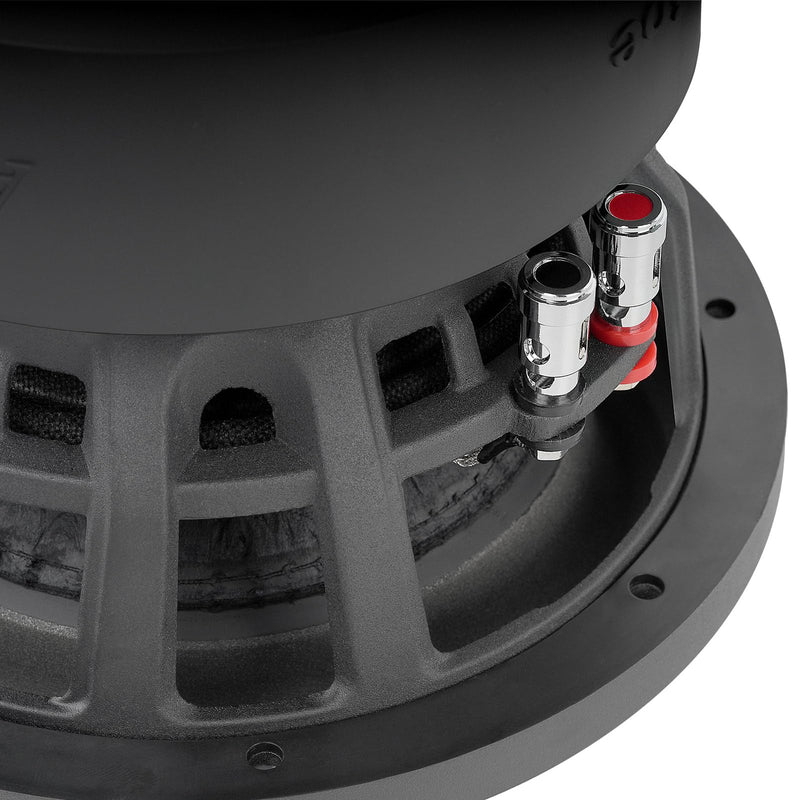

The subwoofer boasts a newly designed aluminum basket, ultra-stiff PP dust cap, and dust-proof heat sink for optimal performance and longevity. The black stitching surround and black non-press paper cone with a sand-blasted finish add durability and a sleek look. Additionally, the multi-connect terminals allow for easy wiring in parallel or series configurations.

Elevate your audio experience with the TXX-BDX-8 and enjoy powerful, precise bass that transforms your sound system.

Download Owner's Manual

Features:

• 1000 Watts Power (PMPO)
• 500 Watts Power (RMS)
• Sensitivity: 85 dB
• 2" 4-Layer Dual Voice Coil BASV
• Die-cast Aluminum Basket
• Mounting Depth: 150 mm (6")
• Impedance: Dual 4 Ohms
• 150 Oz Magnet
• Push Terminal Gauge: 8 Ga

Specifications:

• Frequency Response: 40-2000 Hz
• Voice Coil Diameter: 2" | 50.8 mm
• Voice Coil Height: 2.56" | 65 mm
• Voice Coil Layers: 4
• Magnetic Gap Height: 0.6" | 15 mm
• Linear Excursion, pk-pk (Xmax): 0.41" | 10.5 mm
• Maximum Excursion, pk-pk: 1.5" | 38 mm
• Magnet Weight: 150 oz | 4.3 kg
• Woofer Displacement: 3.7 L | 0.13 cubic ft
• Net Weight: 23.1 lb | 10.5 kg
• Power Rating: 500 | 1000W

Thiele & Small Parameters:

• Fs (Hz): 52
• Re (Ohms): 2x 3.1
• Le (mH) 2.3
• Qts: 0.41
• Qes: 0.5
• Qms: 2.3
• Cms (m/n): 0.7
• Vas (L): 4
• Mms (g): 147
• Mmd (g): 145
• No (%): 0.15
• SPL (dB-1W/1M): 85
• BL (T*M): 25
• Sd (cm sq): 204
• Krm (mOhms): 19
• Erm: 0.76
• Kxm (mH): 71
• Exm: 0.68

Enclosure Specifications:

• Sealed Enclosure: 0.3 - 0.4 cu ft
• Ported Enclosure: 0.75 - 1.0 cu ft
• Recommended Tuning: 32 Hz
• Recommended Port Area: 12-16 sq inch
• Displacement: 0.13 cu ft
• Depth: 5-13/16"
• Outside Dimensions: 8-11/16"
• Cutout Hole: 7-1/2"

Package Dimensions:

• 11 x 11 x 9.5 in
• 25 lb
