Audiopipe Pro 15" 500W 4-Ohm Subwoofer + 1500W Class D Full-Range Amp Combo

• 15" pressed paper cone subwoofer for powerful, natural low-end response
• 2.5" high-temperature voice coil supports 500W RMS / 1500W peak power
• Full-range Class D monoblock amplifier with high-efficiency MOSFET design
• Full bridge technology ensures consistent output across entire frequency range

Audiopipe Pro Car Audio 15" 500W RMS 4-Ohm Subwoofer + 1500W Class D Full-Range Monoblock Amplifier Combo

This Listing Includes:

• (1) Audiopipe Pro 15" 500 Watt RMS 4-Ohm Subwoofer


• (1) Audiopipe APHF-1500D-H1 1500 Watt Full-Range Monoblock Amplifier


• (1) Audiopipe Bass Knob with Remote Cable

Unleash thunderous bass and clean, full-range power with this high-performance subwoofer and amplifier combo. Engineered for both musical clarity and ground-shaking SPL, this kit is ideal for serious car audio enthusiasts looking to elevate their system.

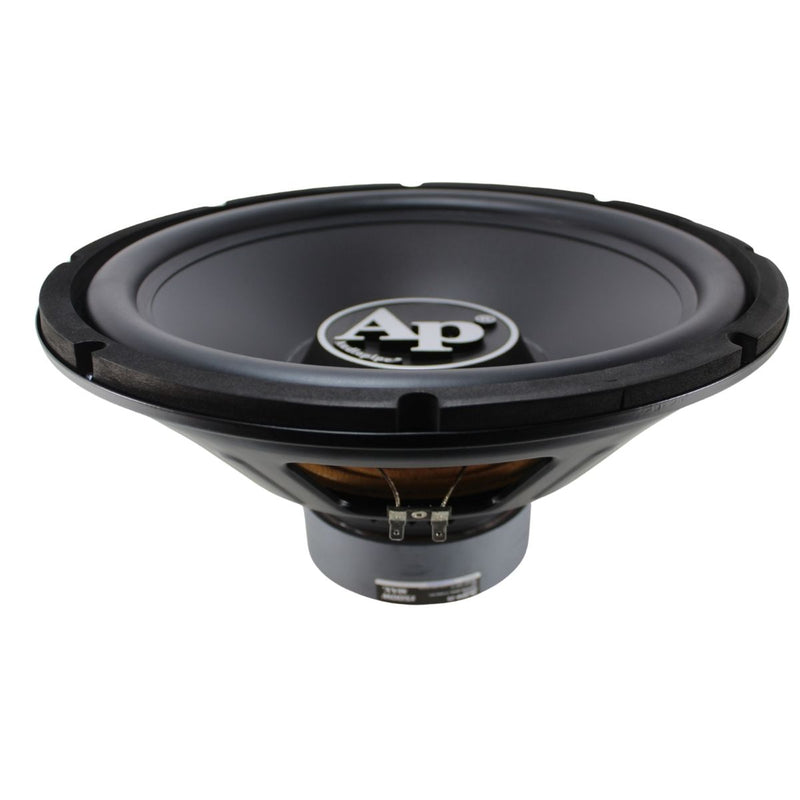

Subwoofer Key Features:

• 15" pressed paper cone for natural, deep bass response


• 2.5" high-temp voice coil handles high output with reliability


• SVC 4-ohm configuration for simple wiring


• Peak Power: 1500 Watts | RMS Power: 500 Watts


• Frequency Response: 25Hz – 1000Hz


• Sensitivity: 88dB @ 2.83V/1m


• Xmax: 0.39" for tight and responsive low-end

Subwoofer Specifications:

• Diameter: 15"


• Voice Coil Diameter: 2.5"


• Nominal Impedance: 4 Ohms


• Mounting Depth: 6-3/4"


• Thiele-Small Parameters:


• Revc: 3.6 Ohms


• Levc: 3.8 mH


• Sd: 35 in Sq. / 850 cm Sq.


• Bl: 16 Tm


• Vas: 4.3 ft Cubed / 156 liters


• Cms: 152 um/N


• Mms: 208 g


• Mmd: 194 g


• Fs: 28 Hz


• Qms: 2.2


• Qes: 0.55


• Qts: 0.45


• Hvc: 1.2"


• Hag: 0.39"


• Dimensions: 17" (L) x 17" (W) x 9" (H)


• Weight: 14.95 lbs

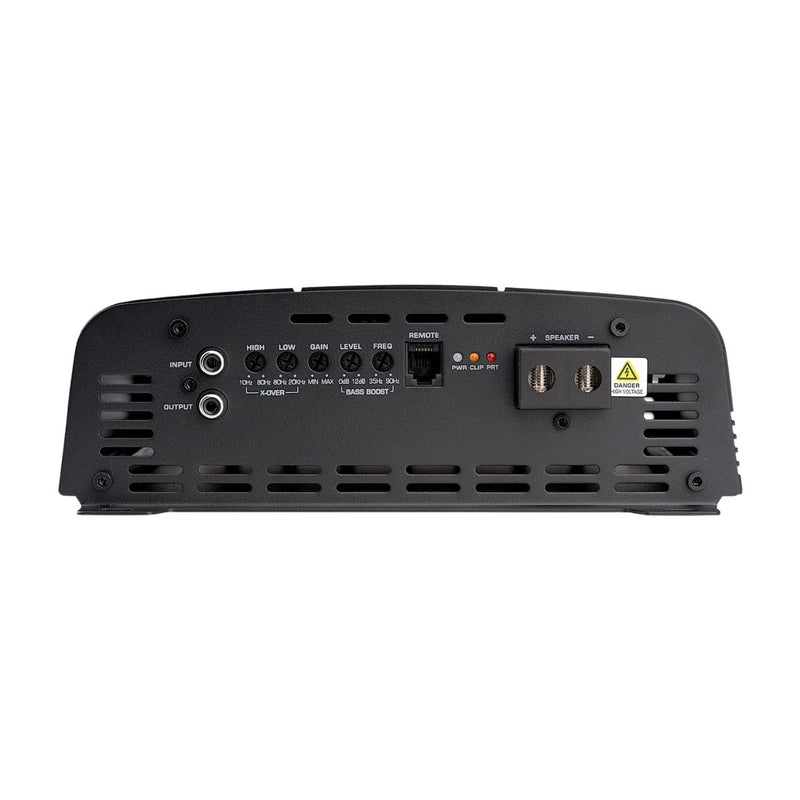

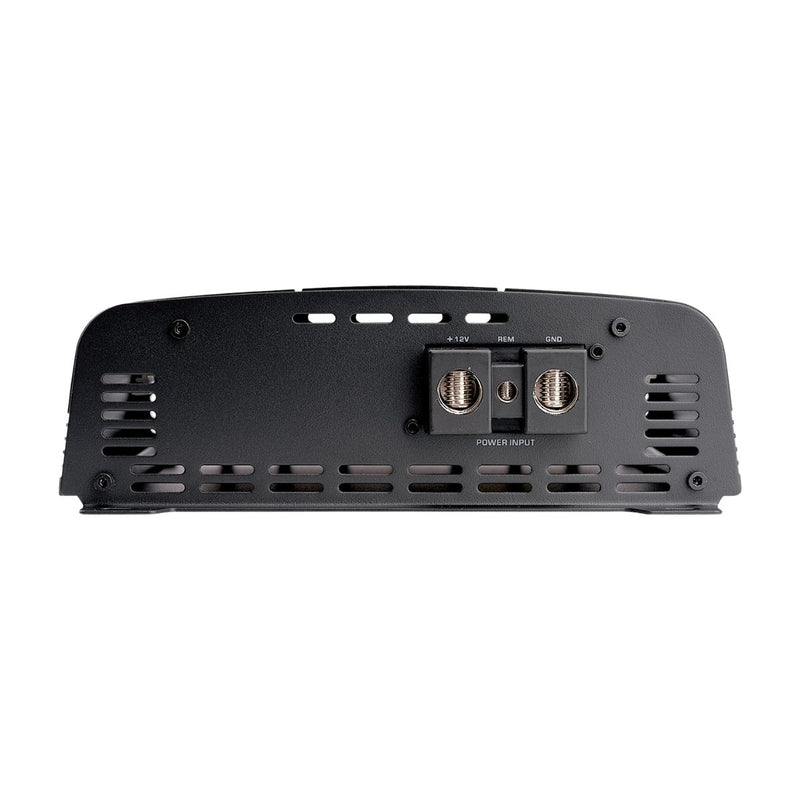

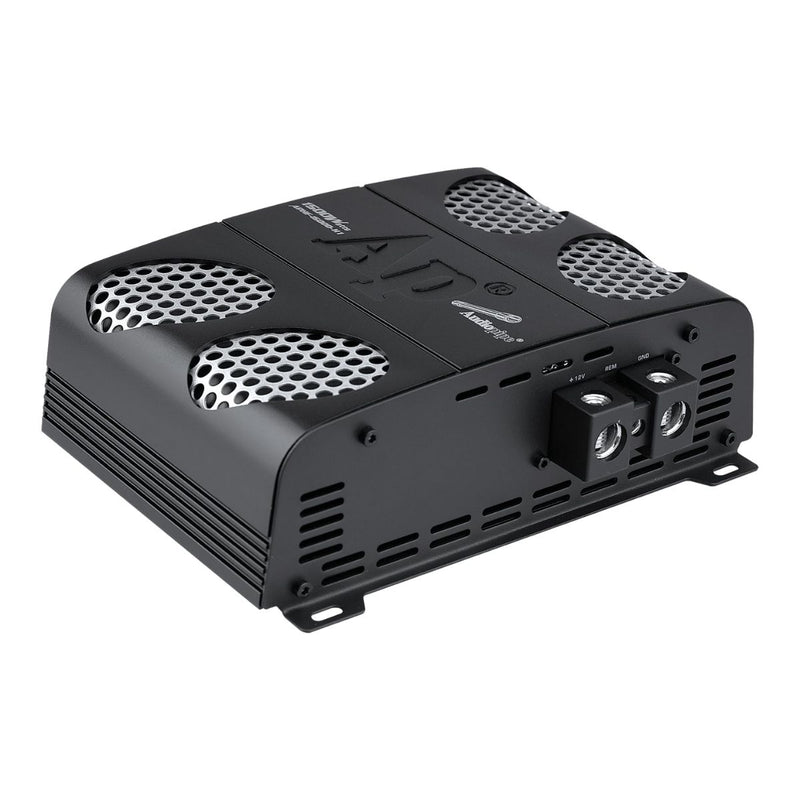

Amplifier Key Features:

• Full-Range Class D Monoblock Design with Full Bridge Technology

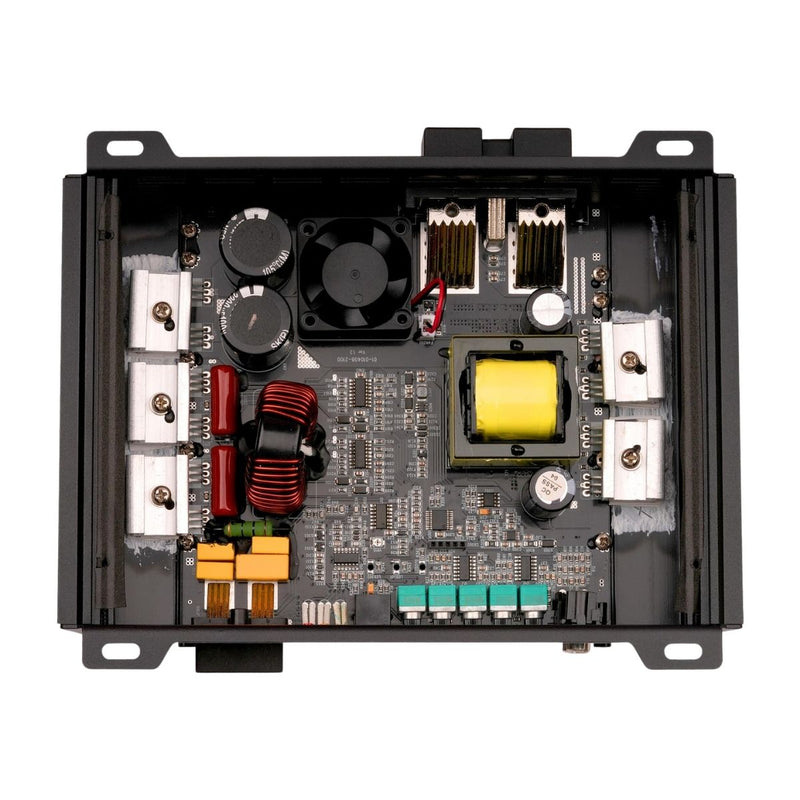

• MOSFET circuitry for efficient, clean signal output


• 4-point protection: Overload, Overheat, Under-/Over-voltage


• Remote bass knob for convenient subwoofer volume control


• Variable high-pass and low-pass filters with 12dB/octave slopes


• Variable bass boost (0–12dB) between 35Hz–90Hz

Amplifier Specifications:

• RMS @ 4 Ohm: 500W


• RMS @ 2 Ohm: 1000W


• RMS @ 1 Ohm: 1500W


• Frequency Response: 10Hz – 20KHz


• Signal-to-Noise Ratio: >85dB


• Input Sensitivity: 0.25V – 4V


• High Pass Filter: 10Hz – 80Hz


• Low Pass Filter: 80Hz – 20KHz


• Bass Boost: 0–12dB @ 35–90Hz


• Fuse Type: 100A ANL


• Power/Ground Input: 0 GA


• Speaker Terminal Input: 4 GA


• Dimensions: 5.9" (L) x 9.0" (W) x 2.9" (H)

Engineered for durability and clarity, this Audiopipe sub and amp package delivers explosive bass and dynamic range to take your car audio system to the next level. Built to perform—built to move air.

Note: VC (+) to Amp (+), VC (–) to Amp (–)
