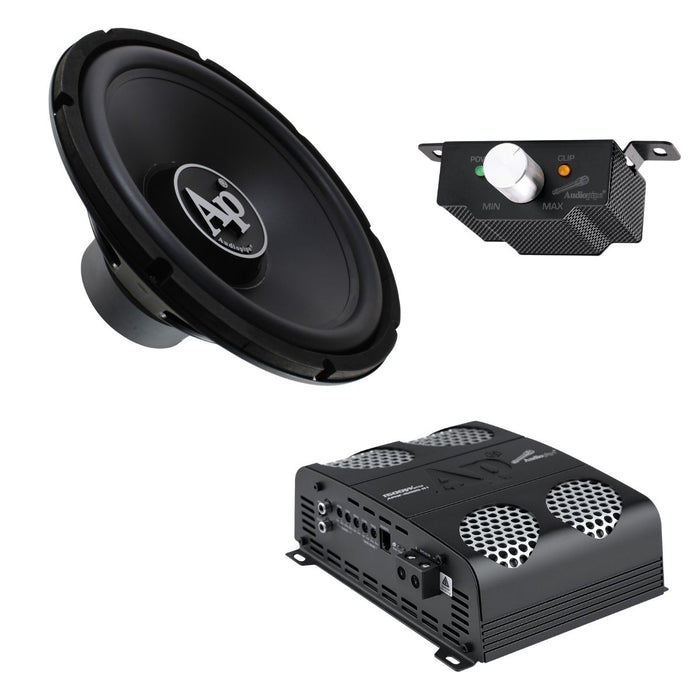

Unleash thunderous bass and clean, full-range power with this high-performance subwoofer and amplifier combo. Engineered for both musical clarity and ground-shaking SPL, this kit is ideal for serious car audio enthusiasts looking to elevate their system.

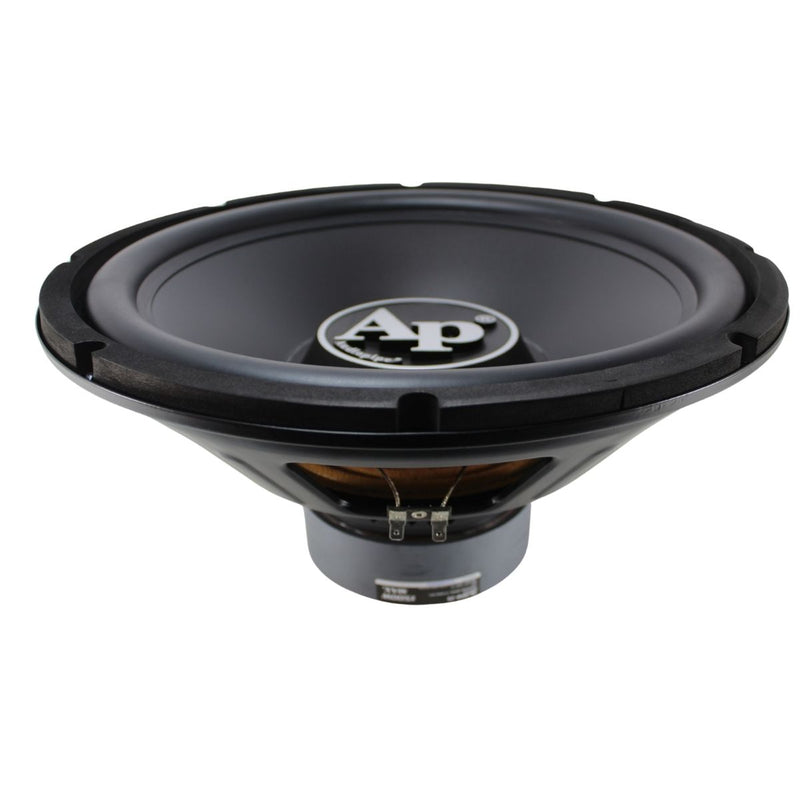

Subwoofer Key Features:

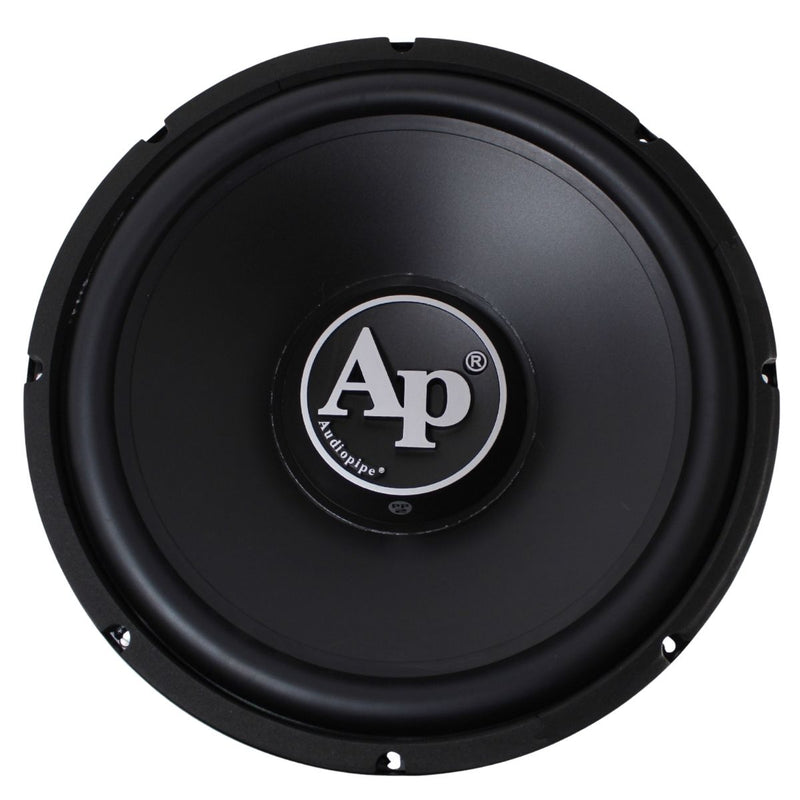

15" pressed paper cone for natural, deep bass response
2.5" high-temp voice coil handles high output with reliability
SVC 4-ohm configuration for simple wiring
Peak Power: 1500 Watts | RMS Power: 500 Watts
Frequency Response: 25Hz – 1000Hz
Sensitivity: 88dB @ 2.83V/1m
Xmax: 0.39" for tight and responsive low-end

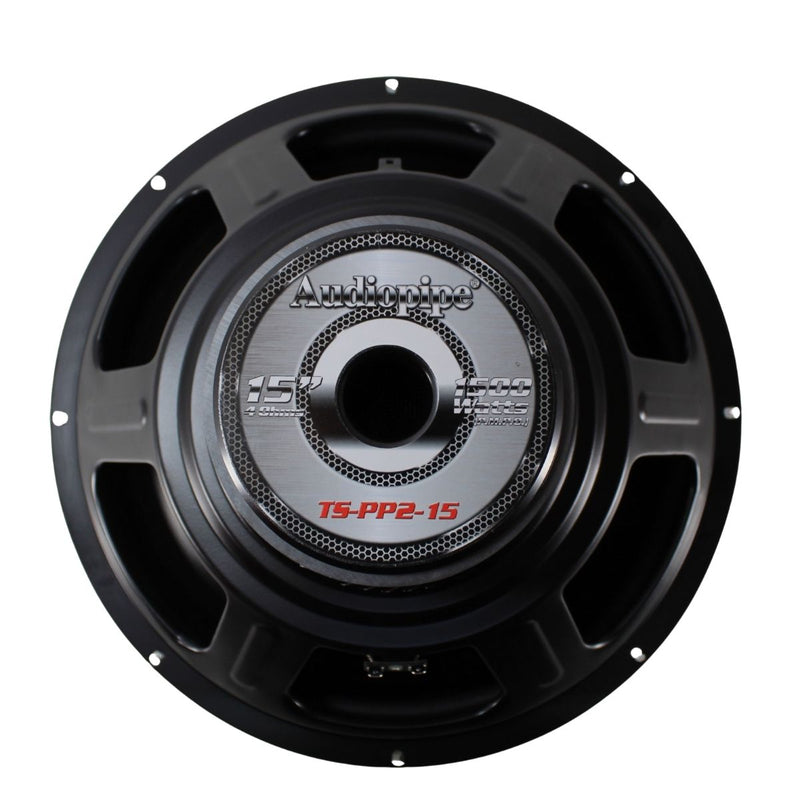

Subwoofer Specifications:
Diameter: 15"
Voice Coil Diameter: 2.5"
Nominal Impedance: 4 Ohms
Mounting Depth: 6-3/4"
Thiele-Small Parameters:
Revc: 3.6 Ohms
Levc: 3.8 mH
Sd: 35 in Sq. / 850 cm Sq.
Bl: 16 Tm
Vas: 4.3 ft Cubed / 156 liters
Cms: 152 um/N
Mms: 208 g
Mmd: 194 g
Fs: 28 Hz
Qms: 2.2
Qes: 0.55
Qts: 0.45
Hvc: 1.2"
Hag: 0.39"
Dimensions: 17" (L) x 17" (W) x 9" (H)
Weight: 14.95 lbs

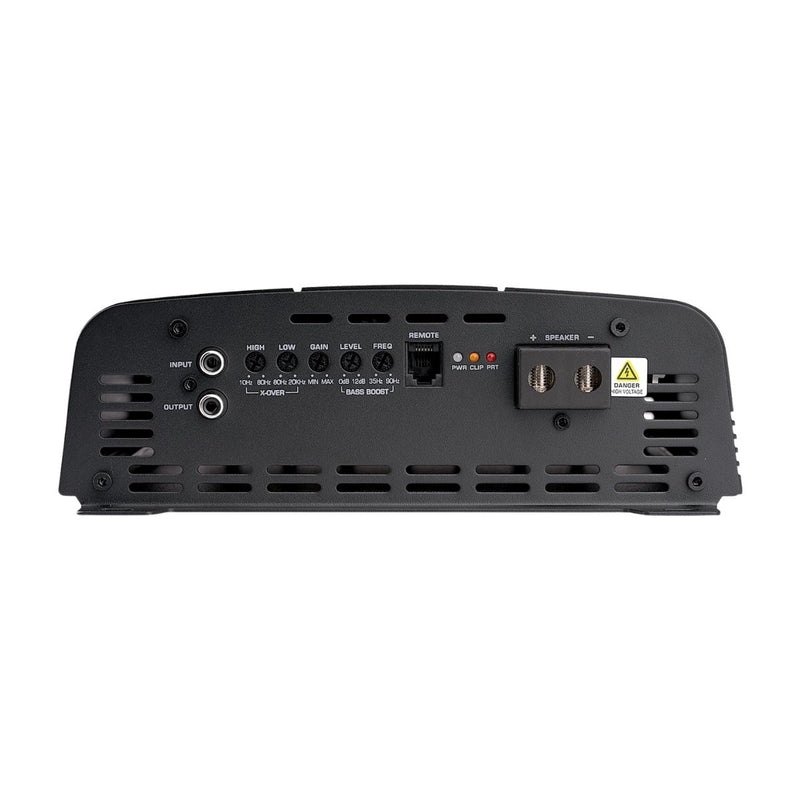

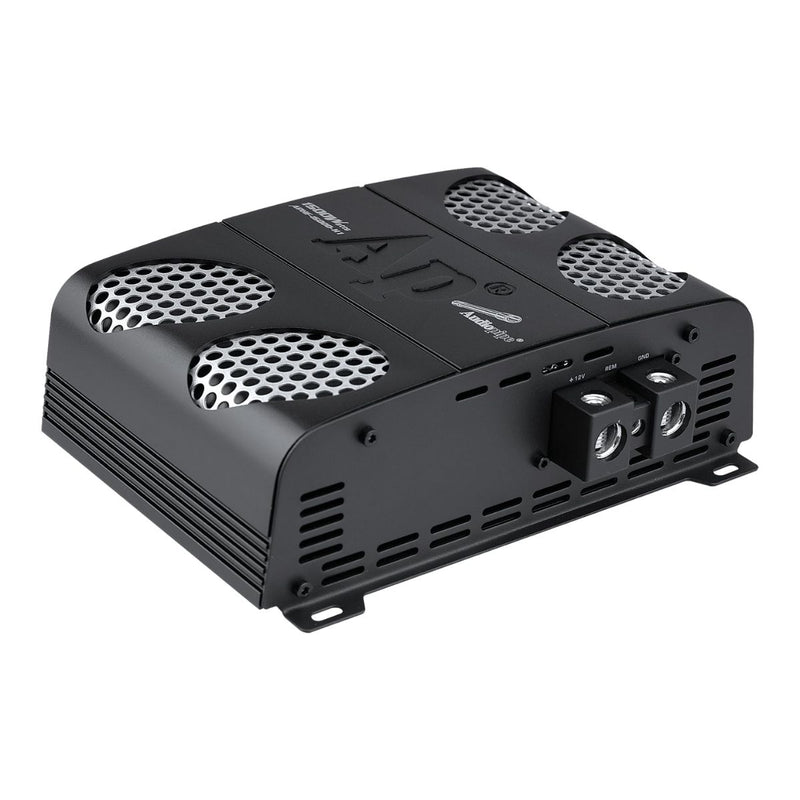

Amplifier Key Features:
Full-Range Class D Monoblock Design with Full Bridge Technology

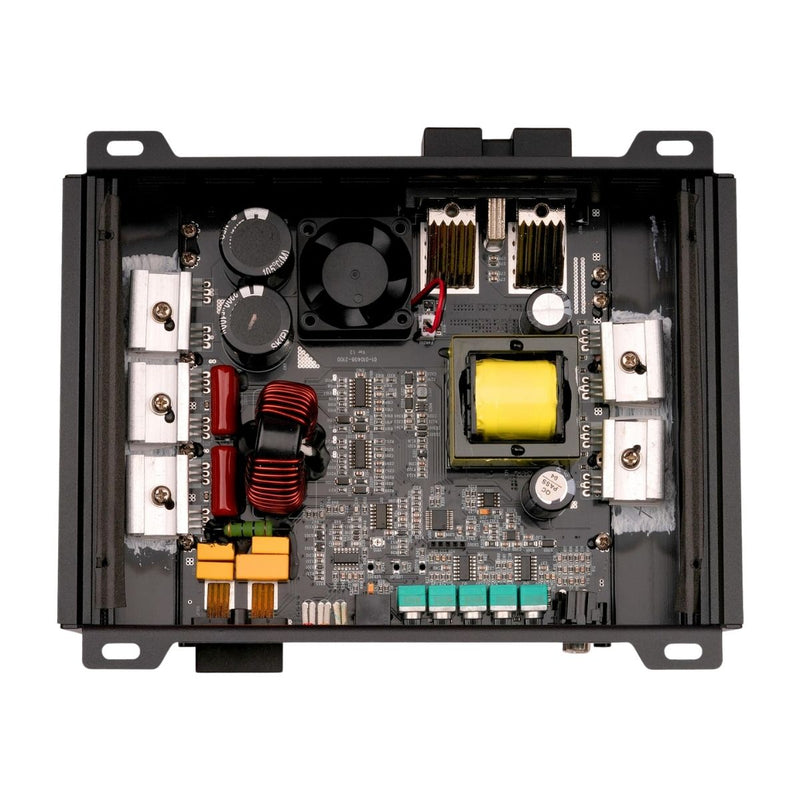

MOSFET circuitry for efficient, clean signal output
Remote bass knob for convenient subwoofer volume control
Variable high-pass and low-pass filters with 12dB/octave slopes
Variable bass boost (0–12dB) between 35Hz–90Hz
Amplifier Specifications:
RMS @ 4 Ohm: 500W
RMS @ 2 Ohm: 1000W
RMS @ 1 Ohm: 1500W
Frequency Response: 10Hz – 20KHz
Signal-to-Noise Ratio: >85dB
Input Sensitivity: 0.25V – 4V
High Pass Filter: 10Hz – 80Hz
Low Pass Filter: 80Hz – 20KHz
Bass Boost: 0–12dB @ 35–90Hz
Fuse Type: 100A ANL

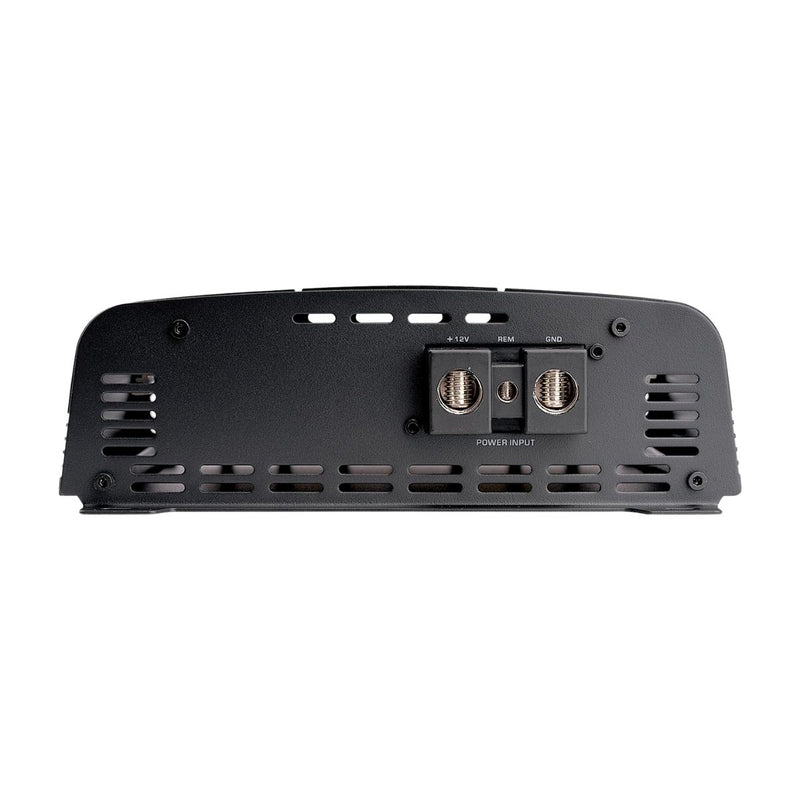

Power/Ground Input: 0 GA
Speaker Terminal Input: 4 GA
Dimensions: 5.9" (L) x 9.0" (W) x 2.9" (H)
Engineered for durability and clarity, this Audiopipe sub and amp package delivers explosive bass and dynamic range to take your car audio system to the next level. Built to perform—built to move air.

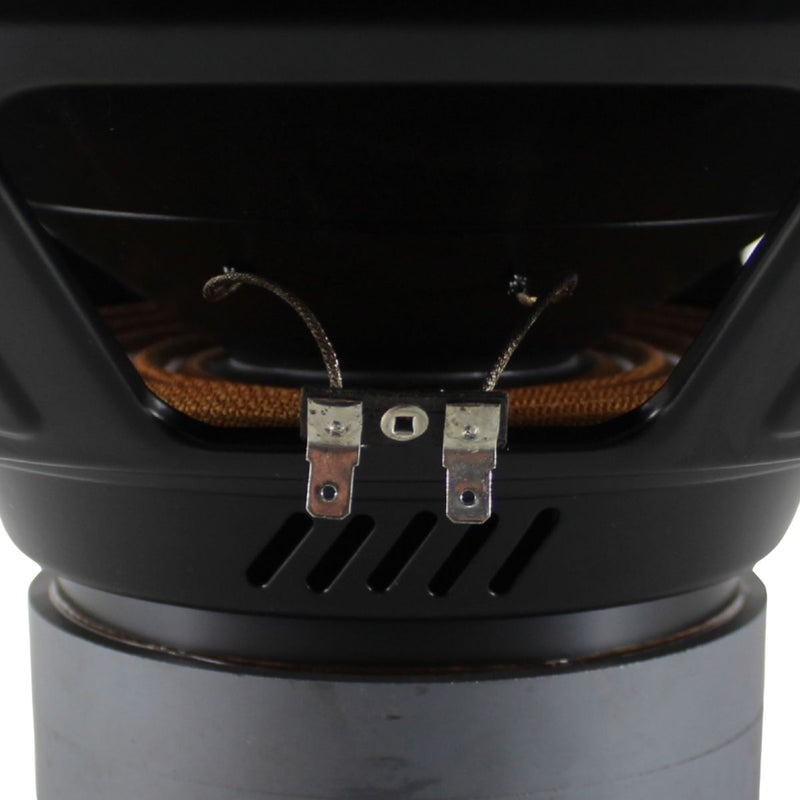

Note: VC (+) to Amp (+), VC (–) to Amp (–)
