- POWERFUL BASS RESPONSE – 12" subwoofer delivers 300W RMS and hits deep with a 29Hz–1500Hz frequency range
- PERFECT MATCH – 800W Class D amp at 2 Ohms is tuned to drive the subwoofer to peak performance without distortion
- COMPACT DESIGN – Mini amplifier fits easily into tight spaces while delivering serious power and sound customization
- BUILT FOR DURABILITY – Subwoofer features a heavy-duty steel frame and 68 oz magnet for clean, distortion-free output
- CUSTOM TUNING OPTIONS – Amp includes subsonic filter, bass boost, and adjustable crossovers for tailored sound
Audiopipe Pro 12" 300W 4-Ohm Subwoofer Pair + 800W Class D Full-Range Amp Combo
This listing includes:

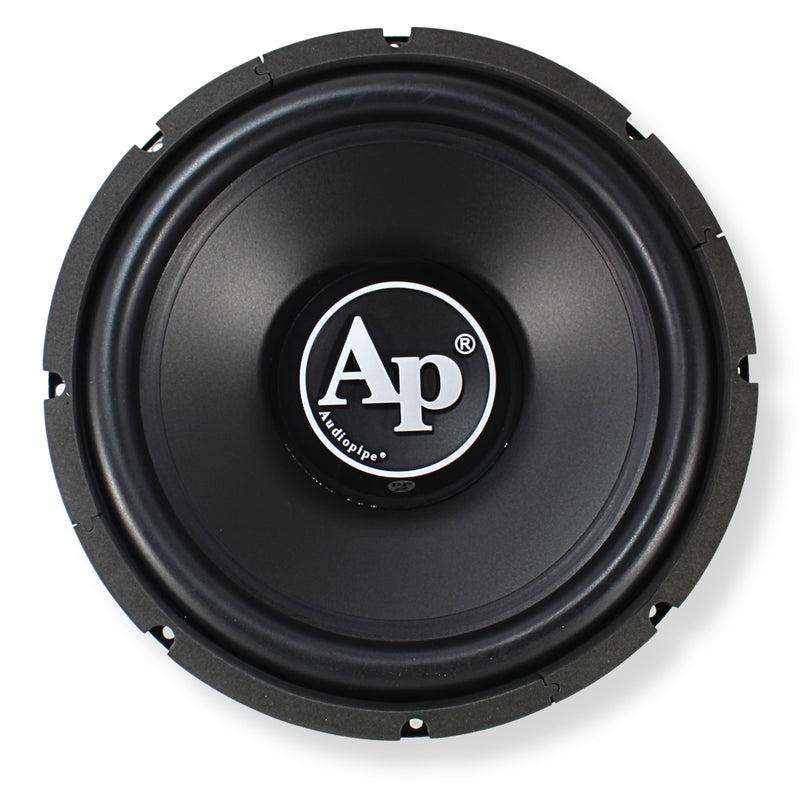

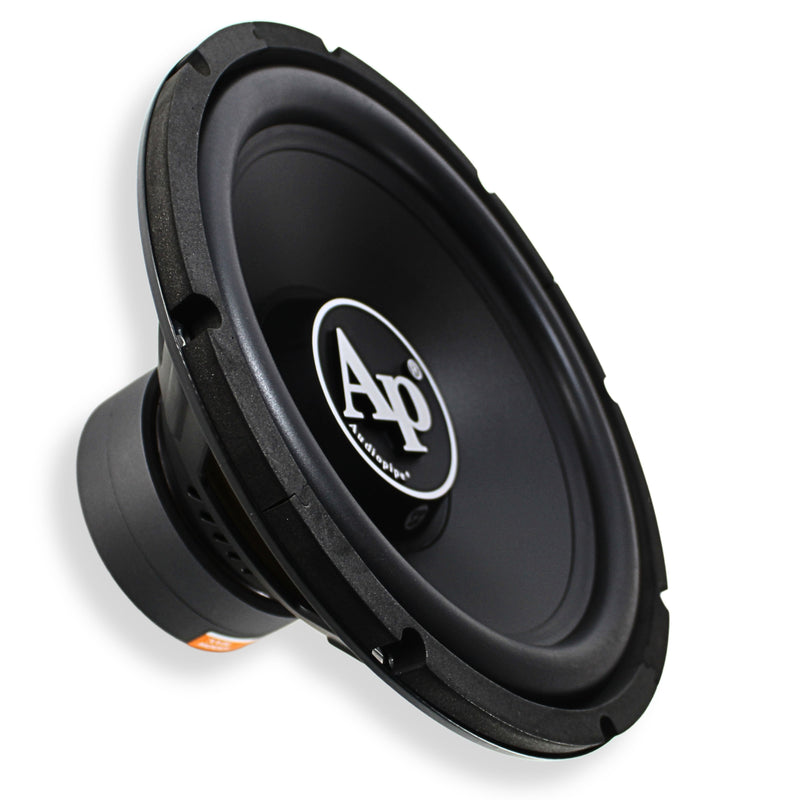

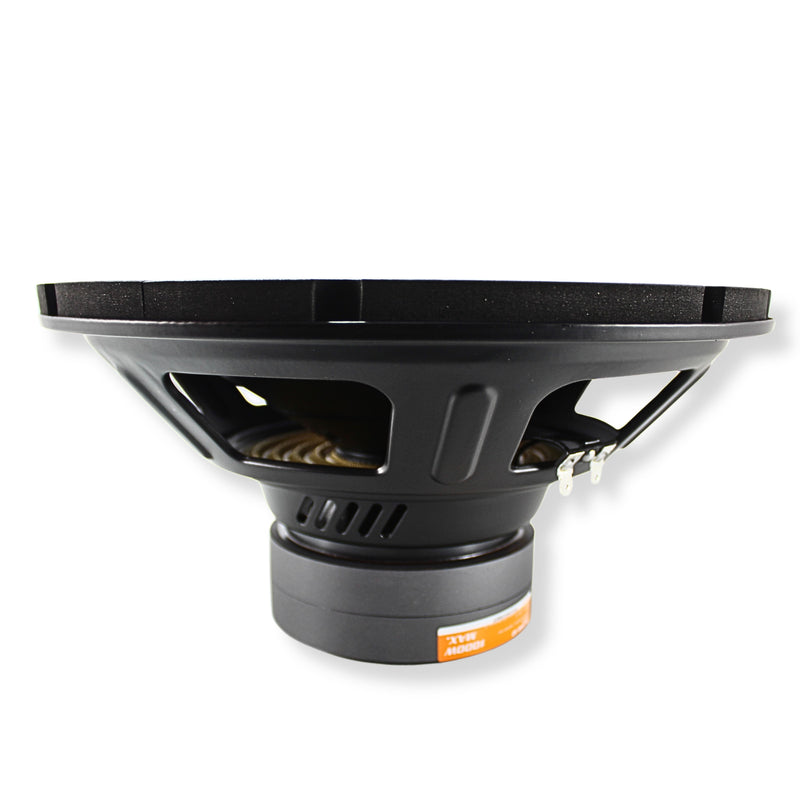

- (2) Audiopipe Pro Car Audio 12" 300 Watt RMS 4-Ohm 29Hz-1500Hz Subwoofer TS-PP2-12

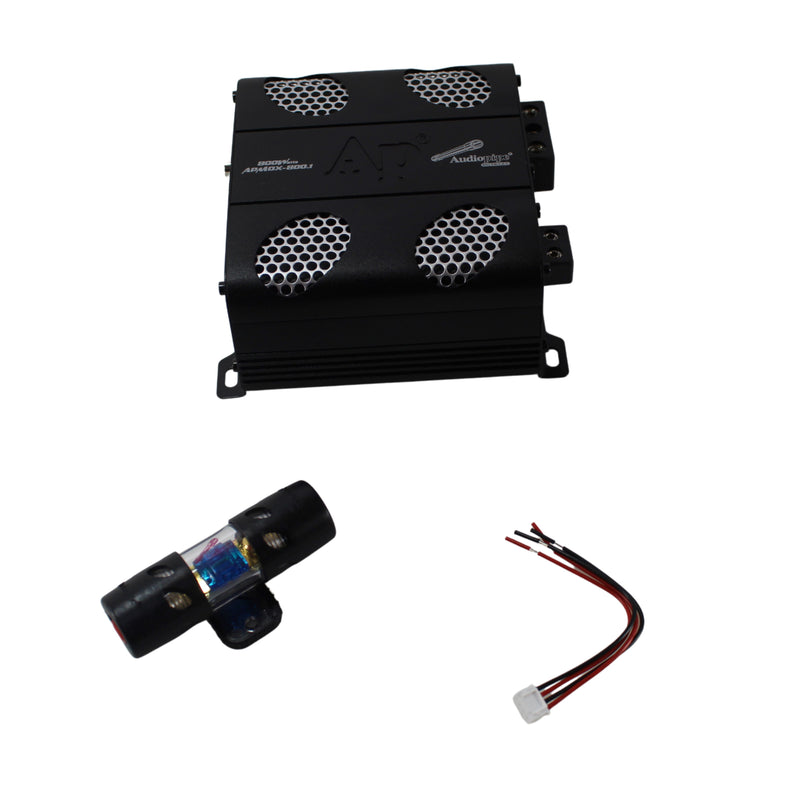

- (1) Audiopipe APMOX-800.1 800W Monoblock Class D Mini Amplifier
Description:
Unleash clean, powerful bass in a compact setup with this matched Audiopipe combo featuring a 12" subwoofer and Class D amplifier. The Audiopipe TS-PP2-12 subwoofer delivers 300 Watts RMS and is engineered for rich low-end response with a frequency range of 29Hz–1500Hz. With a 2.5" 4-layer high-temp Kapton voice coil, heavy-duty steel frame, and a 68 oz magnet, it provides consistent, distortion-free performance that can handle the demands of any serious car audio build.
Perfectly paired with the APMOX-800.1 Monoblock Amplifier, this setup is optimized for both efficiency and power. The amp pushes 800W RMS at 2 Ohms—ideal for driving the subwoofer to its full potential. Featuring full-range Class D circuitry, MOSFET power management, subsonic filtering, bass boost, and thermal protection, it ensures reliable, tuned performance in any environment. Whether you're upgrading your daily ride or building out a compact sound system for off-road or recreational use, this duo delivers premium results with precision and power.

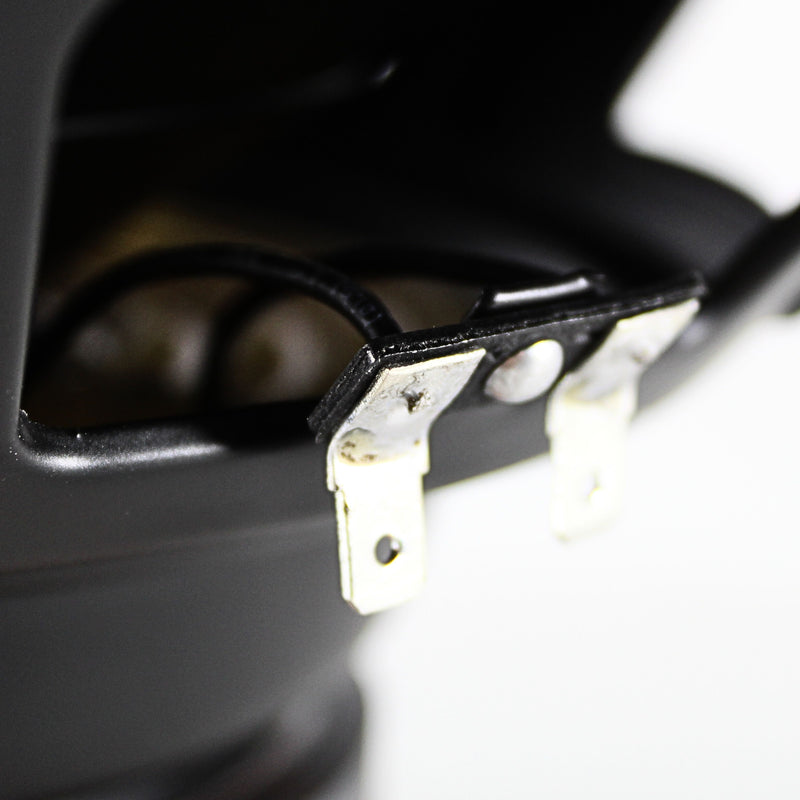

Wiring Method: Connect both positives together, both negatives together.

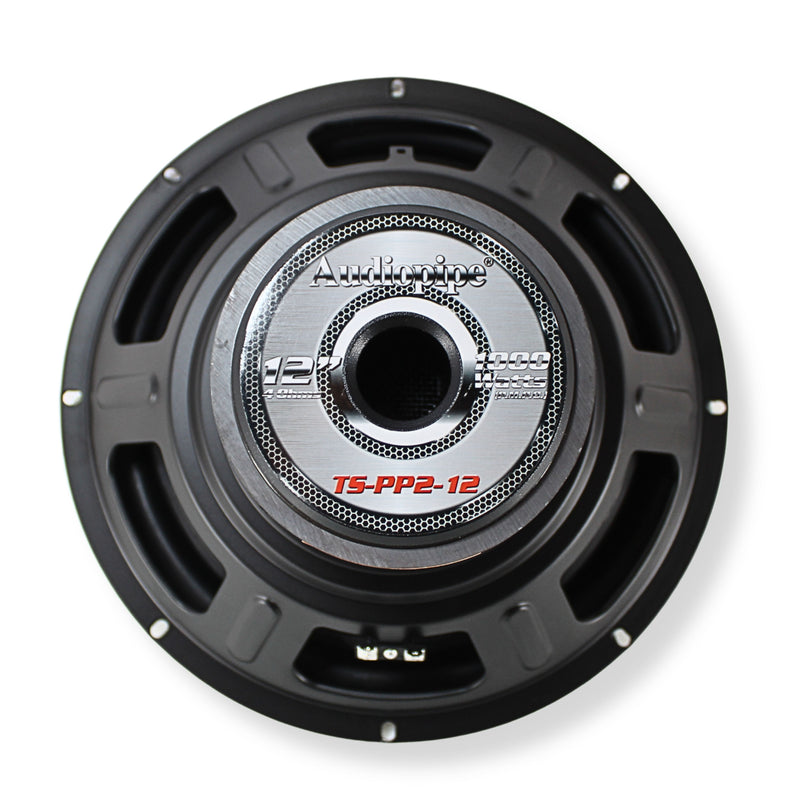

Subwoofer TS-PP2-12 Key Features:
- Peak Power Handling: 1000 Watts (P.M.P.O.)
- Continuous Power: 300 Watts RMS
- 2.5" 4-Layer High-Temperature Kapton Voice Coil
- Heavy-Duty Steel Frame for increased stability and reduced distortion
- Durable Polypropylene Cone with Rubber Surround
- 68 Oz Magnet for enhanced power and bass accuracy
- Mounting Depth: 5-5/8" (142mm)
- Impedance: 4 Ohms
Subwoofer TS-PP2-12 Specifications:
- Diameter: 12" (305mm)
- Sensitivity (2.83V@1m) : 86dB
- Power Handling: 300 Watts RMS
- Frequency Response: 29-1500Hz
- Nominal Impedance: 4 Ohms
- Voice Coil Diameter: 2" (51mm)
Subwoofer TS-PP2-12 Thiele-Small Parameters:
- Voice Coil DC Resistance - Revc (Ohms): 3.6
- Voice Coil Inductance @1kHz: Levc(mH) " 2.0
- Driver Radiating Area Sd(in): 530
- Motor Force Factor Bl(Tm): 16
- Compliance Volume Vas(ft): 1.5
- Free-air Resonance: Fs(Hz) 32
- Maximum Excursion Xmax(in) 0.48
Subwoofer TS-PP2-12 Product Dimensions:
- Length: 12"
- Height: 6.5"
- Width: 12"
- Weight: 8.55 lb.

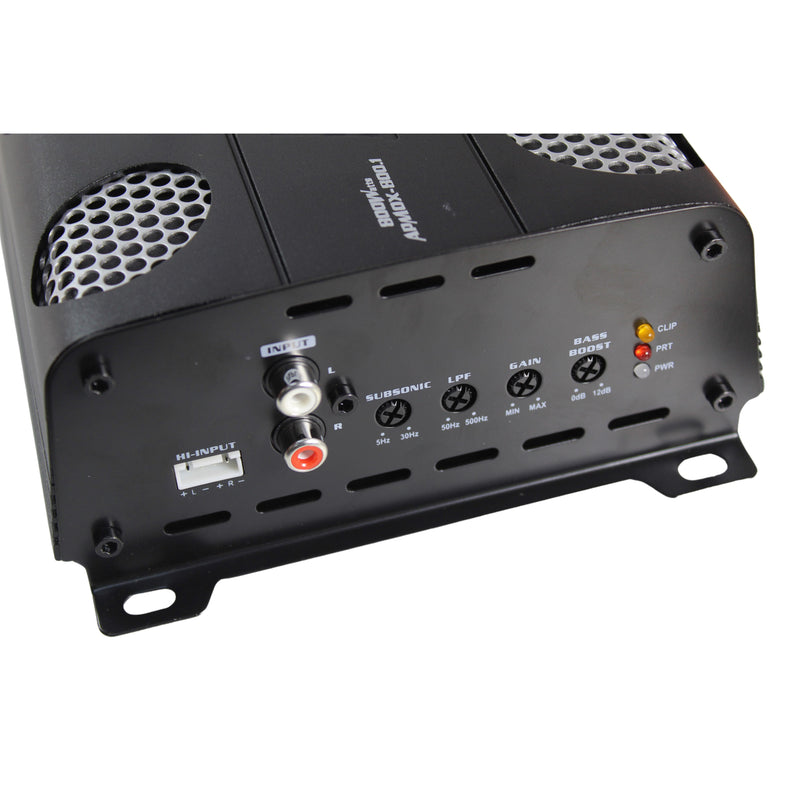

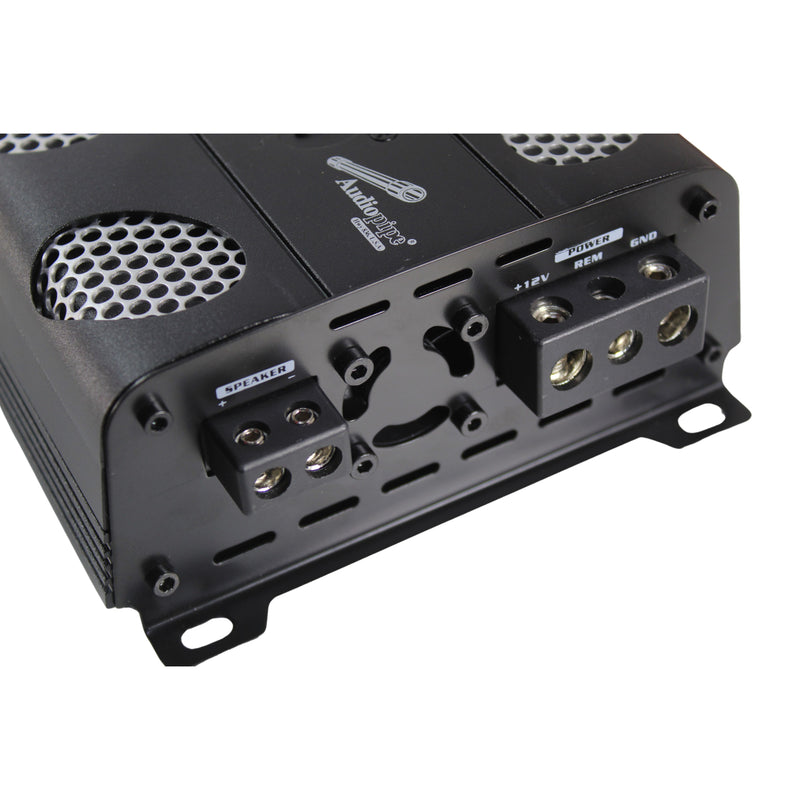

Amplifier APMOX-800.1 Features:
- Full-Range Class D Amplifier
- Compact, Space-Saving Design
- Advanced MOSFET Circuitry
- Variable Bass Boost (0-12dB)
- Built-in Subsonic Filter (50Hz)
- Adjustable High-Pass and Low-Pass Filters (50Hz - 500Hz)
- Remote Subwoofer Volume Control with LED Indicators
- Overload and Overheat Protection
- High and Low-Level Inputs
Amplifier APMOX-800.1 Specifications:
- RMS Power @ 4 Ohms: 1 x 560W
- RMS Power @ 2 Ohms: 1 x 800W
- Frequency Response: 10Hz - 500kHz
- Signal-to-Noise Ratio: 87dB
- THD: 0.08%
- Working Voltage: 9V - 16V
Amplifier APMOX-800.1 Dimensions:
- Length: 4.6" (117mm)
- Width: 5.7" (144mm)
- Height: 2.5" (64mm)
