- HIGH-OUTPUT SUBWOOFER – Delivers 300W RMS and deep bass from 29Hz–1500Hz for tight, powerful low-end sound.
- MATCHED MONOBLOCK AMPLIFIER – Pairs perfectly with the subwoofer, delivering up to 1024W RMS at 1 ohm for max output.
- ADVANCED VOICE COIL – 2.5" 4-layer Kapton coil ensures heat resistance and reliable performance at high power levels.
- CLASS D EFFICIENCY – Compact APMQ-1300 amp uses MOSFET circuitry for clean, efficient power with minimal distortion.
- FULL BASS CONTROL – Includes remote bass knob and variable filters for customizable, in-car audio tuning on the fly.

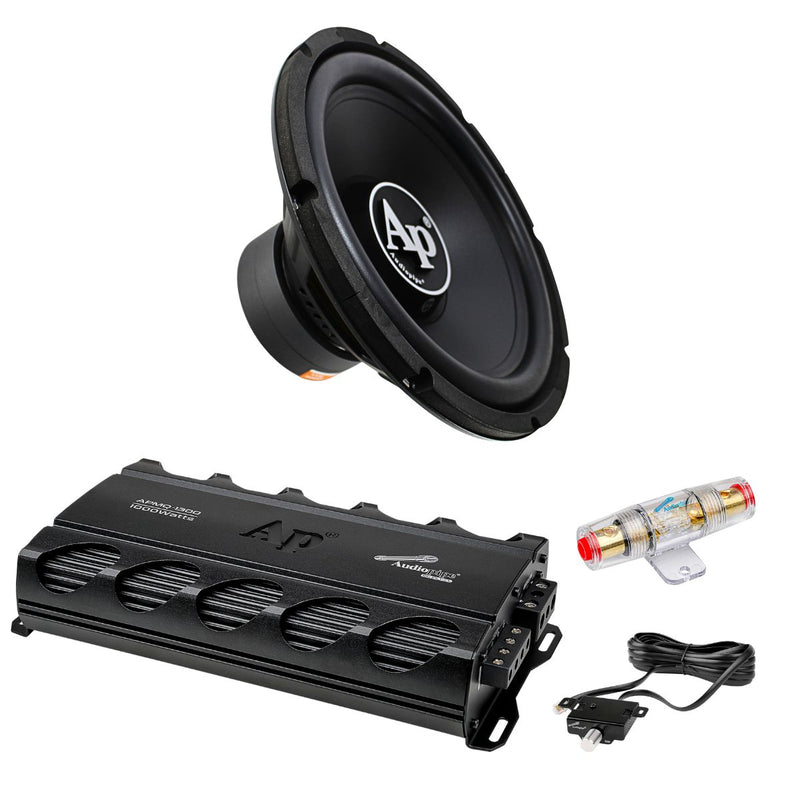

Audiopipe Pro 12" 300W 4-Ohm Subwoofer + 1000W Monoblock Class D Amp Combo
This listing includes:
- (1) Audiopipe Pro Car Audio 12" 300 Watt RMS 4-Ohm 29Hz-1500Hz Subwoofer TS-PP2-12
- (1) Monoblock Class D Mini Amplifier Audiopipe Series APMQ-1300
Description:
This subwoofer and amplifier combo has been carefully matched to deliver optimal performance, efficiency, and clarity for your car audio system. The Audiopipe TS-PP2-12 12" 300 Watt RMS 4-Ohm Subwoofer is engineered for deep, responsive bass with a broad frequency response of 29Hz–1500Hz and a high-strength 68 oz magnet. Its 2.5" 4-layer Kapton voice coil and durable steel frame ensure long-term durability and performance under pressure.
To power this subwoofer efficiently and effectively, we’ve paired it with the Audiopipe APMQ-1300 1000 Watt Monoblock Class D Amplifier, which delivers 1024 watts RMS at 1 ohm—perfect for extracting maximum output from the 4-ohm sub when wired correctly in a safe configuration. This Class D amp uses advanced MOSFET circuitry for clean, high-power output with low distortion, while a variable low-pass filter and remote bass knob give you total control over your sound.

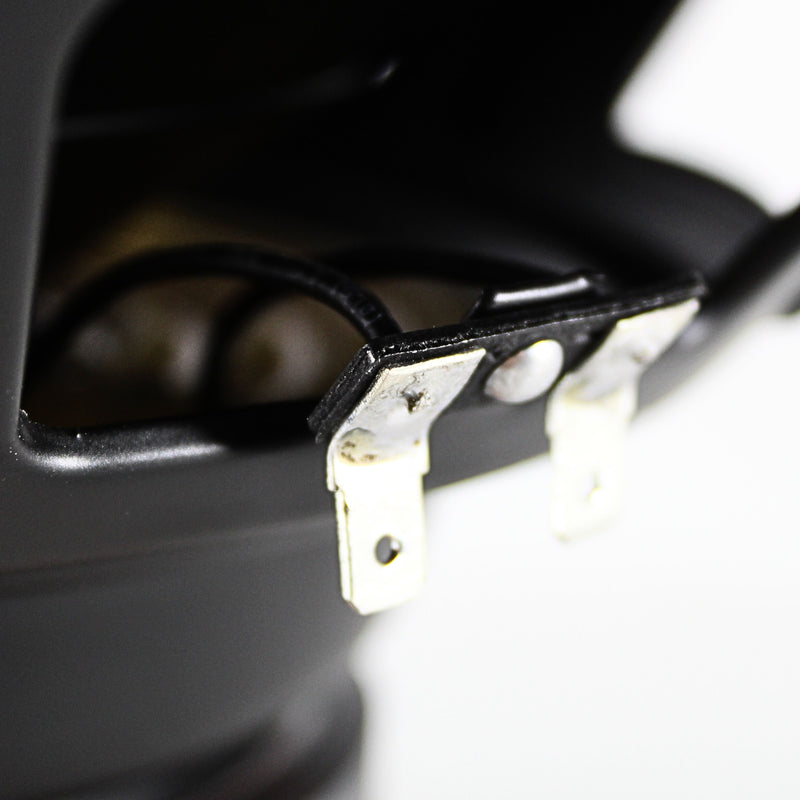

Wiring method: VC (+) to Amp (+), VC (–) to Amp (–)

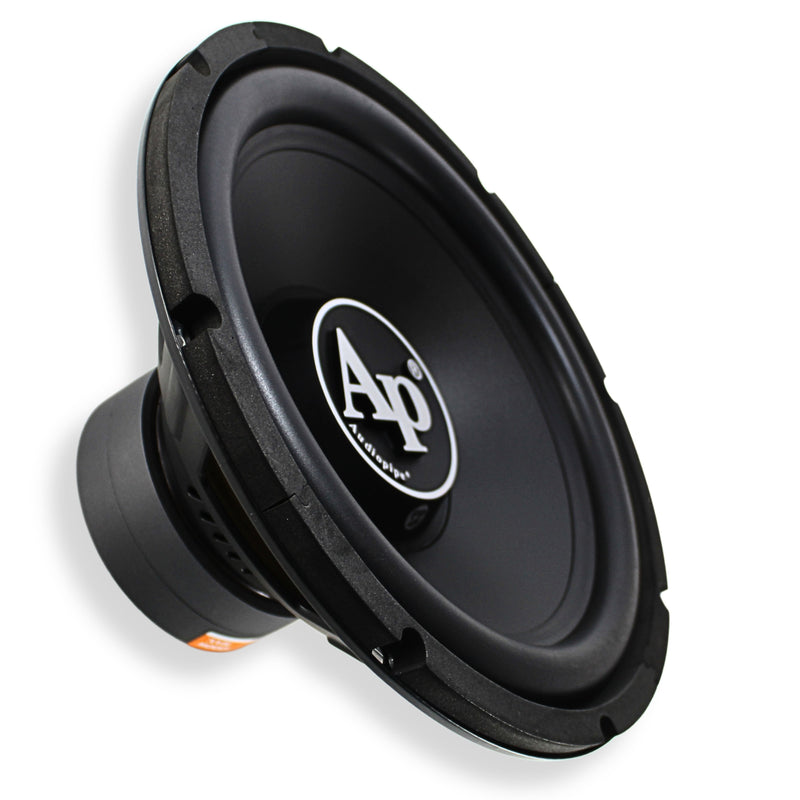

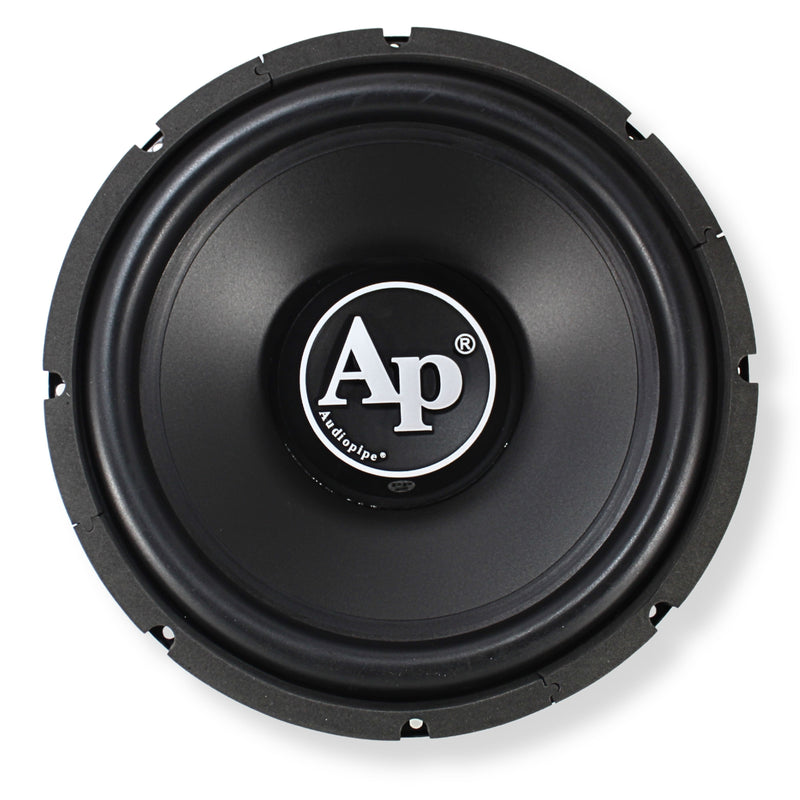

Subwoofer TS-PP2-12 Key Features:
- Peak Power Handling: 1000 Watts (P.M.P.O.)
- Continuous Power: 300 Watts RMS
- 2.5" 4-Layer High-Temperature Kapton Voice Coil
- Heavy-Duty Steel Frame for increased stability and reduced distortion
- Durable Polypropylene Cone with Rubber Surround

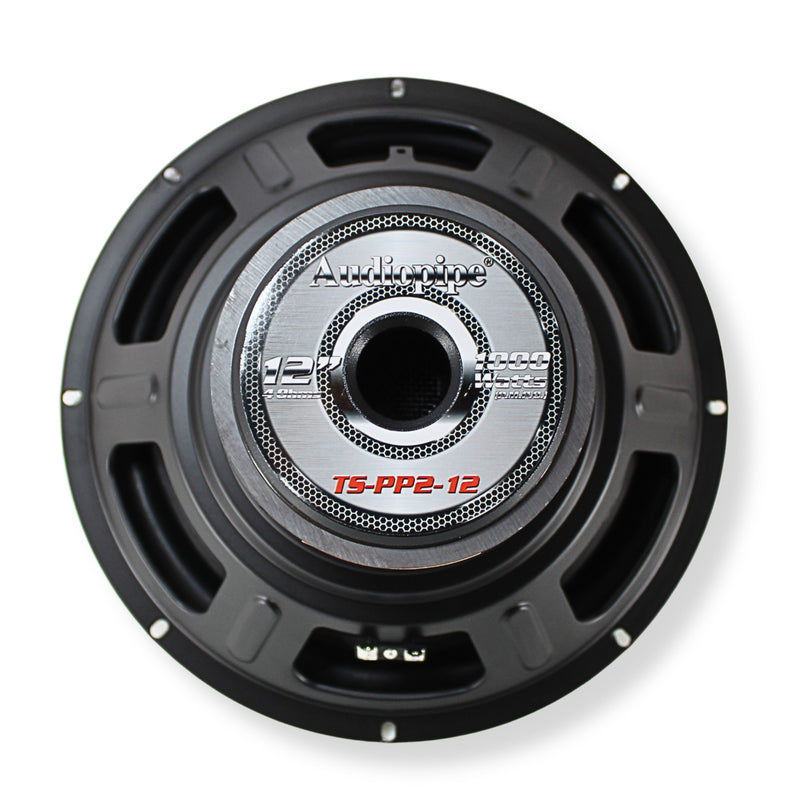

- 68 Oz Magnet for enhanced power and bass accuracy
- Mounting Depth: 5-5/8" (142mm)
- Impedance: 4 Ohms
Subwoofer TS-PP2-12 Specifications:
- Diameter: 12" (305mm)
- Sensitivity (2.83V@1m) : 86dB
- Power Handling: 300 Watts RMS
- Frequency Response: 29-1500Hz
- Nominal Impedance: 4 Ohms
- Voice Coil Diameter: 2" (51mm)
Subwoofer TS-PP2-12 Thiele-Small Parameters:
- Voice Coil DC Resistance - Revc (Ohms): 3.6
- Voice Coil Inductance @1kHz: Levc(mH) " 2.0
- Driver Radiating Area Sd(in): 530
- Motor Force Factor Bl(Tm): 16
- Compliance Volume Vas(ft): 1.5
- Free-air Resonance: Fs(Hz) 32
- Maximum Excursion Xmax(in) 0.48

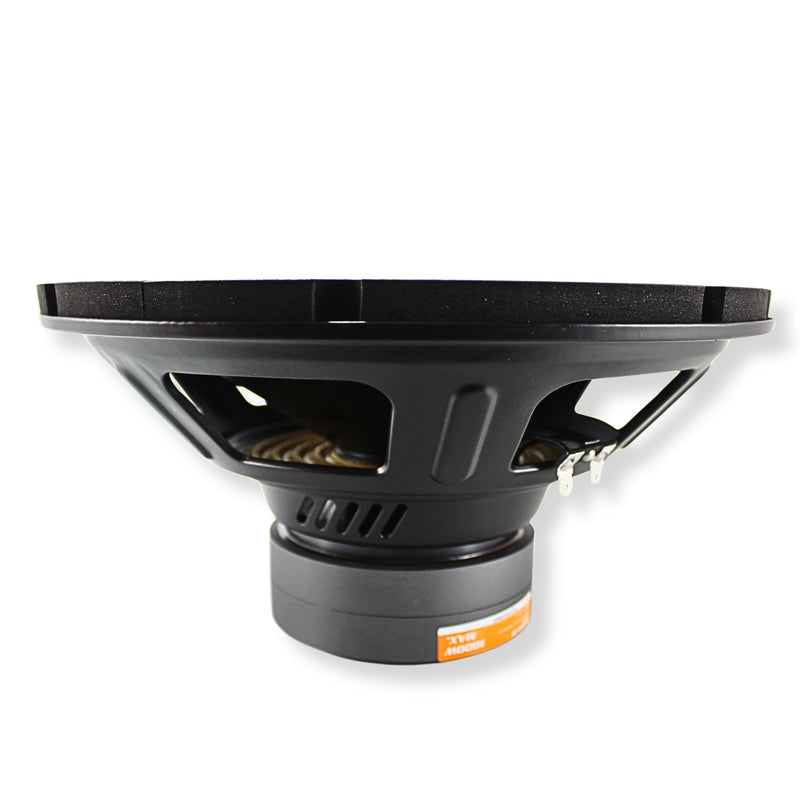

Subwoofer TS-PP2-12 Dimensions:
- Length: 12"
- Height: 6.5"
- Width: 12"
- Weight: 8.55 lb.

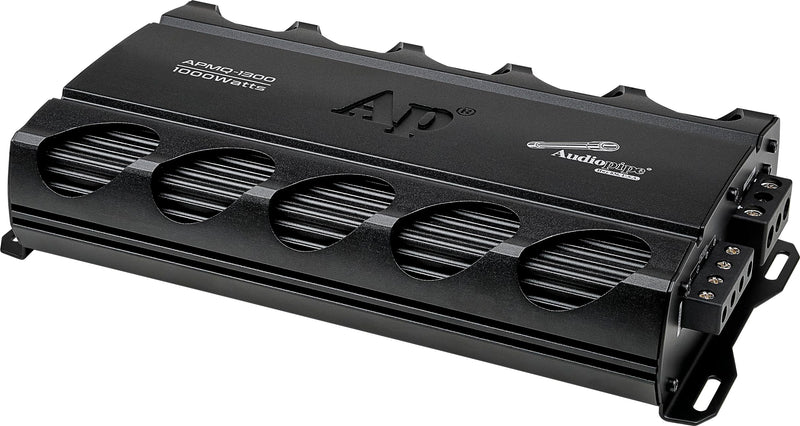

Amplifier APMQ-1300 Features:
- CLASS D MONO AMPLIFIER: Class D design delivers efficient power without sacrificing sound quality.
- COMPACT DESIGN: Slim build allows easy installation in most vehicle interiors.
- ADVANCED MOSFET CIRCUITRY: Uses MOSFETs for strong, low-distortion performance.

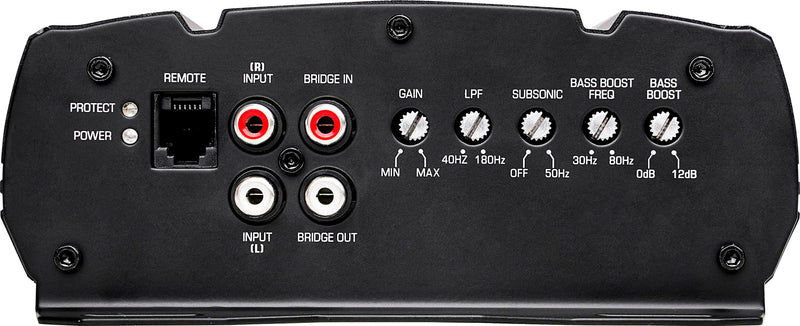

- VARIABLE SUBSONIC FILTER: Built-in filter removes low-end noise from 5–50Hz.
- VARIABLE LOW-PASS FILTER: Adjusts low-frequency output for optimal sound.
- LED INDICATOR: LED lights show amp status for easy monitoring and safety.
- RELIABLE PROTECTION: Built-in safeguards protect against heat, shorts, and low voltage.
- REMOTE BASS CONTROL: Includes bass knob for quick level adjustment from the dash.
Amplifier APMQ-1300 Specifications:
- PEAK POWER: 1000 WATTS
- RMS @ 4 Ohm (<1% Distortion): 376W
- RMS @ 2 Ohm (<1% Distortion): 648W
- RMS @ 1 Ohm (<1% Distortion): 1024W
- FREQUENCY RESPONSE: 18-180Hz
- SIGNAL TO NOISE RATIO: >70dB
- INPUT SENSITIVITY: 0.2-5V
Amplifier APMQ-1300 Dimensions (in inches):
- Length: 10.5"
- Width: 2.1"
- Height: 6.2"
