- Complete Midrange Combo System: Includes a 2-channel MOSFET amplifier, dual 10-inch midrange sealed enclosure, and a 12 ft SpeakON cable for a ready-to-install audio upgrade.

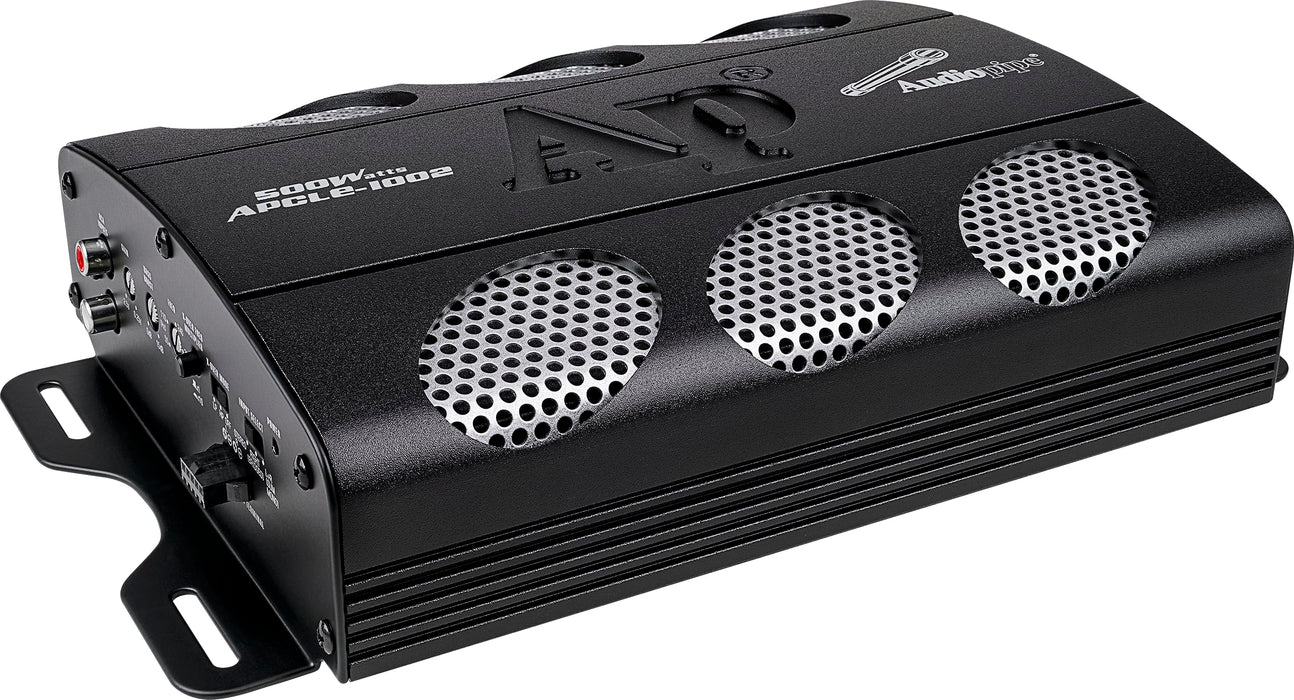

- 500 Watt High-Efficiency Amplifier: The APCLE-1002 delivers up to 500 watts max with clean, controlled output for powerful mids and clear vocal projection.
- Dual 10-Inch Midrange Bullet Speakers: Sealed enclosure houses two 10-inch midrange bullet drivers designed for strong projection, clarity, and focused midrange response.
- Flexible Wiring and Tuning Options: Amplifier supports stereo 2-channel or bridged operation with adjustable input sensitivity and crossover controls for precise system tuning.

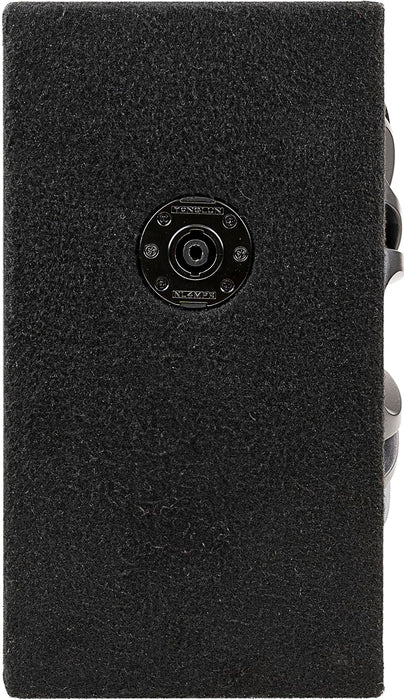

- Durable Road-Ready Construction: Built with rugged materials, thermal and electrical protection circuitry, and secure SpeakON connectivity to withstand demanding car audio environments.

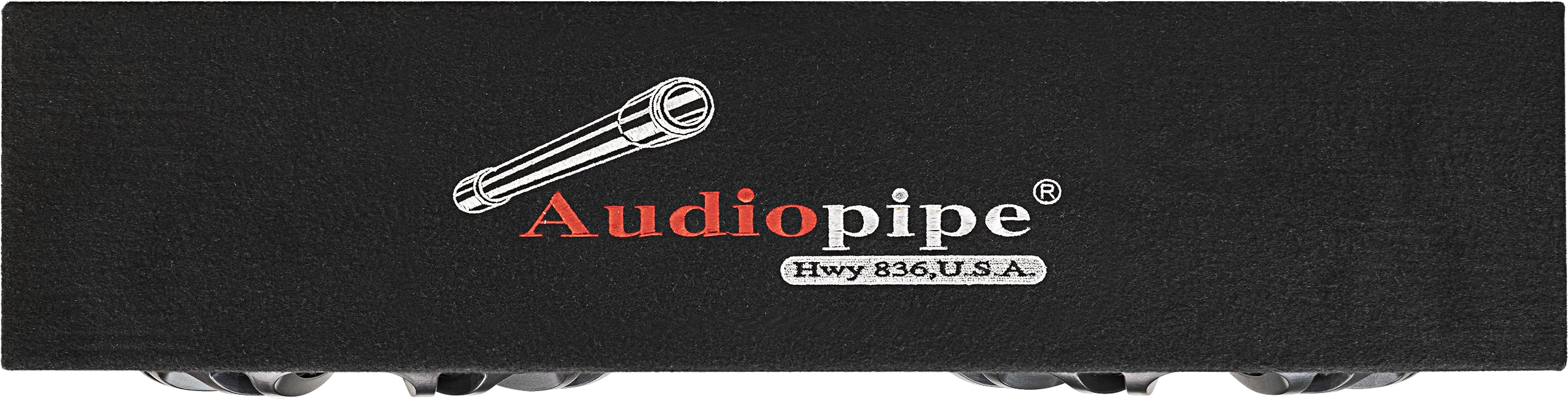

Audiopipe Loaded 10" 2x Mid-Range + 2x Driver Combo with 500W 2-Channel Amplifier
This Listing Includes:
- (1) AudioPipe APCLE-1002 2-Ch Amplifier
- (1) AudioPipe AP-CHULD-102 10" Loaded Chuchero Box
- (1) XSPK-214-BL12 Speaker Cable
Loud, clear, and built to perform.
The Loaded Double Mid-Range & Driver Combo Package (AP-CHU-10A) delivers powerful midrange projection and crisp high-frequency output in a compact, road-ready design. Centered around a 10-inch chuchero box, this system is ideal for car audio builds that demand strong vocals, sharp clarity, and easy installation.

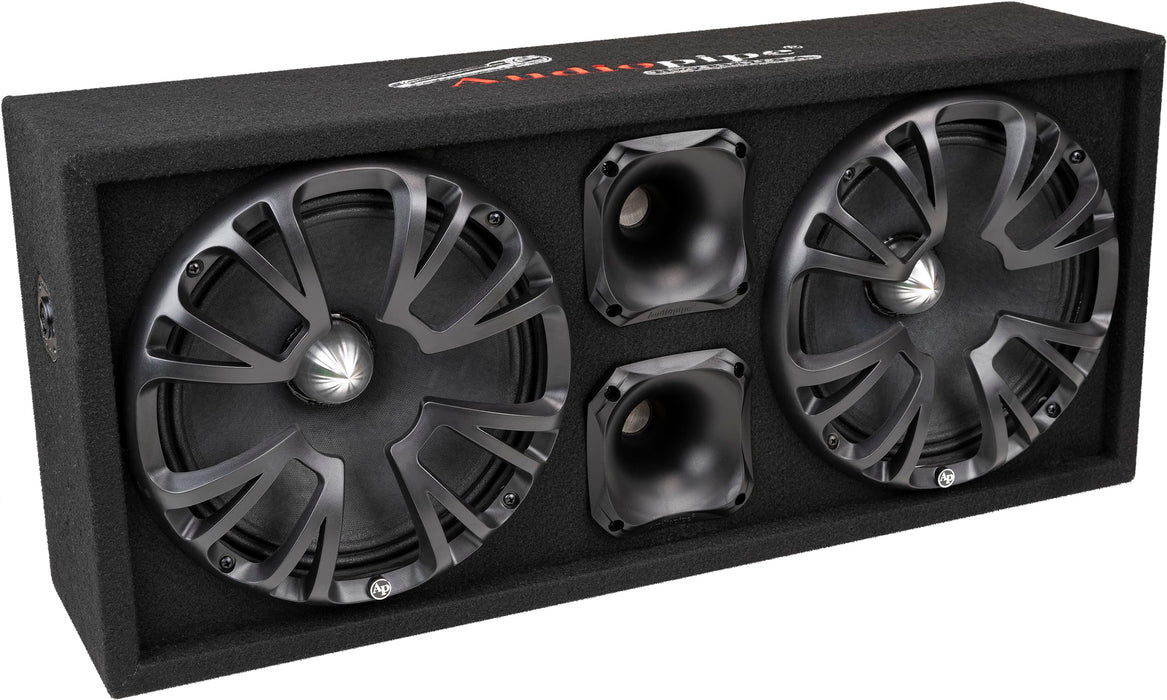

The enclosure is constructed from high-quality MDF and wrapped in durable high-density carpet, offering both strength and style while resisting vibration and wear. Inside, dual 10-inch mid-range bullet speakers and dual 4.5-inch titanium drivers combine to produce loud, focused sound that cuts cleanly through bass-heavy systems.

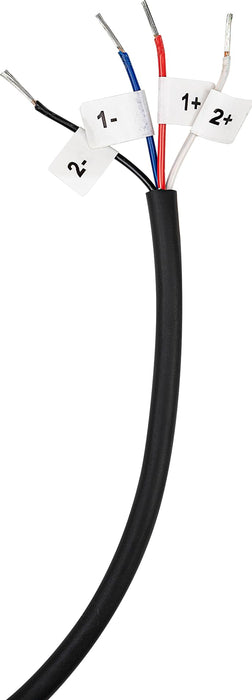

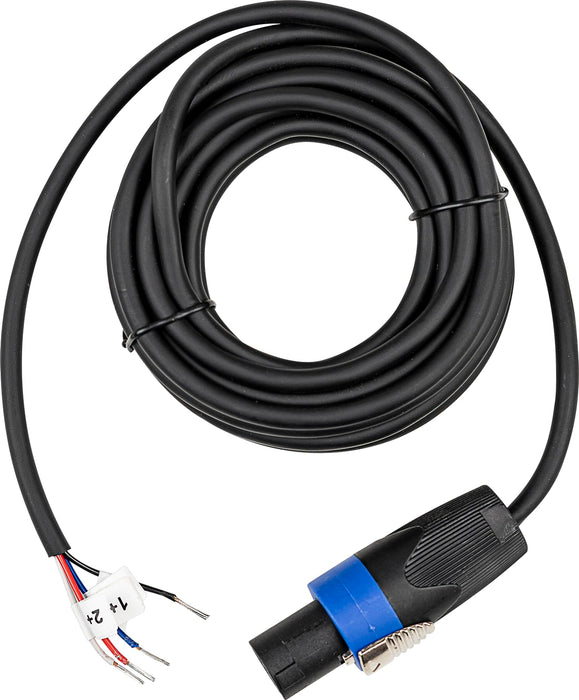

Powering the system is an included 2-channel amplifier with built-in variable high-pass and low-pass crossovers, allowing precise tuning for mids and highs. Electronic protection circuitry helps safeguard against short circuits, DC offset, and thermal overload. A 12-foot 4-wire SpeakON cable completes the package, making installation fast and secure.
If you’re looking for a compact yet aggressive midrange solution, this combo is engineered to bring clarity, projection, and presence to your system.
Features
- 10-inch chuchero style loaded enclosure
- High-quality MDF construction
- Covered in durable high-density carpet
- Dual 10-inch mid-range bullet speakers
- Dual 4.5-inch titanium compression drivers
- 2-inch KSV voice coils for improved power handling
- 28 oz strontium magnets for strong motor performance
- Dual 8 ohm speaker configuration
- 600 watts maximum power handling
- Includes 2-channel power amplifier
- Built-in variable high-pass and low-pass crossovers
- Electronic protection circuitry

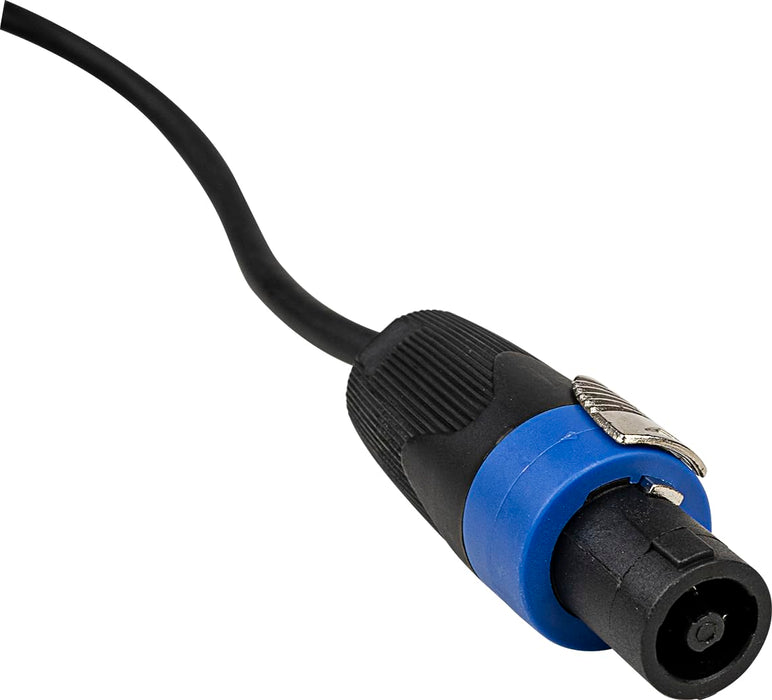

- SpeakON cable included for secure connections
Specifications
- Speaker Size: 2 x 10-inch mid-range bullet speakers
- High-Frequency Drivers: 2 x 4.5 inch titanium drivers
- Speaker Impedance: Dual 8 ohm
- Voice Coil Size: 2-inch KSV
- Magnet Size: 28 oz strontium
- Power Handling: 600 watts max
- Impedance: Dual 8 ohm
- Enclosure Material: MDF
- Enclosure Finish: High-density carpet
- Maximum Power Output: 500 watts
- Amplifier Power @ 4 Ohm: 50 watts x 2
- Amplifier Power @ 2 Ohm: 100 watts x 2
- Bridged Power @ 4 Ohm: 200 watts x 1
- Frequency Response: 20Hz - 20kHz

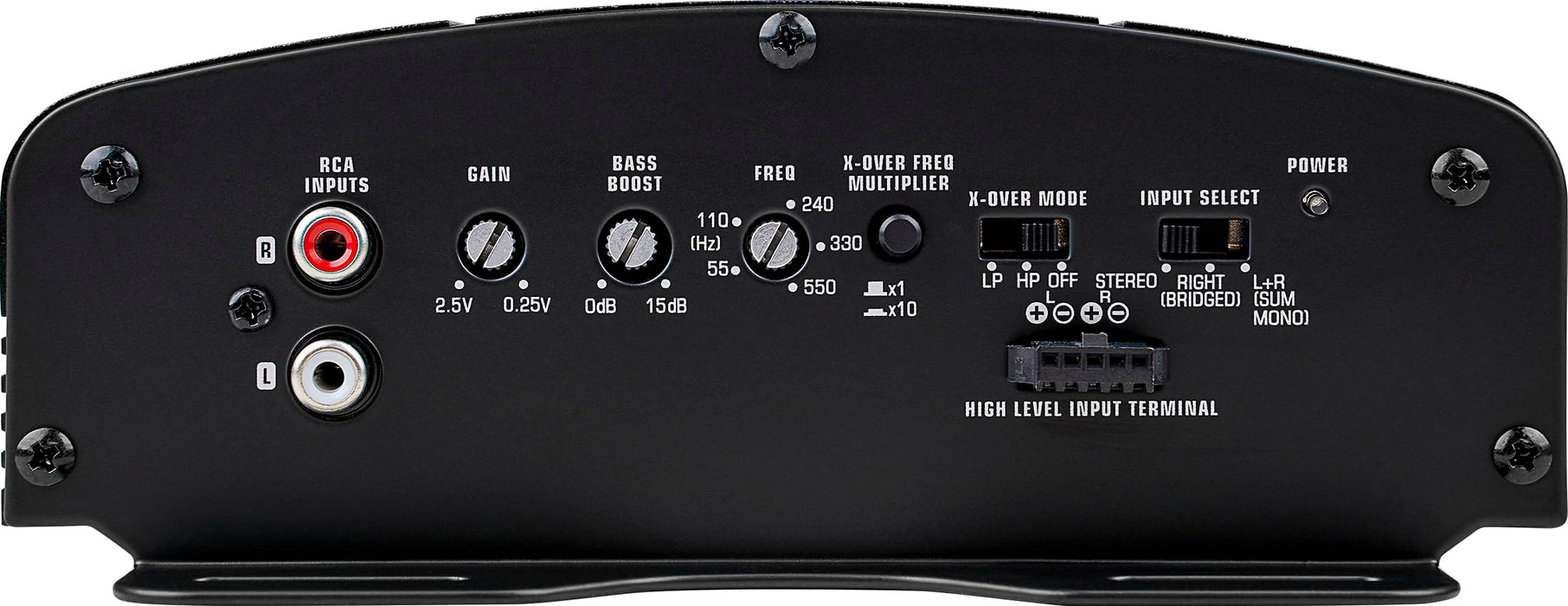

- Input Sensitivity: 0.25V - 2.5V
- Crossover Range: 55Hz - 5.5kHz
Amplifier Specifications:
- Amplifier Type: 2-channel
- Crossover Controls: Variable high-pass and low-pass
- Inputs: RCA line input and output

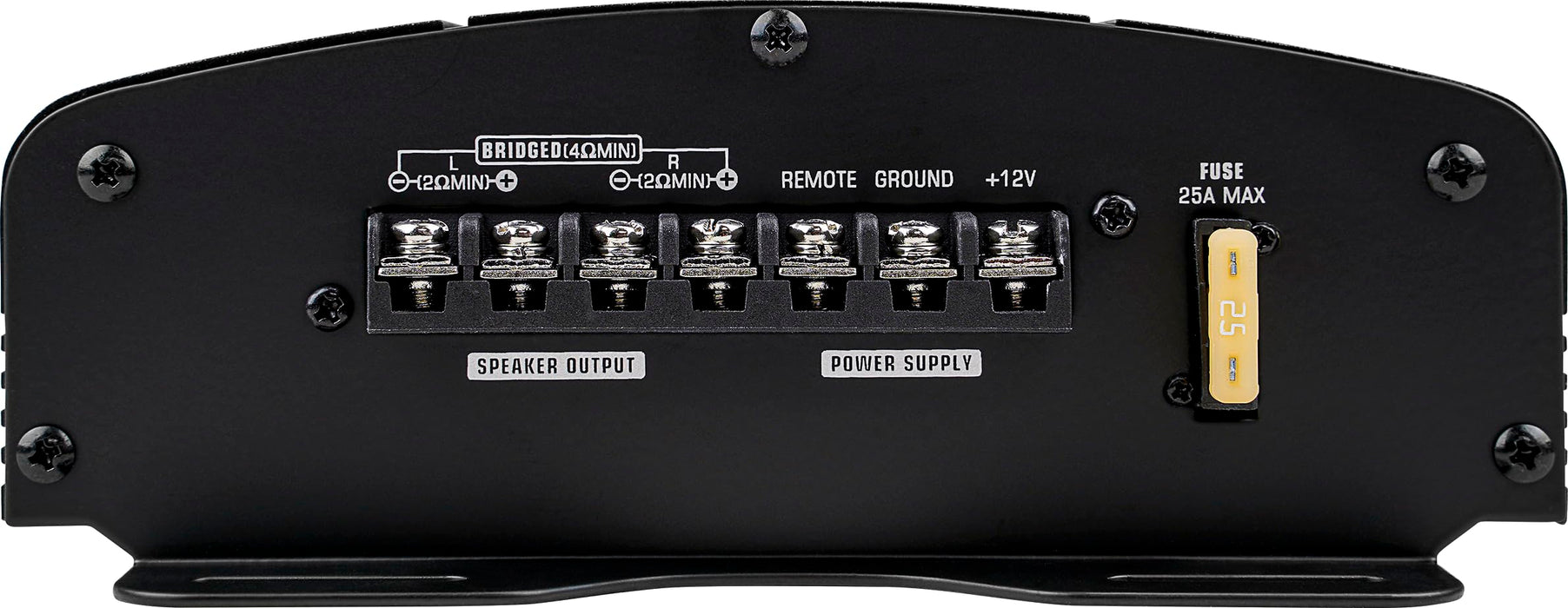

- Protection: Short circuit, DC offset, thermal overload
- Amplifier Dimensions (Metric): 55 mm H x 176 mm W x 224 mm
Dimensions (Chuchero Enclosure):
- Length: 28"
- Width: 6.5"
- Height: 12.2"
Dimensions (Amplifier):
- Height: 2.2"
- Width: 7"
- Length: 8.8"
