- 3-WAY FREQUENCY SEPARATION: Distributes the audio signal between woofer, midrange, and tweeter outputs for cleaner, more balanced sound.
- DRIVER PROTECTION: Helps prevent damaging frequencies from reaching compression drivers and tweeters.
- 1000W MAXIMUM POWER: Supports high-output 4-ohm speaker systems and demanding car-audio applications.
- 12DB/OCTAVE CROSSOVER SLOPE: Directs frequencies up to 2,000 Hz to woofers, 2 kHz to 9 kHz to midranges, and 9 kHz to 22 kHz to tweeters.
- DESIGNED FOR AP-CHU1028 SYSTEMS: Includes dedicated wiring for two woofers, one midrange, and two tweeters to simplify installation.

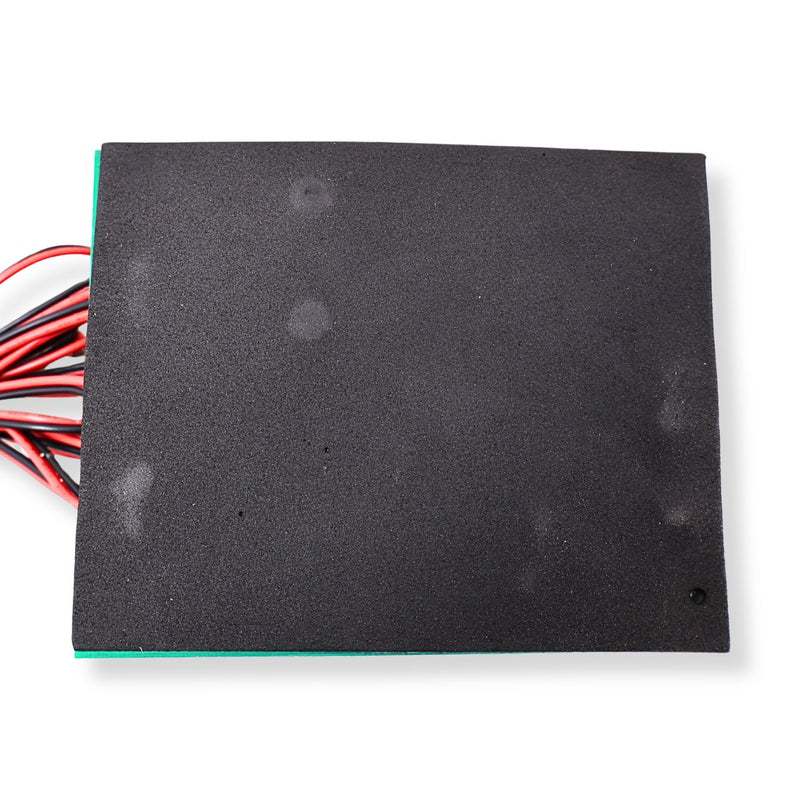

Audiopipe CRX-3000-CHU 3-Way Passive Crossover 1000W Max 4-Ohm
This Listing Includes:
- (1) Audiopipe CRX-3000-CHU 3-Way Passive Crossover

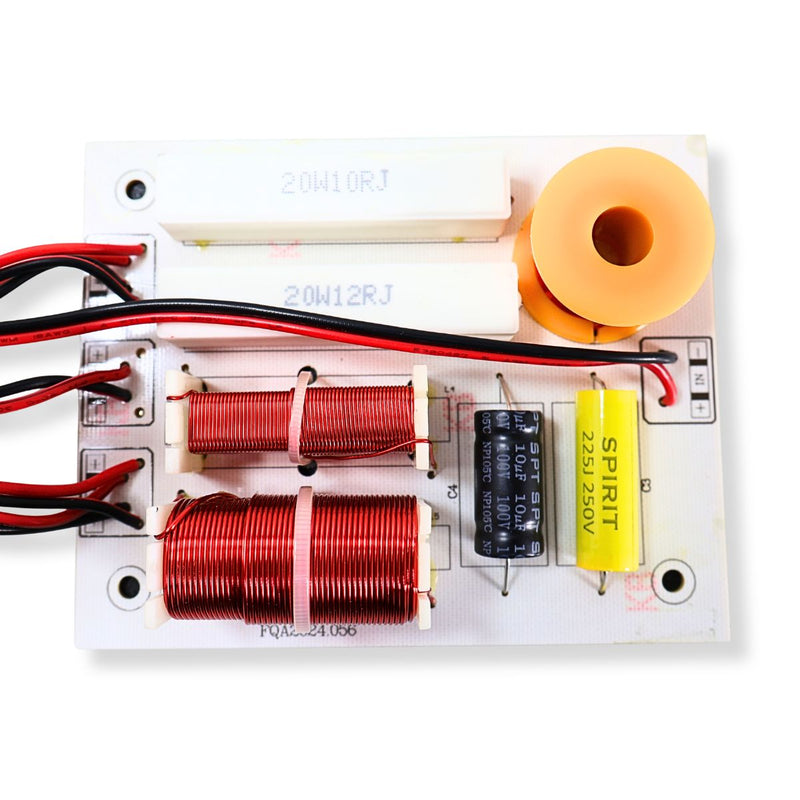

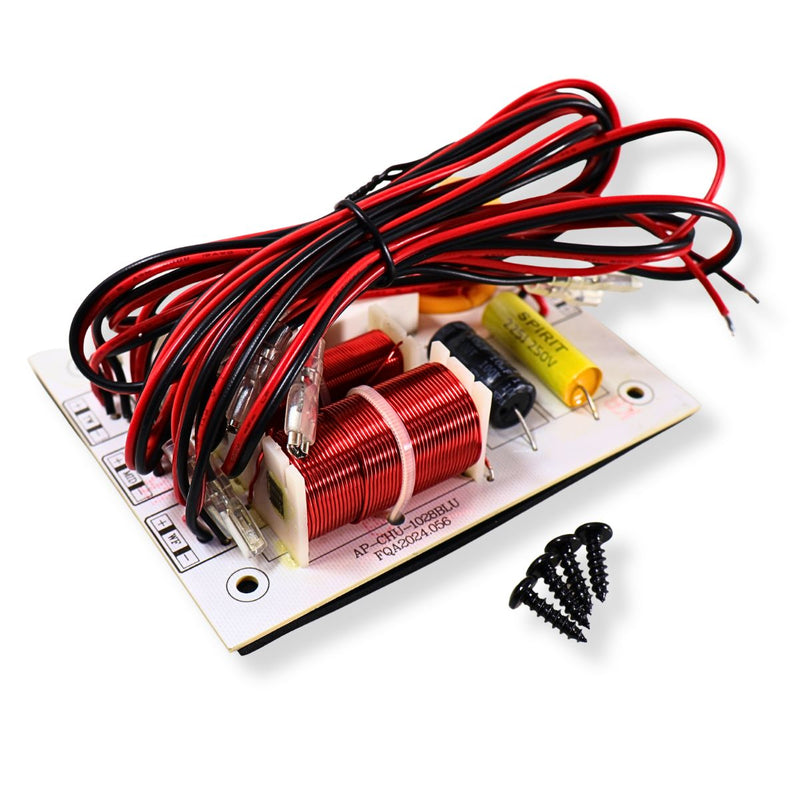

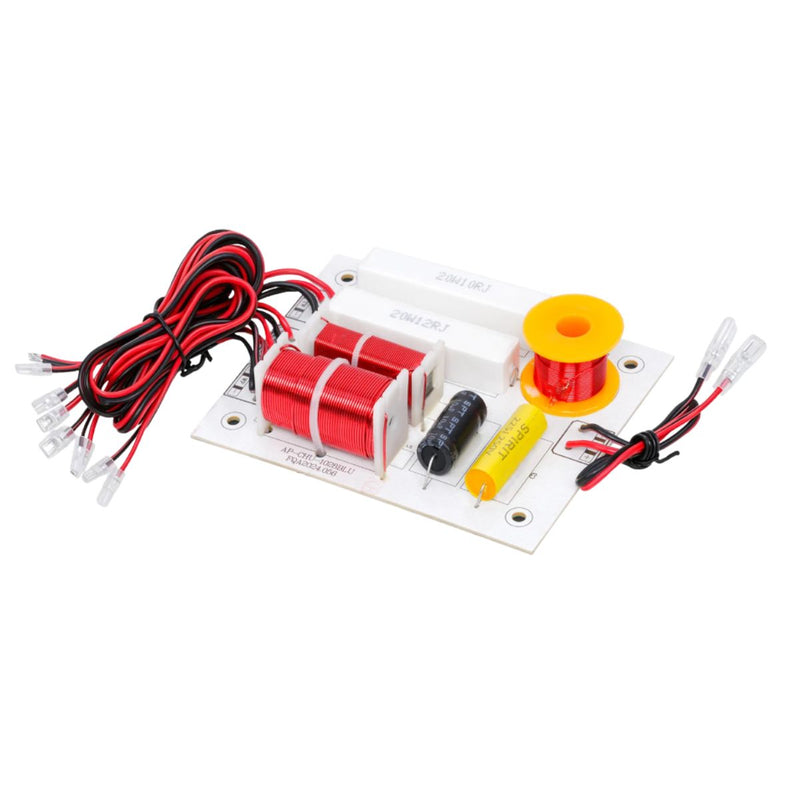

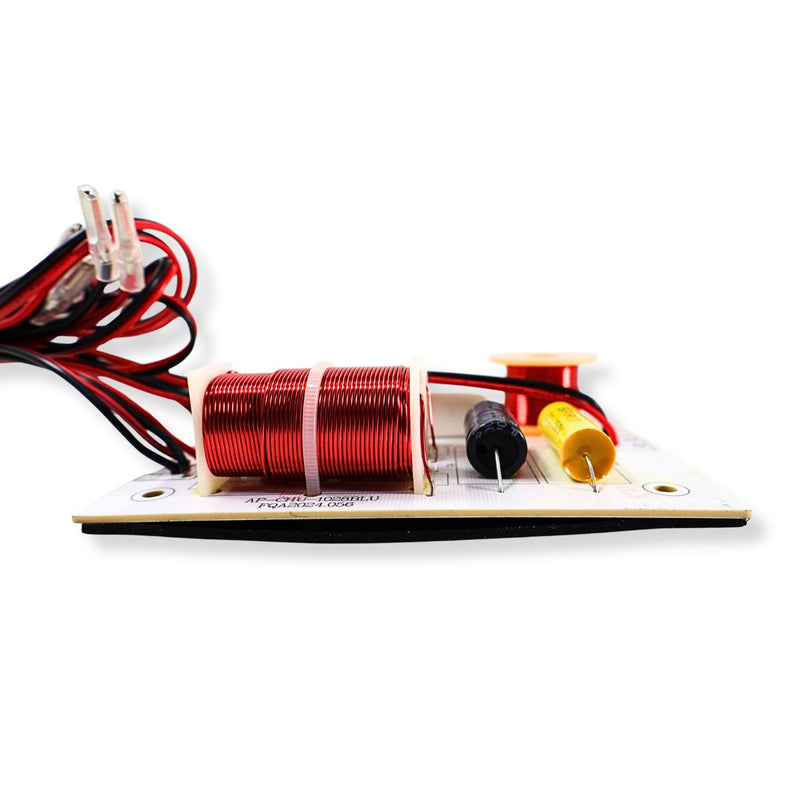

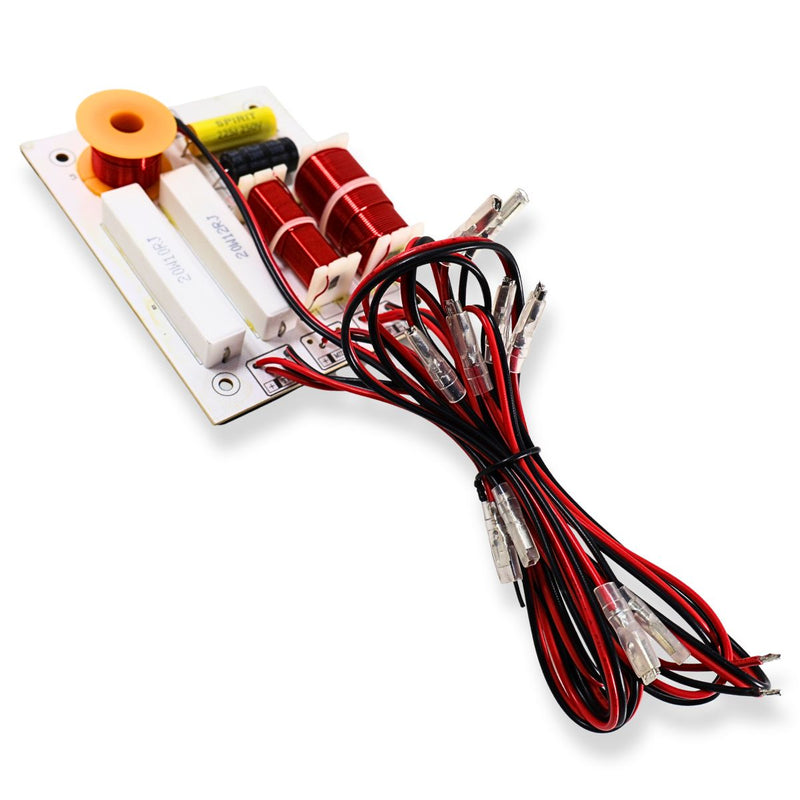

Improve sound clarity and help protect your speakers with the Audiopipe CRX-3000-CHU 3-way passive crossover network. Designed for the Audiopipe AP-CHU1028 speaker system, this crossover separates the incoming audio signal into dedicated woofer, midrange, and tweeter frequency ranges.
The woofer output handles frequencies up to 2,000 Hz, the midrange output covers 2 kHz to 9 kHz, and the tweeter output covers 9 kHz to 22 kHz. This controlled signal distribution prevents unwanted frequencies from reaching compression drivers and tweeters while creating smoother transitions between speakers.
The CRX-3000-CHU supports up to 1000 watts maximum power at 4 ohms and uses a 12 dB-per-octave crossover slope. Dedicated wiring for two woofers, one midrange, and two tweeters helps simplify installation in compatible systems.
Although designed for the AP-CHU1028 series, it may also work with custom 3-way speaker systems when the speaker impedance, power requirements, and crossover frequencies match.

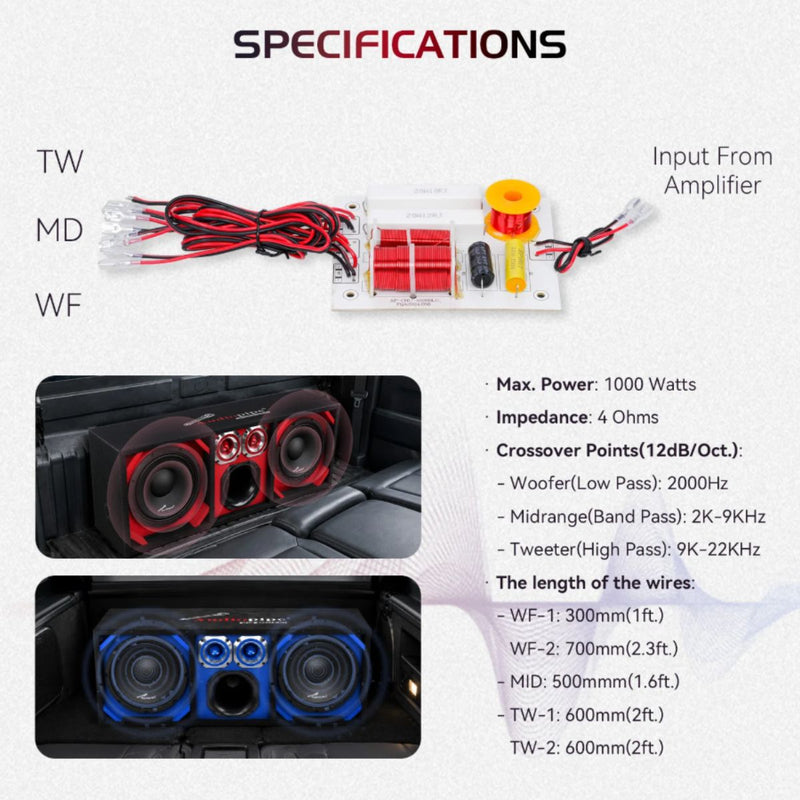

Specifications:
- Brand: Audiopipe
- Model: CRX-3000-CHU
- Product Type: 3-Way Passive Crossover Network
- Maximum Power Handling: 1000 Watts
- Impedance: 4 Ohms
- Crossover Slope: 12 dB/Octave
- Woofer Frequency Range: Up to 2,000 Hz
- Midrange Frequency Range: 2 kHz to 9 kHz
- Tweeter Frequency Range: 9 kHz to 22 kHz
- Designed For: Audiopipe AP-CHU1028 Speaker Systems
- Power Requirement: Passive, No External Power Required
- Quantity: Sold Individually

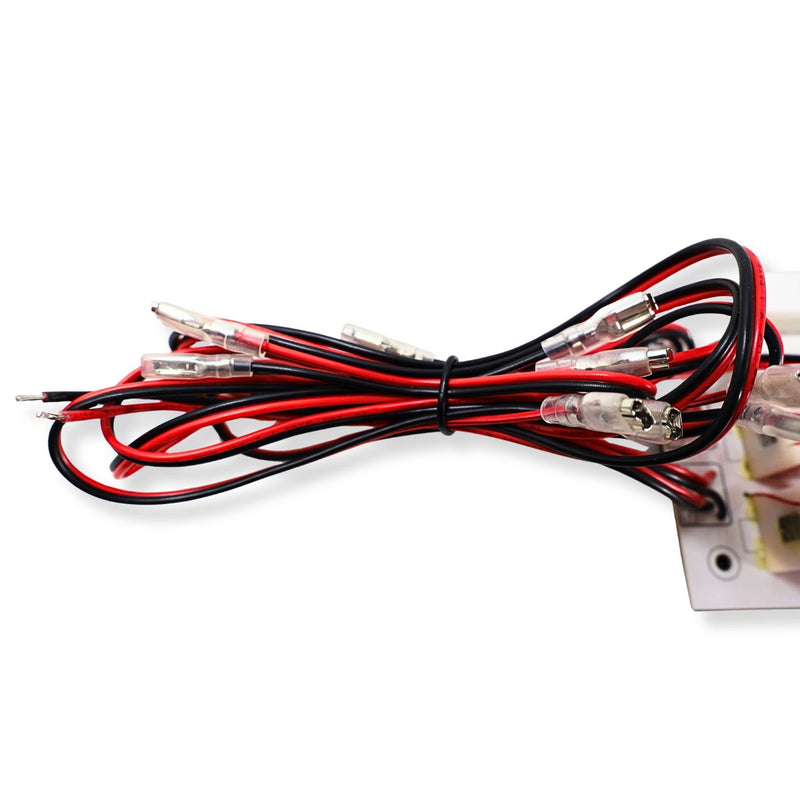

Wiring Lengths:
- Woofer 1, WF-1: 300 mm, Approximately 1 ft
- Woofer 2, WF-2: 700 mm, Approximately 2.3 ft
- Midrange, MID: 500 mm, Approximately 1.6 ft
- Tweeter 1, TW-1: 600 mm, Approximately 2 ft
- Tweeter 2, TW-2: 600 mm, Approximately 2 ft
