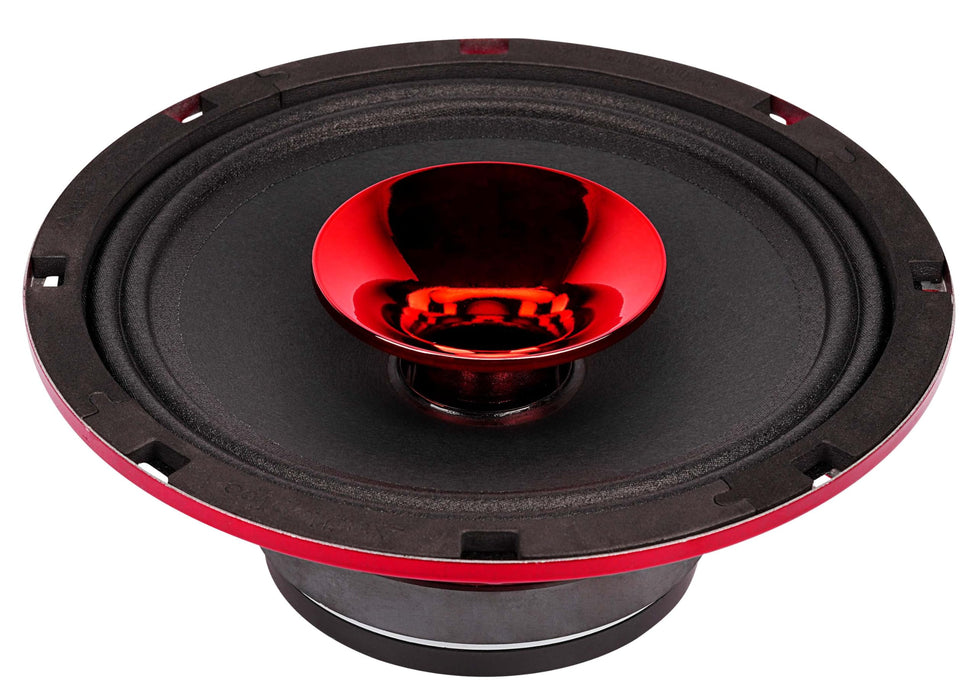

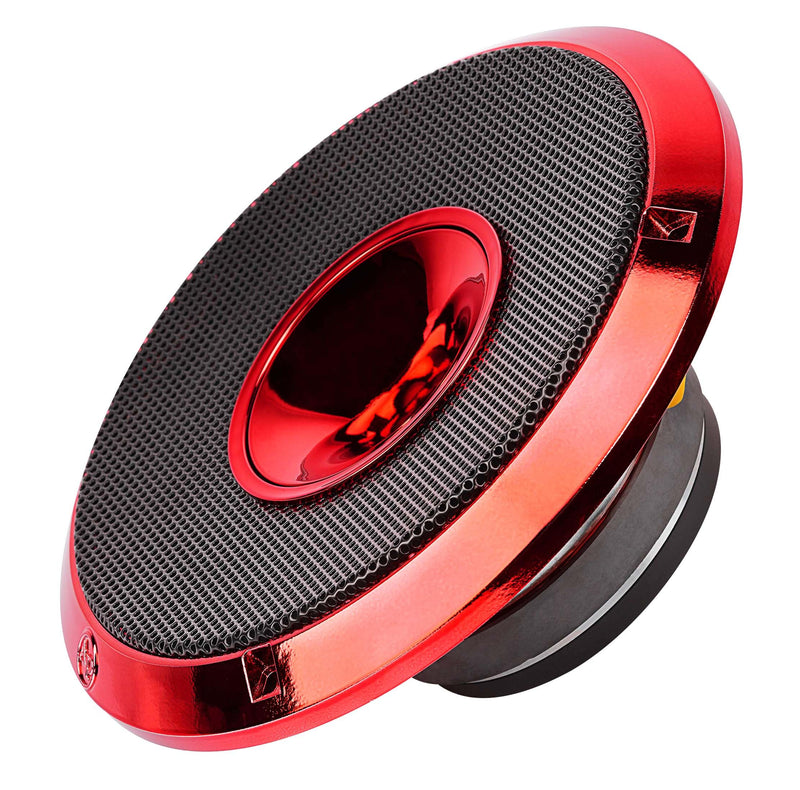

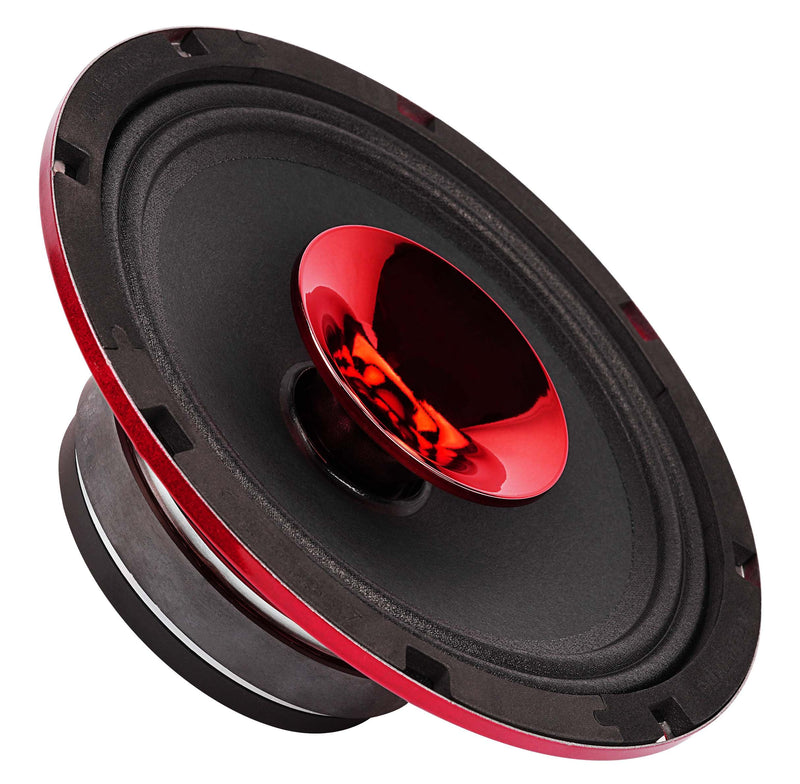

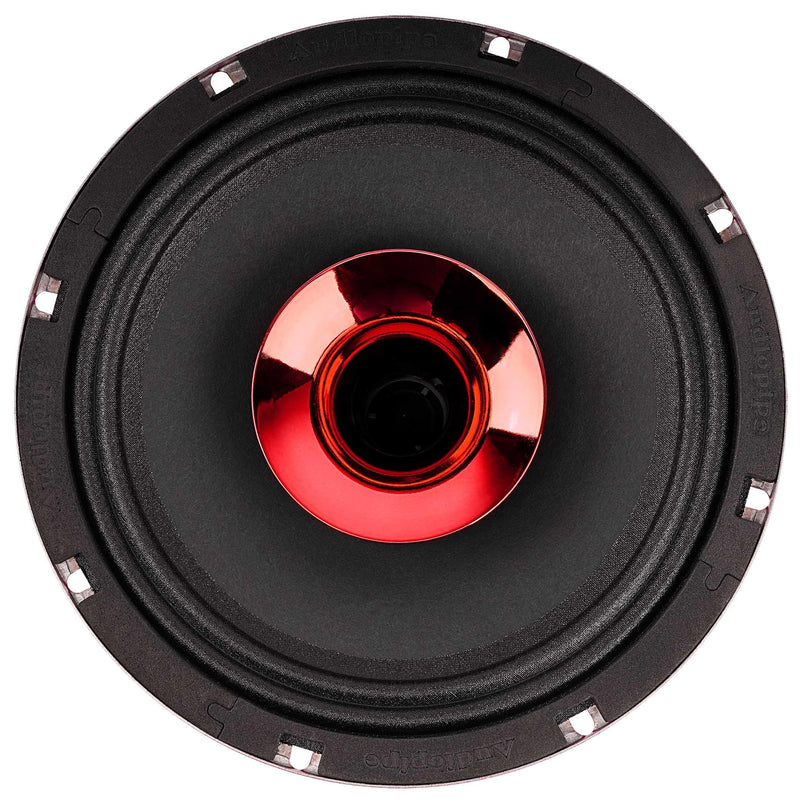

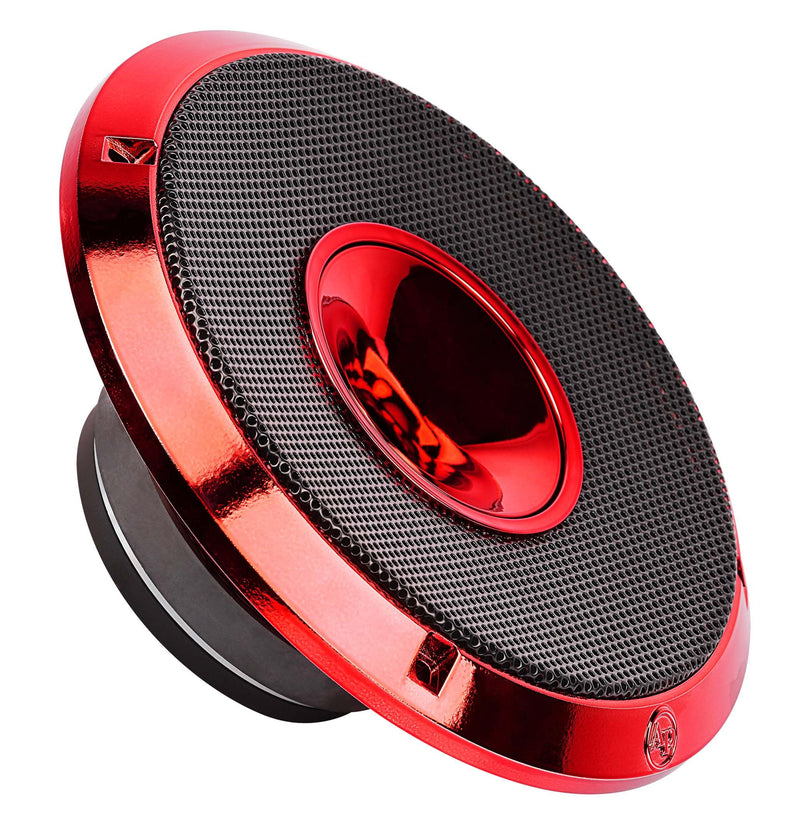

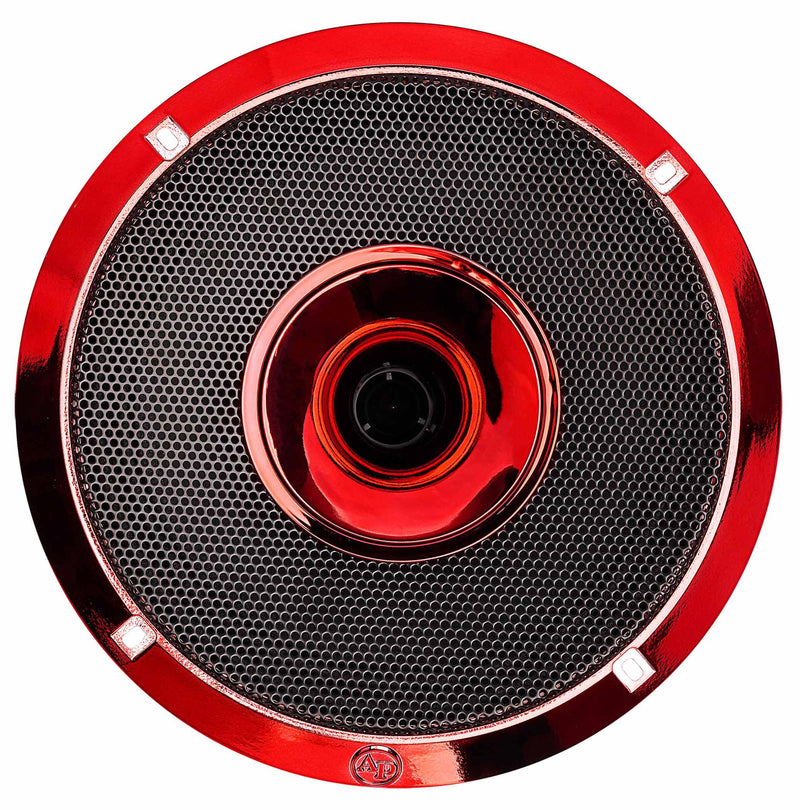

Audiopipe 8" 200W RMS 4 Ohm Red Eye Candy Compression Horn Midrange Coax Speaker

• High-Power Mid-Range: Our Mid-Range Series offers superior quality and performance with a built-in high wattage compression horn driver for clear, loud sound.
• Built-in Compression Horn Driver: Enjoy flexibility with our custom-built series featuring a separate compression horn driver, ensuring easy replacement without changing the entire speaker.

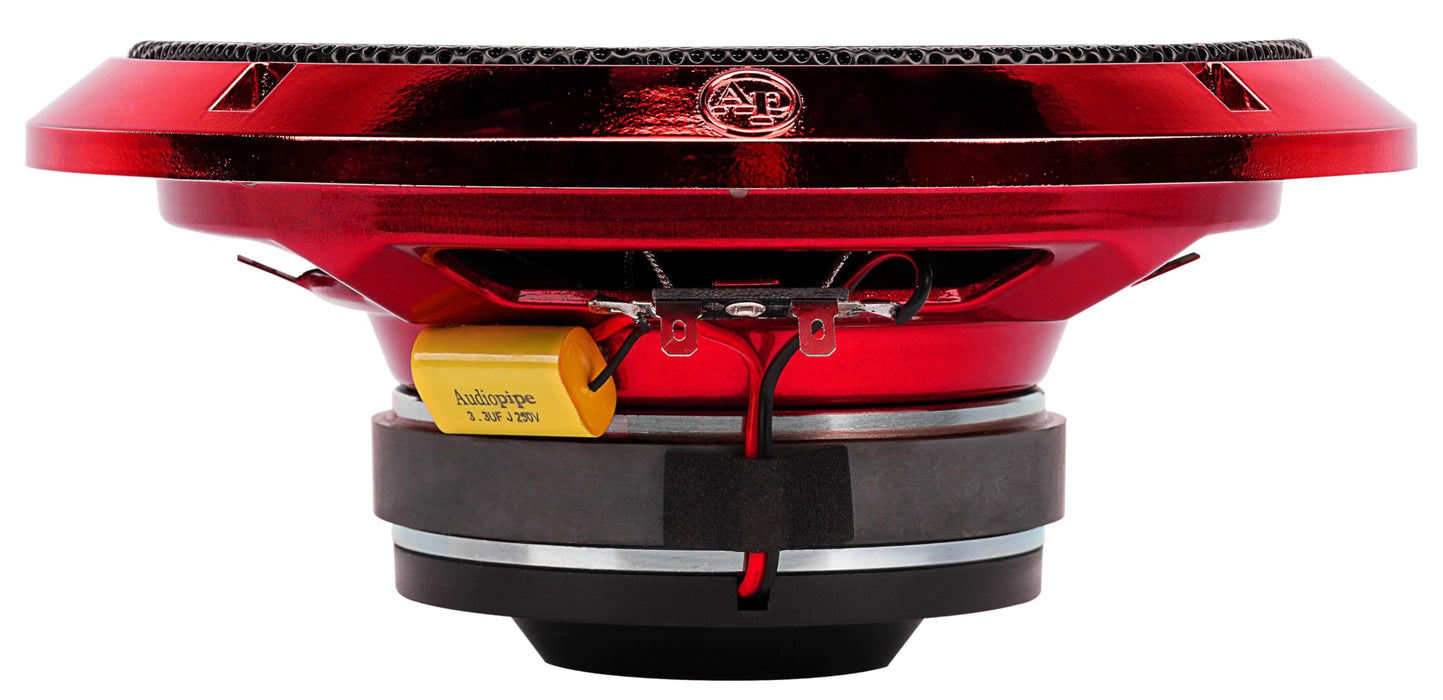

• 2-Way Pro Shallow Coaxial Design: Experience exceptional mid-range audio performance with our 2-way pro shallow coaxial design for immersive sound.
• Sleek Candy Red Design: Designed with a modern candy red finish and red Ap, our loudspeaker adds a stylish touch to your audio setup.
• High-Quality Voice Coil: Equipped with a 1.5” high-temperature KSV voice coil, our speaker delivers durability and longevity even under extreme conditions.

Audiopipe 8" 200W RMS 4 Ohm Red Eye Candy Compression Horn Midrange Coax speaker

This Listing Includes:

• (1) 8" Compression Horn Midrange Loudspeaker

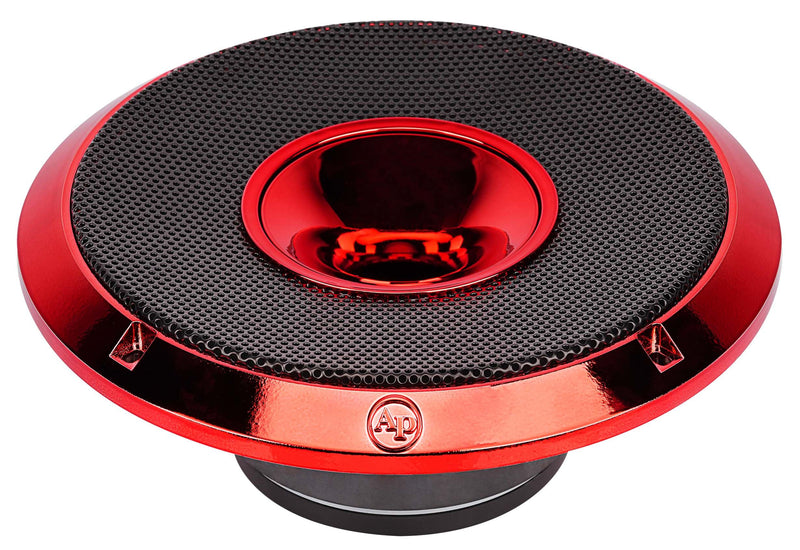

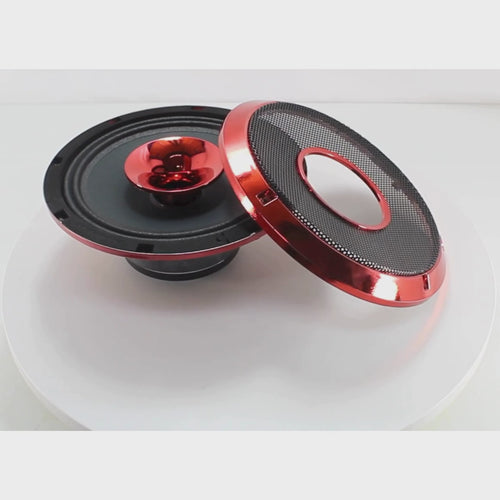

• (1) Mesh Grille

Immerse yourself in the rich sound of our Audiopipe 8" Compression Horn Mid-Range Loudspeaker. With 400 watts of peak power and a 1.5" Kapton voice coil, this speaker ensures crystal-clear audio reproduction across a frequency response of 70-20kHz. The sleek candy red design adds a touch of style to any audio system, while the included grill provides added durability and protection. Experience the perfect balance of power and performance with our Audiopipe loudspeaker.

Features:

• Mid-Range Series with high-power compression horn driver


• 2-way pro shallow coaxial design

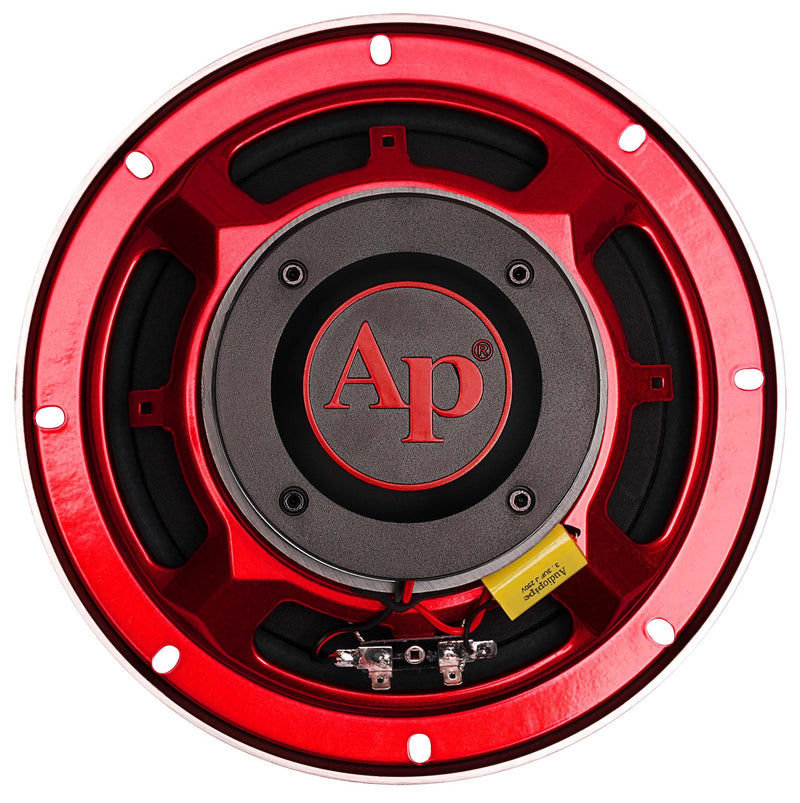

• Flat steel basket for easy installation


• Candy red finish with red "AP" for modern aesthetics


• 1.5†high-temperature KSV voice coil for durability

Technical Specifications:

• Peak Power: 400 Watts (P.M.P.O.)


• Continuous Power: 200 Watts (R.M.S.)


• Frequency Response: 70-20kHz


• Sensitivity: 90dB


• Impedance: 4 Ohms


• Voice Coil Diameter: 1.5"


• Voice Coil Former Material: KSV


• Basket Color: Red


• Magnet Material: Ferrite


• Magnet Weight: 18 Oz

Thiele & Small Parameters:

• Vas: 11L / 0.39 ft3


• Xmax: 2mm


• Fs: 85Hz


• Qms: 2.4


• Qes: 1.2


• Qts: 0.8


• Mms: 19g


• Cms: 180 mm/N


• BL: 5.6


• Le: 177 mH


• Sd: 204 Cm2


• Re: 3.6 ohms


• Mmd: 18g

Dimensions:

• Overall Diameter: 8.62"


• Mounting Diameter: 7.93"


• Mounting Depth: 3.11"


• Baffle Cut-out: 7.04"
