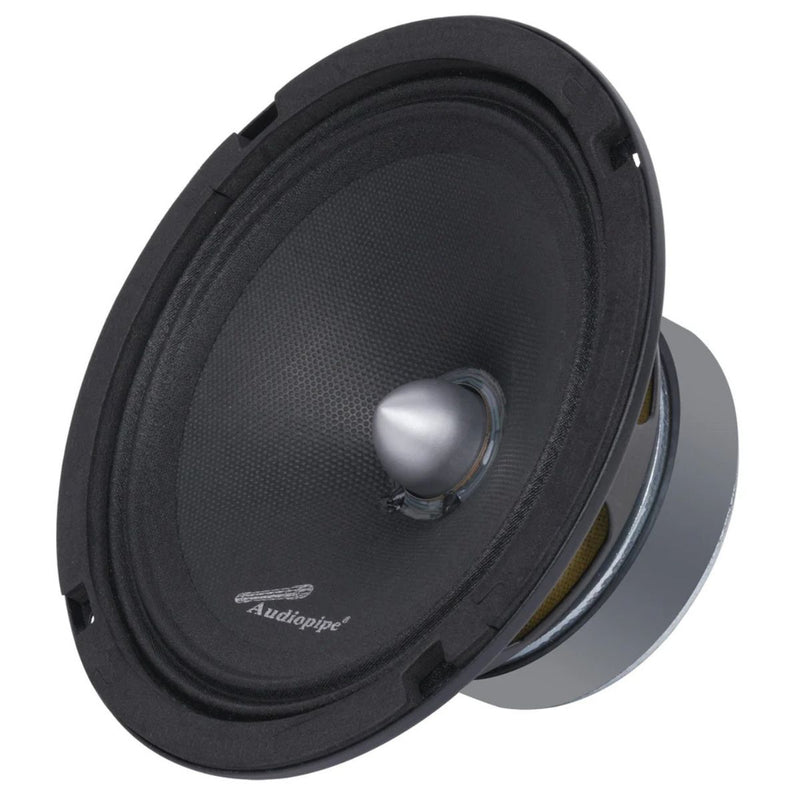

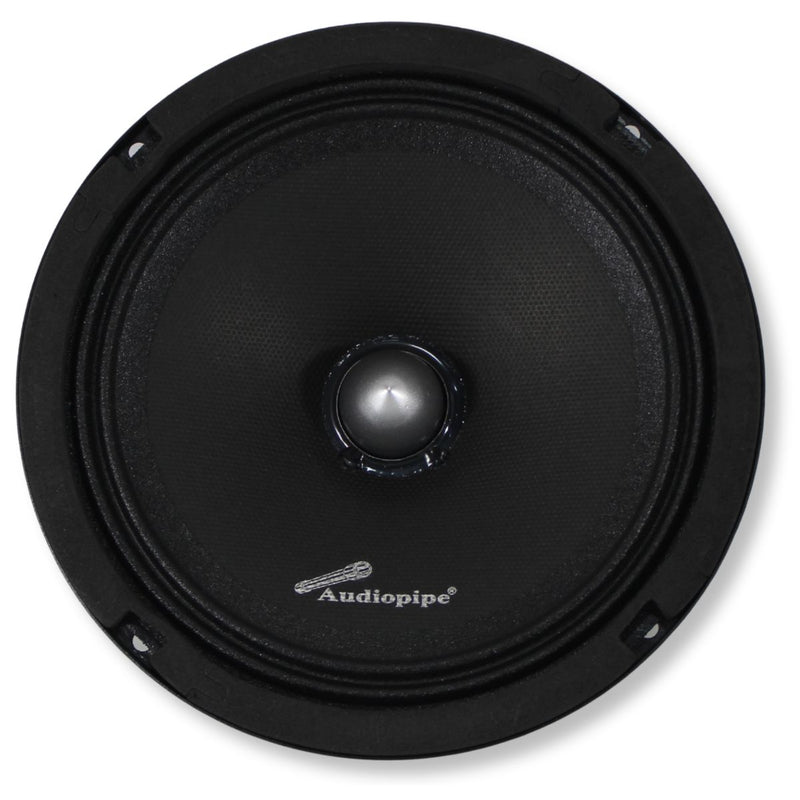

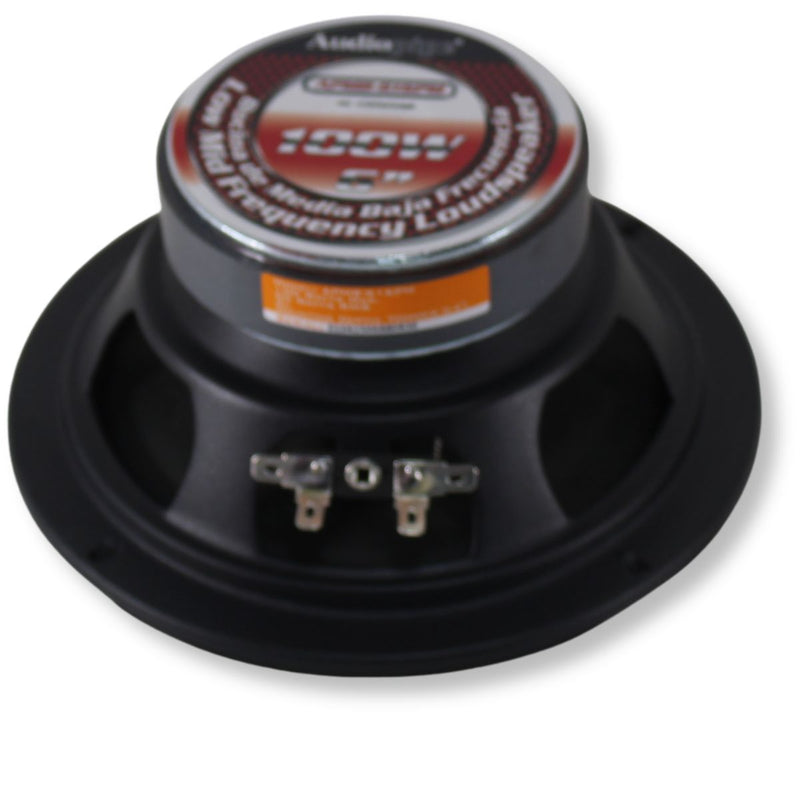

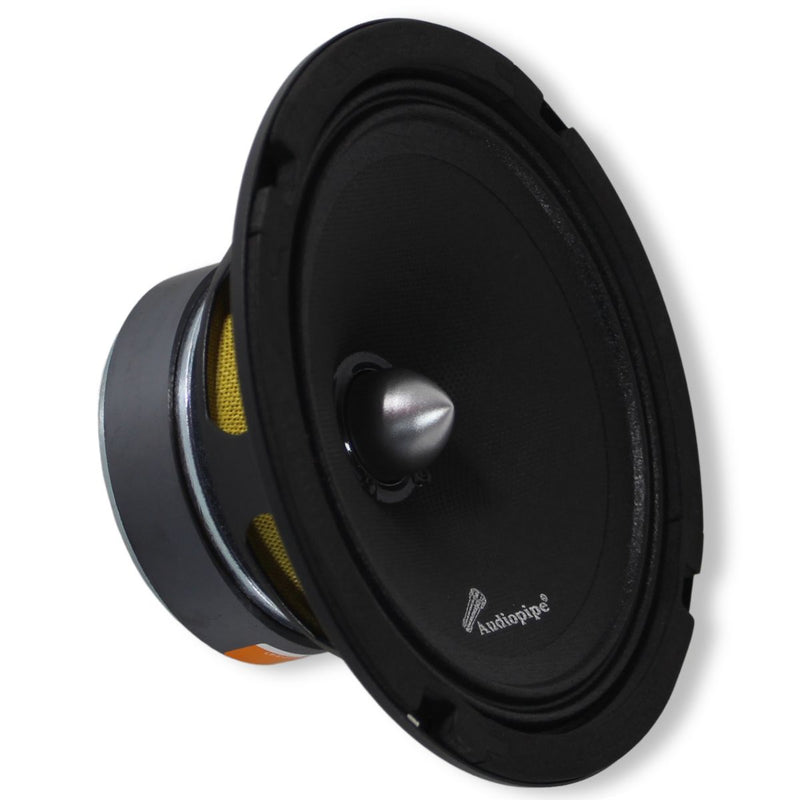

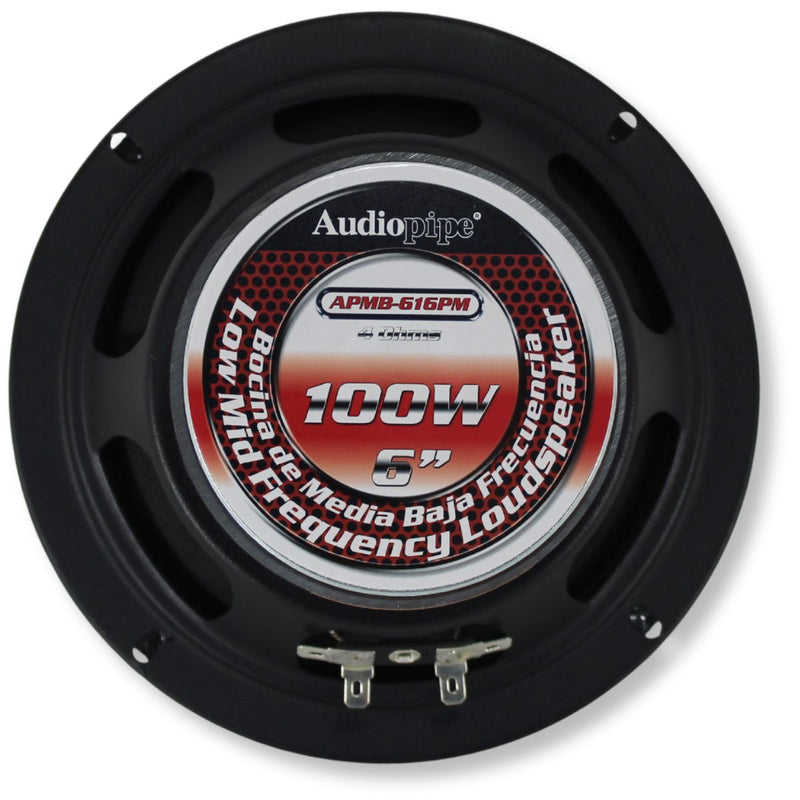

6.5" 50 Watt 4-Ohm Car Audio Midrange Loudspeaker W Bullet Resonator APMB-616PM

• Rich Low-Mid Sound: Engineered cloth surround enhances low frequencies for a deeper, punchier midrange
• Durable Voice Coil: 1" high-temperature ASV voice coil improves performance and long-term reliability

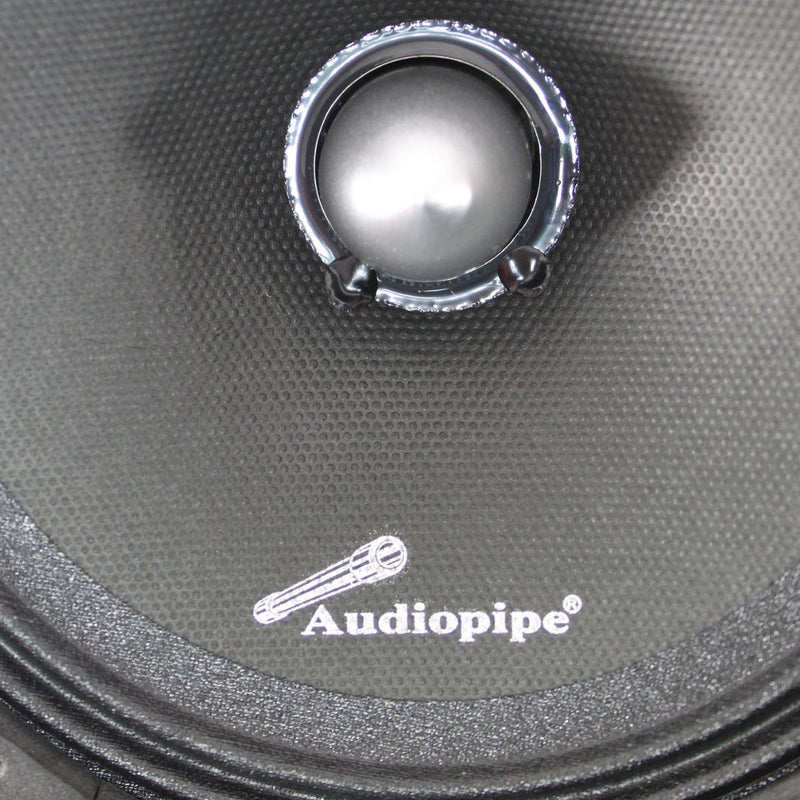

• Built-In Bullet Tweeter: Integrated high-frequency bullet delivers extended range with crisp highs
• Compact & Easy to Install: 2.8" mounting depth and reserved holes make it ideal for tight spaces
• Solid Power Handling: Handles 50W RMS and 100W max with 89 dB sensitivity and 4-ohm impedance

6.5" 50 Watt 4-Ohm Car Audio Midrange Loudspeaker W Bullet Resonator APMB-616PM

This Listing Includes:

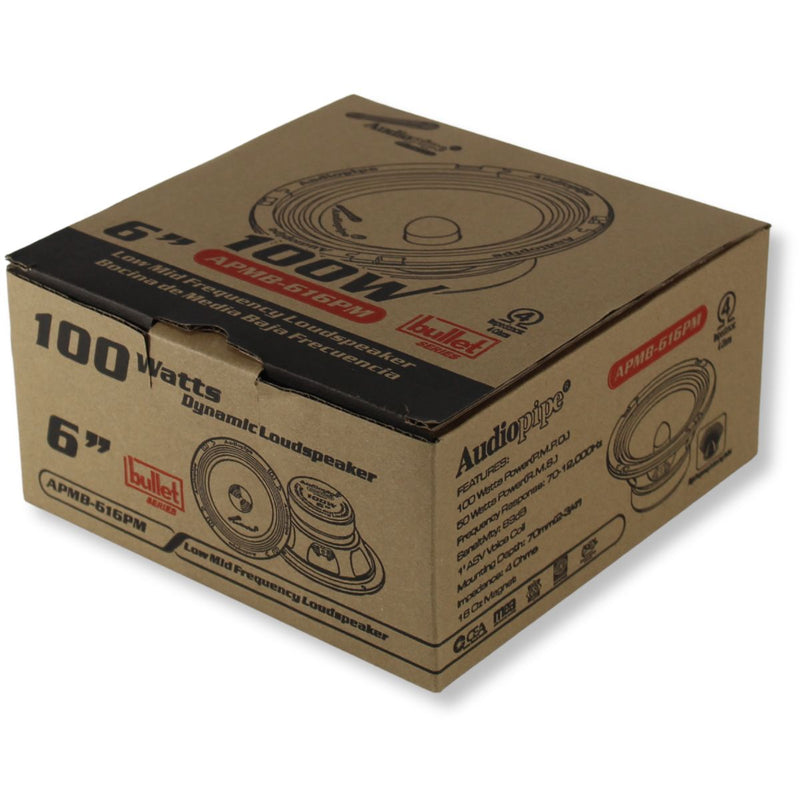

• (1) Audiopipe 6.5" 50 Watt 4-Ohm Midrange Loudspeaker

Upgrade your car audio system with the Audiopipe APMB-616PM, a 6.5" low midrange loudspeaker engineered for clarity, punch, and full-bodied sound. Its durable cloth edge surround boosts low-frequency response while maintaining smooth, clean mids. A built-in high-frequency bullet resonator expands the range, letting this speaker deliver crisp highs without sacrificing low-end depth.

Featuring a 1" high-temperature ASV voice coil with superior power handling and excellent ventilation, the APMB-616PM is ideal for tight installations and high-output systems. Whether you’re after a balanced stereo setup or a high-performance upgrade, this midrange speaker brings your music to life with precision and power.

Features:

• 50W RMS / 100W Peak Power Handling


• 6.5" low midrange driver with built-in high-frequency bullet


• Durable cloth edge surround for improved low-frequency response


• 1" ASV voice coil for superior heat dissipation and power handling


• Crisp, full midrange with extended high-frequency clarity


• Compact design perfect for tight installations

Specifications:

• Nominal Diameter: 6.6" / 165 mm


• Impedance: 4 Ohm


• RMS Power Handling: 50 Watts


• MAX Power Handling: 100 Watts


• Sensitivity (1w/1m): 89 dB


• Frequency Response: 70 Hz – 12 kHz


• Voice Coil Diameter: 1" / 25.5 mm


• Voice Coil Former Material: ASV


• Winding Material: EISV


• Cone Material: Paper


• Surround Material: Cloth


• Basket Material: Steel


• Basket Color: Black


• Magnet Material: Ferrite


• Magnet Weight: 16 oz

Thiele & Small Parameters:

• Vas: 35 L / 0.124 ft


• Xmax: 3 mm


• Fs: 120 Hz


• Qms: 2.0


• Qes: 1.2


• Qts: 0.7


• Mms: 13 g


• Cms: 132 um/N


• BL: 6


• Le: 0.15 mH


• Sd: 137 cm


• Re: 3.6 ohms


• Mmd: 12.5 g

Speaker Measurements:

• Overall Diameter: 6.5" / 166 mm

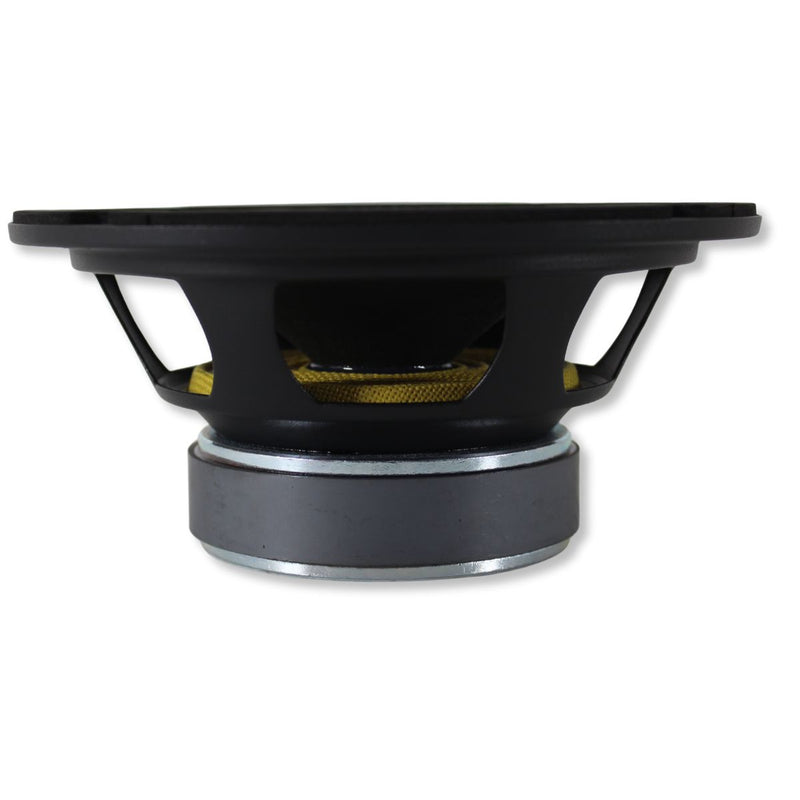

• Overall Depth: 3" / 77 mm


• Front Mount Baffle Cutout: 5.6" / 142 mm

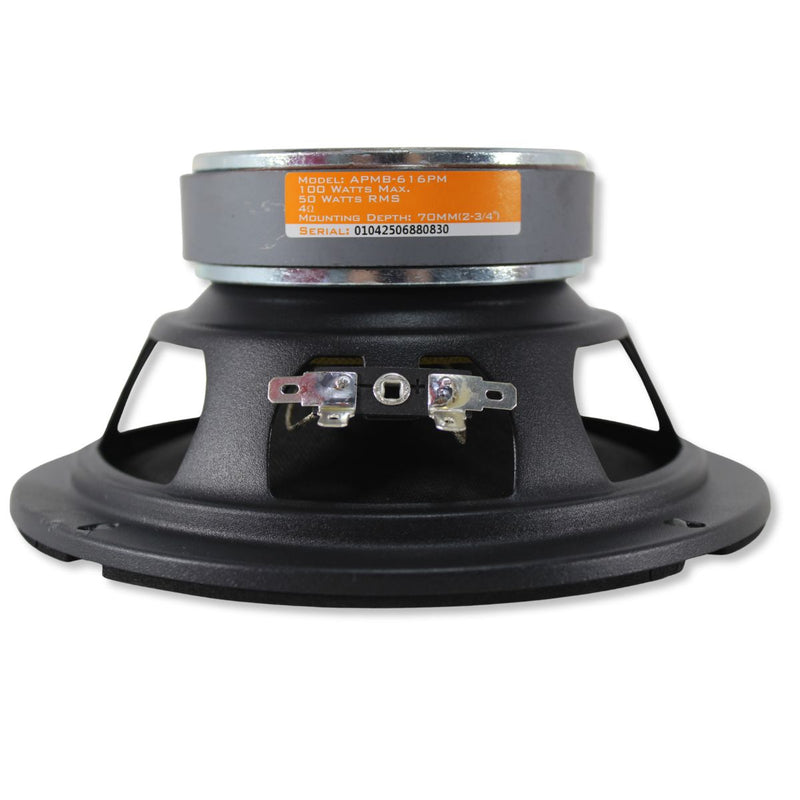

• Mounting Depth: 2.8" / 70 mm


• Motor Diameter: 3.5" / 90 mm
