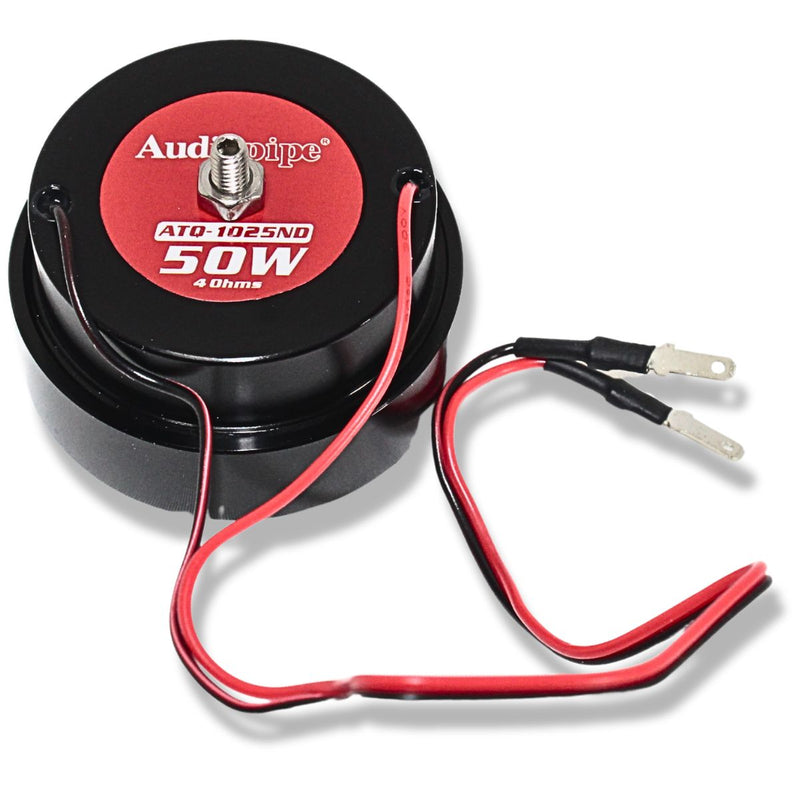

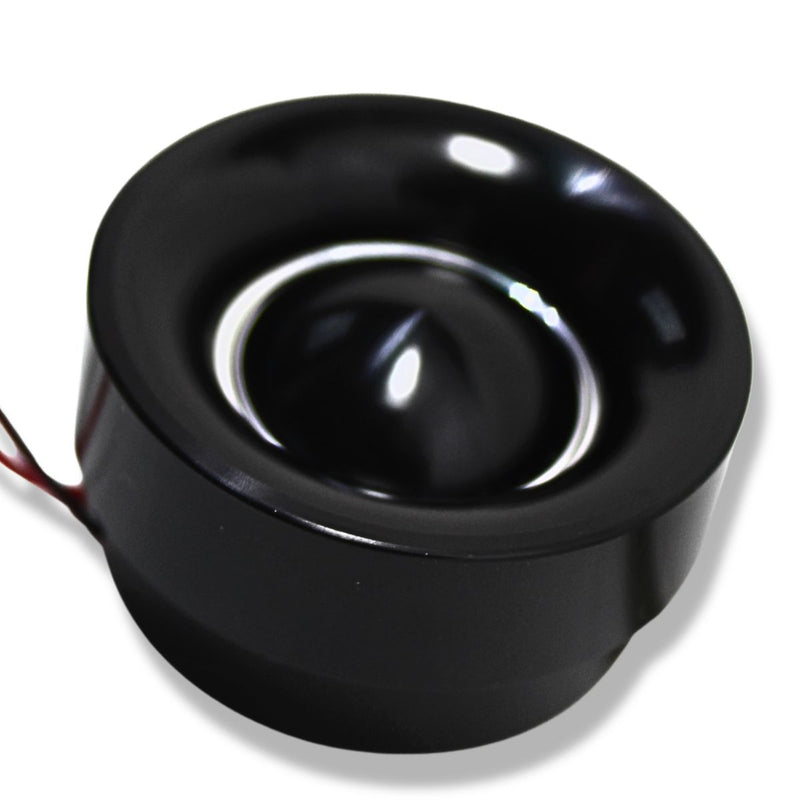

Audiopipe 25 Watt RMS 4 Ohm High Sensitivity Compression Neo Tweeters ATQ-1025ND

• High sensitivity output, delivers crisp and powerful high frequencies with a 106 dB sensitivity that cuts through loud car audio systems
• Efficient power handling, rated at 25 watts RMS and 50 watts PMPO for reliable performance without excessive amplifier strain
• Wide frequency response, covers 4000 Hz to 20 kHz to add clear detail and brightness to music and vocals
• Compact neodymium design, lightweight aluminum construction with a neodymium magnet for strong output in a small footprint
• Installation ready, includes mounting bracket and mylar crossover capacitor for protection and easier setup

Audiopipe 25 Watt RMS 4 Ohm High Sensitivity Compression Neo Tweeters ATQ-1025ND

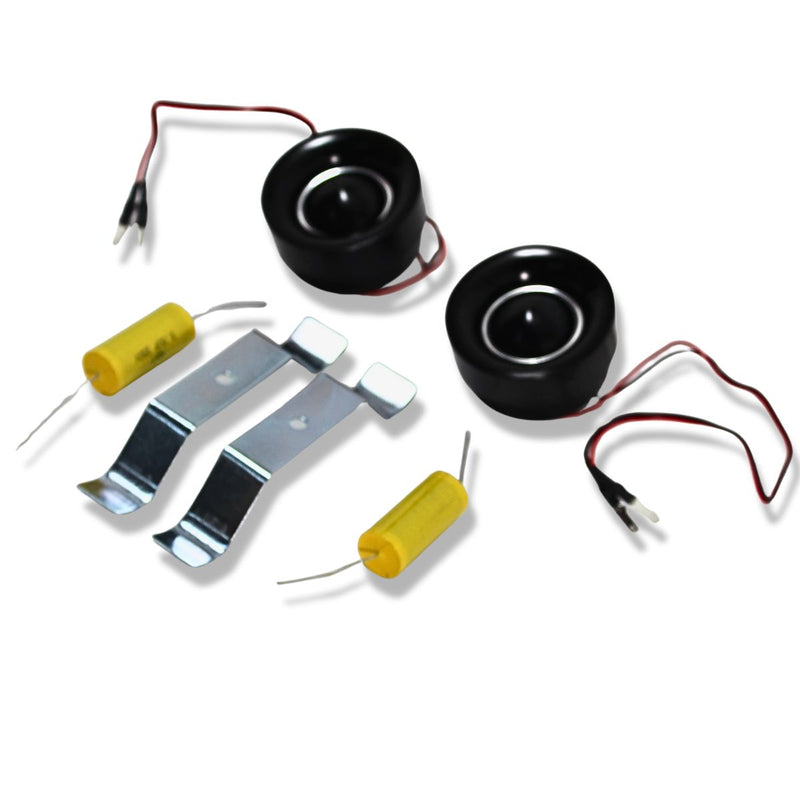

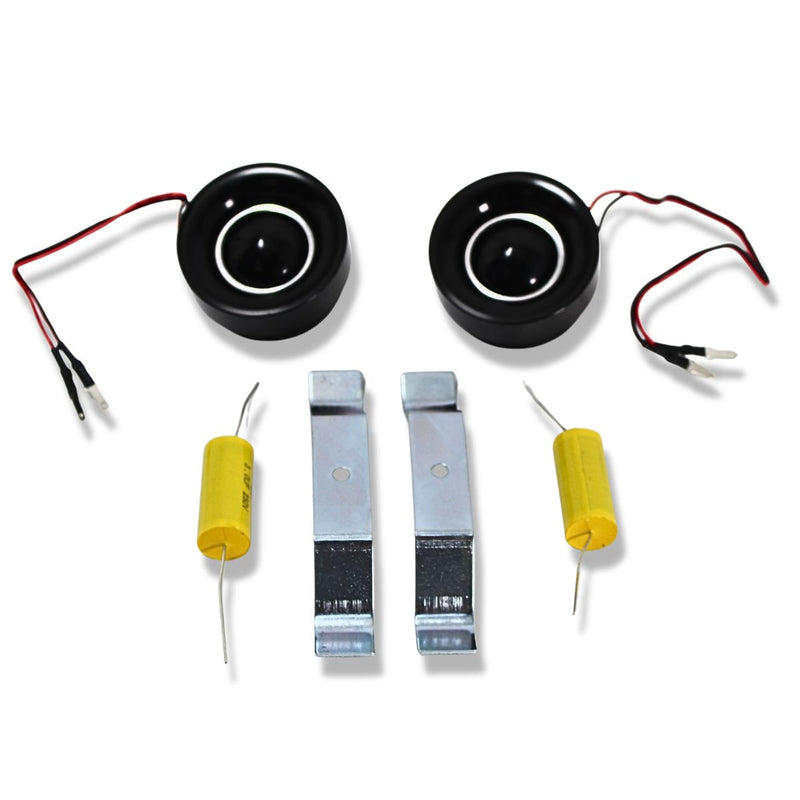

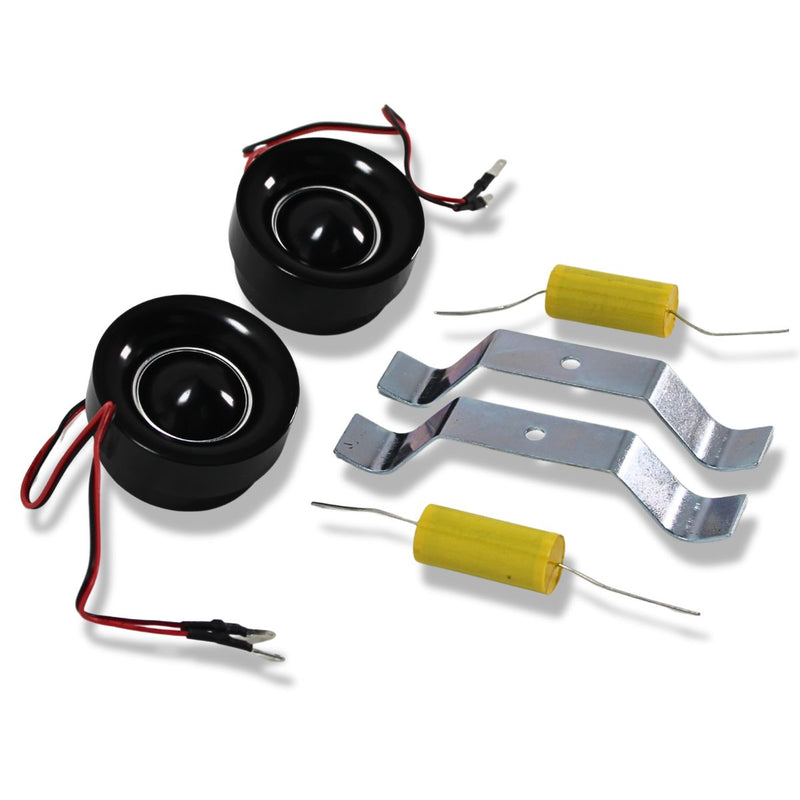

This Listing Includes:

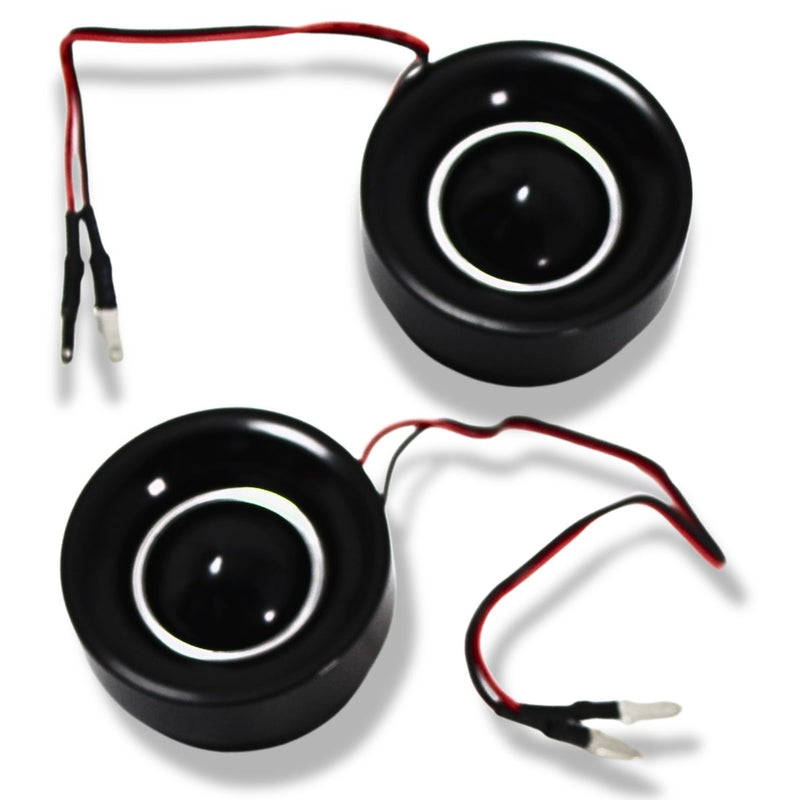

• (2) Audiopipe ATQ-1025ND Compression Tweeters


• (2) Mounting brackets


• (2) Mylar crossover capacitors

The Audiopipe ATQ-1025ND is a high-sensitivity compression tweeter built for systems that demand clear, aggressive high-frequency output. Designed for efficiency and projection, this tweeter is ideal for loud car audio builds where detail and presence matter most.

Constructed with a lightweight aluminum body and powered by a neodymium magnet, the ATQ-1025ND delivers strong output while keeping overall size and weight compact. With a frequency response ranging from 4,000 Hz to 20,000 Hz and a high 106 dB sensitivity rating, this tweeter easily cuts through high-output midbass and subwoofer systems without distortion.

A ferrofluid-enhanced voice coil improves heat dissipation for more consistent performance at higher volumes. Installation is simplified with the included mylar crossover capacitor for protection and a mounting bracket for secure placement. Whether used in cars, trucks, or custom builds, the ATQ-1025ND is a reliable choice for adding crisp, powerful highs to any system.

Features:

• High-sensitivity compression tweeter design for loud, clear high-frequency output


• 106 dB sensitivity for strong volume and efficiency with minimal amplifier power


• Wide frequency response from 4,000 Hz to 20 kHz for crisp, detailed highs


• Neodymium magnet for powerful performance in a compact, lightweight design


• Aluminum diaphragm and housing for durability and improved sound clarity


• Ferrofluid-enhanced voice coil for better heat dissipation and consistent output


• Includes mylar crossover capacitor for tweeter protection and simplified installation

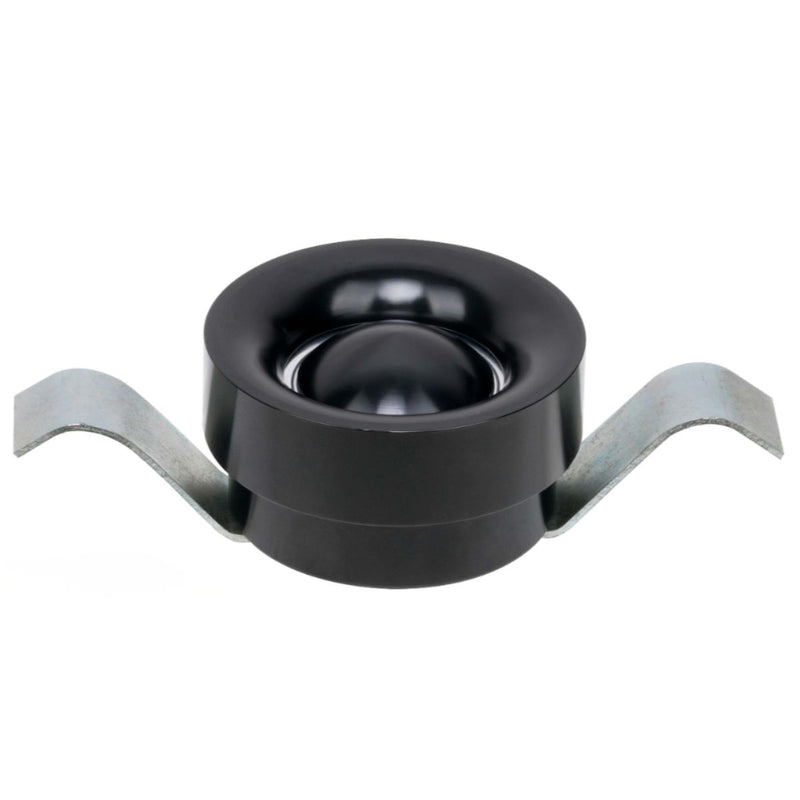

• Mounting bracket included for secure and flexible placement in custom installs

Specifications:

• Brand: Audiopipe


• Model: ATQ-1025ND


• Type: Compression Tweeter


• Power Handling: 50 Watts


• RMS Power: 25 Watts


• Impedance: 4 Ohms


• Frequency Response: 4000 Hz to 20 kHz


• Sensitivity: 106 dB


• Winding Material: CCAR


• Diaphragm Material: Aluminum


• Magnet Type: Neodymium


• Voice Coil: Ferrofluid enhanced


• Construction: Aluminum


• Crossover: Mylar capacitor included


• Mounting Bracket: Included


• Application: Car audio

Dimensions:

• Overall Diameter: 1.9"


• Overall Depth: 1.4"


• Front Mount Baffle Cutout: 1.7"


• Mounting Depth: 0.8"


• Motor Diameter: 1"
