- POWERFUL 15-INCH SUBWOOFER: Audiopipe TXX-BDD2-15 delivers 1000 watts RMS and 2000 watts maximum power handling, designed for deep, aggressive bass in high-output car audio systems.
- DUAL 4-OHM VOICE COILS: Features dual 4-ohm voice coils that can be wired in parallel for a 2-ohm load or in series for an 8-ohm load, providing flexible amplifier matching.
- 160 OZ DOUBLE-STACK MAGNET: Equipped with two strontium magnets totaling 160 ounces and a 3-inch four-layer black aluminum BASV voice coil former for powerful motor performance.
- HEAVY-DUTY COMPOSITE CONSTRUCTION: Features a redesigned blue composite cone, large inverted fiberglass dust cap, air-cushion foam surround, and reinforced stitching for demanding bass applications.
- VENTED ALUMINUM BASKET: Patented pipe-style die-cast aluminum basket with black powder-coated finish, deep bumped T-yoke, and multi-connect terminals. Designed for compatible sealed or ported enclosures.

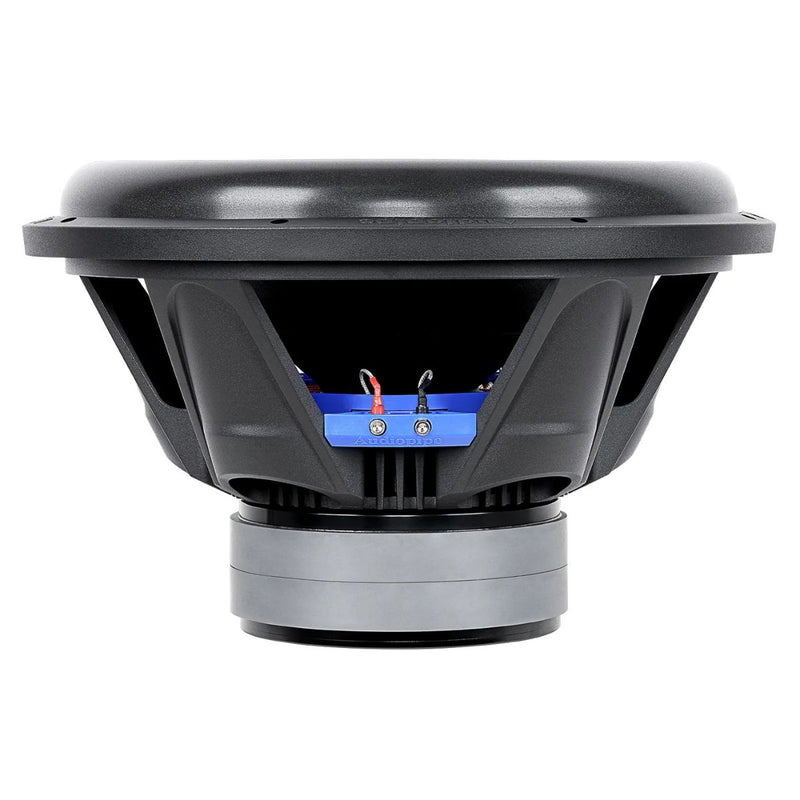

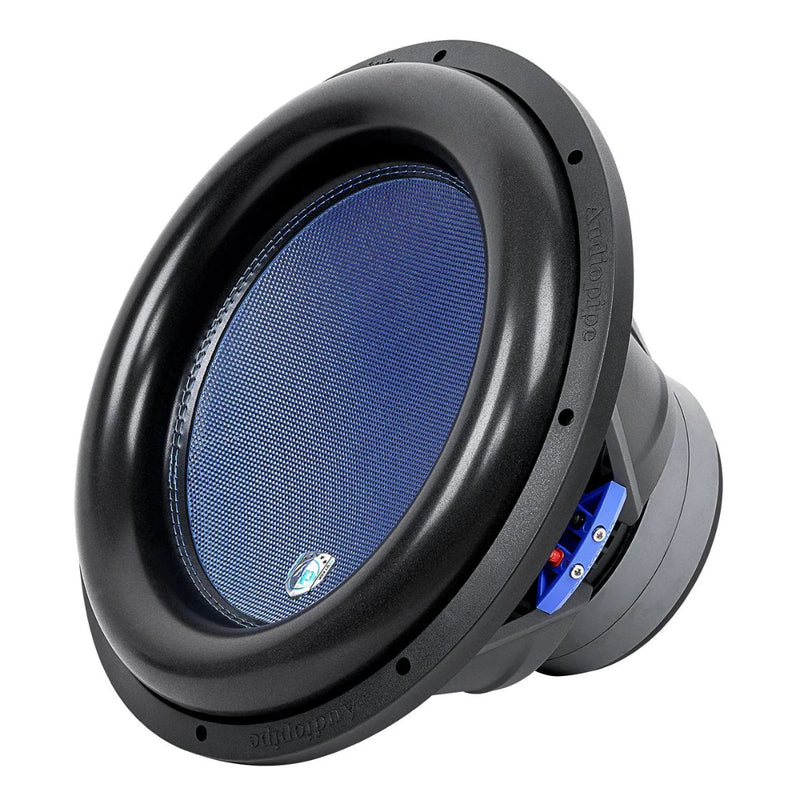

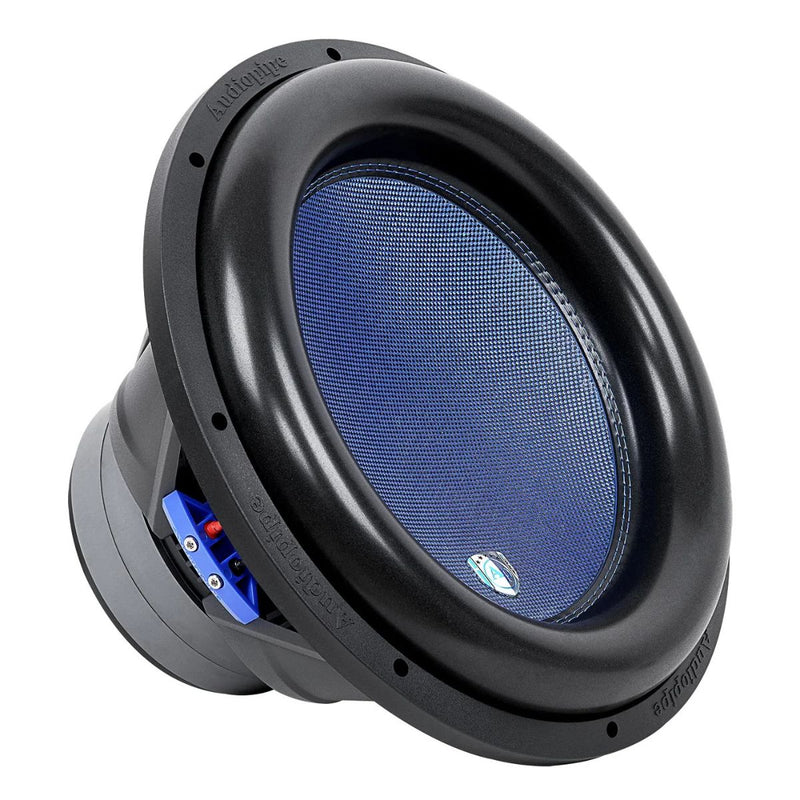

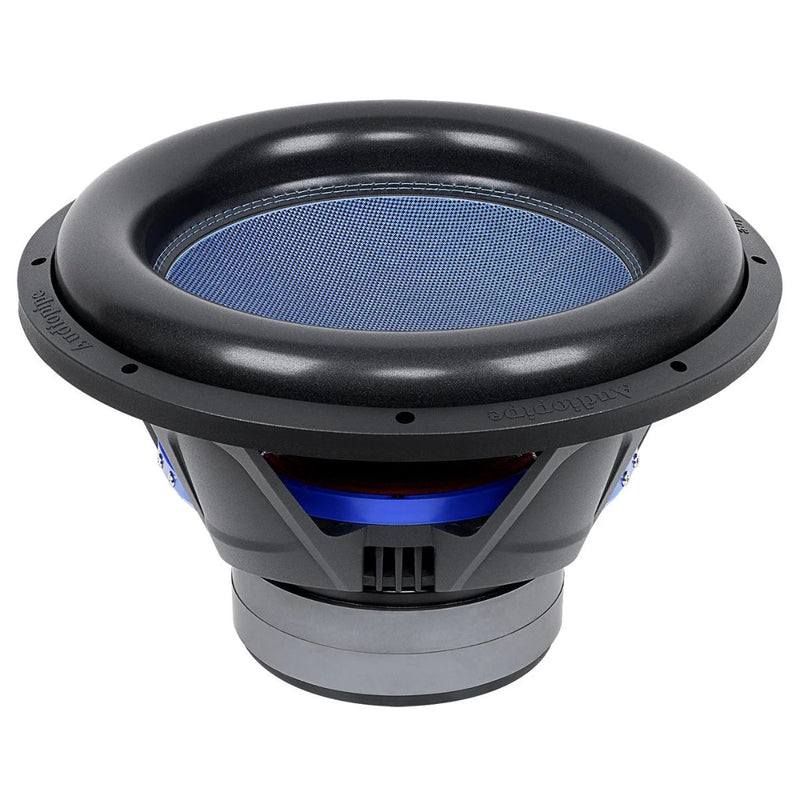

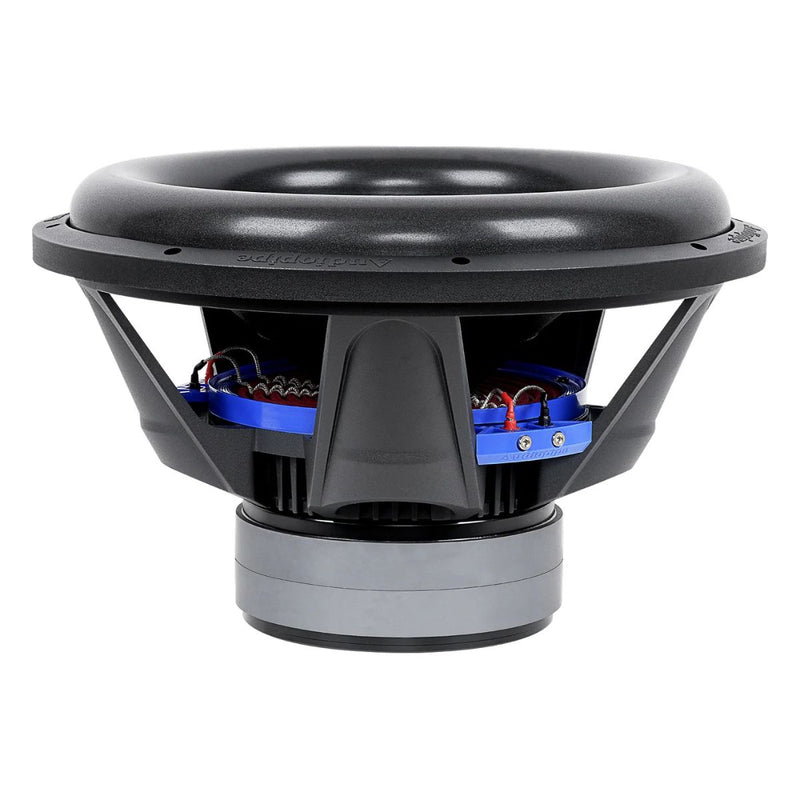

Audiopipe 15" 1000W RMS Dual 4 Ohm Double Stack High Power Subwoofer TXX-BDD2-15
This Listing contains
- (1) Audiopipe 15" Subwoofer TXX-BDD2-15
Bring serious low-frequency power to your car audio system with the Audiopipe TXX-BDD2-15 15" Double Stack High Power Subwoofer. Built for bass enthusiasts who demand deep, aggressive output, this heavy-duty subwoofer delivers 1,000 watts RMS and 2,000 watts maximum power handling, backed by a powerful double-stack magnet motor and high-excursion suspension.
At the heart of the TXX-BDD2-15 is a 160 oz dual strontium magnet assembly paired with a 3-inch, four-layer black aluminum BASV voice coil former. This combination provides the motor strength and thermal performance needed for demanding high-powered bass applications.

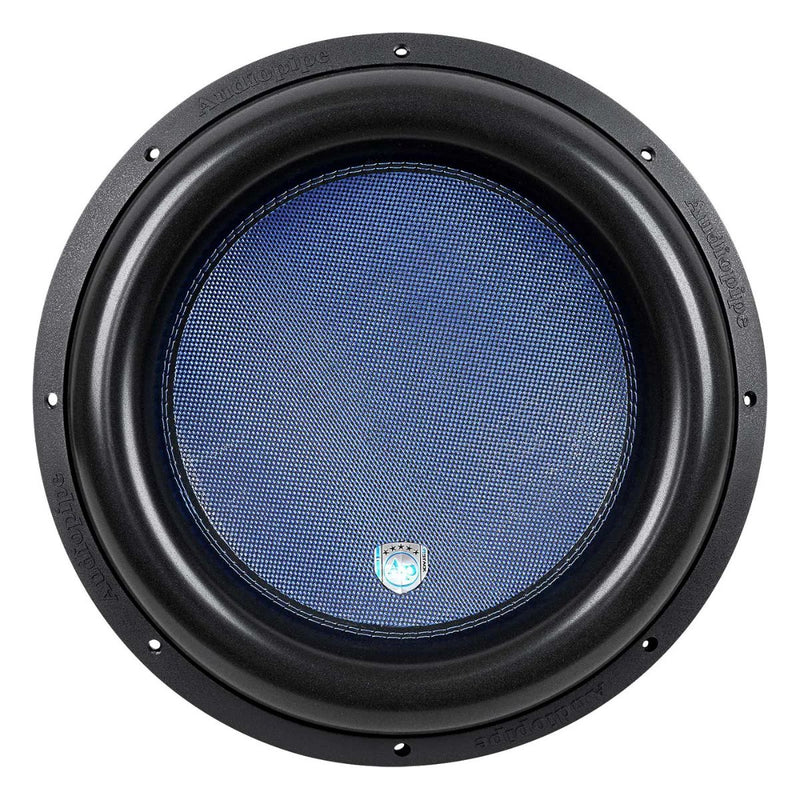

The redesigned blue composite cone gives this subwoofer its distinctive appearance while providing the rigidity needed for controlled bass reproduction. A large inverted fiberglass composite dust cap and air-cushion foam surround work together to support cone movement, delivering hard-hitting lows across its 18Hz–800Hz frequency response.

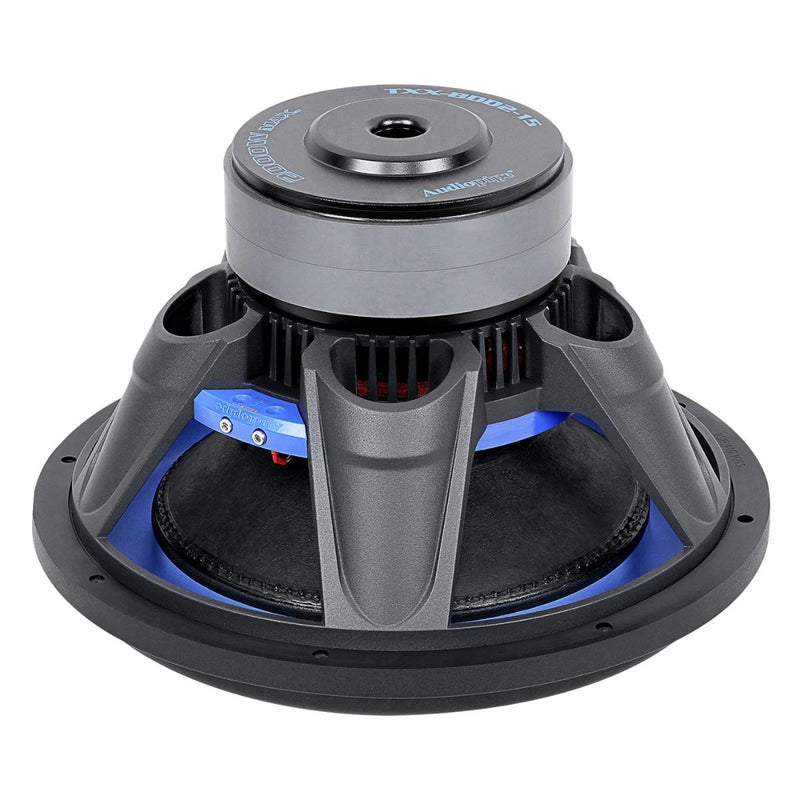

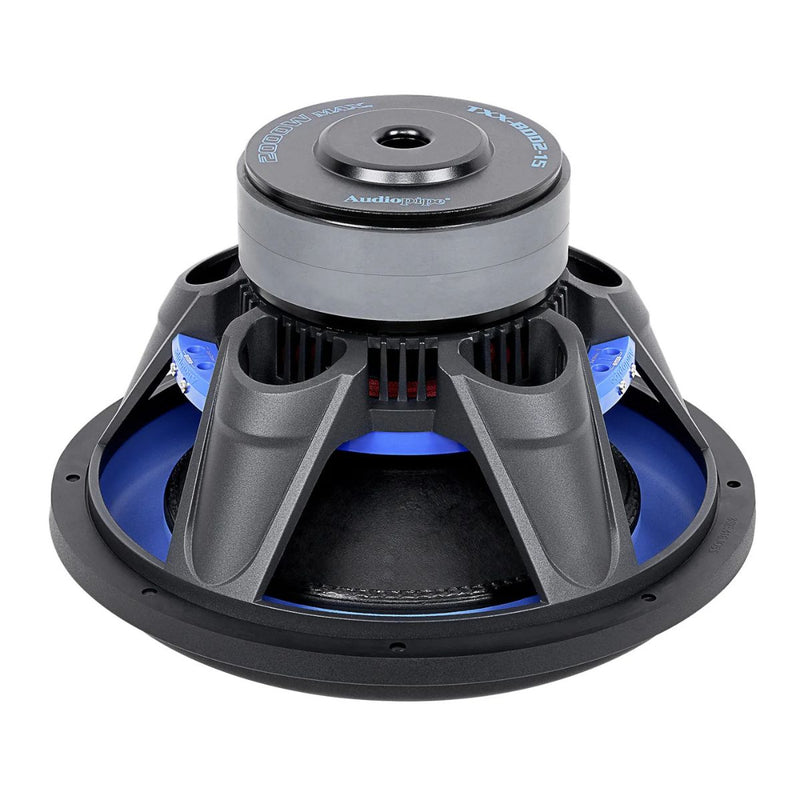

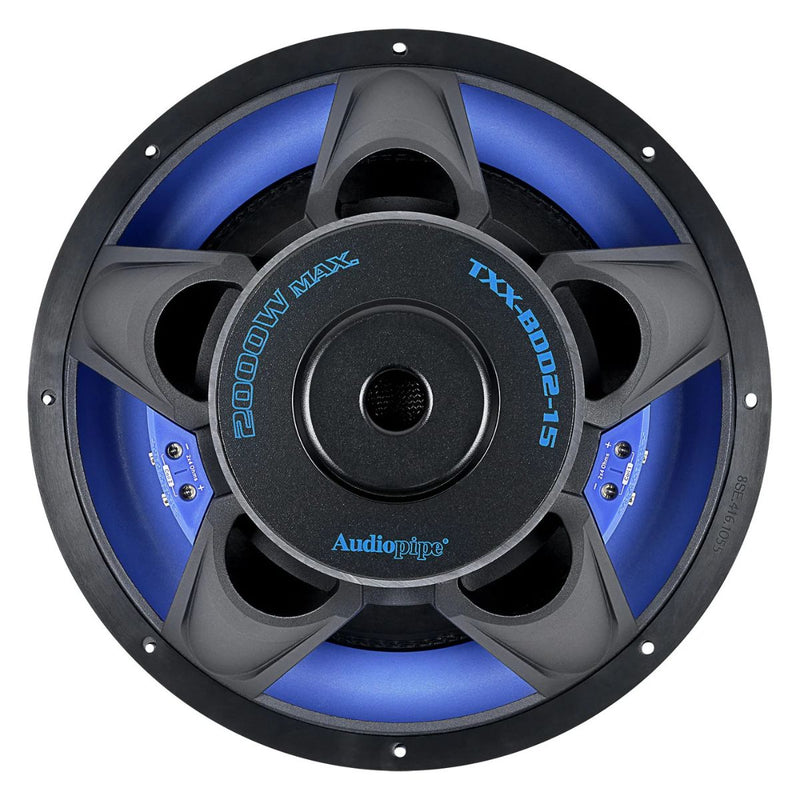

Audiopipe's patented pipe-style die-cast aluminum basket features a black powder-coated finish, oversized ventilation openings, and a deep bumped T-yoke to support durability and heat dissipation. Reinforced surround stitching and multi-connect terminals complete the construction, making this subwoofer ready for serious custom audio builds.
With dual 4-ohm voice coils, the TXX-BDD2-15 can be wired to a 2-ohm or 8-ohm final load, providing flexibility when matching your subwoofer to a compatible amplifier. Designed for sealed or ported enclosures, this 15-inch powerhouse is ready to bring deep bass and high-output performance to your system.
Features
- 1000W RMS / 2000W MAX Power: Built to handle demanding high-powered car audio applications.
- 15-Inch High-Power Subwoofer: Large cone area for strong low-frequency output.
- Dual 4-Ohm Voice Coils: Flexible wiring configurations for a 2-ohm or 8-ohm final load.
- 160 Oz Double-Stack Magnet: Dual strontium magnet motor delivers powerful magnetic control.
- 3-Inch Four-Layer Voice Coil: Black aluminum BASV former designed for high-power operation.
- Redesigned Blue Composite Cone: Distinctive blue woven appearance with reinforced composite construction.
- Air-Cushion Foam Surround: Large surround designed to support high cone excursion.
- Inverted Fiberglass Composite Dust Cap: Durable center structure for demanding bass applications.
- Reinforced Surround Stitching: Added strength for the cone and suspension assembly.
- Patented Pipe-Style Basket: Die-cast aluminum construction with ventilation for heat dissipation.
- Deep Bumped T-Yoke: Oversized motor structure designed for high-excursion performance.
- Multi-Connect Terminals: Convenient wiring for parallel or series voice-coil configurations.
- Sealed and Ported Enclosure Compatible: Supports different enclosure configurations for your desired bass response.
Specifications:
- Brand: Audiopipe
- Model: TXX-BDD2-15
- Series: TXX-BDD2
- Product Type: Double Stack High Power Subwoofer
- Speaker Size: 15"
- RMS Power: 1000 Watts
- Maximum Power: 2000 Watts
- Voice Coil Configuration: Dual Voice Coil (DVC)
- Voice Coil Impedance: Dual 4 Ohm
- Parallel Wiring Impedance: 2 Ohms
- Series Wiring Impedance: 8 Ohms
- Voice Coil Diameter: 3"
- Voice Coil Layers: 4
- Voice Coil Former: Black Aluminum (BASV)
- Magnet Type: Strontium
- Magnet Configuration: Double Stack
- Total Magnet Weight: 160 oz
- Frequency Response: 18 Hz - 800 Hz
- Sensitivity: 90 dB
- Cone Material: Paper and Fiberglass Composite
- Cone Design: Blue Woven-Look Composite
- Dust Cap Material: Fiberglass Composite
- Dust Cap Design: Large Inverted
- Surround Material: Air-Cushion Foam
- Surround Reinforcement: Stitched
- Basket Material: Die-Cast Aluminum
- Basket Finish: Black Powder Coated
- Basket Style: Patented Pipe Style
- Motor Design: Deep Bumped T-Yoke
- Terminal Type: Multi-Connect Screw Terminals
- Enclosure Compatibility: Sealed, Ported
- Recommended Sealed Enclosure: 2.5 cu ft
- Recommended Ported Enclosure: 3.0 cu ft
- Recommended Port Dimensions: 3" x 15" x 22.5"
- Quantity: 1 Subwoofer
Dimensions:
- Nominal Speaker Diameter: 15"
- Mounting Depth: 8.25"
