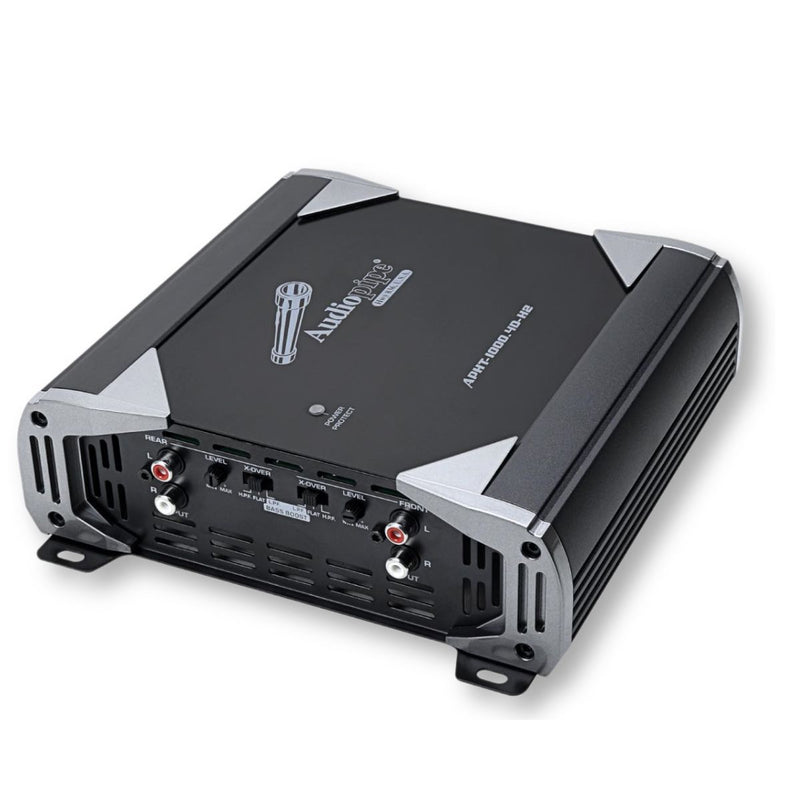

Audiopipe 2500 Watt Full Range Class-D 4 Channel 2-Ohm Amplifier APHT-1000.4D-H2

• 2500W Max Power – Pushes serious wattage to power your full soundstage
• Full-Range Class D – Great for mids, highs, or full-range door speakers
• Built-in Crossovers – Includes HPF/LPF at 90Hz for easy tuning
• Bridgeable Flexibility – Bridge to 2 channels for 460W x 2 at 4 ohm
• Compact Footprint – Fits under seats or tight installs, with clean pro looks

Audiopipe 2500 Watt Full Range Class-D 4 Channel 2-Ohm Amplifier APHT-1000.4D-H2

This Listing Includes:

• (1) Audiopipe APHT-1000.4D-H2 4-Channel Amplifier

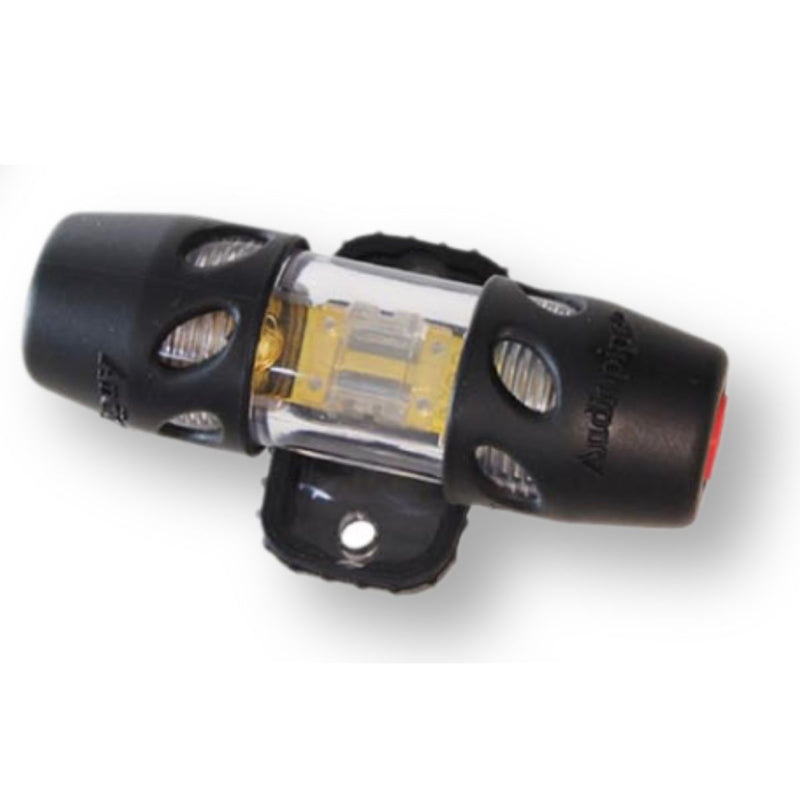

• (1) Mini ANL Fuse Holder

Power your entire system with confidence using the Audiopipe APHT-1000.4D-H2 - a compact, full-range Class D 4-channel amplifier engineered for precision, efficiency, and flexibility. With up to 920W RMS across 4 channels and 2500W max burst power, this amp delivers crystal-clear mids, punchy highs, and reliable performance.

Perfect for daily drivers or show builds, this amp can run door speakers, tweeters, or even subs in bridged mode. Built-in crossovers, 90Hz high/low pass filters, and wide voltage input support make this amp easy to install and tune.

Features

• High Output Class D Design - 4 x 230 Watts RMS @ 2-Ohms or bridge 2 x 460 Watts @4-Ohms


• Full Range Flexibility - Perfect for mids, highs, or full-range speaker systems


• Built-In Crossovers - 12dB/Oct HPF & LPF at 90Hz for better tuning


• Compact & Efficient - Runs cool, fits almost anywhere

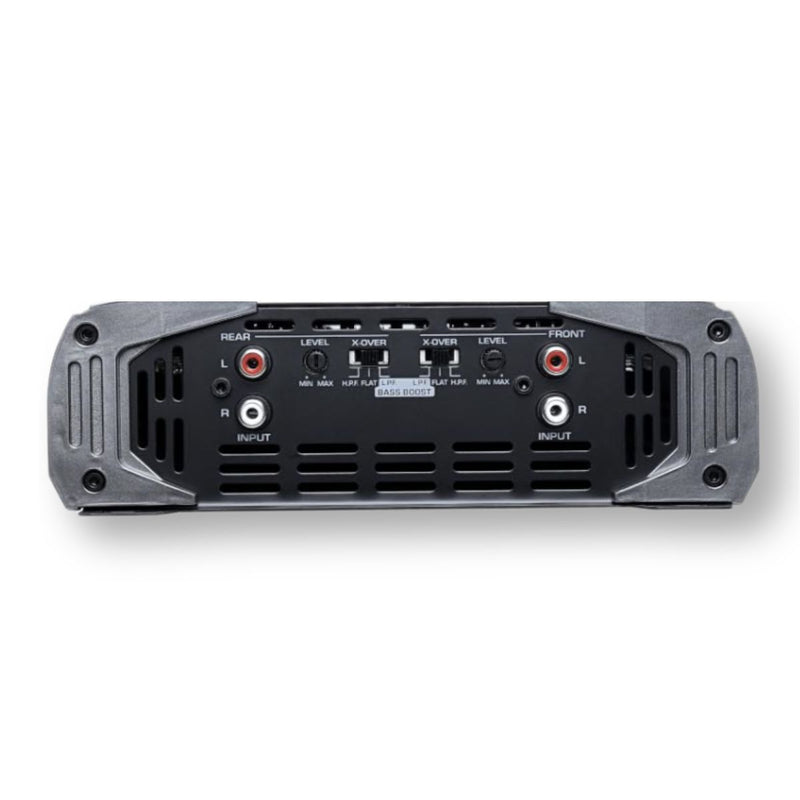

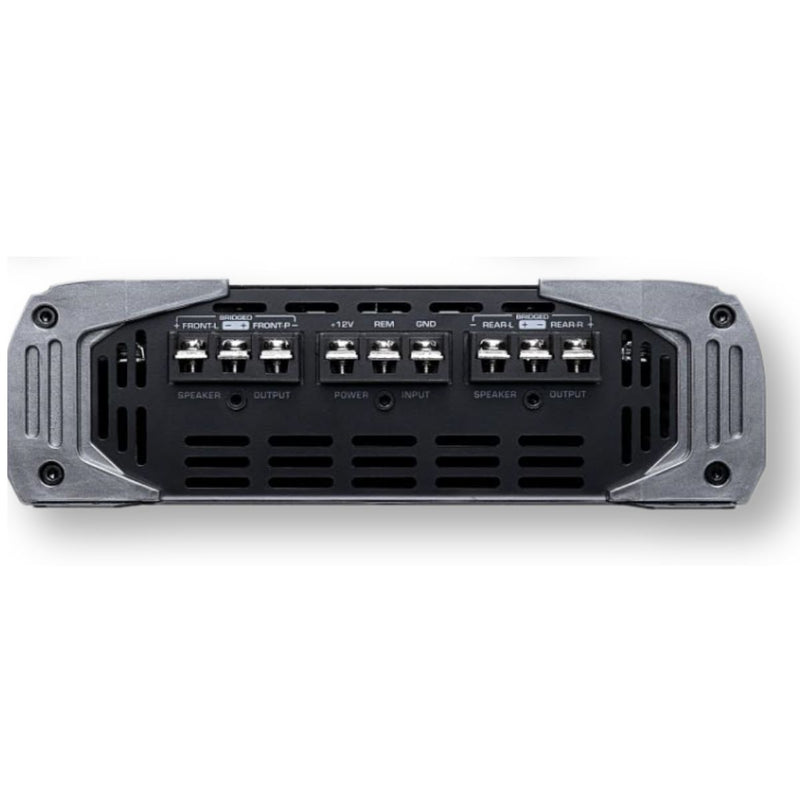

• Heavy-Duty Terminals & RCA Inputs - Secure and pro-grade connections

Specifications:

• Class Type: D (Full Range)


• Channels: 4

Power Output (RMS) @ 1% 1KHz:

• RMS Power Output(@ 4-Ohm): 4 x 140W


• RMS Power Output(@ 2-Ohm): 4 x 230W


• RMS Power Output(Mono @ 4-Ohm): 2 x 460W


• Max Power Output: 2500 Watts


• Frequency Response (-1db): 20Hz - 20kHz


• High Pass Filter: 90Hz @ 12dB/Octave


• Low Pass Filter: 90Hz  @ 12dB/Octave


• Signal to Noise Ratio:  85dB


• Input Sensitivity: 0.2V - 12V


• Working Voltage: 9V-12V


• Under-voltage Protection: 9V


• Fuse Type: 60A ANL Fuse


• Weight: 4.15 lbs.

Dimensions:

• Length: 8.3"


• Width: 7.9"


• Height: 2.4"


• Package Dimensions: 11-3/4" x 9-7/8" x 4-1/4"
