- This listing includes:
- (1) Aquatic AV Marine Digital Media Receiver MP-5BT-H
- (2) DS18 6.5" 2-Way Coaxial Speakers ZXI.654
- (1) Face-plate (1) Rear speaker harness
- (2) Mounting hardware and Owner's Manual
Aquatic AV Harley Davidson Motorcycle Marine Bluetooth Receiver MP-5BT-H & Free DS18 6 Coaxial Speakers ZXI.654
Ready to upgrade the radio on your Harley-Davidson motorcycle? Aquatic AV's is a tough, smart all-weather digital media receiver that's ready for the road. With features like built-in Bluetooth connectivity and a clever internal device shelf for your smartphone or media player, the AQ-MP-5BT-H is a great choice. Designed to fit select 1998-2013 Harley-Davidson touring bikes, this radio comes with Harley-specific mounting brackets and a direct plug-in to your Harley's wiring harness.
The AQ-MP-5BT-H gives you lots of entertainment options. You can enjoy your favorite AM/FM stations, connect an MP3 player to one of the two aux inputs, or just take advantage of the Bluetooth connectivity to enjoy your tunes. The big control knob make it easier to manage your music when you're underway, and you can also control your music directly from your motorcycle's handlebar controls
DS18's ZXI line is both highly innovative and intuitive making it a very versatile audio line that will bring you loud and clear music on demand. This pair of two-way 6.5 takes 80w RMS and 240 max watts and with an 89 DB sensitivity rating, you don't need a lot of power to bring these very loud speakers to extremely high volumes. These speakers are an amazing choice for your average everyday to extreme audiophile!
This listing includes:

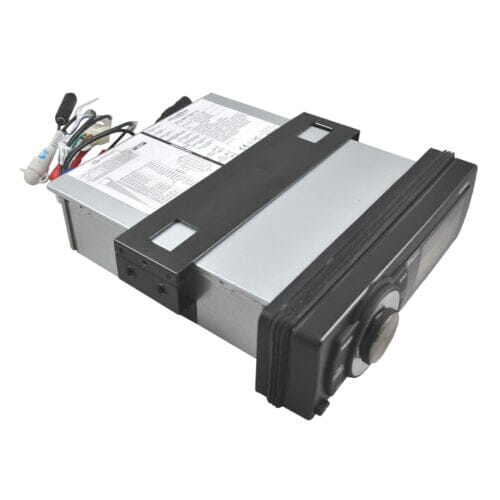

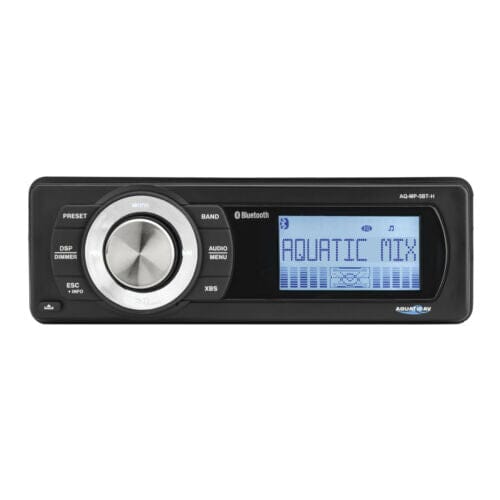

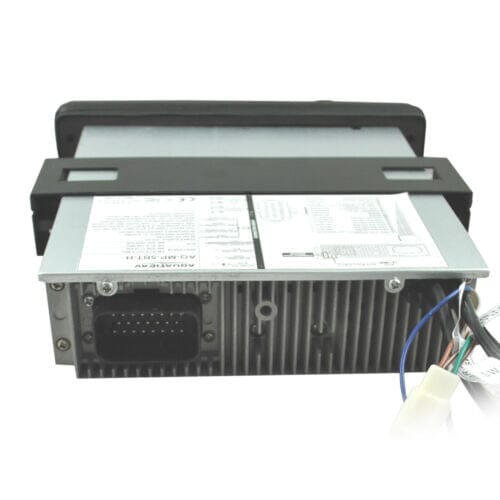

(1) Aquatic AV Marine Digital Media Receiver MP-5BT-H

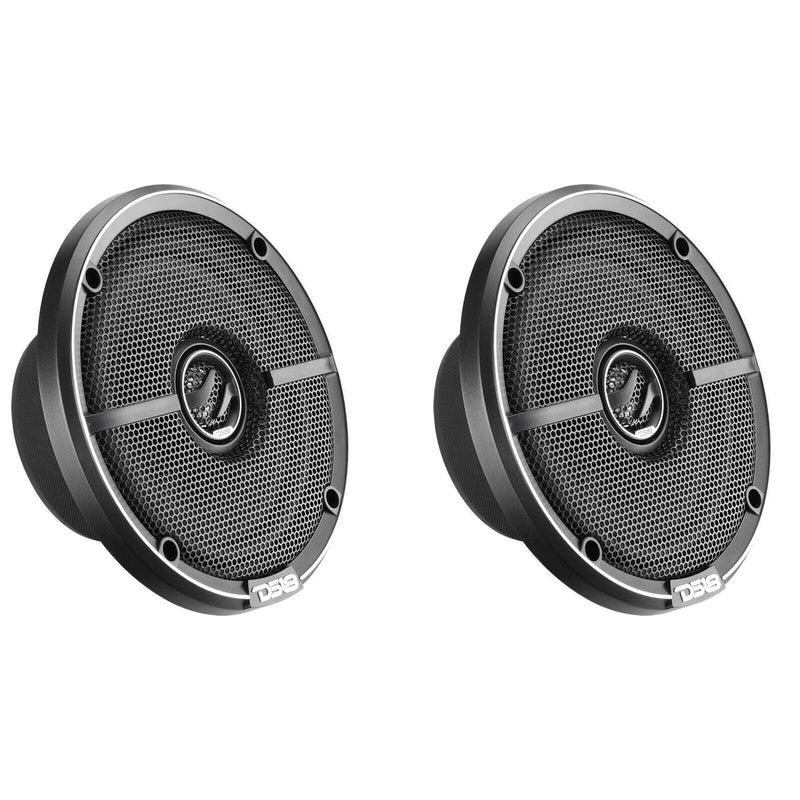

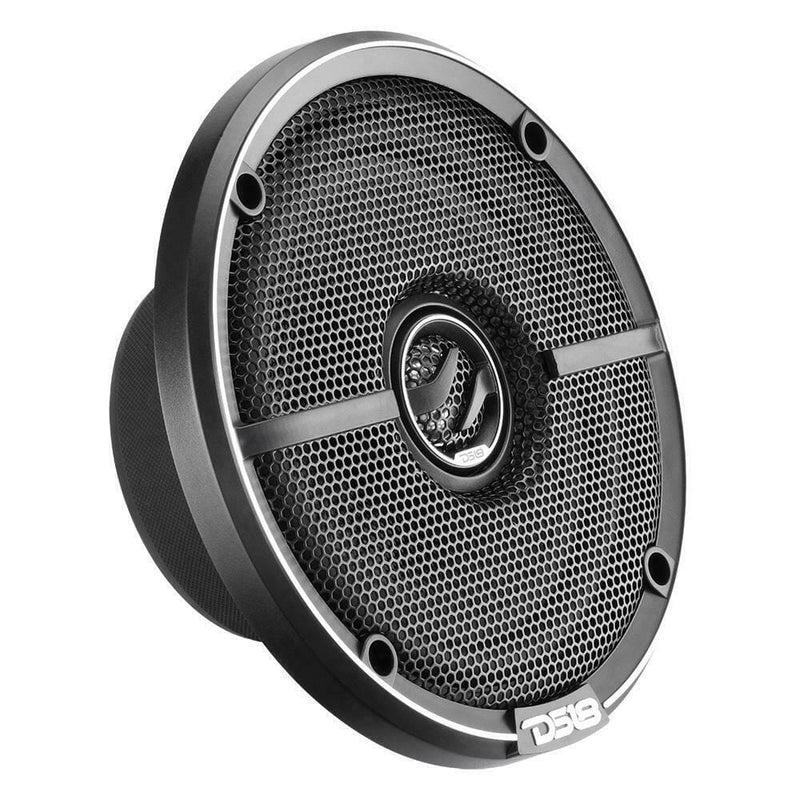

(2) DS18 6.5" 2-Way Coaxial Speakers ZXI.654
(1) Face-plate
(1) Rear speaker harness

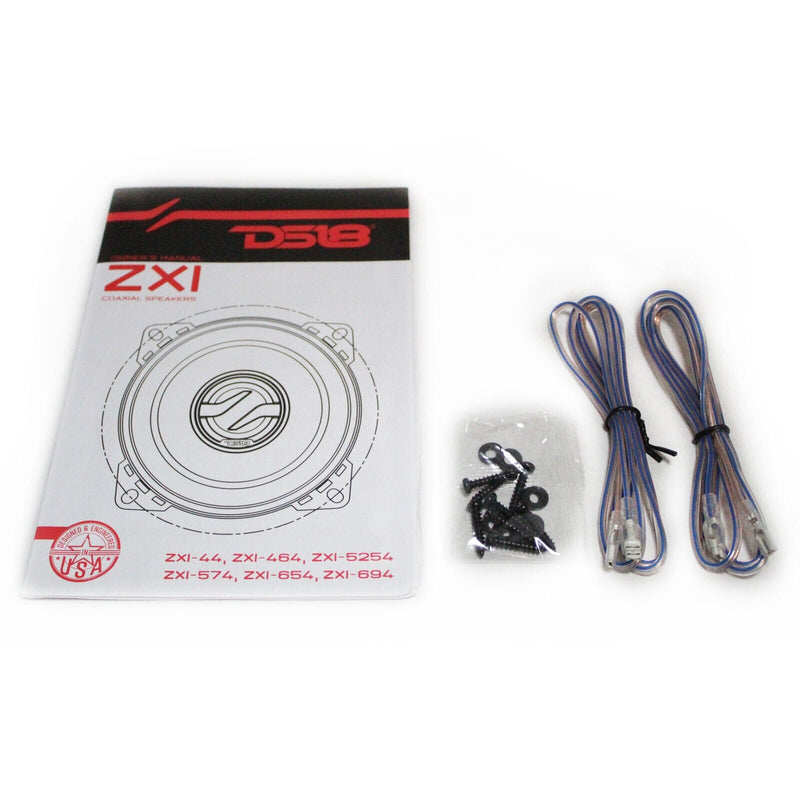

(2) Mounting hardware and Owner's Manual
GENERAL FEATURES OF RECEIVER MP-5BT-H:
- Waterproof digital media receiver with AM/FM tuner.
- Designed for 1998-2013 Harley-Davidson motorcycles.
- Built-in Class A/B amplifier.
- Monochrome LCD screen.
- Water-resistant storage pocket behind removable face.
- Built-in Bluetooth connectivity.
- Works with Apple and Android phones.
- Control your music directly from the handlebar controls.
- Includes Harley-specific mounting brackets for easy installation.
- Plugs directly into your bike's factory wiring harness.
- IP55-rated for moisture and dust.
SPECIFICATIONS:
Power rating: 24 watts RMS x 4 at 4 ohms (45 peak); 39.99 watts x 4 at 2 ohms (72 watts peak)
Frequency response: 20-20,000 Hz
Current draw: 6mA (standby), 7A (max)
OTHER INFORMATION:
- Inputs: aux (minijack), aux (stereo RCA), rear USB (charging only)
- Outputs: 2-channel 2-volt preamp outputs
- UV-resistant face, conformal-coated circuit board
- Manufacturer Warranty: 2 years
--------------------------------------------------------------------
SPECIFICATIONS PER ZXI-654 SPEAKER:
Nominal Diameter- 6.5"
Nominal Impedance- 4 ohm
RMS Power Handling- 80 Watts
MAX Power Handling- 240 Watts
Sensitivity (1w/1m) - 89dB
Frequency Response- 40Hz-20KHz
Recommended HI Pass Crossover- 60Hz
Speaker Type- 2-Way
MEASUREMENTS
Overall Diameter 6.50" / 165mm
Overall Depth 2.83" / 72mm
Front Mount Baffle Cutout 5.55" / 141mm
Mounting Depth 2.36" / 60mm
Motor Diameter 3.70" / 94mm
MOTOR
Voice Coil Diameter 1" / 25.5mm
Voice Coil Former Material KSV
Winding Material EISV
Cone Material Glass fiber
Surround Material Rubber
Basket Material Steel
Magnet Material Barium Ferrite
Magnet Weight 14.46 oz / 410g
TWEETER
Nominal Diameter 1" (25.4mm)
Voice Coil Diameter 0.8"(20.4mm)
Voice Coil Former Material KSV
Winding Material EISVM
Diaphragm Material PEI
Magnet Material Neodymium
Magnet Weight 0.3 oz / 8.5g
Equivalent Volume 10.84L
Excursion (one way) 2.7mm
Free Air Resonance 64Hz
Mechanical Factor 9.44
Electrical Factor 0.79
Total Factor 0.73
Mechanical Mass 13.72g
Mechanical Compliance 444mm/N
BL Factor 5.1
Voice Coil Inductance 228mH
Cone Area 131cm2
DC Resistance 3.5 ohm
Mechanical Mass w/o air 12g
