- This listing includes: (1) Aquatic AV Marine Digital Media Receiver MP-5BT-H
- (2) DS18 5.25" Coaxial Speakers ZXI-5254
- (1) Face-plate (1) Rear speaker harness
- (2) Mounting hardware and Owner's Manua
Aquatic AV Harley Davidson Motorcycle Marine Bluetooth Receiver MP-5BT-H & Free DS18 5 Coaxial Speakers ZXI-5254
Ready to upgrade the radio on your Harley-Davidson motorcycle? Aquatic AV's is a tough, smart all-weather digital media receiver that's ready for the road. With features like built-in Bluetooth connectivity and a clever internal device shelf for your smartphone or media player, the AQ-MP-5BT-H is a great choice. Designed to fit select 1998-2013 Harley-Davidson touring bikes, this radio comes with Harley-specific mounting brackets and a direct plug-in to your Harley's wiring harness.
The AQ-MP-5BT-H gives you lots of entertainment options. You can enjoy your favorite AM/FM stations, connect an MP3 player to one of the two aux inputs, or just take advantage of the Bluetooth connectivity to enjoy your tunes. The big control knob make it easier to manage your music when you're underway, and you can also control your music directly from your motorcycle's handlebar controls
The ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. The ZXI 5254 is a 5.25" inch, 4 ohm coaxial speaker designed for audio enthusiasts as they have an amazing range of frequencies and loudness. The 2 way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember.
This listing includes:
(1) Aquatic AV Marine Digital Media Receiver MP-5BT-H
(2) DS18 5.25" Coaxial Speakers ZXI-5254
(1) Face-plate
(1) Rear speaker harness
(2) Mounting hardware and Owner's Manual

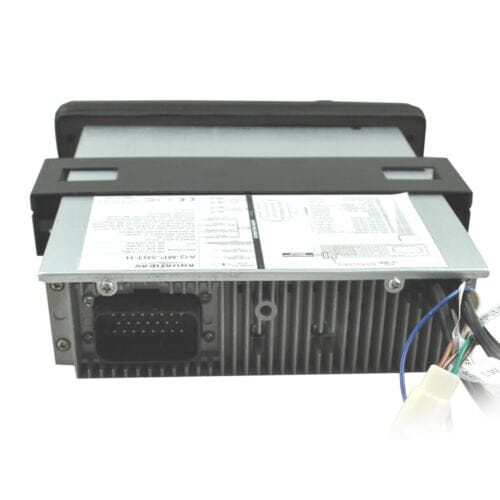

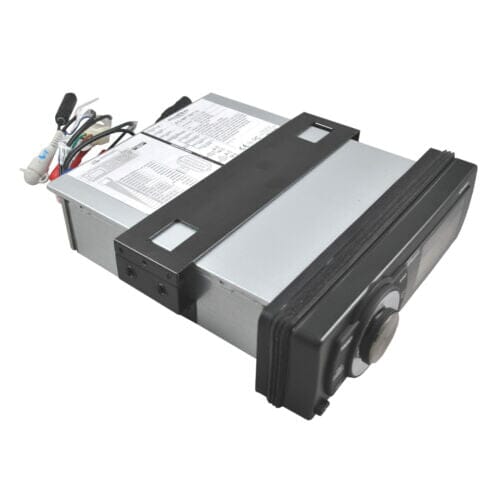

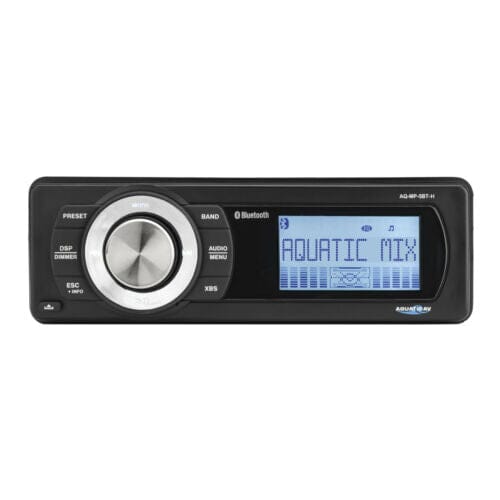

GENERAL FEATURES OF RECEIVER MP-5BT-H:
- Waterproof digital media receiver with AM/FM tuner.
- Designed for 1998-2013 Harley-Davidson motorcycles.
- Built-in Class A/B amplifier.
- Monochrome LCD screen.
- Water-resistant storage pocket behind removable face.
- Built-in Bluetooth connectivity.
- Works with Apple and Android phones.
- Control your music directly from the handlebar controls.
- Includes Harley-specific mounting brackets for easy installation.
- Plugs directly into your bike's factory wiring harness.
- IP55-rated for moisture and dust.
SPECIFICATIONS:
Power rating: 24 watts RMS x 4 at 4 ohms (45 peak); 39.99 watts x 4 at 2 ohms (72 watts peak)
Frequency response: 20-20,000 Hz
Current draw: 6mA (standby), 7A (max)
OTHER INFORMATION:
- Inputs: aux (minijack), aux (stereo RCA), rear USB (charging only)
- Outputs: 2-channel 2-volt preamp outputs
- UV-resistant face, conformal-coated circuit boardv- Manufacturer Warranty: 2 years
--------------------------------------------------------------------

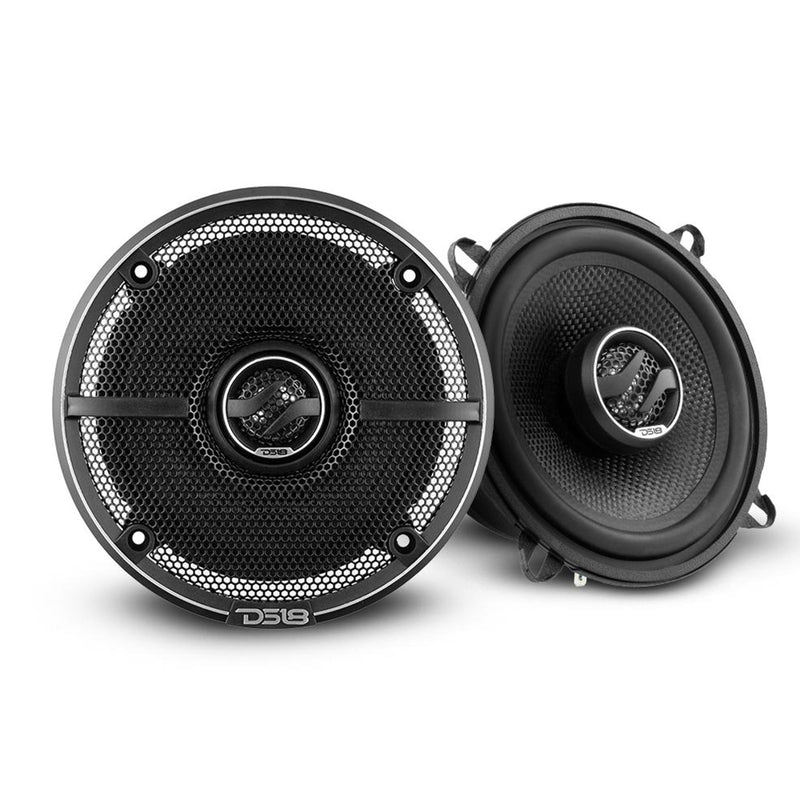

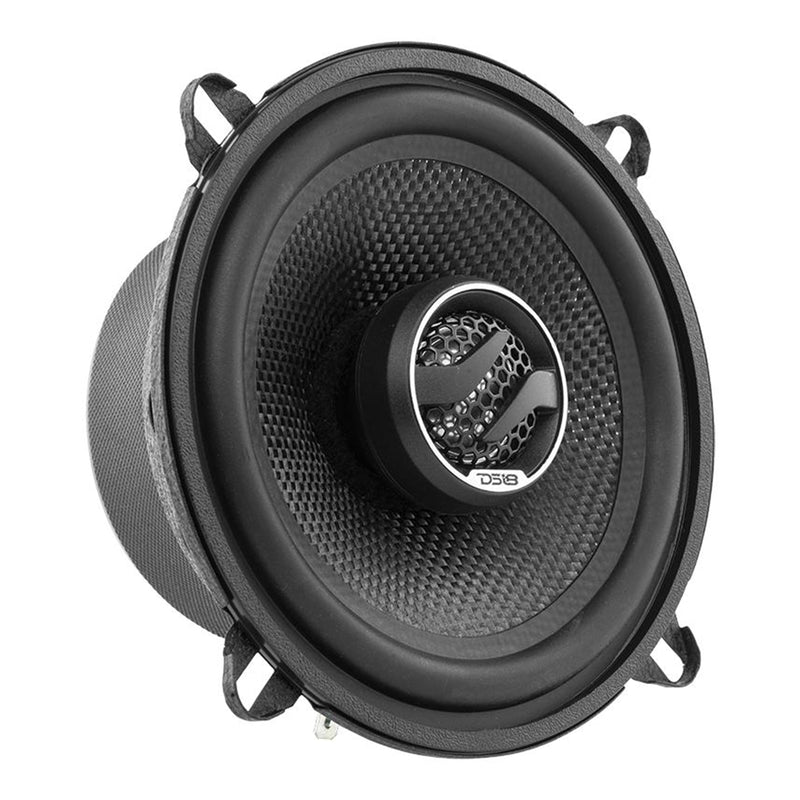

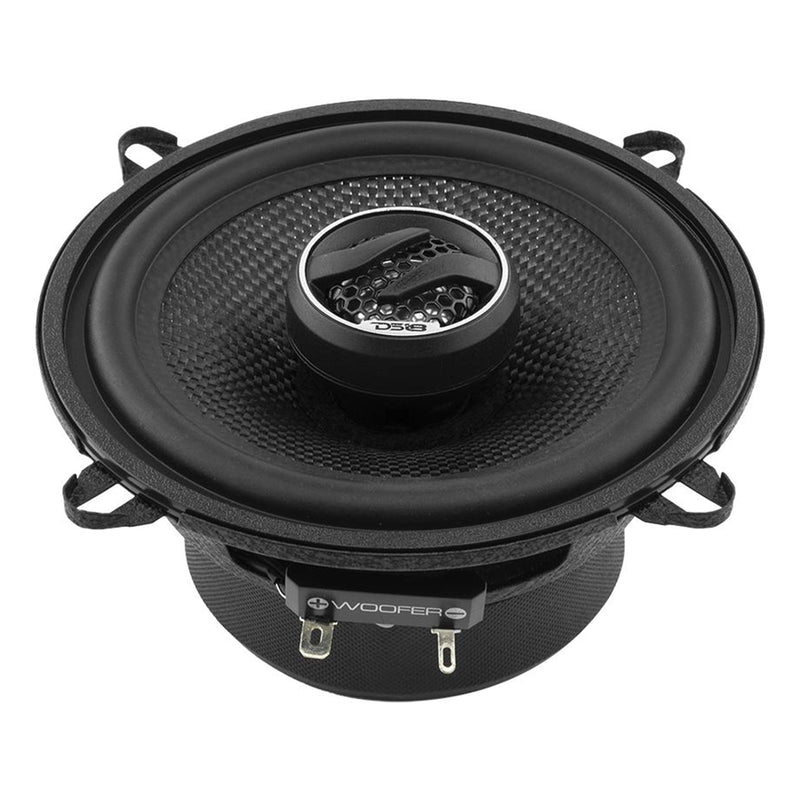

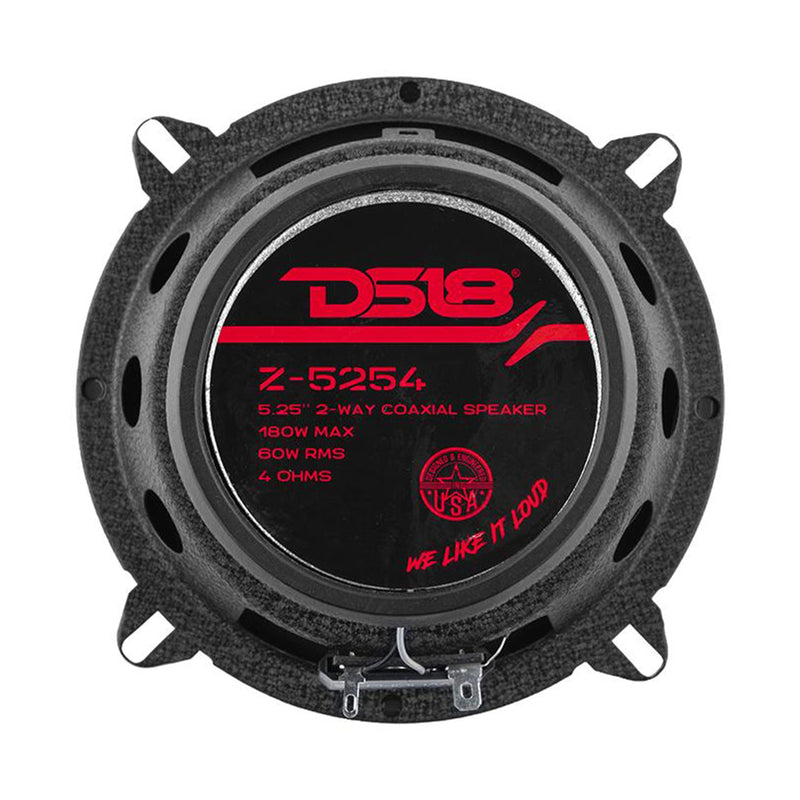

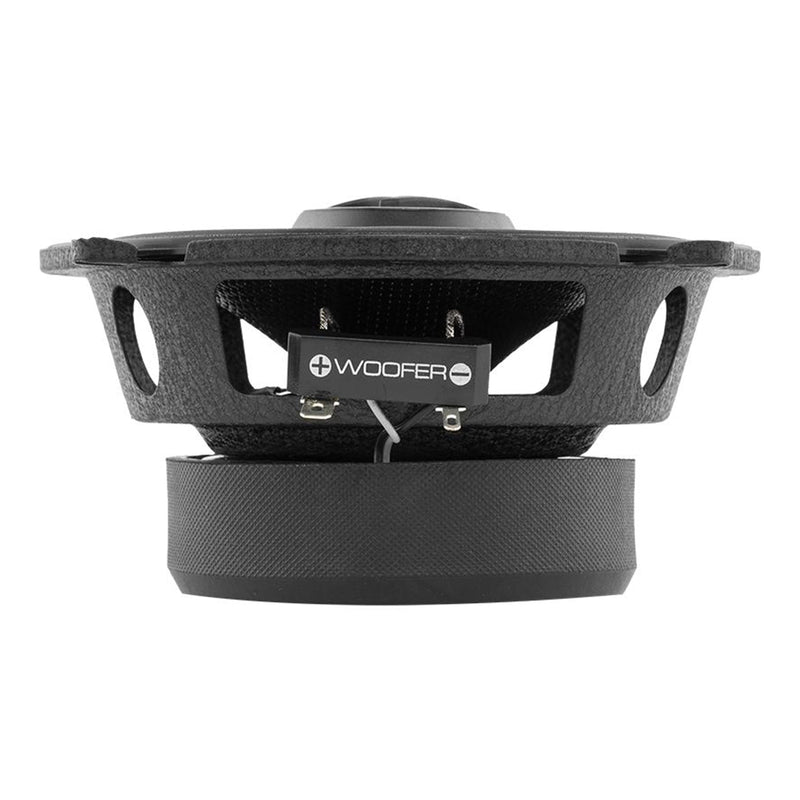

SPECIFICATIONS PER ZXI-5254 SPEAKER:
Nominal Diameter: 5.25" (129mm)
Nominal Impedance: 4 Ohm
RMS Power Handling: 60 Watts
MAX Power Handling: 180 Watts
Sensitivity (1w/1m): 89dB
Frequency Response: 40Hz-20Khz
Recommended HI Pass Crossover: 60Hz
Speaker Type: 2-Way
MIDRANGE SPECIFICATIONS:
Voice Coil Diameter: 1" (25.5mm)
Voice Coil Former Material: KSV
Winding Material: EISV
Cone Material: Glass fiber
Surround Material: Rubber
Basket Material: Steel
Magnet Material: Barium Ferrite
Magnet Weight: 10.9 Oz / 310g
TWEETER SPECIFICATIONS:
Nominal Diameter: 1" (25.4mm)
Voice Coil Diameter: 0.8"(20.4mm)
Voice Coil Former Material: KSV
Winding Material: EISVM
Diaphragm Material: PEI
Magnet Material: Neodymium
Magnet Weight: 0.3 Oz / 8.5g
THIELE & SMALL PARAMETERS:
Equivalent Volume: 4.86L
Excursion (one way): 2.3mm
Free Air Resonance: 77Hz
Mechanical Factor: 8.39
Electrical Factor: 0.87
Total Factor: 0.79
Mechanical Mass: 9.93g
Mechanical Compliance: 457mm/N
BL Factor: 4.321
Cone Area: 86.5cm
DC Resistance: 3.5 Ohm
Mechanical Mass w/o air: 9.0g
MEASUREMENTS:
Overall Diameter: 5.08" (129mm)
Overall Depth: 2.80" (71mm)
Front Mount Baffle Cutout: 4.45" (113mm)
Mounting Depth: 2.28" (58mm)
Motor Diameter: 3.31" (84mm)
