- This Listing includes : (1) Aquatic AV Marine Digital Media Receiver MP-5UBT-HS
- (2) DS18 6x9" Coaxial Speakers ZXI.694
- (1) Mounting hardware (2) User manual (1) Face-plate
- (1) Rear speaker harness (1) 5FT USB extension cable (1) Protective dust cover

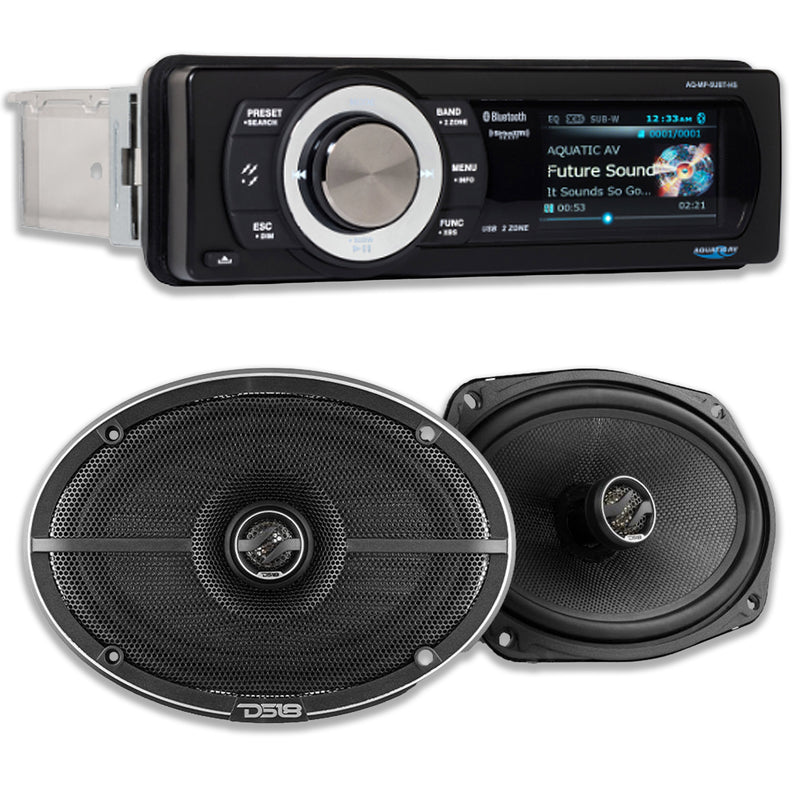

Aquatic Harley Motorcycle Single Din Bluetooth Radio MP-5UBT-HS & Free DS18 6X9 Coaxial Speakers ZXI.694

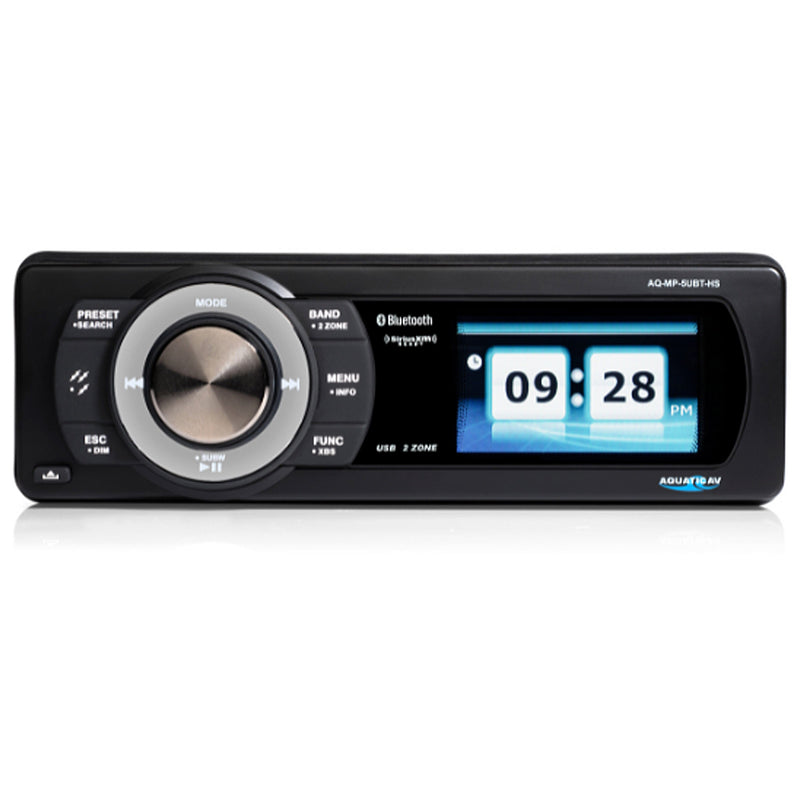

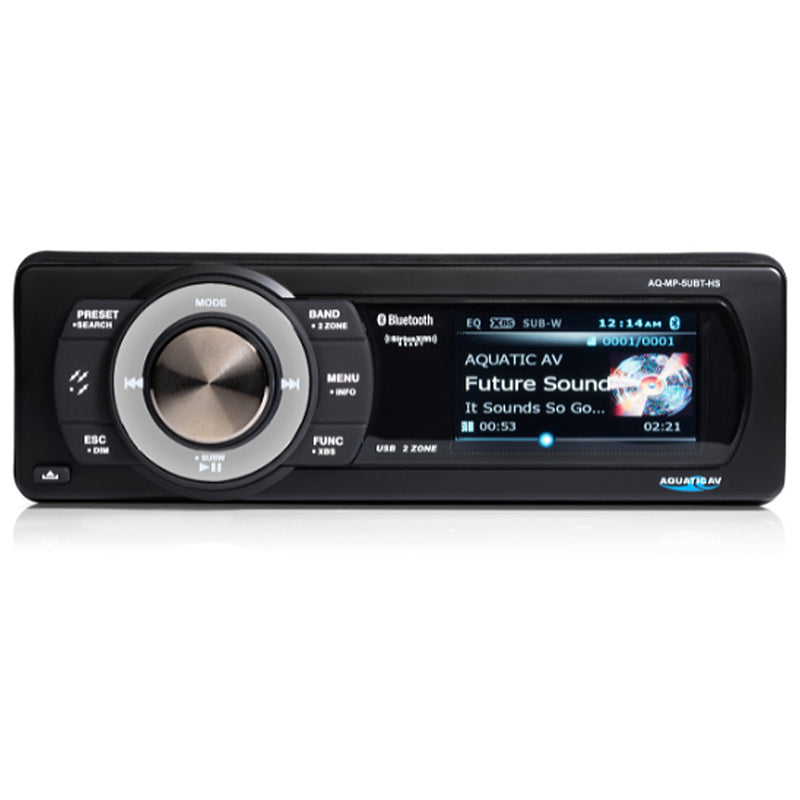

Ready to upgrade your Harley's audio system? Aquatic AV's AQ-MP-5UBT-HS is a tough, smart all-weather digital media receiver that's ready for the road. It has built-in Bluetooth connectivity, a super-sharp color LCD screen, and a clever internal device shelf that'll hold your smartphone or media player. Plus, it gives you the option of adding satellite radio, always a good thing on a long trip. Designed to fit select 1998-2013 touring bikes, this radio comes with Harley-specific mounting brackets and a direct plug-in to your Harley's wiring harness.
The AQ-MP-5UBT-HS gives you lots of entertainment options. You can enjoy your favorite AM/FM stations, connect an MP3 player to the internal USB port or the two aux inputs, or just take advantage of the Bluetooth connectivity to enjoy your tunes. The big control knob makes it easier to manage your music when you're underway, plus you can also control the music directly from the handlebar controls.

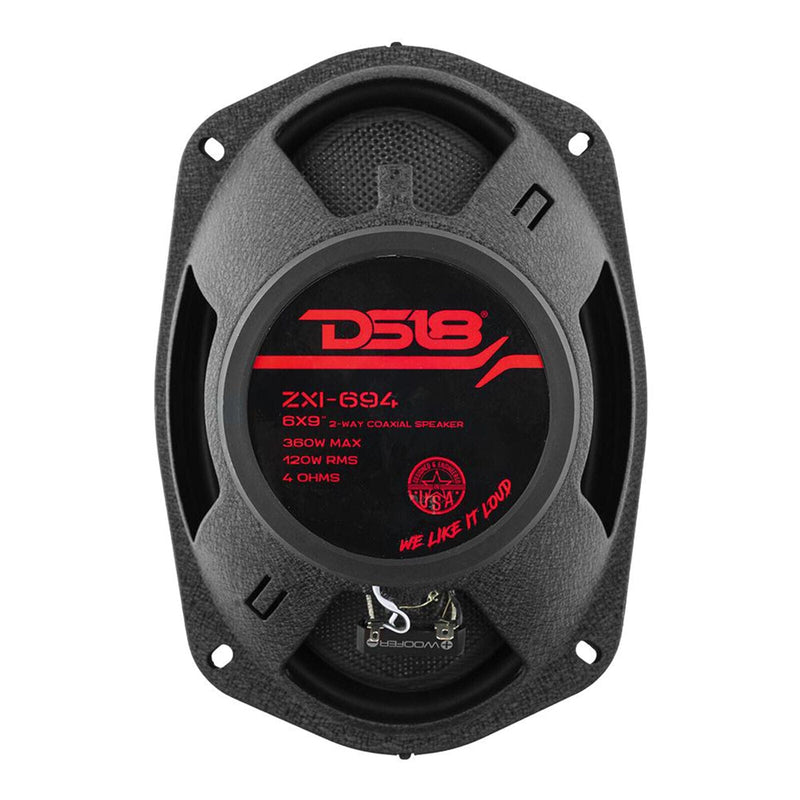

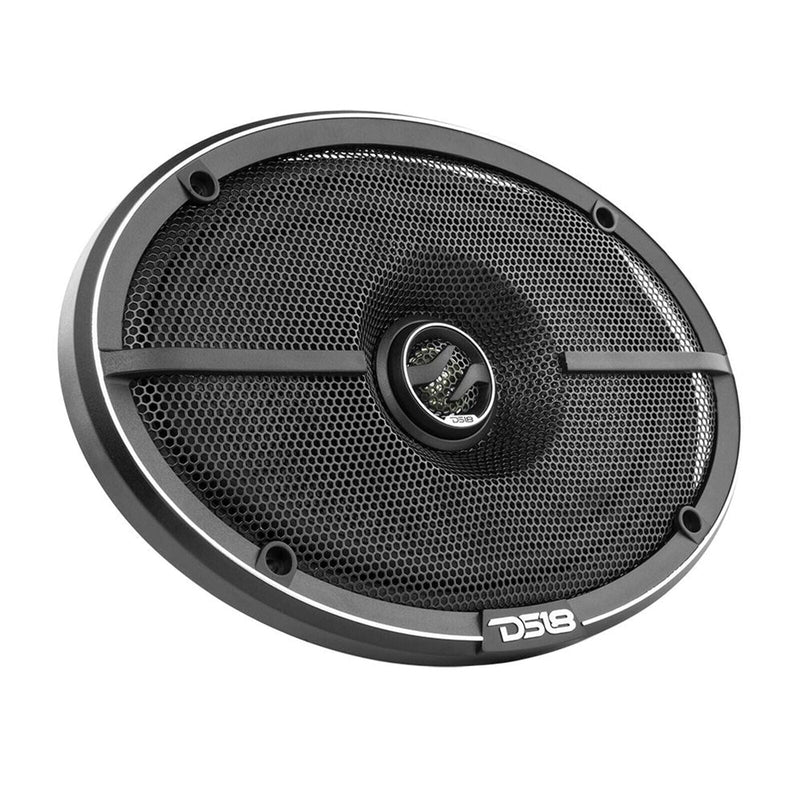

The ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. The ZXI 694 is 6x9 inch, 4 ohm coaxial speaker designed for audio enthusiasts to the extreme as they have an amazing range of frequencies and loudness. The 2 way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember.
This Listing includes :
(1) Aquatic AV Marine Digital Media Receiver MP-5UBT-HS
(2) DS18 6x9" Coaxial Speakers ZXI.694
(1) Mounting hardware
(2) User manual
(1) Face-plate
(1) Rear speaker harness
(1) 5FT USB extension cable
(1) Protective dust cover
GENERAL FEATURES OF RECEIVER MP-5UBT-HS:
- Waterproof digital media receiver with AM/FM tuner.
- Designed for 1998-2013 Harley-Davidson motorcycles.
- Built-in Class A/B amplifier.
- Color LCD screen.

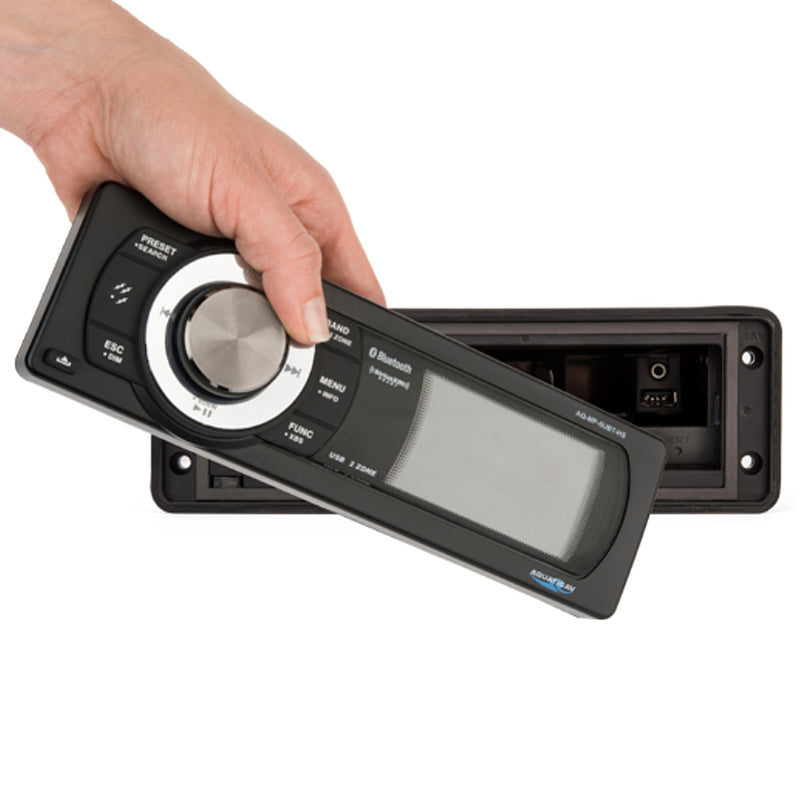

- Water-resistant storage pocket behind removable face.
- Built-in Bluetooth connectivity for Apple and Android phones.
- Connect your iPhone to the USB port.
- SiriusXM Ready (requires SiriusXM tuner and subscription, sold separately).
- Control your music directly from the handlebar controls.
- Includes Harley-specific mounting brackets for easy installation.
- Plugs directly into your bike's factory wiring harness.
- IP55-rated for moisture and dust.
SPECIFICATIONS:
Power rating: 24 watts RMS x 4 at 4 ohms (45 peak); 39.99 watts x 4 at 2 ohms (72 watts peak)
Frequency response: 20-20,000 Hz
Current draw: 6mA (standby), 7A (max)
OTHER INFORMATION:
- Inputs: aux (minijack), aux (stereo RCA), internal USB, rear USB (charging only)
- Outputs: 2-channel 4-volt preamp outputs; 1-channel sub out
- UV-resistant face, conformal-coated circuit board
- Manufacturer Warranty: 2 years
--------------------------------------------------------------------

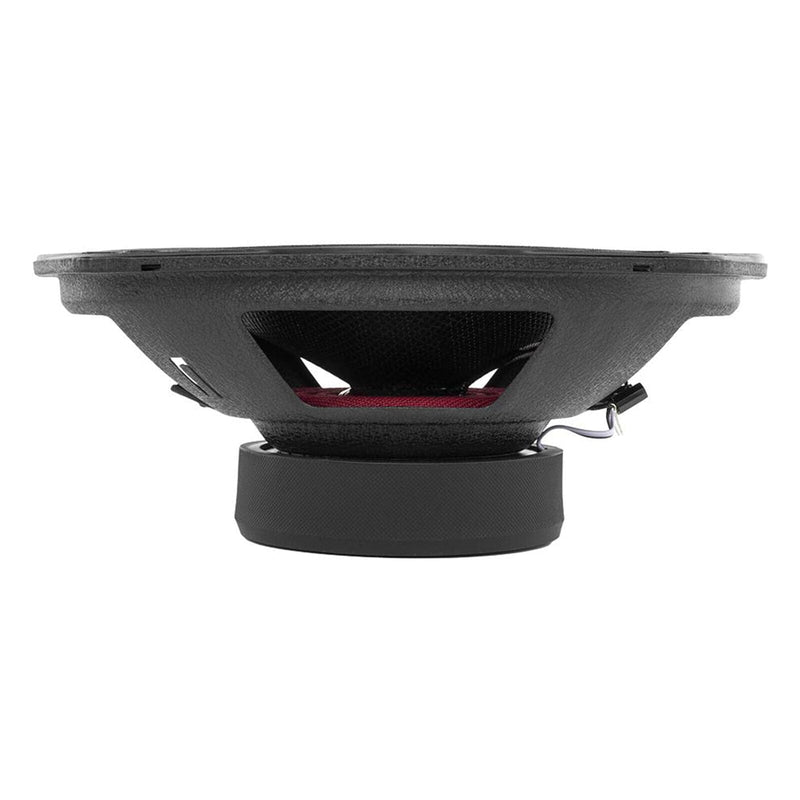

SPECIFICATIONS PER ZXI.694 SPEAKER:
Nominal Diameter: 6x9"
Nominal Impedance: 4 Ohm
RMS Power Handling: 120 Watts
MAX Power Handling: 360 Watts
Sensitivity (1w/1m): 92dB
Frequency Response: 31.5Hz-20Khz
Recommended HI Pass Crossover: 50Hz
Speaker Type: 2-Way
MIDRANGE SPECIFICATIONS:
Voice Coil Diameter: 1.2" (30.4mm)
Voice Coil Former Material: KSV
Winding Material: EISV
Cone Material: Glass fiber
Surround Material: Rubber
Basket Material: Steel
Magnet Material: Barium Ferrite
Magnet Weight: 19.4 Oz / 550g
TWEETER SPECIFICATIONS:
Nominal Diameter: 1" (25.4mm)
Voice Coil Diameter: 0.8"(20.4mm)
Voice Coil Former Material: KSV
Winding Material: EISVM
Diaphragm Material: PEI
Magnet Material: Neodymium
Magnet Weight: 0.3 Oz / 8.5g
THIELE & SMALL PARAMETERS:
Equivalent Volume: 17.52L
Excursion (one way): 3.3mm
Free Air Resonance: 58Hz
Mechanical Factor: 5.77
Electrical Factor: 1.18
Total Factor: 0.98
Mechanical Mass: 23.44g
Mechanical Compliance: 286mm/N
BL Factor: 5.18
Cone Area: 207.7 cm
DC Resistance: 3.5 Ohm
Mechanical Mass w/o air: 20.0g

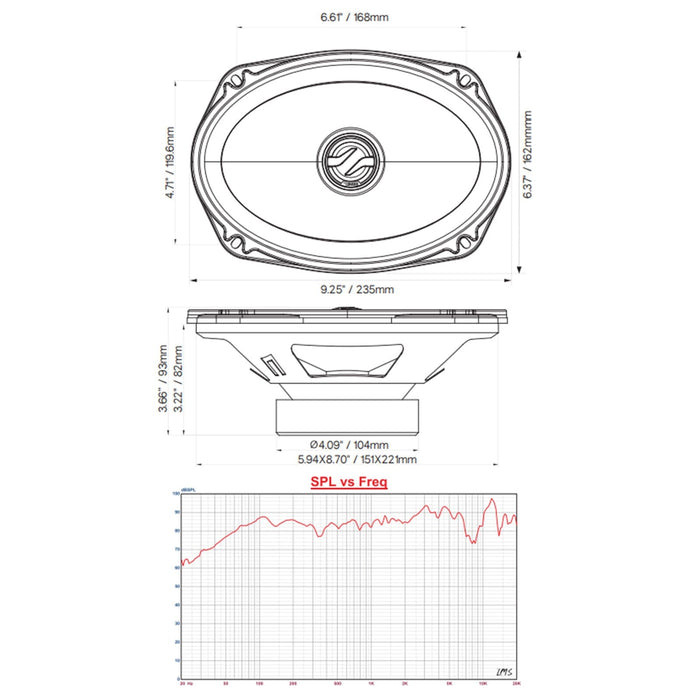

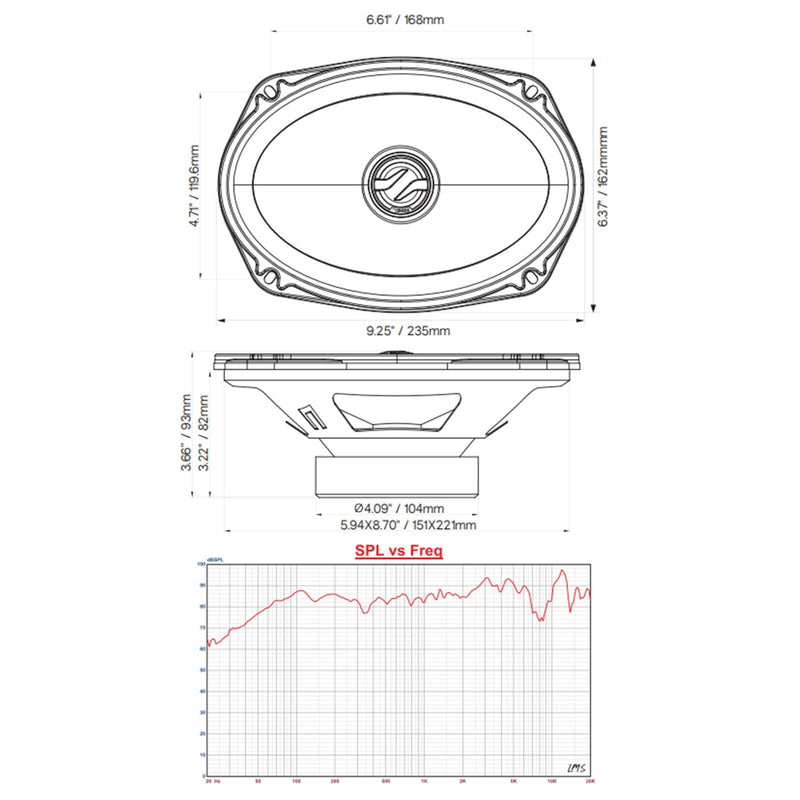

MEASUREMENTS:
Overall Diameter: 6.37x9.25" (162 x 235mm)
Overall Depth: 3.66" (93mm)
Front Mount Baffle Cutout: 5.94x8.70" (151 x 221mm)
Mounting Depth: 3.22" (82mm)
Motor Diameter: 4.09" (104mm)
