- This listing includes:
- (1) Aquatic AV Marine Digital Media Receiver MP-5BT-H
- (2) DS18 6x9" Coaxial Speakers GEN-X6.9
- Waterproof digital media receiver with AM/FM tuner.
- Power rating: 24 watts RMS x 4 at 4 ohms (45 peak); 39.99 watts x 4 at 2 ohms (72 watts peak)

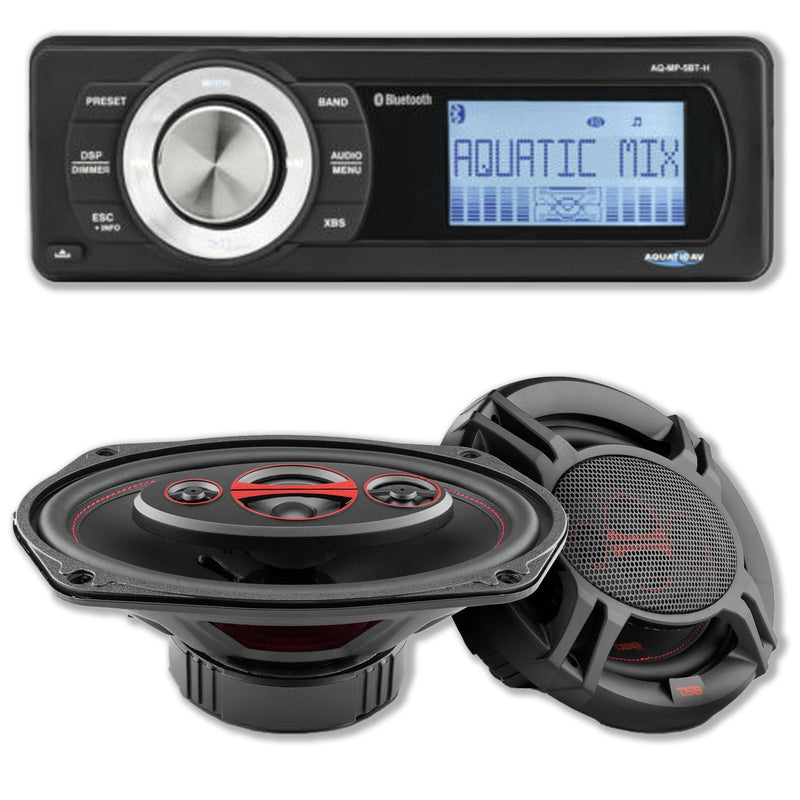

Aquatic AV Harley Davidson Motorcycle Marine Bluetooth Receiver MP-5BT-H & Free DS18 6X9 Coaxial Speakers GEN-X6.9

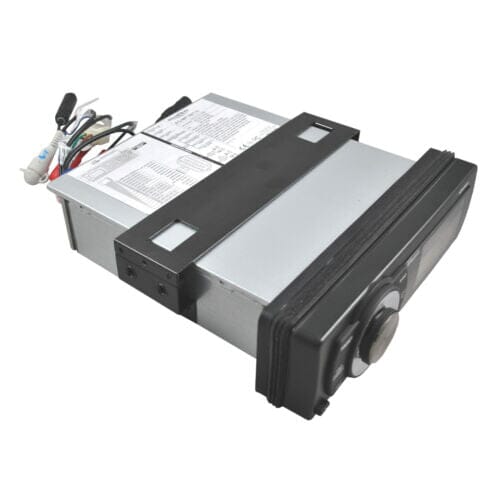

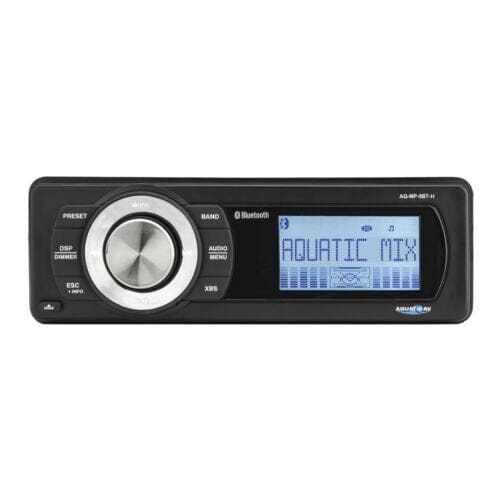

Ready to upgrade the radio on your Harley-Davidson motorcycle? Aquatic AV's is a tough, smart all-weather digital media receiver that's ready for the road. With features like built-in Bluetooth connectivity and a clever internal device shelf for your smartphone or media player, the AQ-MP-5BT-H is a great choice. Designed to fit select 1998-2013 Harley-Davidson touring bikes, this radio comes with Harley-specific mounting brackets and a direct plug-in to your Harley's wiring harness.
The AQ-MP-5BT-H gives you lots of entertainment options. You can enjoy your favorite AM/FM stations, connect an MP3 player to one of the two aux inputs, or just take advantage of the Bluetooth connectivity to enjoy your tunes. The big control knob make it easier to manage your music when you're underway, and you can also control your music directly from your motorcycle's handlebar controls

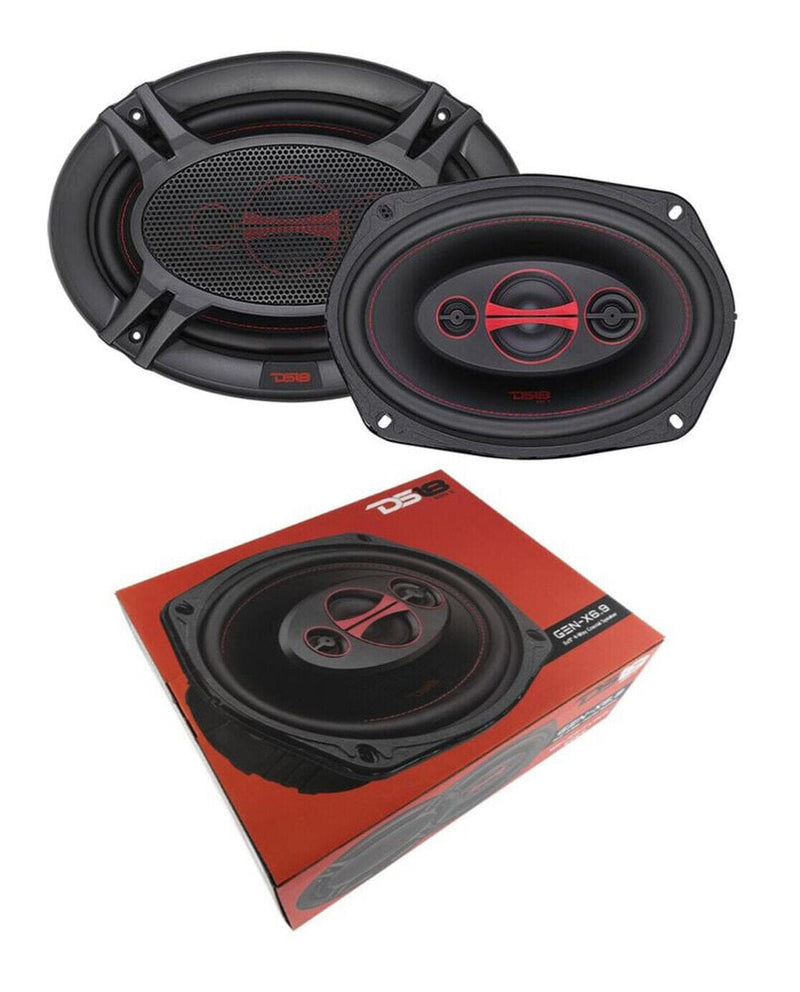

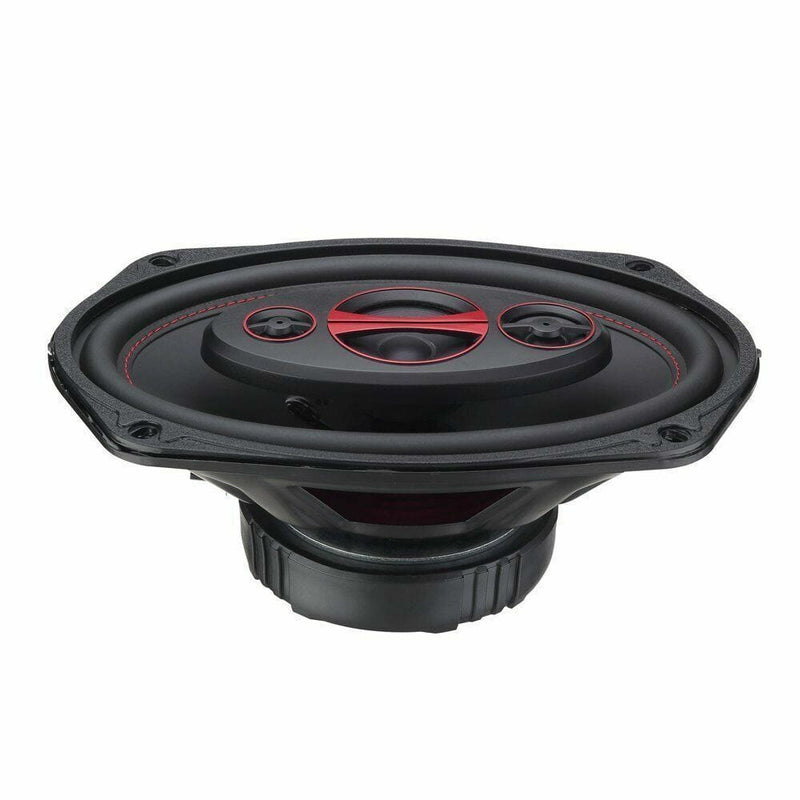

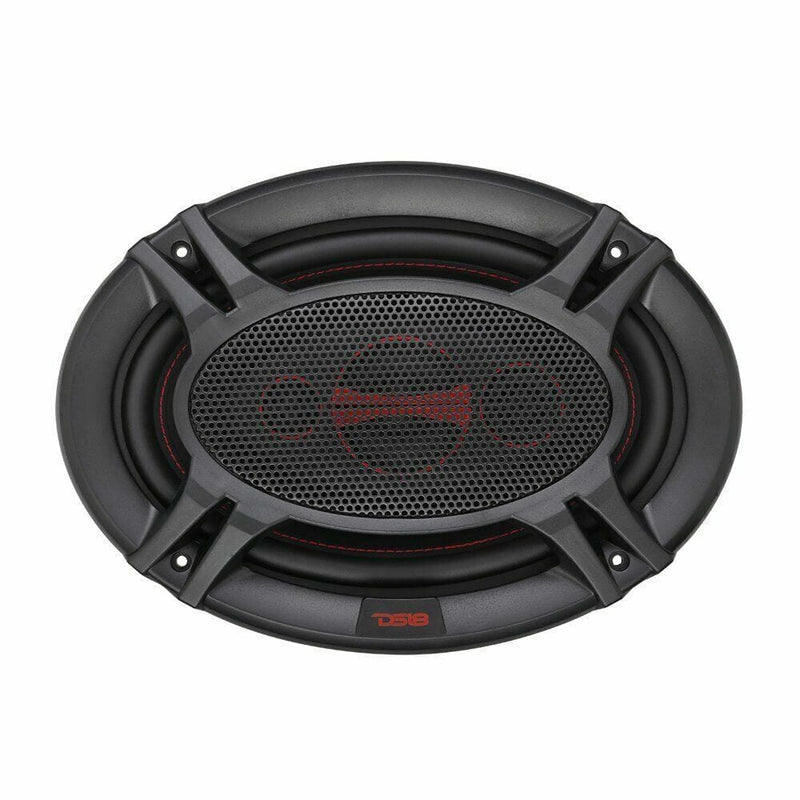

The GEN-X Coaxial Series features Mylar balanced dome tweeters, black paper cones with rubber edges, and sleek mesh grills with red accents. These unique speakers will hit all frequencies with great style. They boast a fine clarity that is unparalleled by any other speaker in their class.
This listing includes:
(1) Aquatic AV Marine Digital Media Receiver MP-5BT-H
(2) DS18 6x9" Coaxial Speakers GEN-X6.9
(1) Face-plate
(1) Rear speaker harness
(2) Mounting hardware and Owner's Manual
GENERAL FEATURES OF RECEIVER MP-5BT-H:
- Waterproof digital media receiver with AM/FM tuner.
- Designed for 1998-2013 Harley-Davidson motorcycles.
- Built-in Class A/B amplifier.
- Monochrome LCD screen.
- Water-resistant storage pocket behind removable face.
- Built-in Bluetooth connectivity.
- Works with Apple and Android phones.
- Control your music directly from the handlebar controls.
- Includes Harley-specific mounting brackets for easy installation.

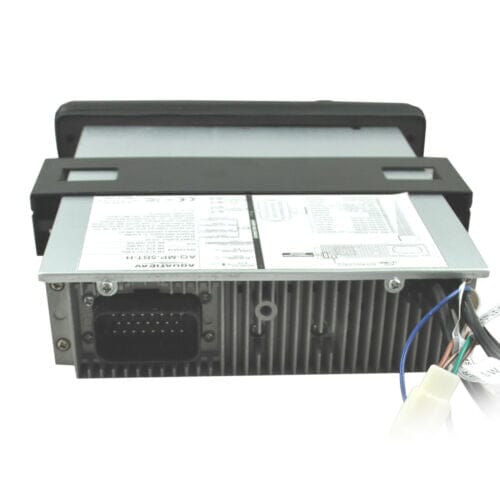

- Plugs directly into your bike's factory wiring harness.
- IP55-rated for moisture and dust.
SPECIFICATIONS:
Power rating: 24 watts RMS x 4 at 4 ohms (45 peak); 39.99 watts x 4 at 2 ohms (72 watts peak)
Frequency response: 20-20,000 Hz
Current draw: 6mA (standby), 7A (max)
OTHER INFORMATION:
- Inputs: aux (minijack), aux (stereo RCA), rear USB (charging only)
- Outputs: 2-channel 2-volt preamp outputs
- UV-resistant face, conformal-coated circuit boardv- Manufacturer Warranty: 2 years
--------------------------------------------------------------------

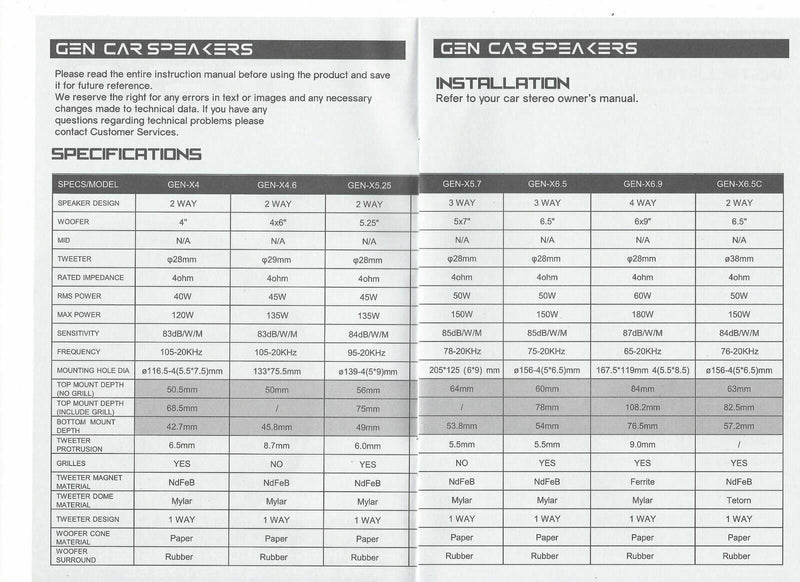

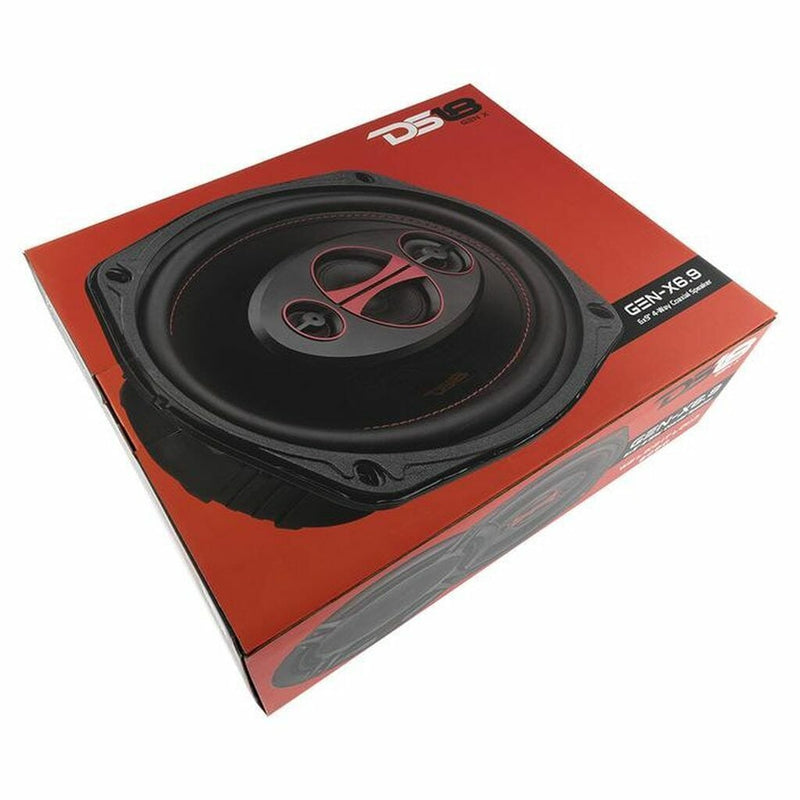

SPECIFICATIONS PER GEN-X6.9 SPEAKER:
Size: Woofer 6x9" Mid: 45mm Tweeter: 26 + 18mm
RMS Power: 60W
MAX Power: 180W
Impedance: 4 Ohm
Sensitivity: 87dB/W/M
Frequency Response: 65-20kHZ
Grilles: Yes
Tweeter Design: Coaxial 3 WAY
MATERIALS:
Surround: Rubber Edge
Woofer Cone: Black Paper
Voice Coil Wire: ASV
Woofer Surround: Rubber
Tweeter Magnet Material: Ferrite
Tweeter Dome Material: Mylar
DIAMETERS:
Voice coil size: 1" (25 mm)
Magnet Size: 3.93 x 2.36 x 0.70 (100 x 60 x 18 mm)
Tweeter Size: 1.10/0.78(28 mm/20 mm) Mylar Dome Top (No Grill): 3.30(84 mm)
Mounting depth: Top (w/Grill) 4.25(108.2 mm) Bottom: 2.97(76.5 mm)
Cut-out dimension: 6.59 x 4.68(167.5 x 119mm)
Mounting Hole: 5.90 x 8.66(150 x 220 mm)
Top Mount Depth (No Grill): 3.30(84 mm)
Tweeter Protrusion: 0.35(9 mm)
