- This listing includes:
- (1) Aquatic AV Marine Digital Media Receiver MP-5BT-H
- (2) DS18 6.5" 3-Way Coaxial Speakers GEN-X6.5
- (1) Face-plate
- (1) Rear speaker harness
Aquatic AV Harley Davidson Motorcycle Marine Bluetooth Receiver MP-5BT-H & Free DS18 6 Coaxial Speakers GEN-X6.5

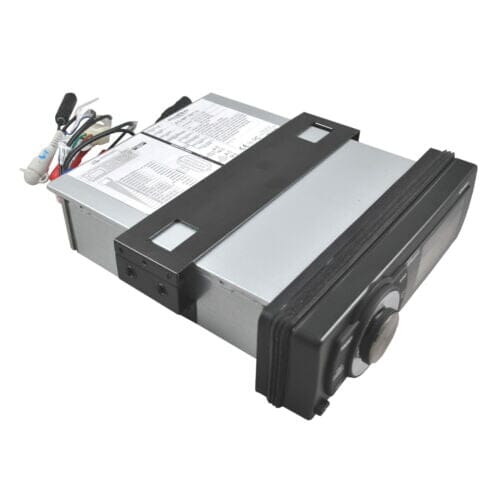

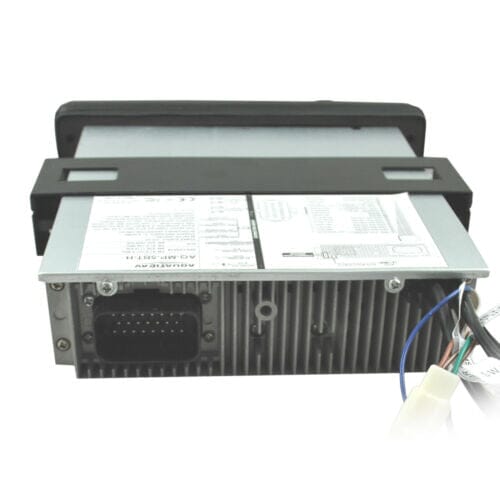

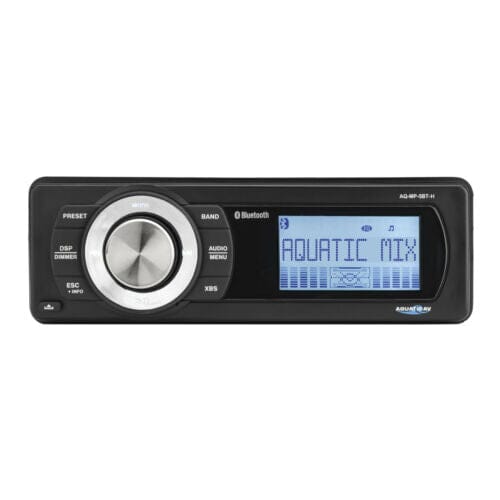

Ready to upgrade the radio on your Harley-Davidson motorcycle? Aquatic AV's is a tough, smart all-weather digital media receiver that's ready for the road. With features like built-in Bluetooth connectivity and a clever internal device shelf for your smartphone or media player, the AQ-MP-5BT-H is a great choice. Designed to fit select 1998-2013 Harley-Davidson touring bikes, this radio comes with Harley-specific mounting brackets and a direct plug-in to your Harley's wiring harness.
The AQ-MP-5BT-H gives you lots of entertainment options. You can enjoy your favorite AM/FM stations, connect an MP3 player to one of the two aux inputs, or just take advantage of the Bluetooth connectivity to enjoy your tunes. The big control knob make it easier to manage your music when you're underway, and you can also control your music directly from your motorcycle's handlebar controls

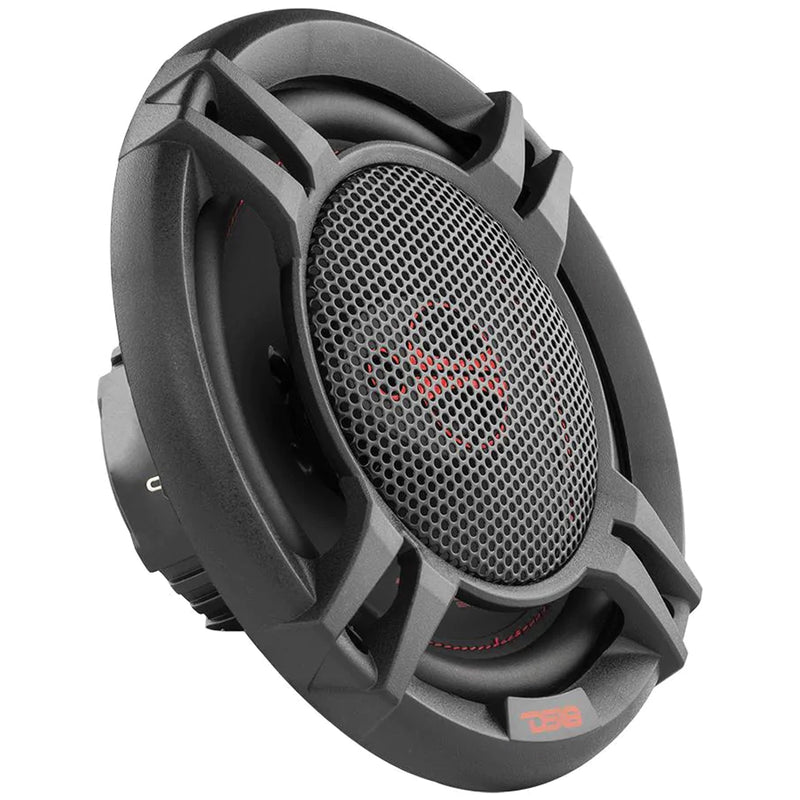

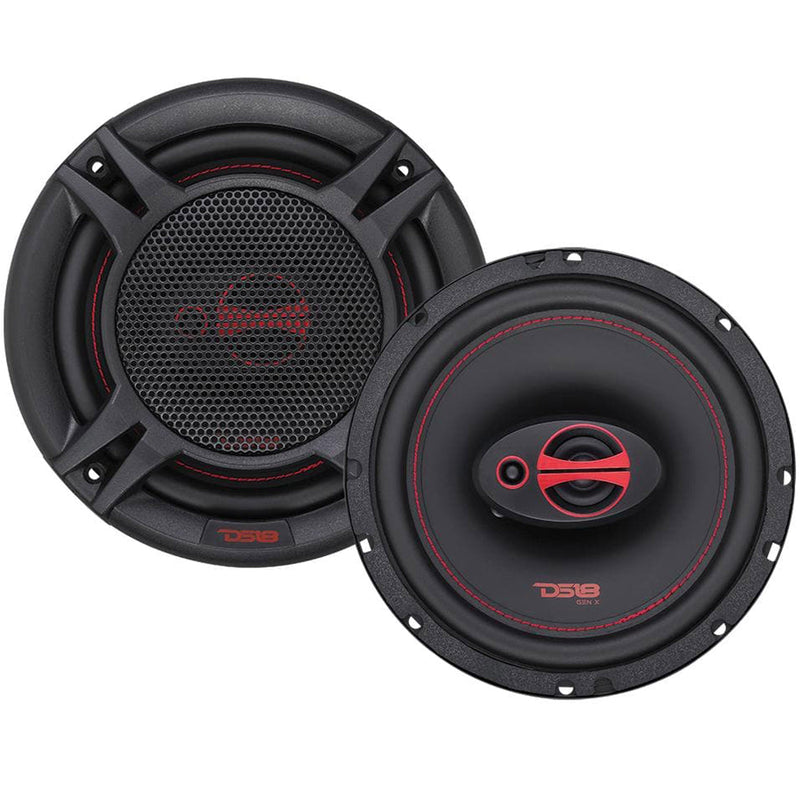

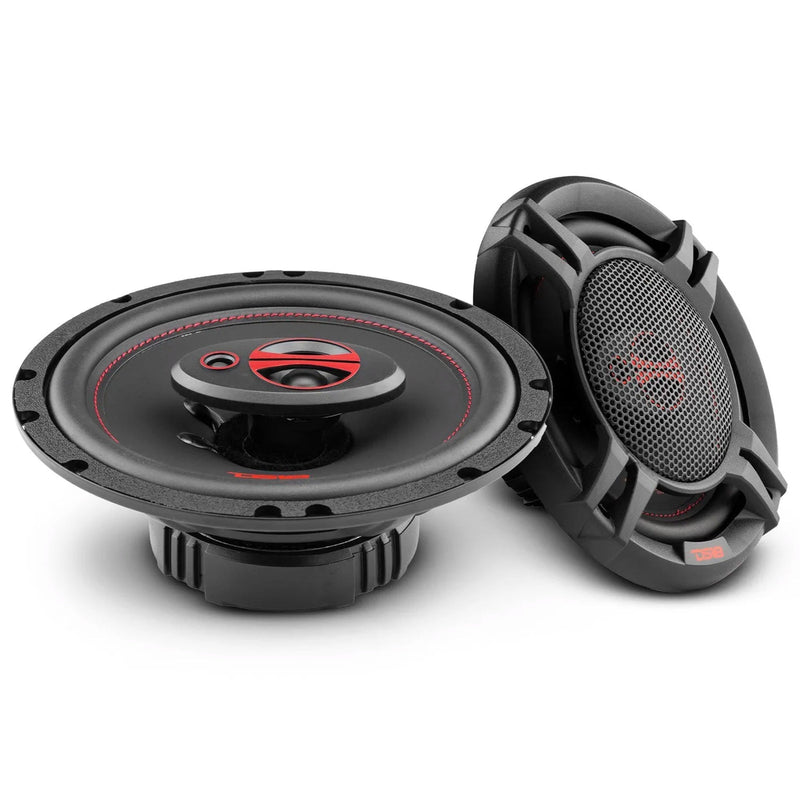

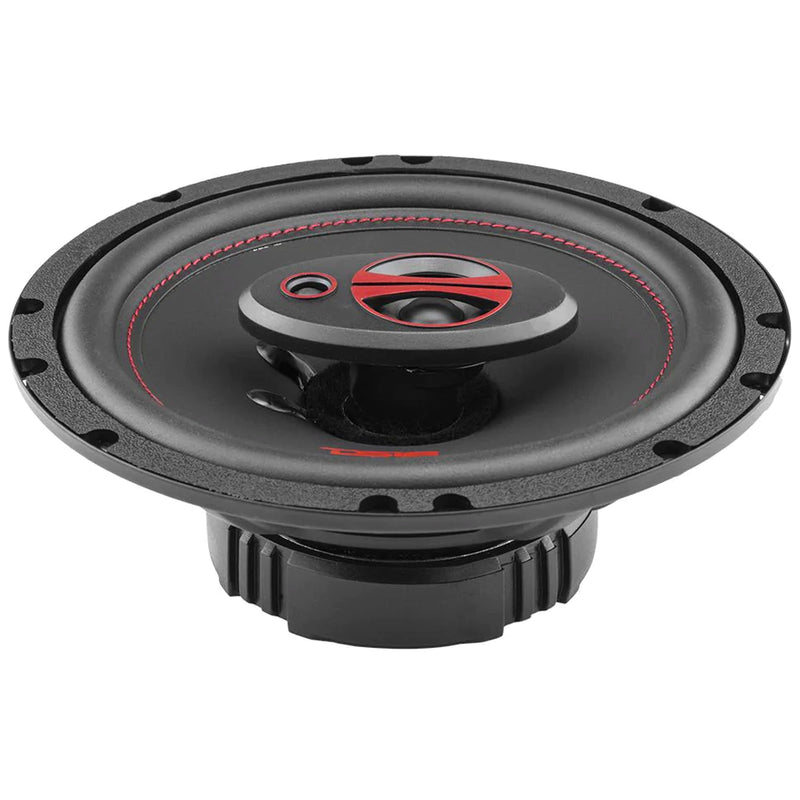

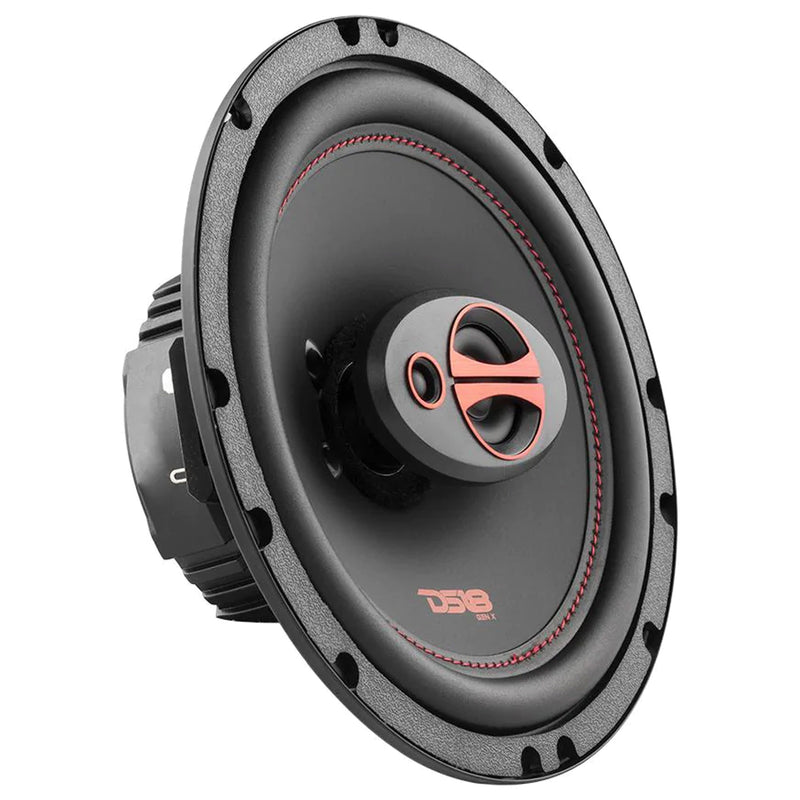

The GEN-X Coaxial Series features Mylar balanced dome tweeters, black paper cones with rubber edges, and sleek mesh grills with red accents. These unique speakers will hit all frequencies with great style. They boast a fine clarity that is unparalleled by any other speaker in their class.
This listing includes:
(1) Aquatic AV Marine Digital Media Receiver MP-5BT-H
(2) DS18 6.5" 3-Way Coaxial Speakers GEN-X6.5
(1) Face-plate
(1) Rear speaker harness
GENERAL FEATURES OF RECEIVER MP-5BT-H:
- Waterproof digital media receiver with AM/FM tuner.
- Designed for 1998-2013 Harley-Davidson motorcycles.
- Built-in Class A/B amplifier.
- Monochrome LCD screen.
- Water-resistant storage pocket behind removable face.
- Built-in Bluetooth connectivity.
- Works with Apple and Android phones.
- Control your music directly from the handlebar controls.
- Includes Harley-specific mounting brackets for easy installation.
- Plugs directly into your bike's factory wiring harness.
- IP55-rated for moisture and dust.
SPECIFICATIONS:
Power rating: 24 watts RMS x 4 at 4 ohms (45 peak); 39.99 watts x 4 at 2 ohms (72 watts peak)
Frequency response: 20-20,000 Hz
Current draw: 6mA (standby), 7A (max)
OTHER INFORMATION:
- Inputs: aux (minijack), aux (stereo RCA), rear USB (charging only)
- Outputs: 2-channel 2-volt preamp outputs
- UV-resistant face, conformal-coated circuit boardv- Manufacturer Warranty: 2 years
--------------------------------------------------------------------
SPECIFICATIONS PER GEN-X6.5 SPEAKER:
Type: Coaxial
Size: 6.5"
RMS Power: 50 Watts
MAX Power: 150 Watts
Frequency response: 75Hz ~ 20KHz
Impedance: 4 Ohms
Sensitivity: 85dB/w/m
Surround: Rubber Edge
Cone: Black Paper
Voice Coil Wire: ASV
DIMENSIONS:
Voice coil size: 1"(25mm)
Magnet Size: 80x40x12mm
Tweeter Size: 28mm/9mm Mylar Dome
Top (No Grill): 60mm
Mounting depth:Top (w/Grill): 78mm | Bottom: 54mm
Cut-out dimension: 6.14 (156mm)
