- HIGH OUTPUT 8 INCH SUBWOOFER: American Bass VFL Series 8 inch subwoofer engineered for deep, aggressive bass in compact and high-performance car audio systems.
- 800W RMS POWER HANDLING: Handles a verified 800 watts RMS and 1600 watts max, built to perform reliably under sustained high-power conditions.
- DUAL 4 OHM VOICE COILS: Dual 4 ohm configuration allows flexible wiring options to match a wide range of car audio amplifiers.

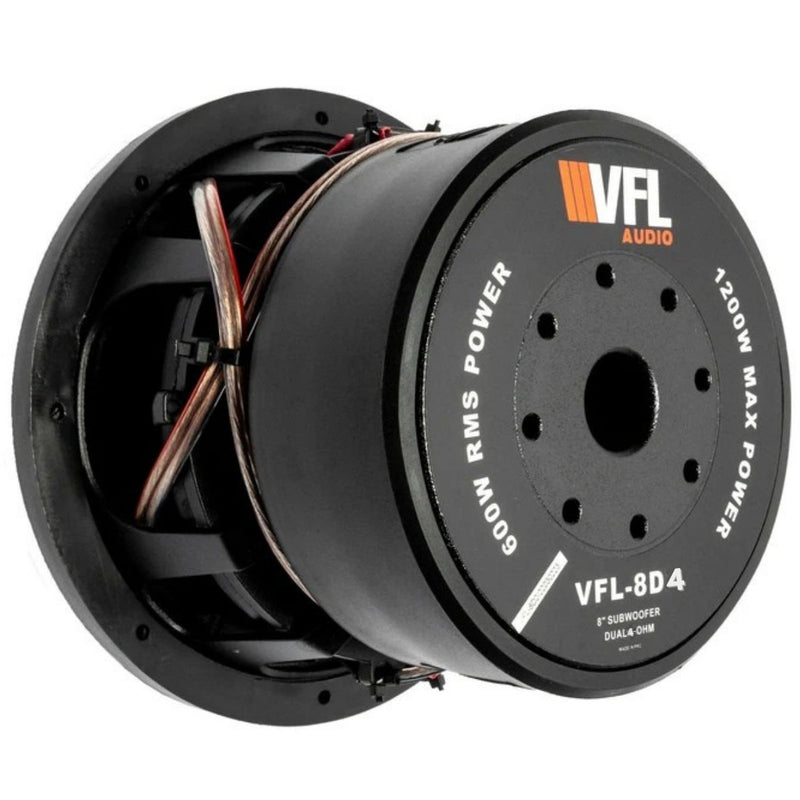

- ADVANCED MOTOR AND COOLING DESIGN: Features a 2.5 inch 4-layer high-temperature voice coil, dual 120 oz strontium magnet motor, aluminum back plate heat sink, and low-inductance pole design.

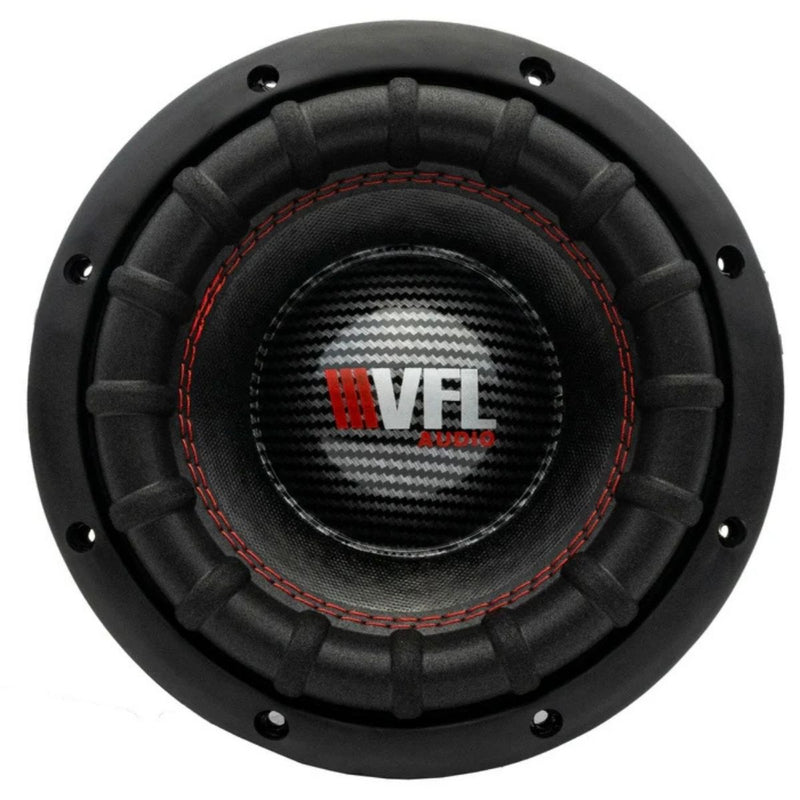

- DURABLE CAST BASKET BUILD: Die-cast aluminum basket with reinforced suspension, ribbed foam surround, and dual poly-cotton spiders for long-term reliability and controlled excursion.

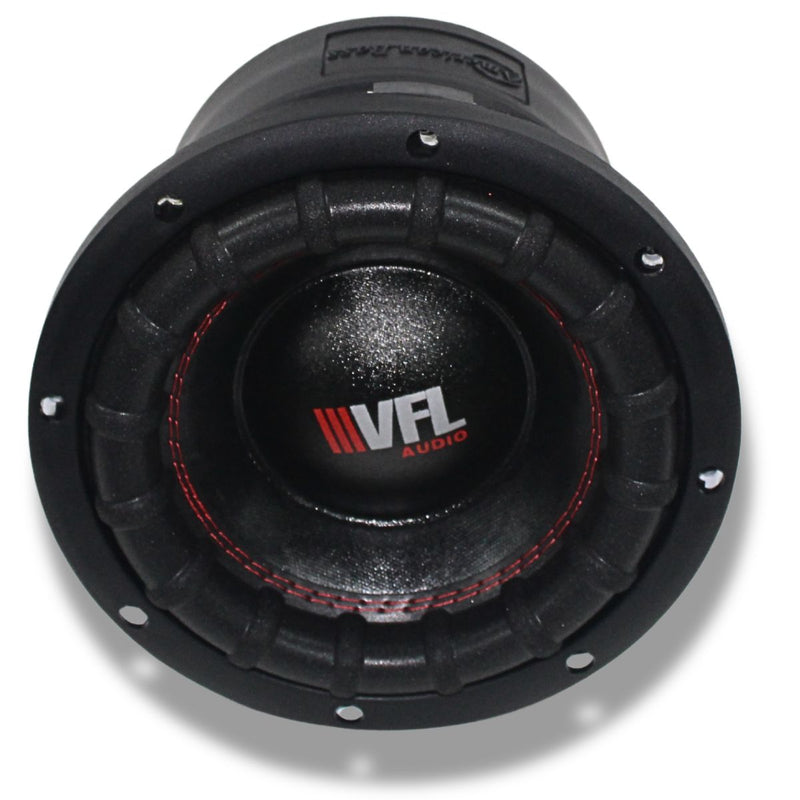

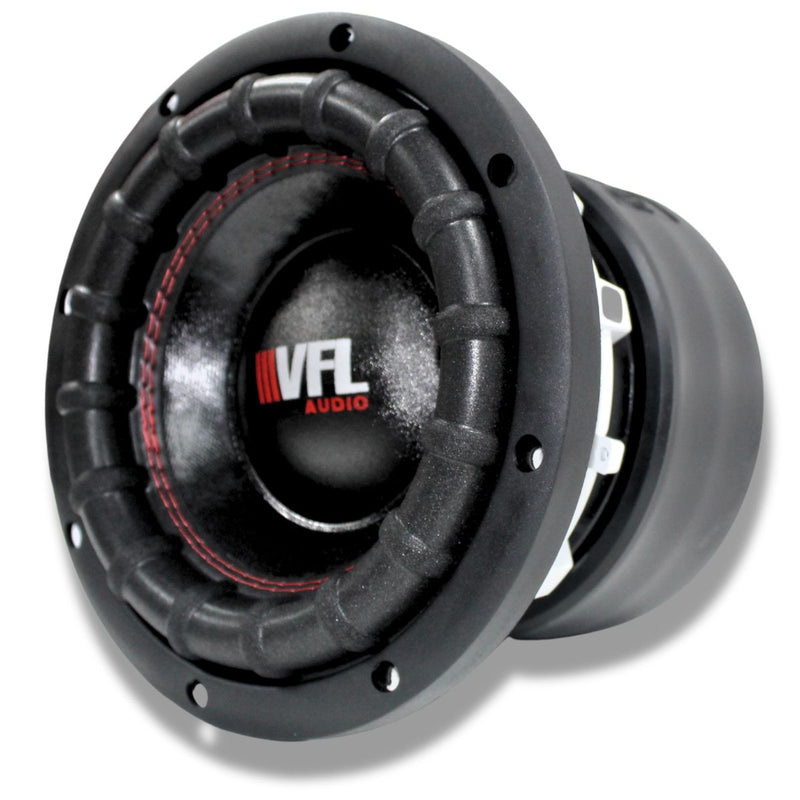

American Bass 8" VFL Series 800 Watt RMS 4 Ohm Dual Voice Coil Subwoofer
This Listing Includes:
- (1) VFL Series 1200-Watt Max 8" Subwoofer

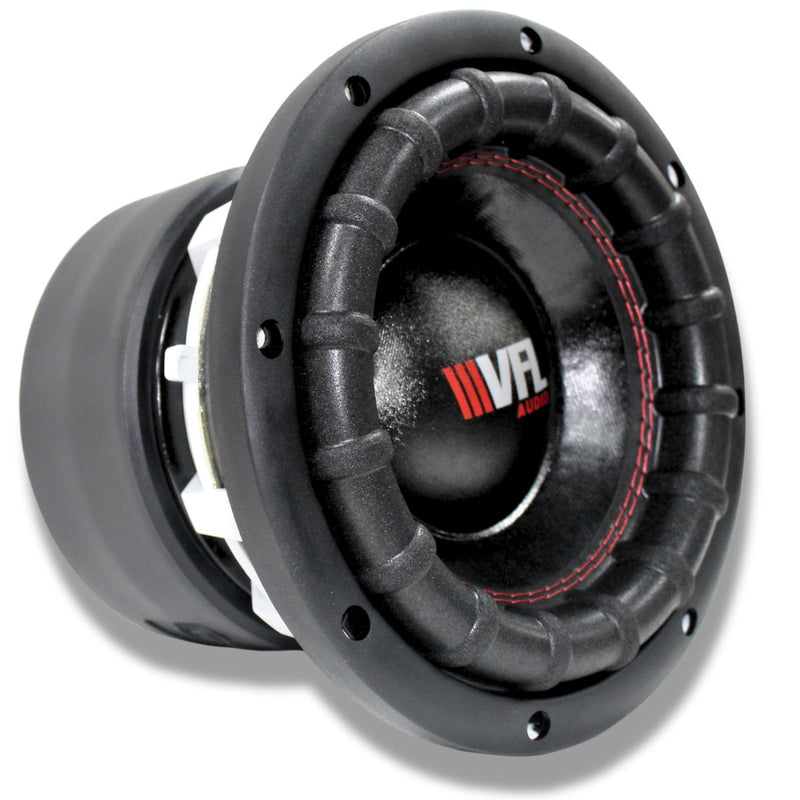

The American Bass VFL Series 8-inch subwoofer (VFL-8D4v2) is engineered for high-output bass performance in compact and mid-size car audio systems. Built with competition-inspired components, this subwoofer delivers authoritative low-frequency impact, durability, and control well beyond its size.

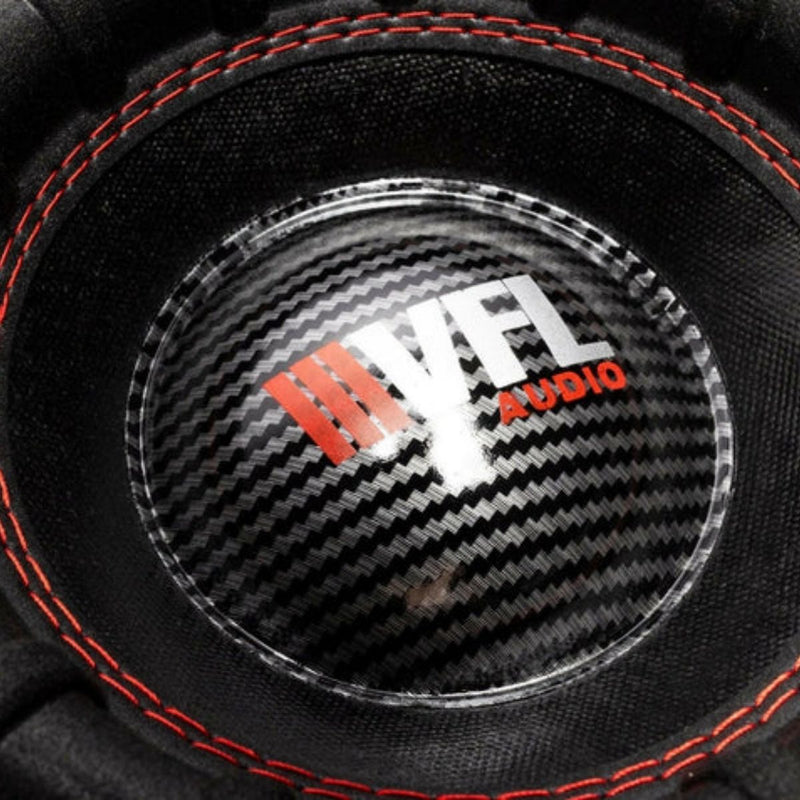

At its core is a 2.5-inch 4-layer high-temperature voice coil paired with a dual strontium magnet motor totaling 120 oz, allowing the VFL 8 to handle a verified 800 watts RMS and 1600 watts max. The carbon-fiber enhanced non-pressed paper cone provides an ideal balance of rigidity and light weight for clean, accurate bass, while the ribbed foam surround and dual poly-cotton spiders maintain linear excursion under heavy load.

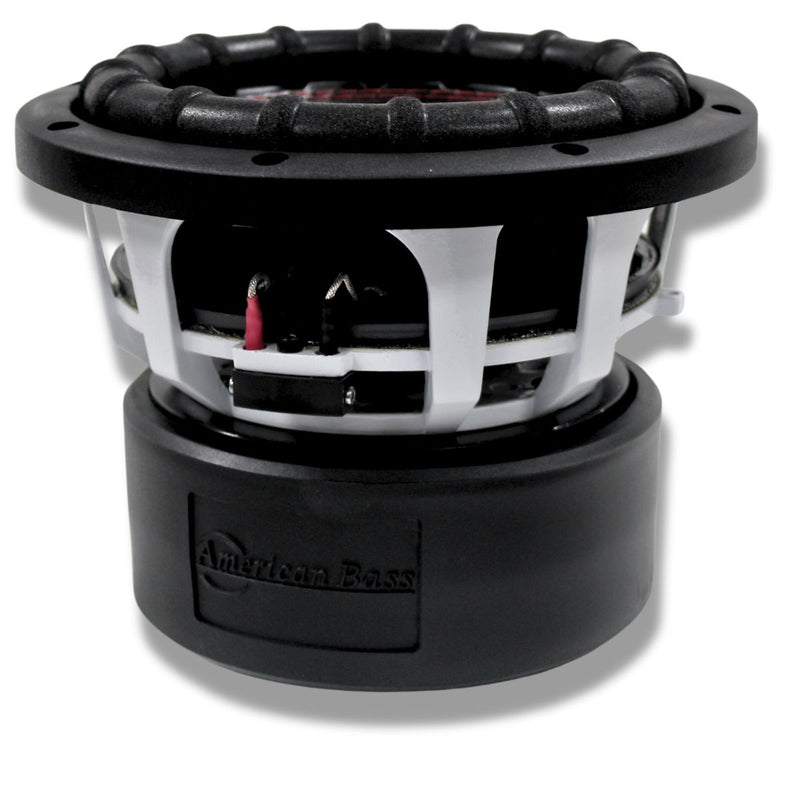

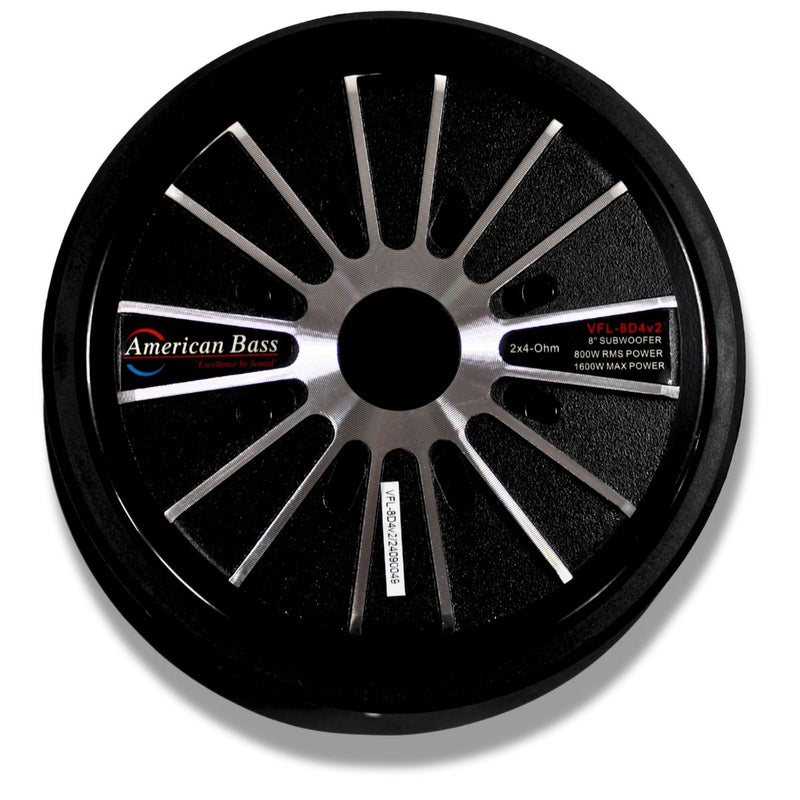

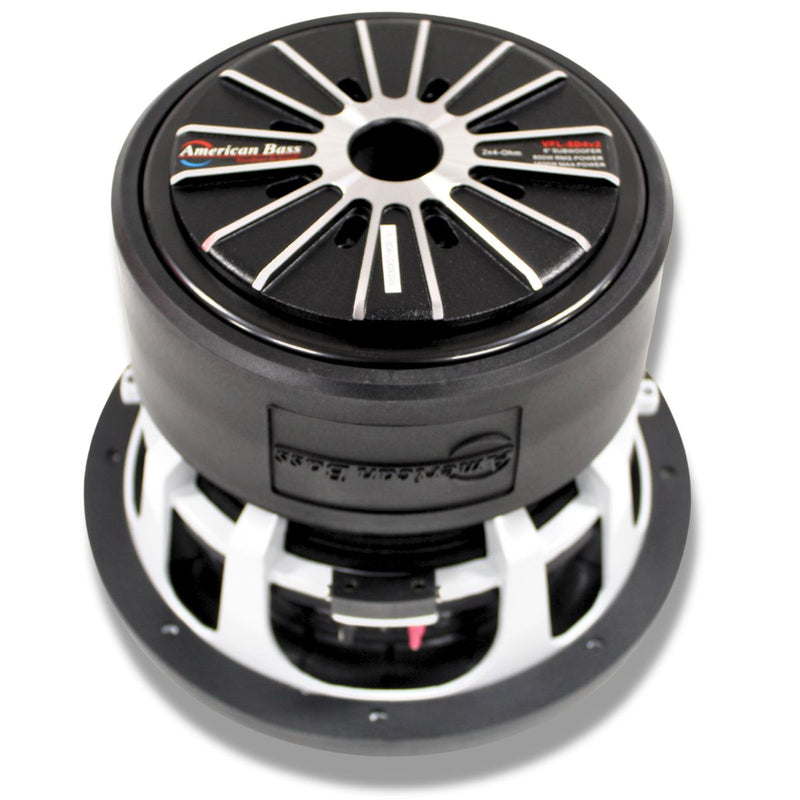

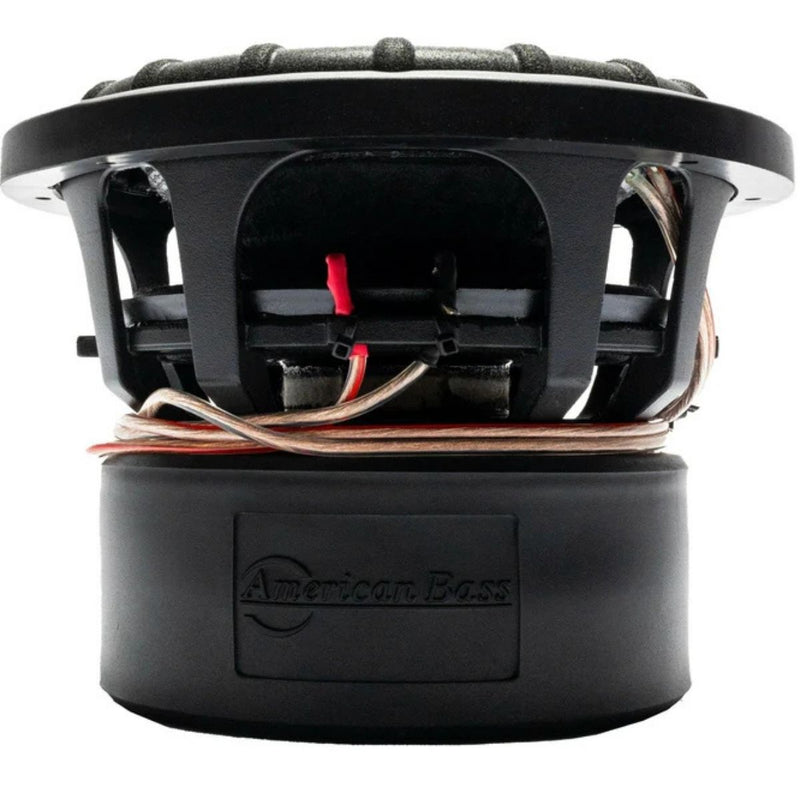

A die-cast aluminum basket with a white finish ensures structural stability and proper motor alignment, while advanced motor features such as an aluminum back plate heat sink, in-pole aluminum pole, and low-energy-loss T-yoke design improve cooling and reduce inductance. With a dual 4 ohm voice coil configuration, the VFL-8D4v2 offers flexible wiring options to match a wide range of amplifiers.
Designed for ported enclosures around 1.25 cubic feet, this subwoofer is ideal for daily drivers, compact bass builds, and high-performance systems that demand serious output without sacrificing reliability.
Features:
- High-output 8 inch subwoofer from the American Bass VFL Series
- Verified 800W RMS / 1600W MAX power handling

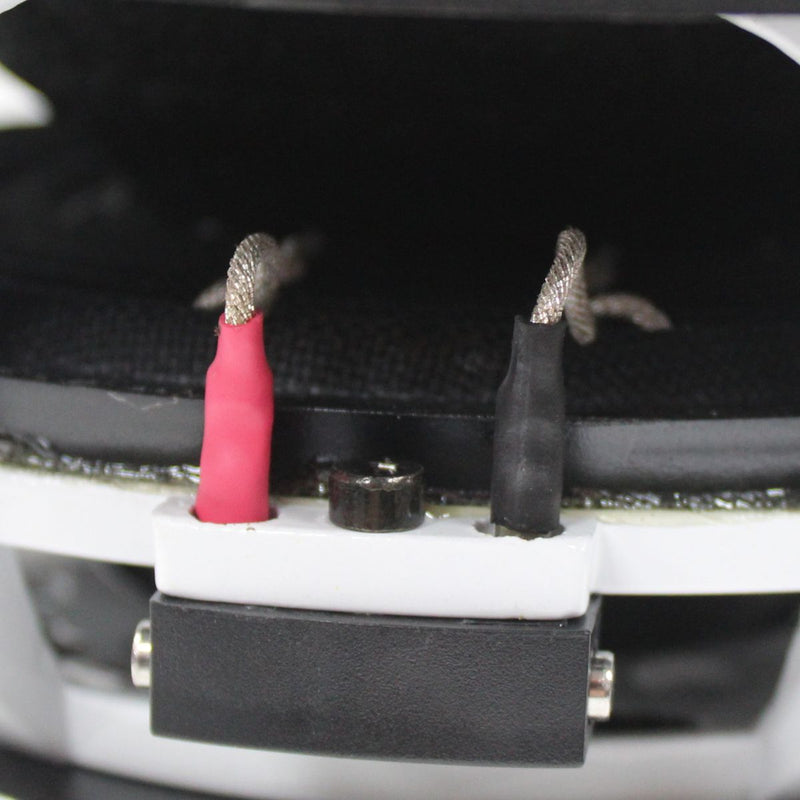

- Dual 4 ohm voice coils for flexible wiring configurations
- 2.5 inch 4-layer high-temperature voice coil
- Dual strontium magnet motor, 120 oz total
- Carbon-fiber reinforced non-pressed paper cone

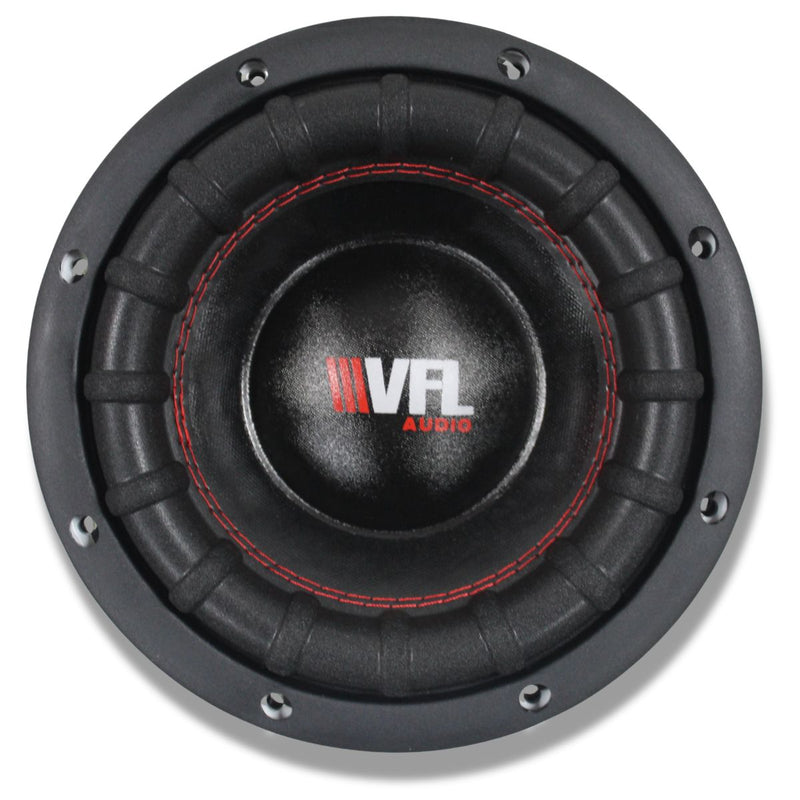

- Ribbed foam surround and dual poly-cotton spiders
- Die-cast aluminum basket with white finish
- Advanced motor cooling and low-inductance design
Specifications:
- Series: VFL
- Model: VFL-8D4v2
- Subwoofer Size: 8 inch
- Power Handling (RMS): 800W
- Power Handling (MAX): 1600W
- Impedance: Dual 4-Ohms
- Sensitivity: 82.8 to 83.3 dB
- Voice Coil Size: 2.5 inch, 4-layer
- Magnet Type: Dual strontium
- Magnet Weight: 120 oz total
- Basket Material: Die-cast aluminum
T/S Parameters
- Xmax: 12 mm
- Dcr: 3.6
- Fs: 43.081 Hz
- SD: 18.87 msqM
- BL: 18.422 Tm
- Qms:0.328
- Qes: 0.396
- Qts: 0.396
- SPLo: 83.3 dB
- Vas: 4.703 L
- Cms: 94.925 um/N
- Mms: 131.765 g
- Mmd: 130.298 g
- Xmax: 12 mm
- Vd: 2.35 L
Enclosure Recommendations:
- Recommended Enclosure Type: Ported
- Recommended Ported Volume: 1.25 cubic feet
Dimensions:
- Subwoofer Diameter: 8"
- Overall Diameter: 8.66"
- Cutout Diameter: 7.40"
- Mounting Diameter: 7.83"
- Mounting Depth: 5.79"
- Surface Depth: .55"
- Total Depth: 7.05"
- Magnet Size: 120 oz
- Voice Coil Size: 2.5"
Manufacturer Advisory: The above parameters are tested after each subwoofers break-in under 600 watts of power for 3 hours.
Due to continuous pursuit of quality and performance, specifications change without prior notice.
