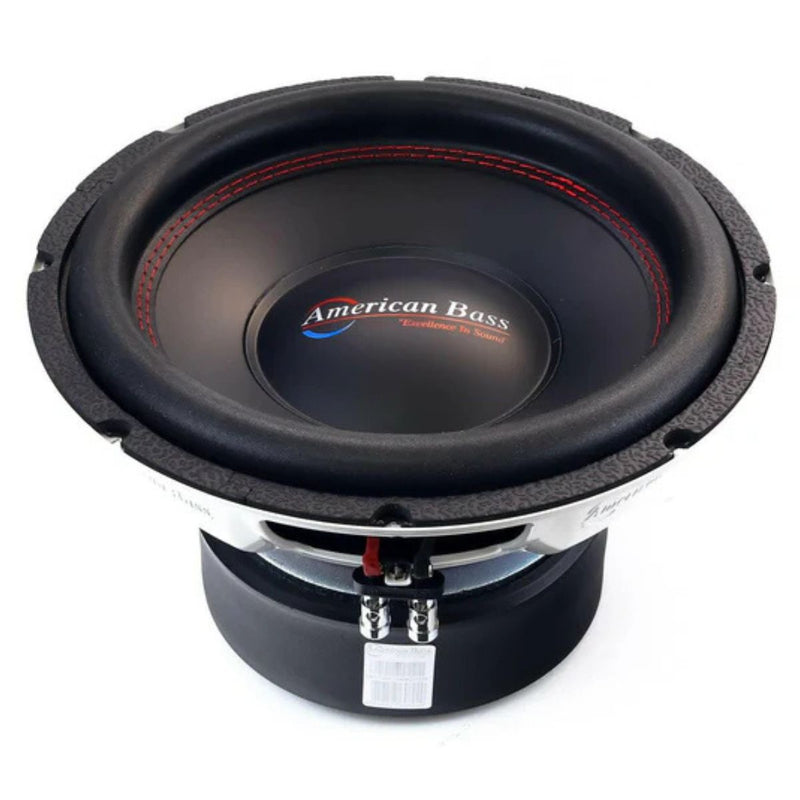

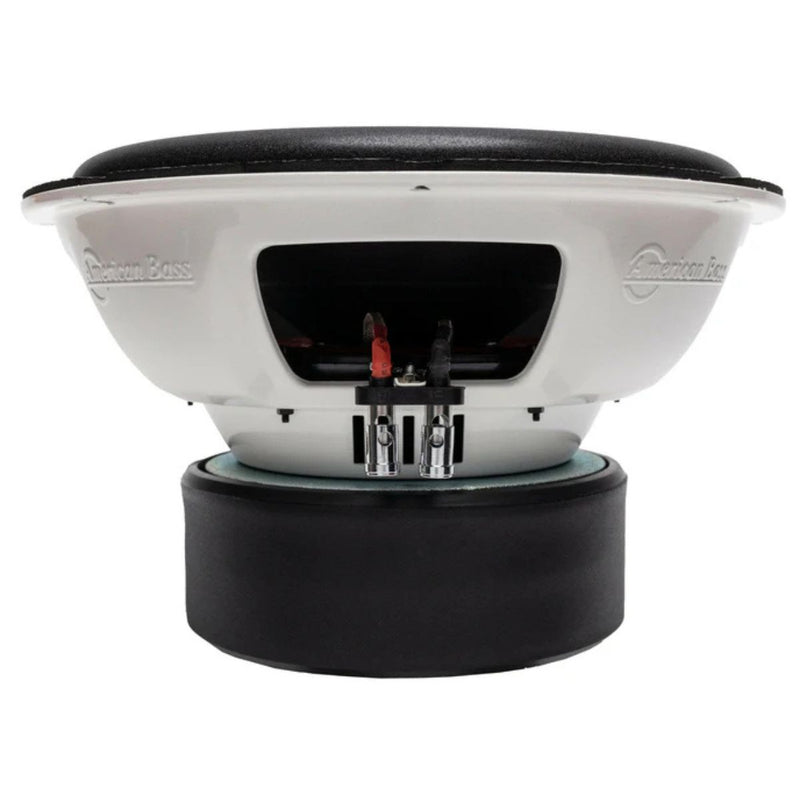

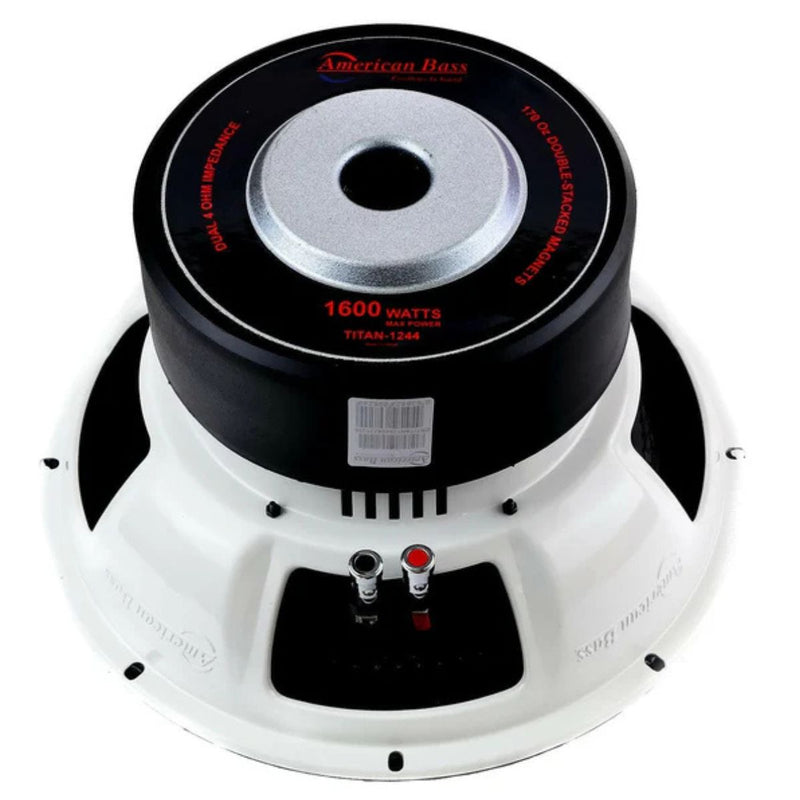

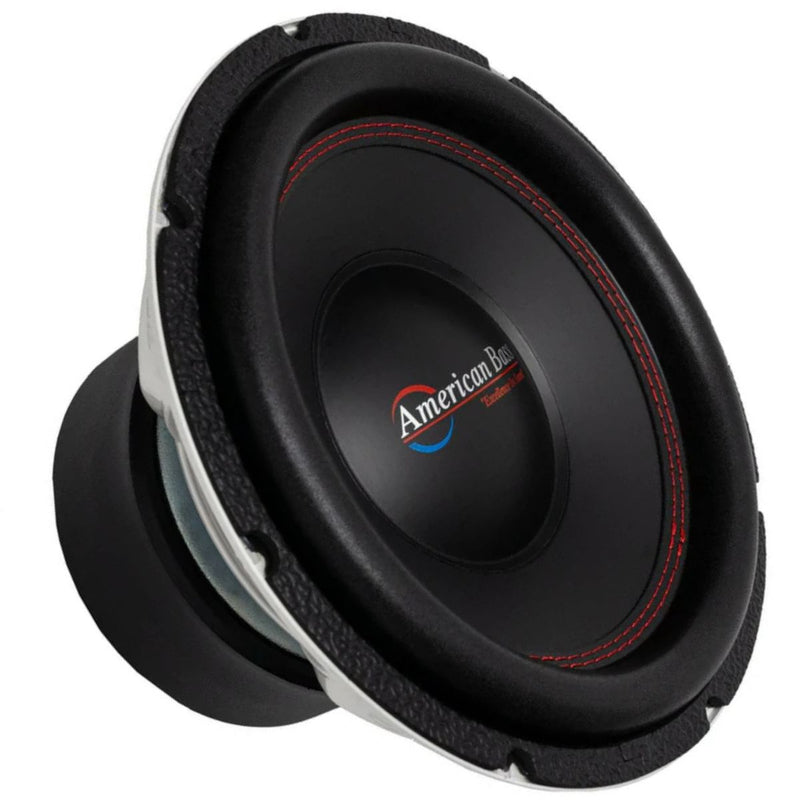

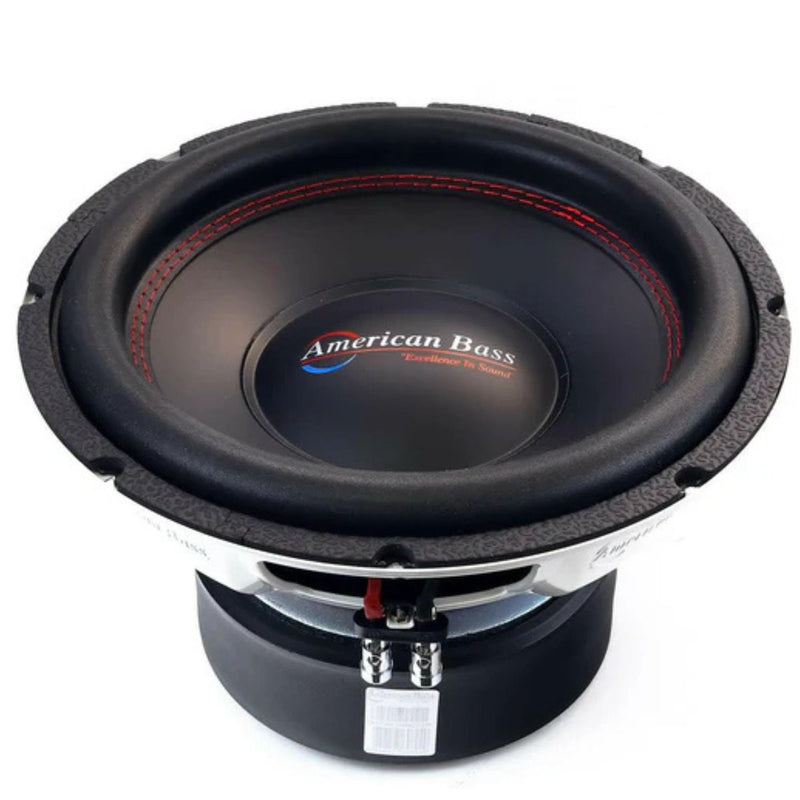

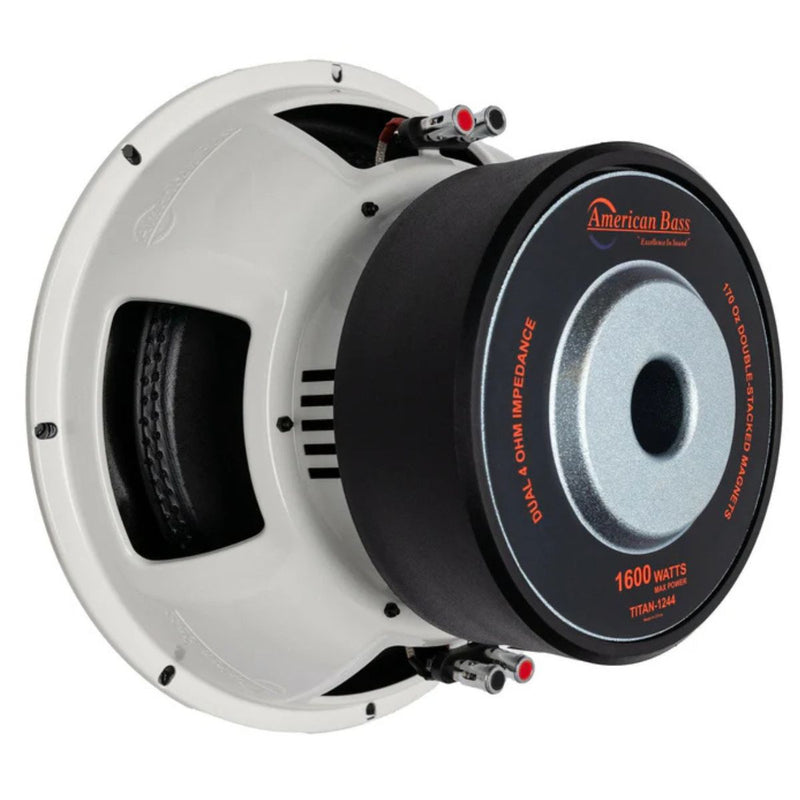

American Bass Titan 12" 800 Watt RMS Dual 4 Ohm Voice Coil Subwoofer Titan-1244

• HIGH POWER BASS PERFORMANCE: 800W RMS and 1600W MAX delivers deep, aggressive low-end for daily drivers and bass-heavy builds
• DUAL 4 OHM FLEXIBILITY: Wire to 2 ohm or 8 ohm configurations to match your amplifier setup
• 3 INCH HIGH TEMP VOICE COIL: 4-layer coil with Nomex protection handles heat and power with ease
• KEVLAR REINFORCED CONE: Lightweight and strong for tight, accurate bass response
• DOUBLE STACKED MAGNET MOTOR: High-energy design for stronger output and better control
• ADVANCED COOLING DESIGN: Perimeter venting keeps the voice coil cool during heavy use

American Bass Titan 12" 800 Watt RMS Dual 4 Ohm Voice Coil Subwoofer Titan-1244

This Listing Includes:

• (1) American Bass 12" Subwoofer Titan-1244

The American Bass Titan 1244 is where budget meets brute force. This 12-inch sub is built to bring heavy, chest-hitting bass without draining your wallet. It’s not here to whisper†it’s here to move air.

Built around a 3-inch high-temperature dual 4-ohm voice coil with Nomex protection, the Titan 1244 is designed to stay cool and controlled even when pushed hard. The Kevlar-reinforced non-pressed paper cone keeps things tight and responsive, while the 3-layer foam surround allows for smooth, reliable excursion.

A mirror-image double Conex spider system locks everything in place under load, and the double-stacked high-energy magnets provide the muscle behind every hit. Add in perimeter venting and a heavy-duty stamped steel basket, and you’ve got a sub that’s built to perform and built to last.

Features:

• White powder finish heavy-duty stamped basket


• Perimeter vents for better voice coil cooling


• Kevlar fiber-enforced non-pressed paper cone


• 3-layer foam surround


• Hi-temp 4 Ohm 4-layer voice coil with Nomex Protection


• Mirror image double Conex spider system


• Double-stacked high-energy magnets


• Impedance: Dual 4 Ohm


• RMS Power: 800W


• MAX Power: 1600W

Specifications:

• Subwoofer Size: 12"


• Voice Coil: Dual 4 Ohm


• Surround Material: 3-layer Foam


• Cone Material: Kevlar Fiber Enforced Non-Pressed Paper


• Magnet Type: Double Stacked Hi-Energy


• Power Handling: RMS 800W, MAX 1600W


• Voice Coil Type: Hi-Temp 4 Ohm 4-Layer with Nomex Protection

Thiele/Small Parameters:

• Fs (Resonant Frequency): 33.19 Hz


• Qts (Total Q): 0.62


• Qes (Electrical Q): 0.72


• Qms (Mechanical Q): 4.68


• Vas (Equivalent Volume): 31.98 L


• Xmax (Max Linear Excursion): 17.5 mm


• BL (Motor Strength): 21.78


• Re (DC Resistance): 6.4 Ohms


• Sd (Cone Area): 502.91 cm


• SPL (Sensitivity): 85.9 dB


• Mms (Moving Mass): 258 g


• Mmd (Diaphragm Mass): 251 g


• Cms (Compliance): 89.04 m/N


• Krm: 22.82


• Erm: 0.74


• Kxm: 61.96


• No (Efficiency): 0.15%

Dimensions:

• Size: 12.0"


• Cutout Diameter: 11.34"


• Mounting Depth: 6.81"
