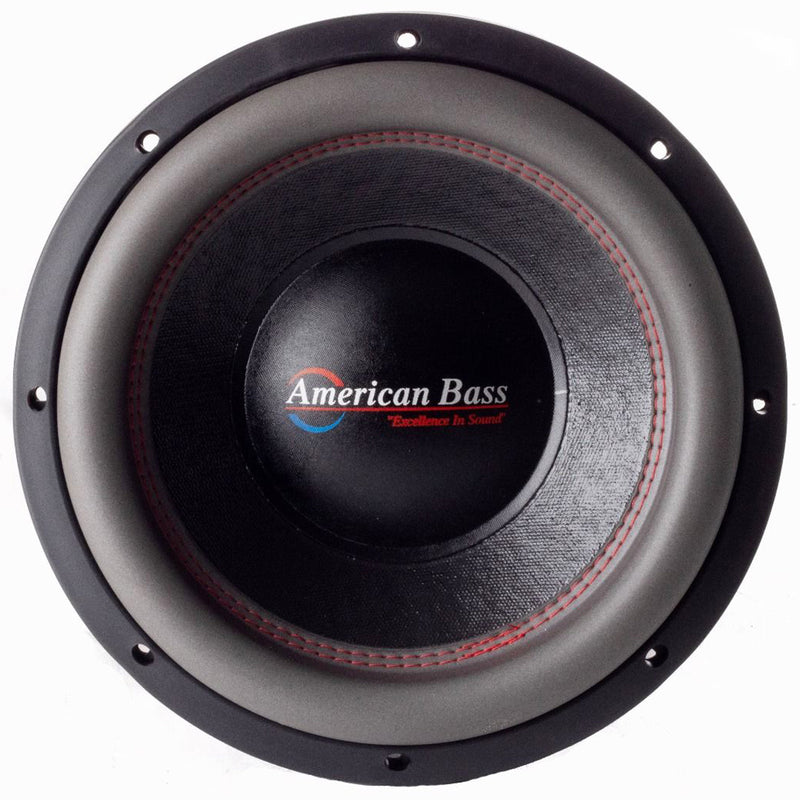

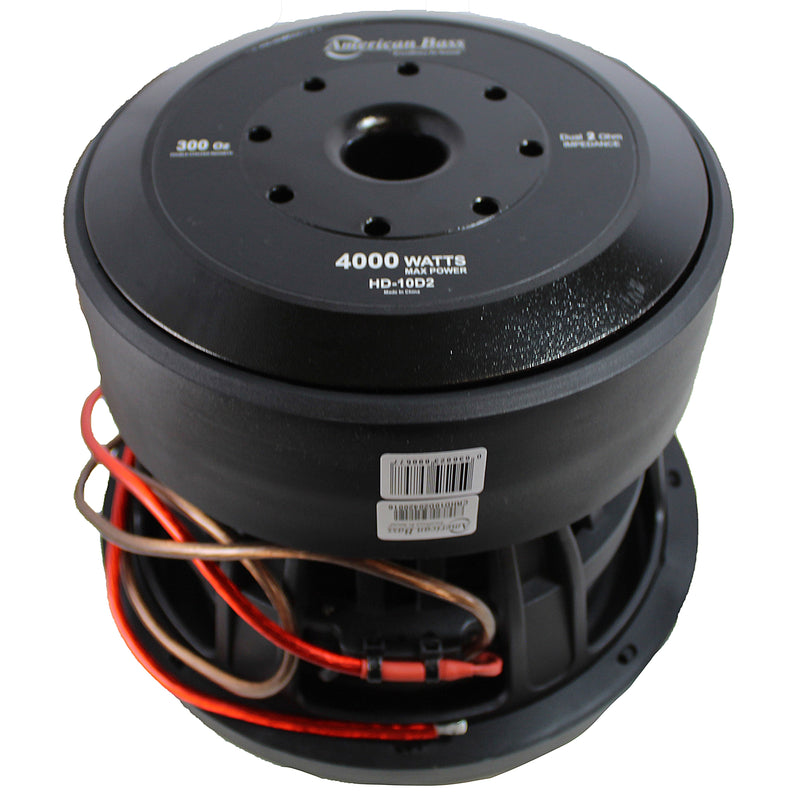

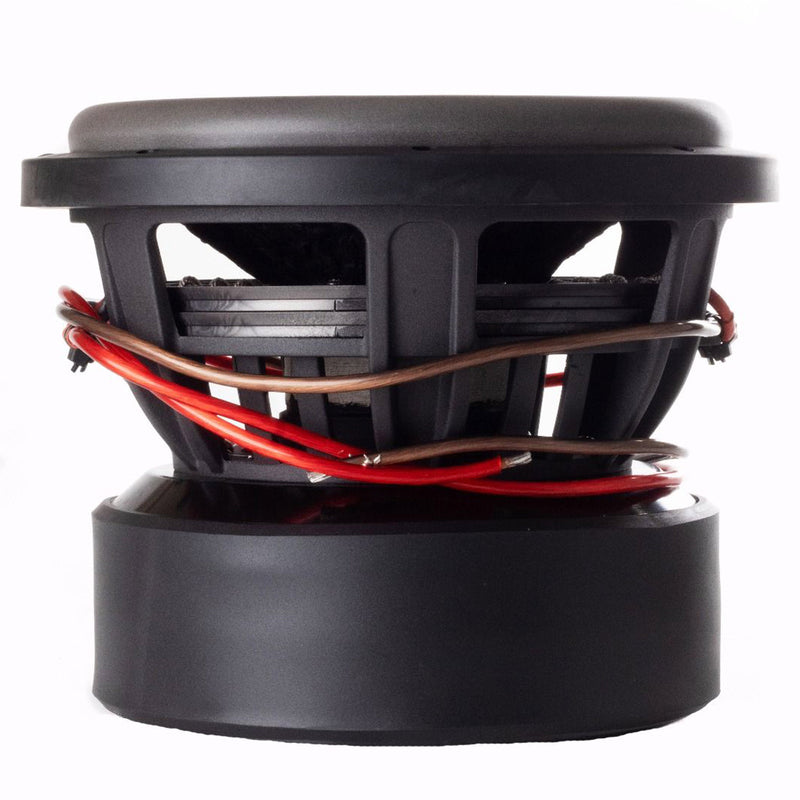

American Bass Car Audio 10 Subwoofer HD Series 4000 Watt Dual 2 Ohm HD-10-D2

American Bass Car Audio 10 Subwoofer HD Series 4000 Watt Dual 2 Ohm Voice Coil HD-10-D2

The HD series of Subwoofers are Ultra-Heavy-Duty subs designed with gut-wrenching power and reliability in mind. The HD Series produces some serious low-end, with enough power to rattle the most Die-Hard bass enthusiast.

Highlights:
- Black powder finish heavy-duty stamped basket with perimeter vents for better voice coil cooling.
- Kevlar fiber enforced non-pressed paper cone.
- Over-sized 1.4" 3-layer foam surround.
- High-temp 2 Ohm 4-layer voice coil with Nomex protection.
- Mirror image double Conex spider system.
- Double stacked high-energy magnets.
- Customs-made rubber gasket.
- Customs-made rubber magnet boot.

SPECIFICATIONS PER SUBWOOFER:
Nominal Diameter: 10
Nominal Impedance: 2 Ohm
MAX Power Handling: 4000 Watts
RMS Power Handling: 2000 Watts
Sensitivity (1w/1m): 87.2dB

MOTOR:
Voice Coil Diameter: 3
Cone Material: Kevlar enforced non-pressed paper
Surround Material: Foam
Magnet Material: Ferrite
Magnet Weight: 300 oz

THIELE & SMALL PARAMETERS:
Equivalent Volume: Vas - 8.9L
Excursion: X-max - 17.5mm
Free Air Resonance: Fs - 49.6Hz
Mechanical Factor: Qms - 4.172
Electrical Factor: Qes - 0.402
Total Factor: Qts - 0.366
Moving Mass: Mms - 158.5g
Compliance: Cms - 57.4m/N
Force Factor: BL - 20.5

RECOMMENDED ENCLOSURES:
Ported Box: 1.5 ~ 1.75ft
Cutout Size: 9.25

DIMENSIONS PER SUBWOOFER:
Overall Diameter: 10.82 (275mm)
Front Mount Baffle Cutout: 9.25 (235mm)
Mounting Depth: 7.71 (196mm)
Overall Depth: 8.85 (225mm)
Motor Diameter: 8.89 (226mm)
Unit Weight: 48 lbs
