- Remote Gain Control included for convenient volume adjustment, with set screw power and speaker terminals for secure connections.
- Compact design with a durable DD Audio aluminum chassis featuring extra-thick side walls and long fins for superior cooling.
- High-efficiency toroidal power supply for delivering strong, clean power, outperforming low-cost full bridge designs.
- 850 Watts RMS at 1 Ohm with less than 1% THD, capable of driving single, dual, or triple subwoofers with high output.
- 12dB/Oct High-Pass and Low-Pass Crossovers for precise tuning of subwoofers and mid/high frequencies.

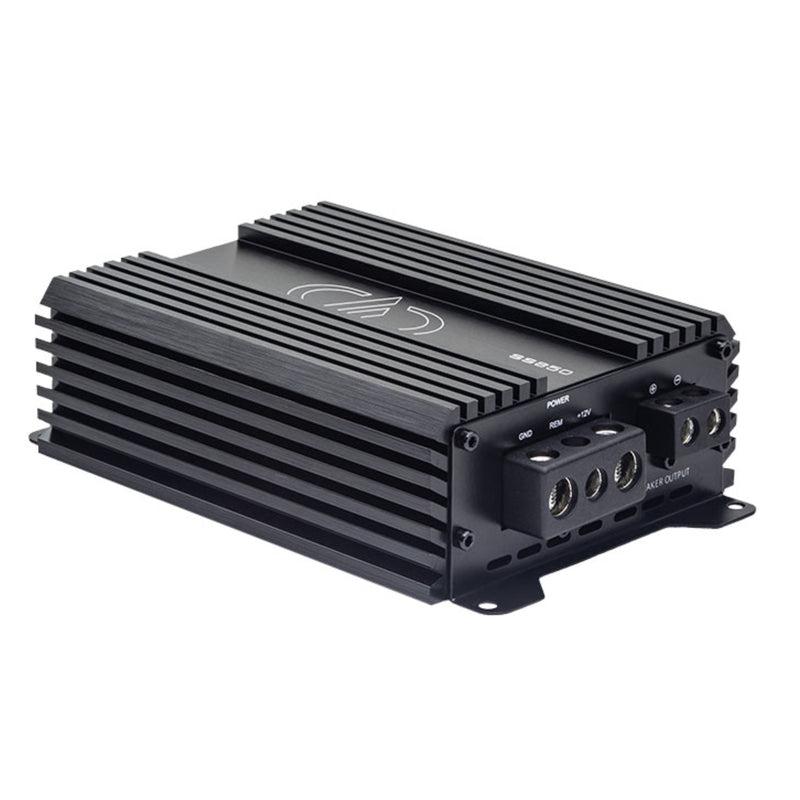

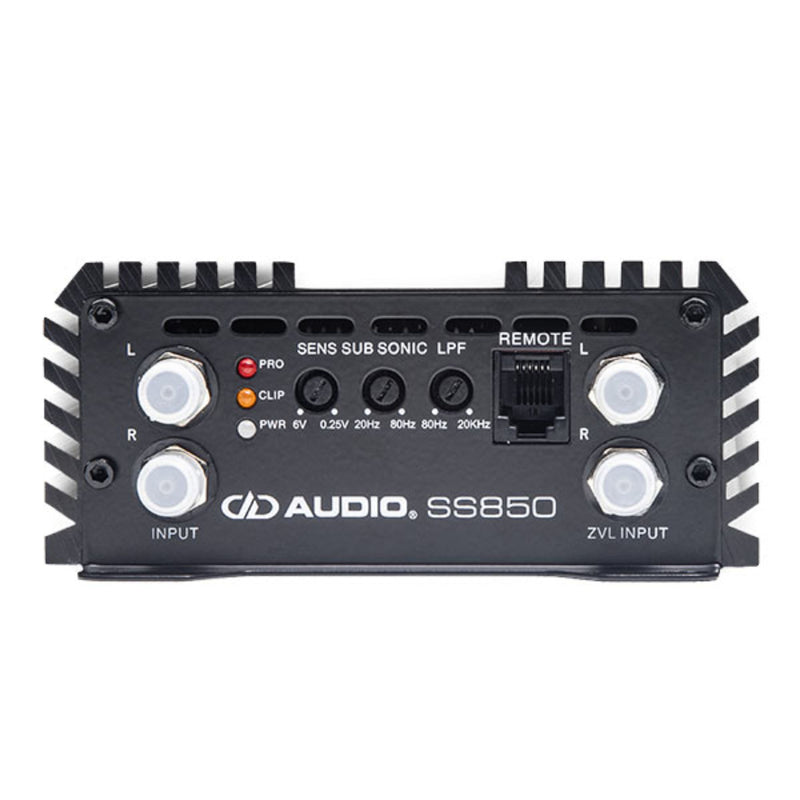

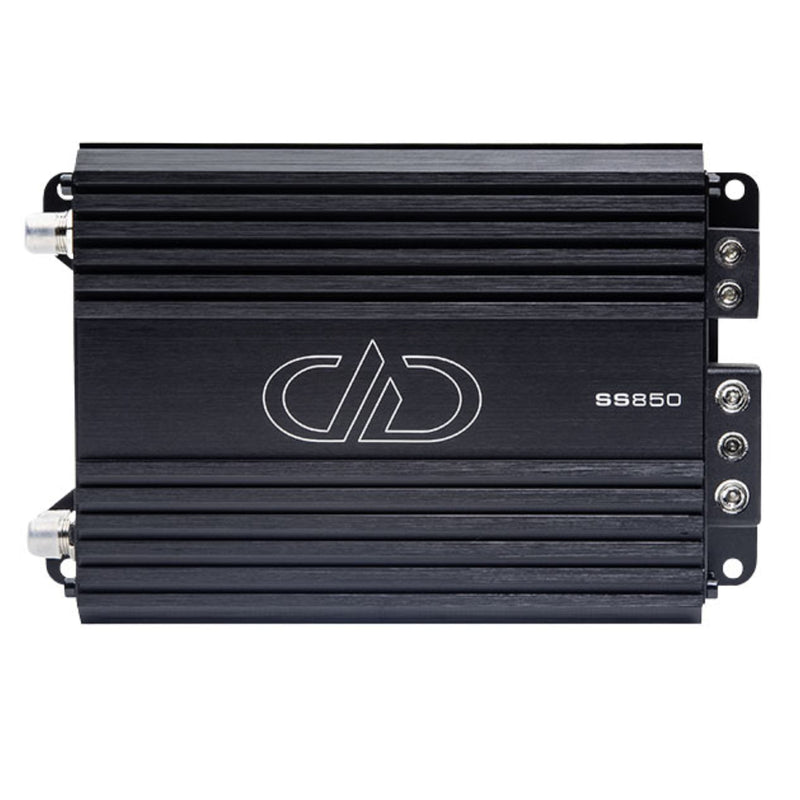

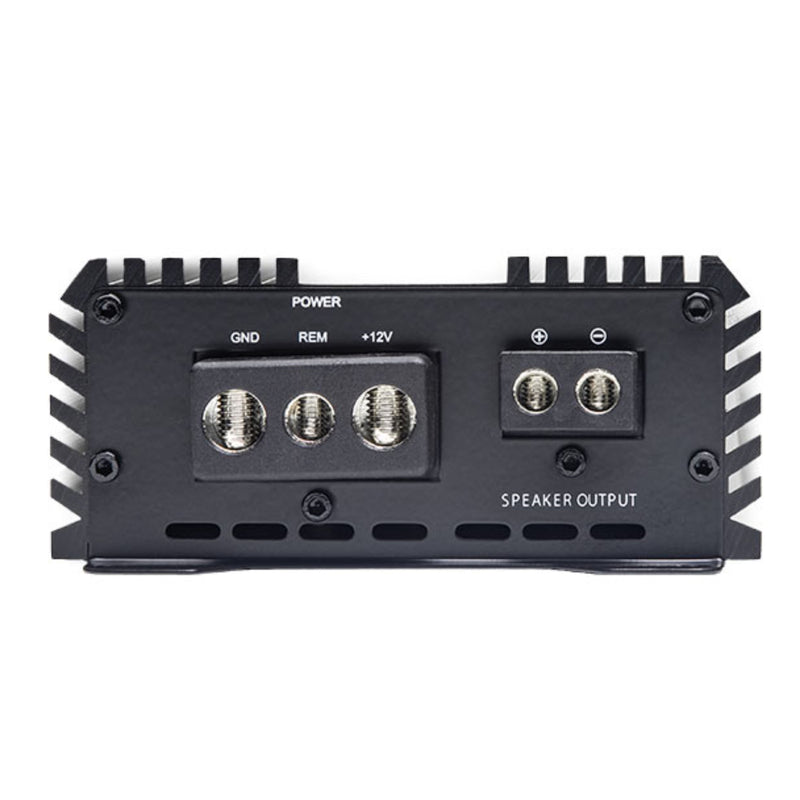

850W 1-Ohm Class-D Compact Monoblock Amplifier DD Audio SS Series SS850
This Listing Includes:
- (1) Compact Monoblock Amplifier DD Audio SS Series SS850
Description:
Maximum efficiency, from stock electrical systems, is the aim of the SS850. Coming in at over 850 Watts RMS under 1% THD, it can drive single, dual or even triple subs to high output levels. Sharing the same architecture as the other high speed, half bridge SS amplifiers, the over-spec power supply delivers the strong impact that low cost full bridge designs fall flat on.
The new SS/SX amplifiers are the latest in high speed, high current class D designs offering high power and superior sound quality in compact footprints. The classic DD AUDIO style heat sink is used in this upgrade for max cooling with 50% more side wall thickness than industry norms and extra long fins to increase surface area.
When every Watt matters, the SS850 delivers the best bang for the buck.
Features:
- High Level Inputs
- Toroidal Power Supply
- 12dB/Oct High Pass/Low Pass X-Overs
- Heavyweight DD Aluminum Chassis
- Set Screw Power and Speaker Terminals
- Remote Gain Control
- 4 AWG Power Terminals
Specifications:
- Operating Voltage: 9 - 16
- Test Voltage: 14.4
- Input Channel(s): 2
- Output Channel(s): 1
- Continuous Wattage @2ohm: 575
- Continuous Wattage @1ohm: 850
- Max Current Draw (Amps): 90
- RCA Input Voltage Sensitivity: 6 - 0.25
- RCA Input S/N: > 95
- Damping Factor: > 100
- THD: < 1.0%
- Frequency Response (Hz): 20 - 20k
- Sub-Sonic Filter: 20 - 80
- Low-Pass Filter: 80 - 20k
- ZVL Input: Yes
- Remote Control: Remote Included in Box
- Power Wire Gauge: 4
- Speaker Wire Gauge: 8
Dimensions (In Inches):
- Length: 5.75"
- Width:4.6"
- Height: 2"
