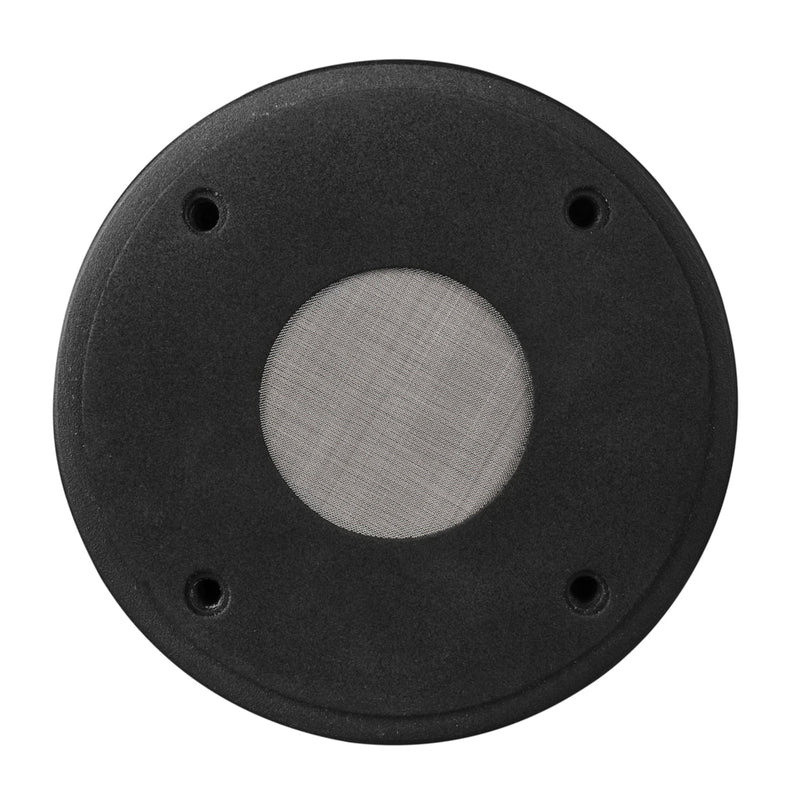

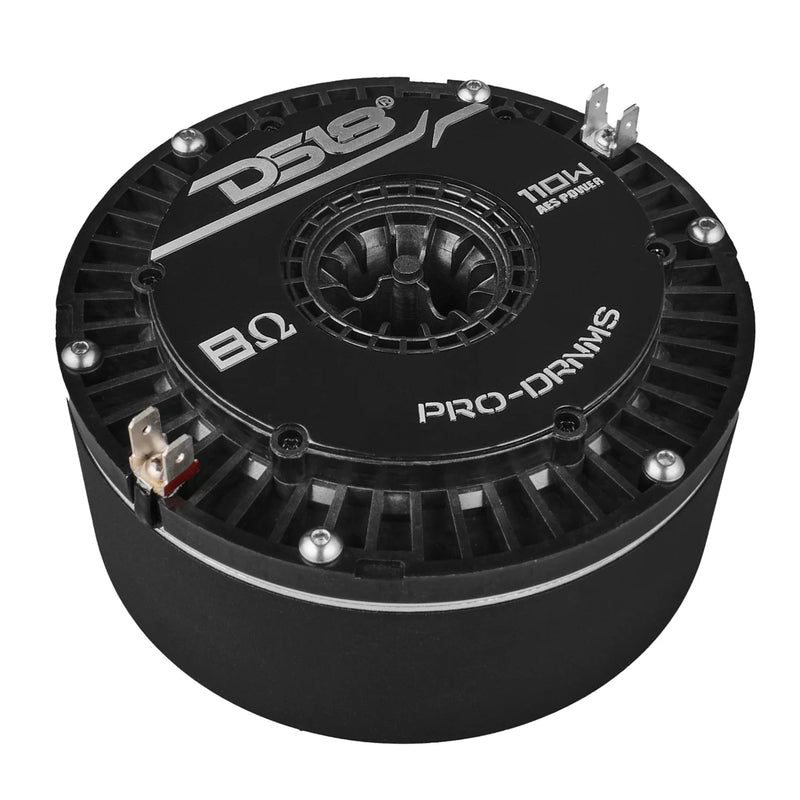

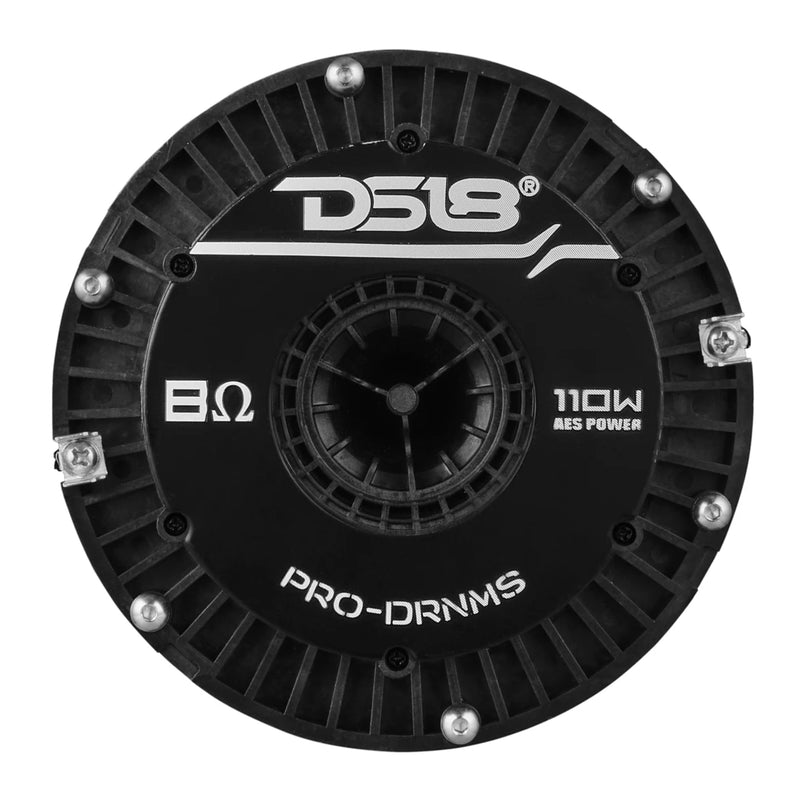

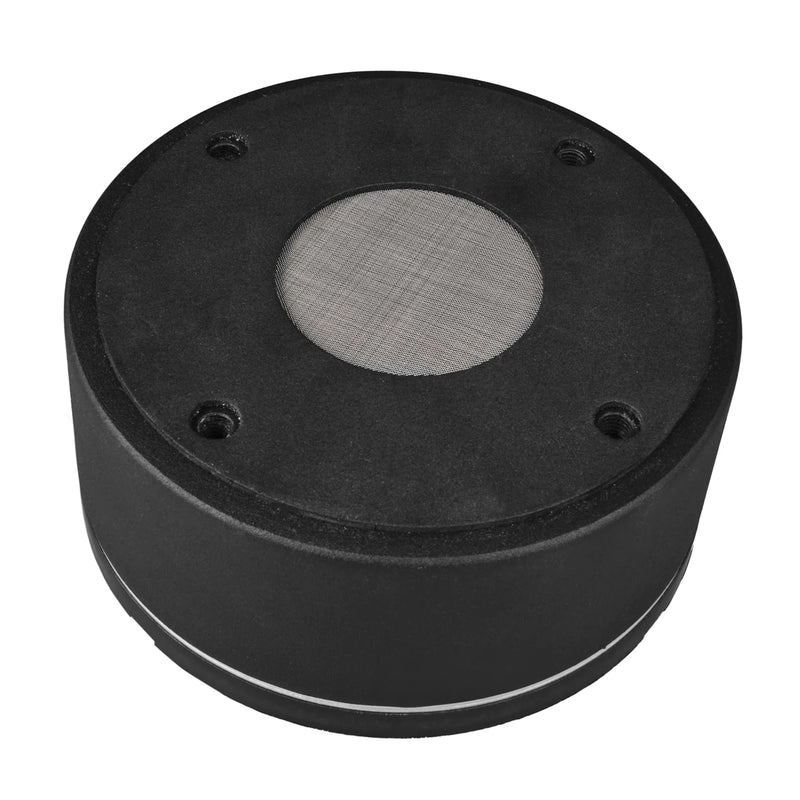

8-Ohm Mid-Range Compression Driver w/ Neodymium Magnet and 3.5" Polyester VC

• Neodymium Magnet - Provides superior efficiency and sound clarity
• High Sensitivity - 120dB (1W/1m) for loud, clear performance
• Frequency Response - 250Hz to 12.5kHz, ideal for mid-range audio
• Compact Design - 5.2" diameter and 2.7" depth for easy installation

 8-Ohm Mid-Range Compression Driver w/ Neodymium Magnet and 3.5" Polyester VC

This listing inclues:

• (1)  Mid-Range Compression Driver w/ Neodymium Magnet and Polyester Voice Coil

This 2" Mid-Range Compression Driver offers 220W RMS power handling with a neodymium magnet and polyester diaphragm for superior sound clarity and efficiency. Designed for high-output applications, it provides 120dB sensitivity and operates within a 250Hz - 12.5kHz frequency range, making it ideal for high-performance audio setups.

Specifications:

• Throat Diameter: 2" (50.8mm)


• Nominal Impedance: 8 Ohms


• AES Power Handling: 110W


• Program Power Handling: 220W


• Peak Power Handling: 440W


• Sensitivity (1w/1m): 120dB


• Frequency Response: 250Hz - 12.5kHz


• Recommended Hi Pass Crossover: 600Hz


• Voice Coil Diameter: 3.5" (90mm)


• Voice Coil Former Material: Kapton


• Winding Material: CCAR


• Magnet Material: Neodymium


• Diaphragm Material: Polyester

Physical Dimensions:

• Overall Diameter: 5.2" (132mm)


• Overall Depth: 2.7" (69mm)

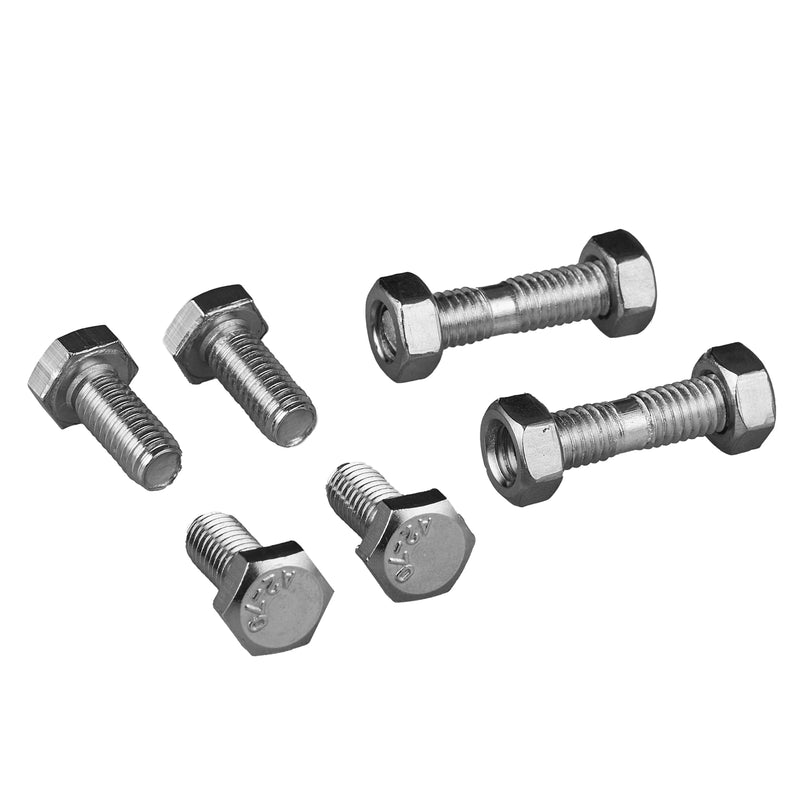

• Bolt Pattern: M6 - 4" (102mm)
