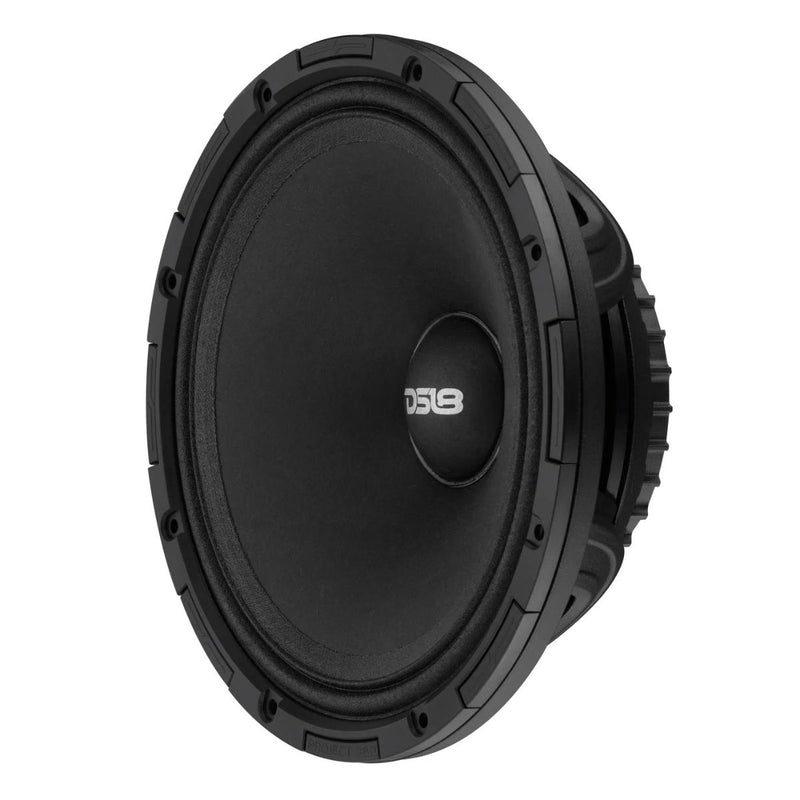

8" 350 W RMS 8 Ohm Mid-High Loudspeaker DS18 PROJECT360 Neo Rotating Recone

• EXTREME HIGH SENSITIVITY: 102 dB output delivers louder mids and highs with less power
• NEODYMIUM MOTOR DESIGN: Lightweight and efficient for better performance and reduced overall weight
• ROTATING RECONE SYSTEM: Instant repairs with twist-lock design, no glue or downtime required
• 350W RMS POWER HANDLING: Built for high-output systems with strong and reliable performance
• SHALLOW MOUNTING DEPTH: Ideal for tight installs without sacrificing loudness or clarity

8" 350 W RMS 8 Ohm Mid-High Loudspeaker DS18 PROJECT360 Neo Rotating Recone

This Listing Includes:

• (1) DS18 8" Loudspeaker PROJECT360.88N

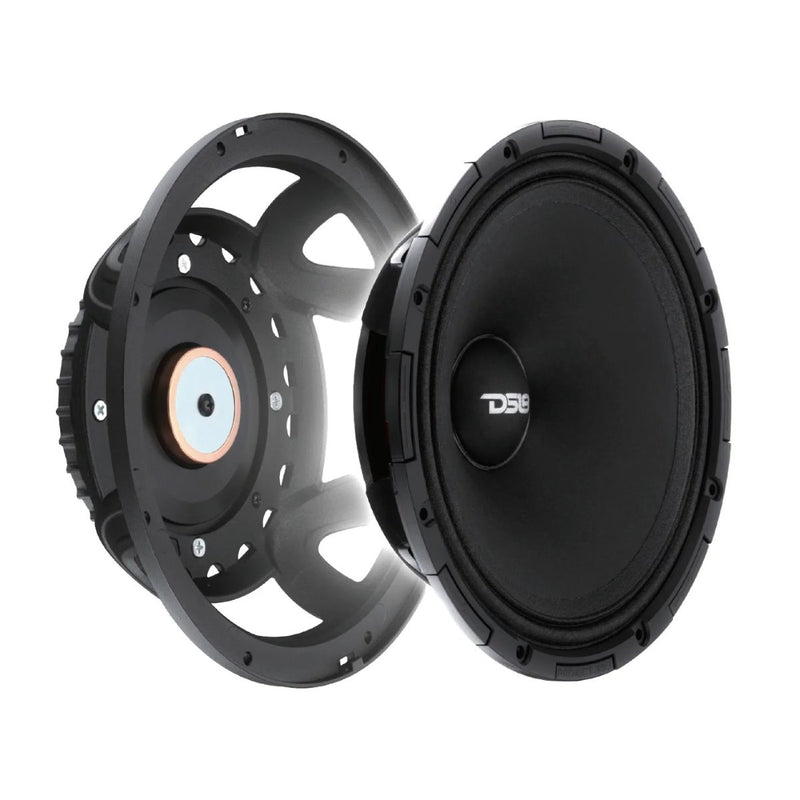

The DS18 PROJECT360 Series is a new generation of pro audio loudspeakers engineered for extreme output and instant serviceability. Featuring a patent-pending rotating recone design, these speakers allow for fast, glue-free repairs—so your system stays loud with zero downtime.

With high-sensitivity output, a curvilinear cone for improved response, and a rugged aluminum basket, PROJECT360 delivers aggressive mid-high clarity while standing up to real-world abuse.

Equipped with a high-efficiency neodymium motor, this version delivers increased output with less power and significantly reduced weight. Ideal for performance-focused builds where loudness, clarity, and efficiency are the priority.

Features

• 350W RMS / 700W MAX power handling / Neodymium Magnet


• Curvilinear cone for improved response


• Aluminum basket construction

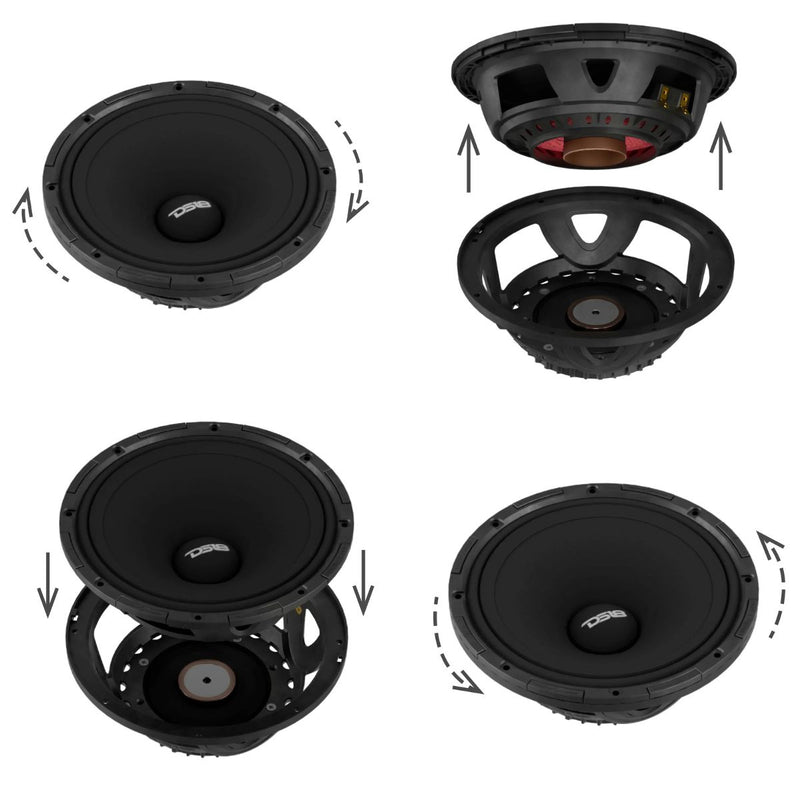

• Plug-and-play recone system - no glue required


• Patent-Pending rotating recone design for instant repairs


• Compatible recone model PROJECT360.88RCK

Specifications:

• Nominal Diameter: 8"


• Impedance: 8 Ohms


• RMS Power: 350W


• Max Power: 700W


• Sensitivity: 102 dB


• Frequency Response: 95Hz - 17kHz


• Recommended HPF: 90Hz


• Voice Coil: 1.75" Kapton Former


• Winding Material: CCAW


• Cone: Paper


• Surround: Cloth


• Basket: Aluminum


• Magnet: Neodymium


• Magnet Weight: 12.8 oz

Thiele & Small Parameters

• Equivalent Volume: 7.09L / 0.25ft3


• Excursion (one way): 0.3 mm


• Free Air Resonance: 125 Hz


• Mechanical Factor: 2.828


• Electrical Factor: 0.255


• Total Factor: 0.234


• Moving Mass: 19.548 g


• Mechanical Compliance: 0.087 mm/N


• BL Factor: 13.275


• Voice Coil Inductance: 0.039 mH


• Cone Area: 240.53 cm2


• DC Resistance: 2.9 Ohm

Dimensions:

• Overall Diameter: 8.19"


• Mounting Depth: 3"


• Cutout: 7.13"


• Overall Depth: 3.59"The DS18 PROJECT360 Series is engineered for high-output pro audio performance with fast, serviceable reconing. Its patent-pending rotating recone design allows the speaker’s moving components to be replaced without traditional glue curing, helping reduce repair time and downtime.

With 102 dB sensitivity, a curvilinear paper cone, aluminum basket, and lightweight neodymium motor, the PROJECT360.88N is built for strong mid-high output in performance-focused audio systems.

Features

• 350W RMS / 700W MAX power handling


• Neodymium magnet


• 102 dB sensitivity


• Curvilinear paper cone


• Aluminum basket construction


• Plug-and-play recone system with no glue required


• Patent-pending rotating recone design


• Compatible recone model: PROJECT360.88RCK


• Demodulating rings


• Improved heat dissipation

Specifications

• Nominal Diameter: 8" / 203 mm


• Nominal Impedance: 8 Ohms


• RMS Power Handling: 350 Watts


• Max Power Handling: 700 Watts


• Sensitivity: 102 dB (1W/1m)


• Frequency Response: 95 Hz - 17 kHz


• Recommended High-Pass Crossover: 90 Hz


• Sold As: Single Unit


• Grill Included: No


• Cone Shape: Curvilinear

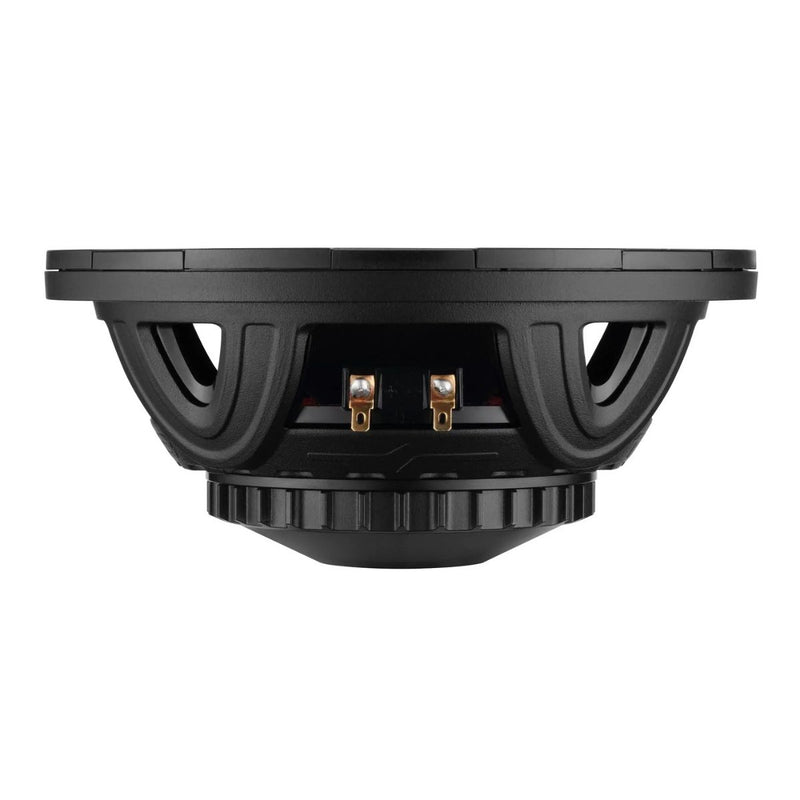

• Speaker Terminals: Spade


• Demodulating Rings: Yes


• Improved Heat Dissipation: Yes

Motor

• Voice Coil Diameter: 1.75" / 44.5 mm


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Cone Material: Paper


• Dust Cap Material: Paper


• Surround Material: Cloth


• Spider Diameter: 4" / 102 mm


• Leads Connection Type: Round Crossed


• Basket Material: Aluminum


• Basket Finish: Black


• Magnet Material: Neodymium


• Magnet Weight: 12.8 oz

Thiele & Small Parameters

• Equivalent Volume: 7.09 L / 0.25 ft


• Excursion, One Way: 0.3 mm


• Free Air Resonance: 125 Hz


• Mechanical Factor: 2.828


• Electrical Factor: 0.255


• Total Factor: 0.234


• Moving Mass: 19.548 g


• Mechanical Compliance: 0.087 mm/N


• BL Factor: 13.275


• Voice Coil Inductance: 0.039 mH


• Cone Area: 240.53 cm


• DC Resistance: 2.9 Ohms

Dimensions

• Overall Diameter: 8.19" / 208 mm


• Overall Depth: 3.59" / 91.2 mm


• Front Mount Baffle Cutout: 7.13" / 181 mm


• Mounting Depth: 3" / 77.3 mm


• Motor Diameter: 3.94" / 100 mm
