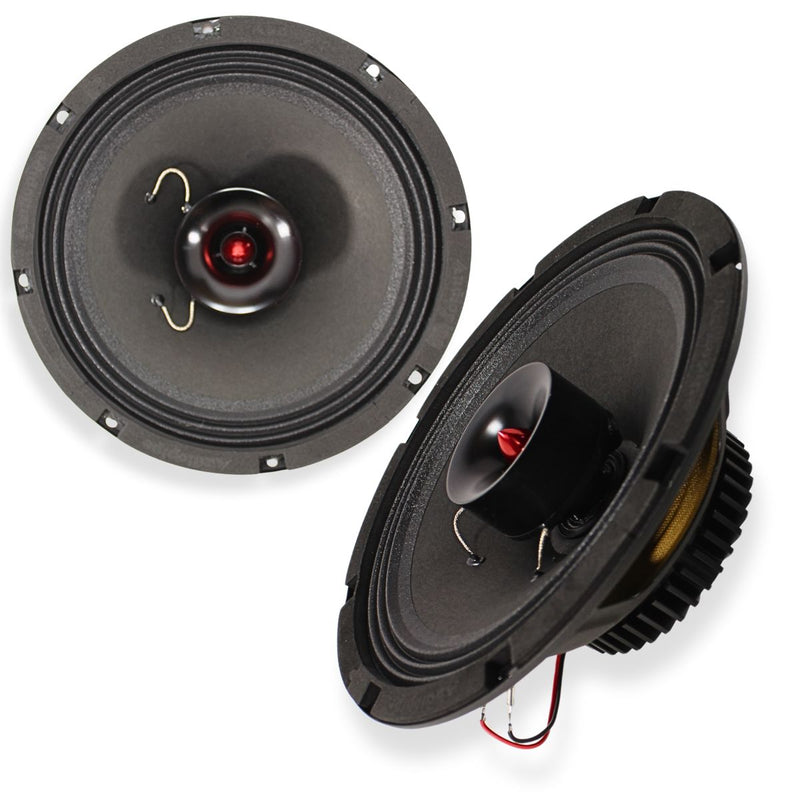

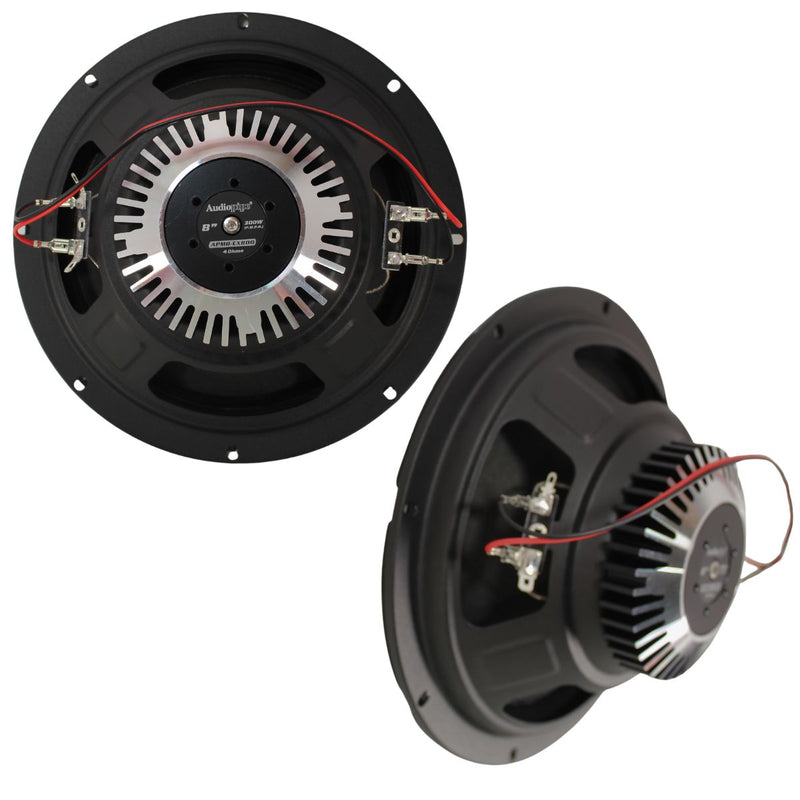

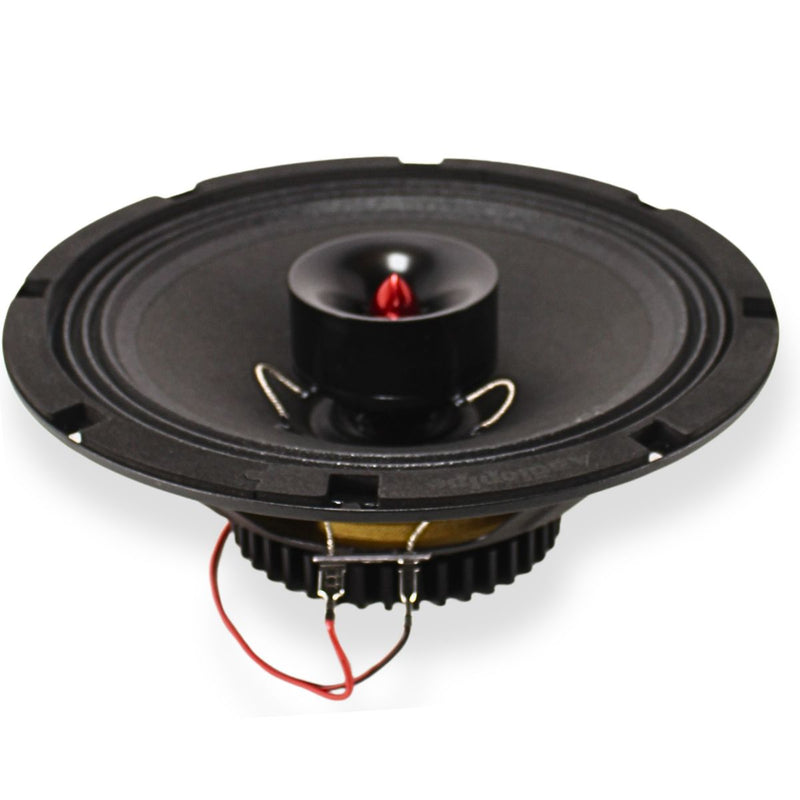

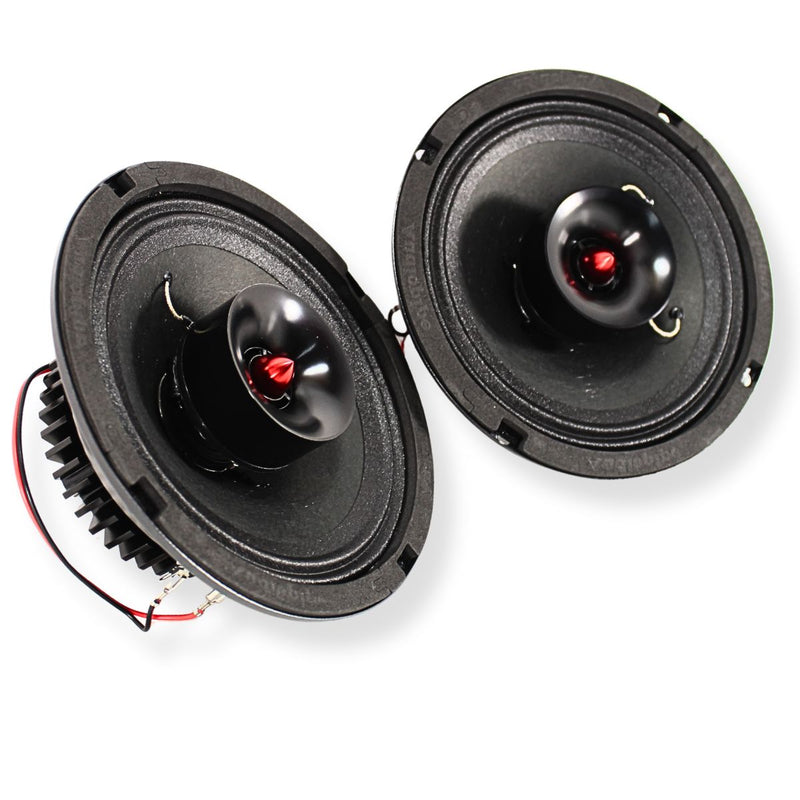

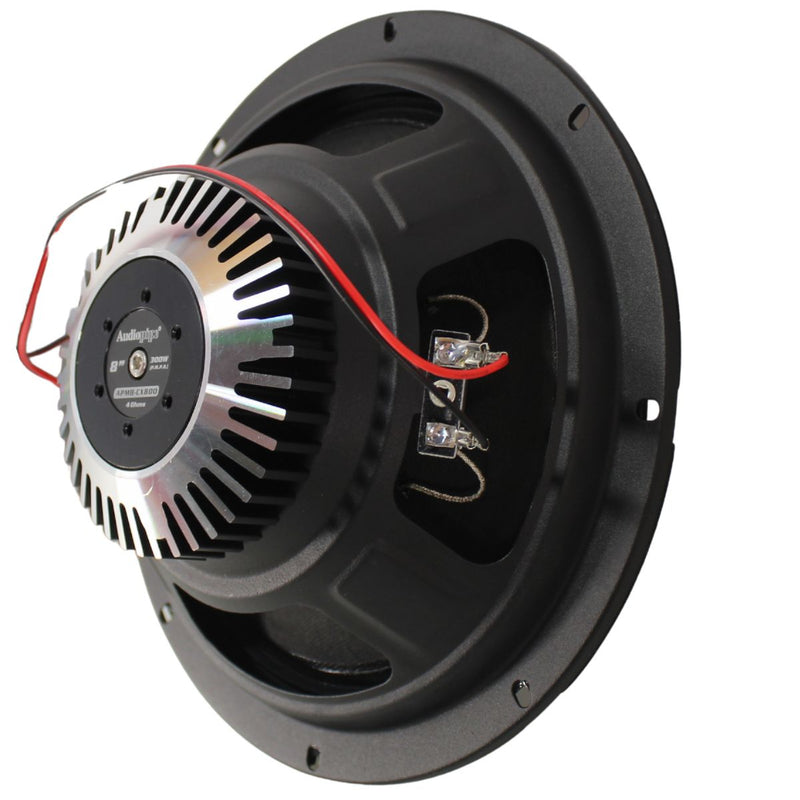

8" 150W RMS 4-Ohm NEO Hybrid Coaxial Loudspeaker Pair W/1" Tweeter AP-APMB-CX800

• 8-inch coaxial loudspeakers delivers high-output full-range sound with 150W RMS power
• Built-in 1" aluminum bullet tweeter provides crisp, high-frequency clarity
• Neodymium magnet offers lightweight design with enhanced efficiency and sensitivity
• Durable black steel basket ensures long-lasting performance and reduced distortion

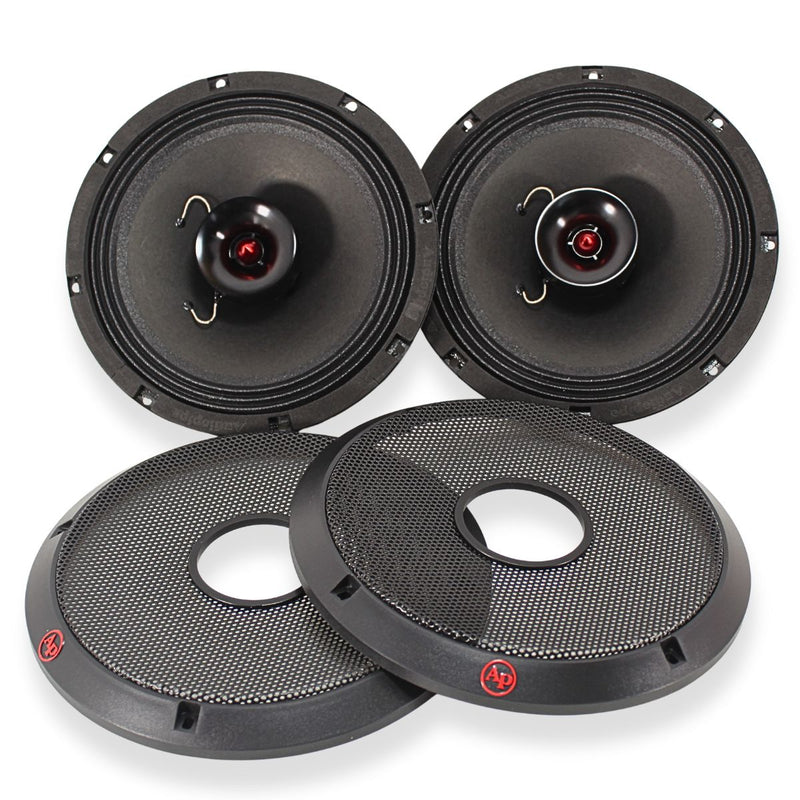

• Easy to install with 2.9" mounting depth and included protective grill

8" 150W RMS 4-Ohm NEO Hybrid Coaxial Loudspeaker Pair W/1" Tweeter AP-APMB-CX800

This listing includes:

• (2) 8" 150W RMS 4-Ohm NEO Coaxial Loudspeakers

The Audiopipe APMB-CX Hybrid Coaxial Series is not your average coaxial speaker-it's a special hybrid design that combines powerful mid-bass response with crisp high frequencies, all powered by dual neodymium magnets. Unlike standard coaxials that only use ferrite or split magnet structures, the APMB-CX series uses neo motors for both the woofer and the tweeter, making it more efficient, lighter, and stronger.

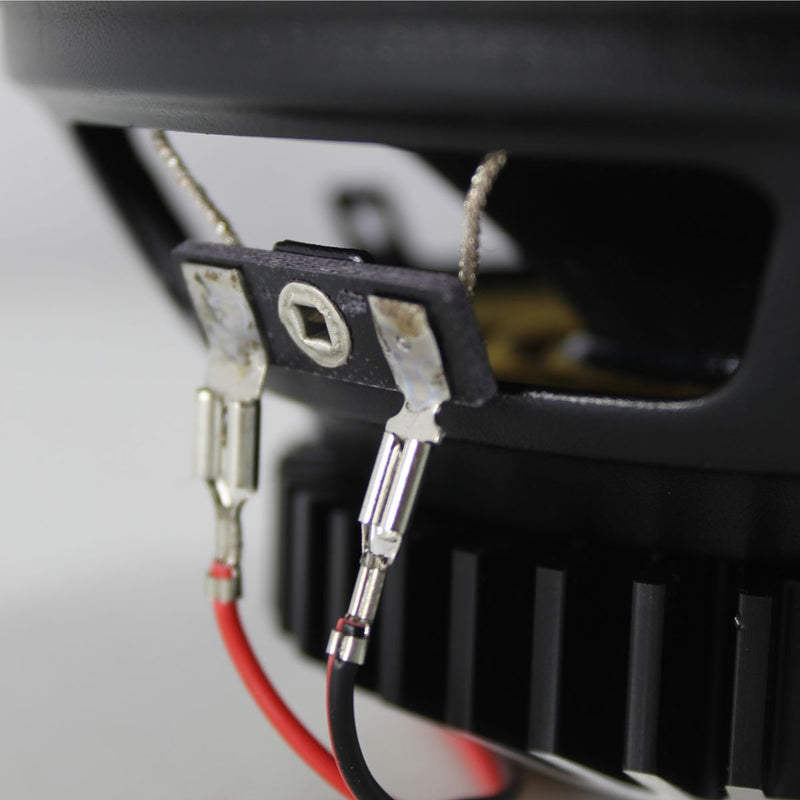

Each model in the series features a built-in inline capacitor on the aluminum tweeter, eliminating the need for external crossovers and ensuring smooth highs straight out of the box. The tweeter is jumped directly from the woofer's terminals, making installation simple while delivering audiophile-grade clarity.

Engineered with steel baskets, paper cones, cloth surrounds, and oversized voice coils, these Hybrid Coaxials are rugged, reliable, and designed to out perform typical coaxial speakers in both daily and custom audio builds.

Features:

• RMS Power: 150W | Max Power: 300W


• Woofer: 8" paper cone with cloth surround


• Tweeter: 1" aluminum diaphragm, neo magnet, built-in capacitor


• Sensitivity: 92dB | Frequency Response: 70Hz-20kHz


• Voice Coil: 1.5" KSV with EISV winding

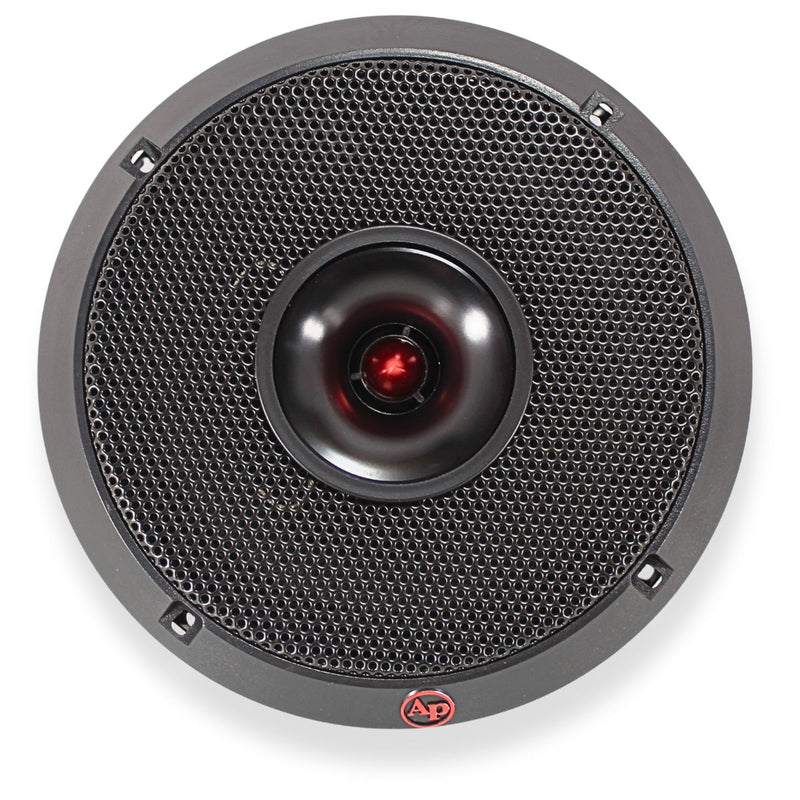

• Grill Included: Yes


• Mounting Depth: 3.5" (90mm)


• Weight: 4.4 lbs Pair

Specifications:

Speaker Design & Components

• Nominal Diameter: 8" / 203mm


• Impedance: 4 Ohms


• Sensitivity: 90dB (1w/1m)


• Frequency Response: 70Hz - 20kHz


• Voice Coil Diameter: 1.4" / 35.5mm


• Voice Coil Material: KSV


• Winding Material: EISV


• Cone Material: Paper


• Surround Material: Cloth


• Basket Material: Steel (Black)


• Magnet: Neodymium


• Number of Ways: 2


• Grill Included: Yes

Tweeter Specs:

• Voice Coil Diameter: 1" / 25.4mm


• Voice Coil Former: Kapton


• Diaphragm: Aluminum


• Magnet: Neodymium

Thiele & Small Parameters:

• Vas: 10.1L / 0.35 ft


• Fs: 80Hz


• Qms: 3.6


• Qes: 1.2


• Qts: 0.9


• Mms: 23g


• BL: 5.9


• Xmax: 3.8mm


• Re: 3.6©


• Cms: 175 mm/N


• Sd: 204 cm


• Mmd: 22g

Mounting Dimensions:

• Overall Diameter: 8.62" / 219mm


• Overall Depth: 3.75" / 95mm


• Mounting Depth: 2.9" / 74mm


• Front Mount Baffle Cutout: 7.24"/ 184mm


• Mounting Depth (with grill): 2.64" / 67mm


• Motor Diameter: 1.26" / 32mm

Why it’s special: The APMB-CX800 expands the hybrid design into an 8" format, delivering deeper mid-bass punch while keeping the highs sharp and clean. Ideal for custom doors and pro-audio style builds.
