- Class AB Amplification - Experience the harmonious blend of efficiency and precision with Class AB amplification for powerful and accurate sound reproduction.
- Advanced Protection Measures - Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
- 750 Watts RMS - Immerse yourself in a world of audio excellence with 750 Watts RMS, delivering dynamic and clear sound performance.
- Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
- Compact and Efficient Design - The amplifier's compact design offers versatile installation options without sacrificing performance.

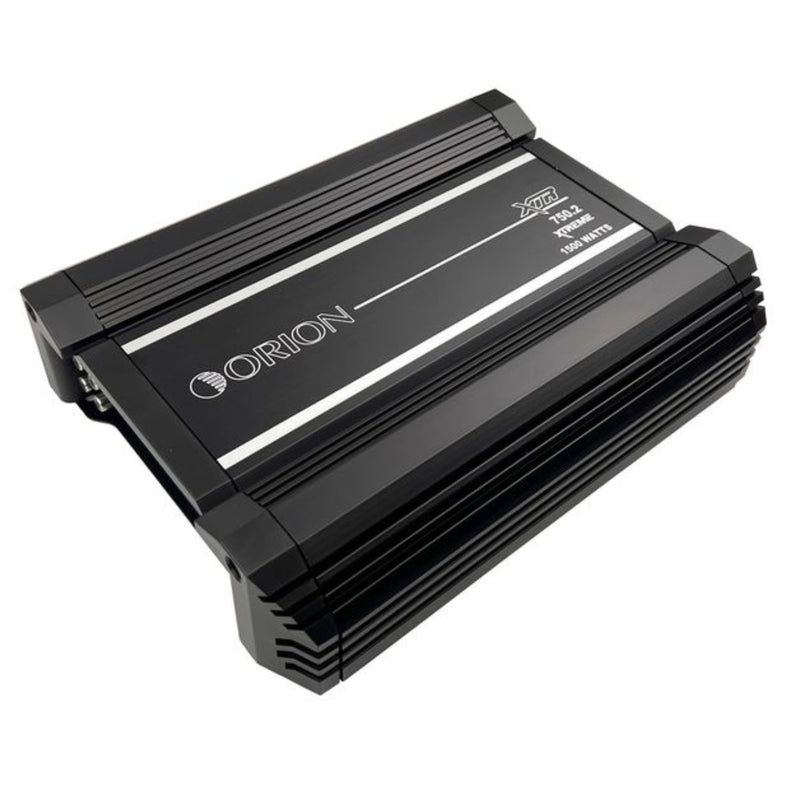

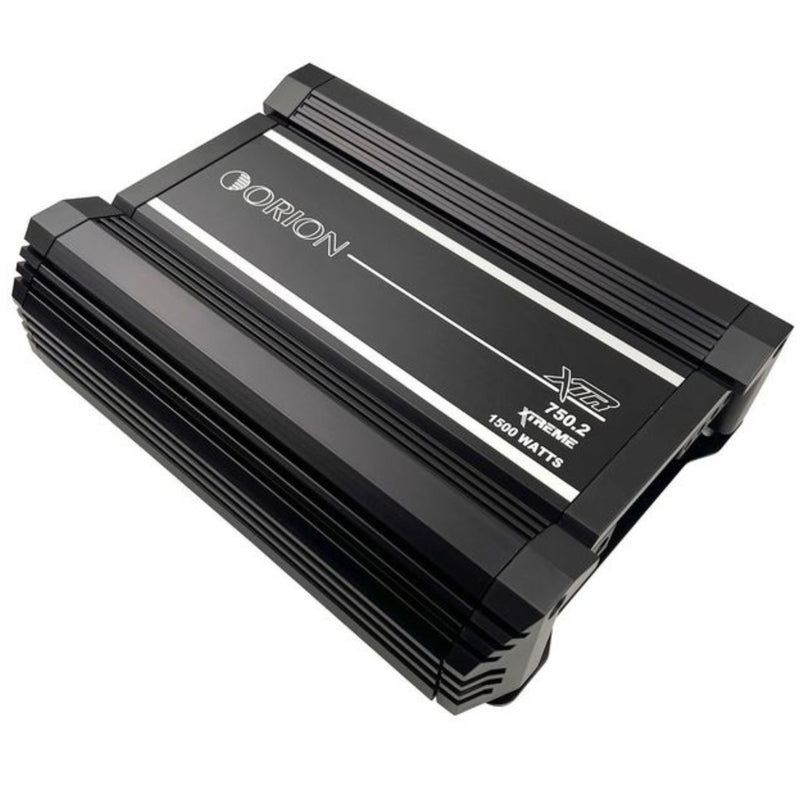

750W RMS 2-Channel Class A/B Amplifier ORION XTR Series XTR750.2
This Listing includes:
- (1) 2-Channel Class A/B Amplifier ORION XTR Series XTR750.2
Description:
Unleash Auditory Excellence
The ORION XTR750.2 XTR Series 750W RMS 2-Channel Class-AB Amplifier empowers your audio experience. With advanced features and precision engineering, this amplifier transcends conventional boundaries, delivering a fusion of power, accuracy, and control to your car audio system.
Immersive Sound Reproduction
Rediscover your music in its truest form. Every note, beat, and melody – from the softest to the most dynamic – is faithfully reproduced for an immersive and authentic listening experience.
Power and Precision Combined
Experience your music with remarkable power and precision. The ORION XTR750.2 XTR Series Amplifier seamlessly blends commanding power with exceptional audio quality, creating an unforgettable auditory journey.
Elevate Your Drive
Step into a world of sonic magnificence with the ORION XTR750.2 XTR Series 750W RMS 2-Channel Class-AB Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical satisfaction. It's time to embrace sound in its purest form.
Features:
- All MOSFET Power Supply & Output Stage
- Heavy Gauge / High Current Custom Power and Speaker Terminals
- 12dB Octave Low-Pass Filter
- Remote Gain Controller Included
- Electronic Crossover Network
- Bass Boost Circuit
- Power and Protection LED Indicators
- Soft Turn-on/Turn-off Turn-On Delay
- Fault and Protection Monitoring
- 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Specifications:
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 225W
- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 2 x 3750W
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 1 x 750W

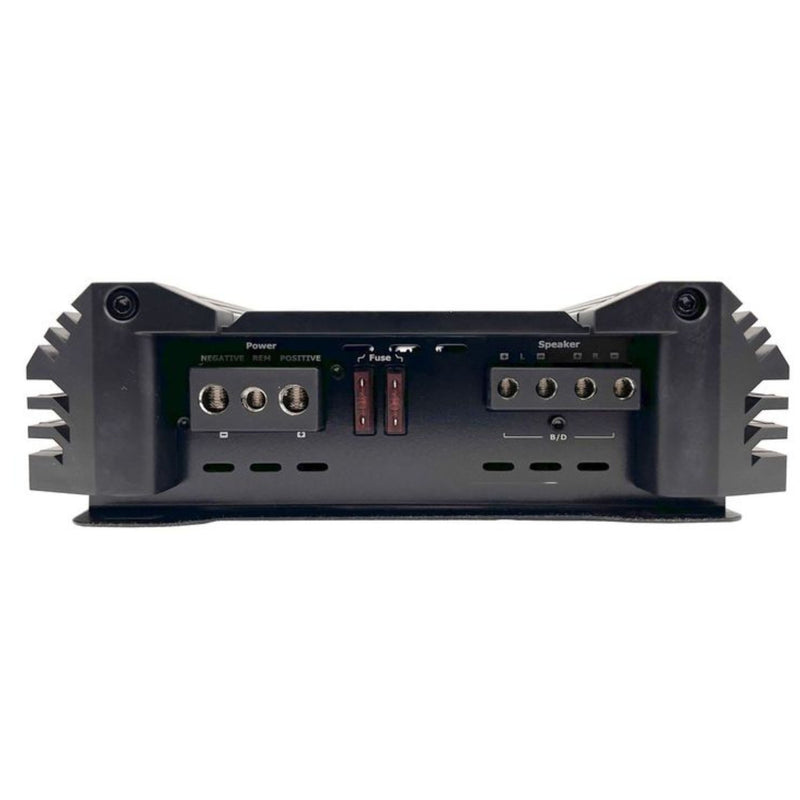

- Positive Terminals: 1 x 4 AWG.
- Negative Terminals: 1 x 4 AWG.
- Remote Turn-ON Signal: 10 AWG.
- Speaker Output Terminals: 12 AWG.
- Frequency Response: 10Hz - 35kHz
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB

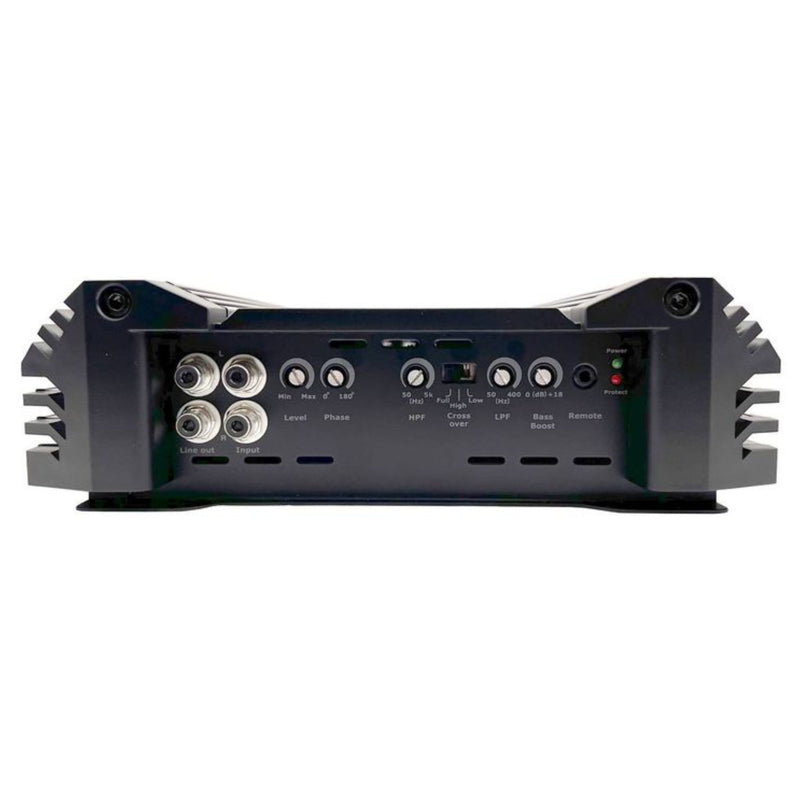

- High Pass Crossover Continuously variable (50-1.5kHz/500-15kHz)
- Low Pass Crossover Continuously variable (50-400Hz)
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >80%
- Damping Factor: 100dB
- Signal to Noise Ratio: >95dB
- T.H.D. & Noise: 0.5%
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 80A recommended (2 x 40A ATC Fuses)
- Dimensions (L x W x H): 11.5" x 9.25" x 2.75" (292x235x70mm)
