- Powerful and Compact – Delivers 700W peak output with RMS ratings of 100W x 2 @ 4 Ohm, 180W x 2 @ 2 Ohm, or 360W x 1 bridged @ 4 Ohm, all packed into a sleek, space-saving Class D design under 9 inches long.

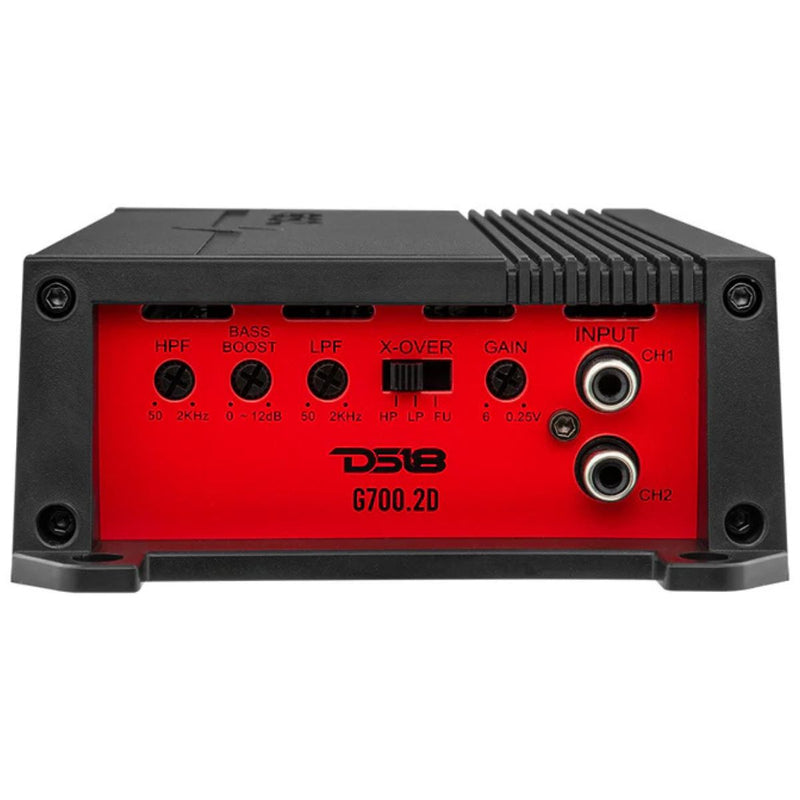

- Built-In Crossover Control – Includes selectable Low Pass, High Pass, and Full Range filters with adjustable crossover points (50Hz – 2kHz) plus a 0–12dB bass boost @ 45Hz for tight, punchy low-end control
- High Efficiency, Low Distortion – 94% efficiency at 4 Ohms and ultra-clean signal with >90dB S/N ratio and only 0.01% THD for crisp, distortion-free audio at any volume.
- Rugged & Reliable Protection – Engineered with thermal, overload, short circuit, DC output, voltage, and clipping protection systems plus Power/Clip/Protect LED indicators for total peace of mind.
- Easy Installation & Quality Build – Designed with 4GA power inputs, compact footprint, matte black chassis, and verified using Audio Precision Instruments for long-term performance you can trust.
700 Watts 2 Channel 4-Ohm Stable Class D Full Range Car Audio Amplifier DS18
Listing Includes
- (1) DS18 G700.2D Full-Range Class D 2-Channel Car Audio Amplifier
Description
Built for serious sound systems and compact installs, the DS18 G700.2D Full-Range Class D 2-Channel Amplifier delivers up to 700 watts of power with tight control, clean sound, and a rugged build that’s ready to perform. Whether you’re building a loud daily setup or a show car with tight space, this amp gives you the flexibility, efficiency, and clarity to push your mids, highs, or full-range drivers with authority.
Featuring Class D efficiency, 2-ohm stereo stability, and a variable crossover with LPF, HPF, and Full modes, the G700.2D lets you dial in your sound your way. Built-in signal protections, thermal and voltage safeguards, and LED indicators keep your system secure while you push the limits.
This compact 2-channel amp delivers 100W x 2 at 4 Ohm, 180W x 2 at 2 Ohm, or 360W x 1 bridged at 4 Ohm — all in a sleek matte black chassis with a footprint under 9 inches long. If you need reliable power in a clean, efficient, full-range design, this is it.
Specifications:
- Model: DS18 G700.2D
- Amplifier Class: Class D
- Amplifier Type: Full Range
- Number of Channels: 2
- Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridged
- RMS Power @ 4 Ohm: 2 x 100W
- RMS Power @ 2 Ohm: 2 x 180W
- RMS Power @ 4 Ohm Bridge: 1 x 360W
- Total Peak Power: 700W
- Frequency Response: 20Hz – 20kHz
- Signal to Noise Ratio: >90dB
- Efficiency @ 4 Ohm: 94%
- Damping Factor: 78
- Input Impedance: 22K Ohm
- Channel Separation: 55dB
- Total Harmonic Distortion (THD): 0.01%
- Low Level Input Range: 0.25 – 6V
- High Level Input: No
- Crossover Type: Selectable HPF / LPF / FLAT
- Crossover Range: 50Hz – 2kHz
- Bass Boost Range: 0 – 12dB @ 45Hz
- Infrasonic Filter: No
- Phase Control: No
- Remote Level Control: No
- Cooling Fan: No
- Fuse Size: 2 x 20A

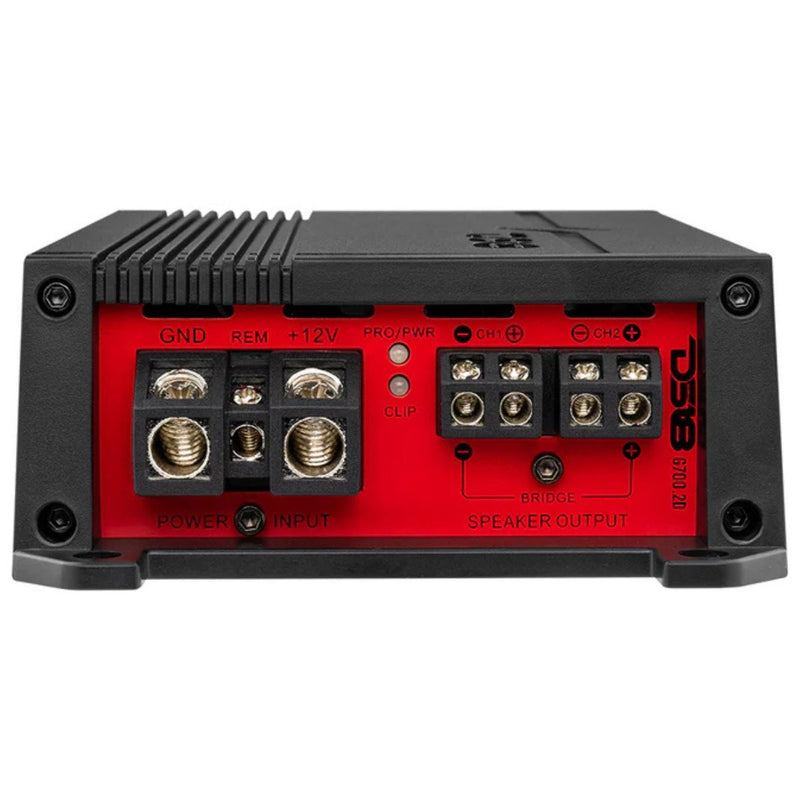

- Power Input Terminal Size: 4GA
Protection Features:
- Thermal Protection
- Overload Protection
- Short Circuit Output Protection
- DC Output Protection
- Voltage Input Protection
- Clipping Protection
Design & Build:

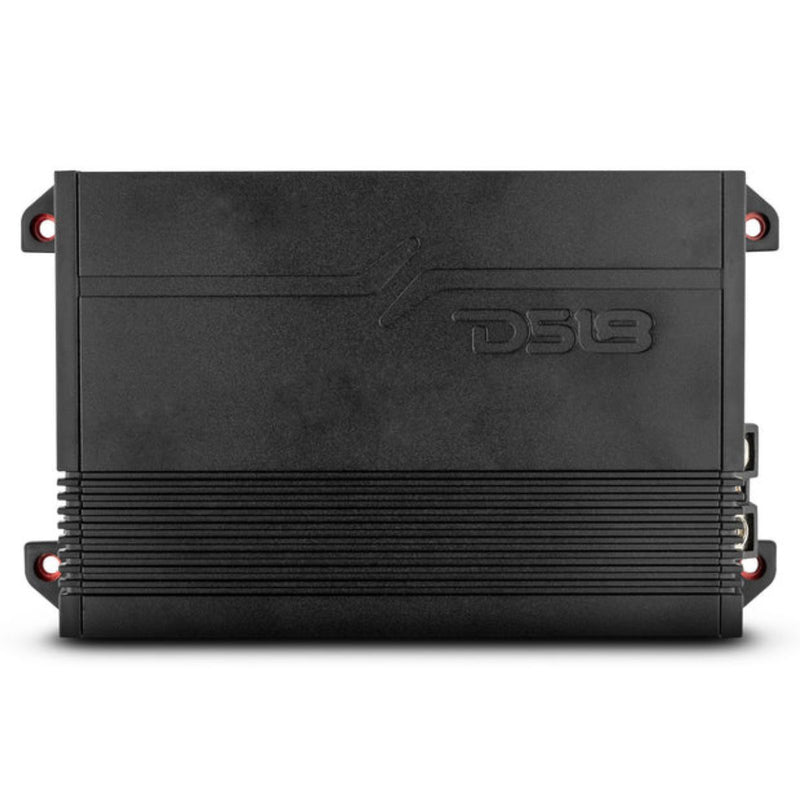

- Body Color: Matte Black

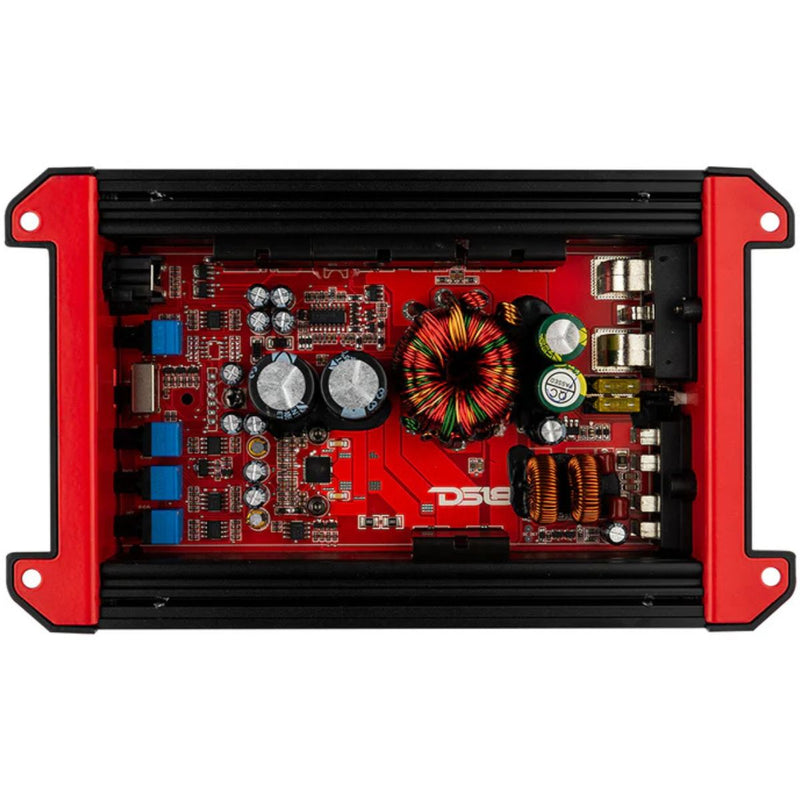

- PCB Design: 2 or 4 Layer PCB with Surface Mount Technology
- Quality Control: Verified using Audio Precision Instruments
Dimensions:
- Overall Length: 8.1 in / 205 mm
- Overall Width: 4.72 in / 120 mm
- Overall Height: 1.96 in / 50 mm
- Heatsink Length: 6.2 in / 158 mm
- Gross Weight (Single Unit): 1.2 kg
Why Choose the G700.2D?
The DS18 G700.2D is the smart choice for car audio builders who demand space-saving power, clean output, and flexible performance. From daily drivers to show builds, this amp delivers unmatched value and reliability — ready to install and built to perform.
