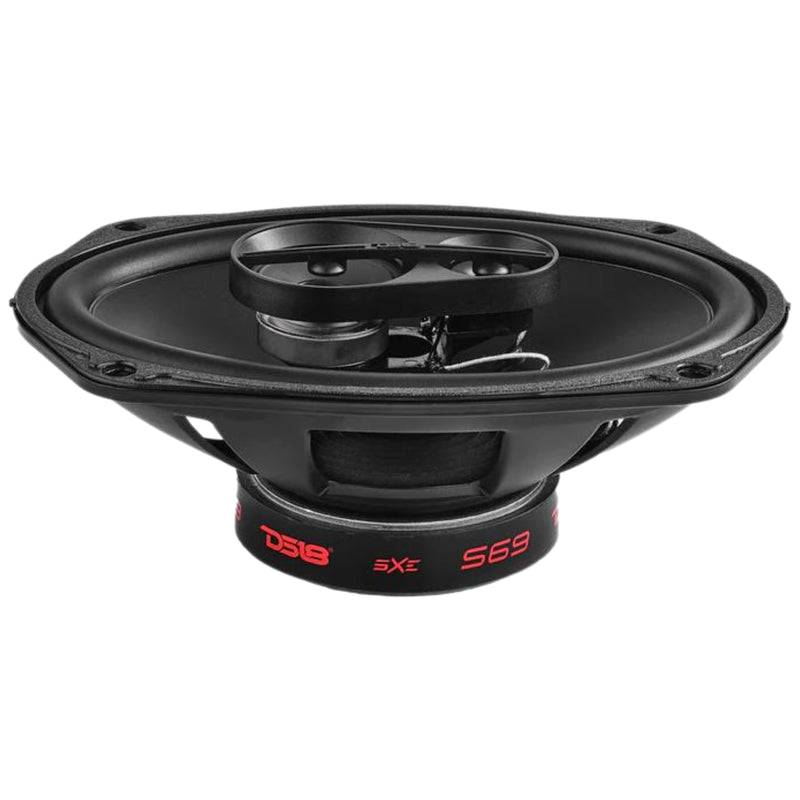

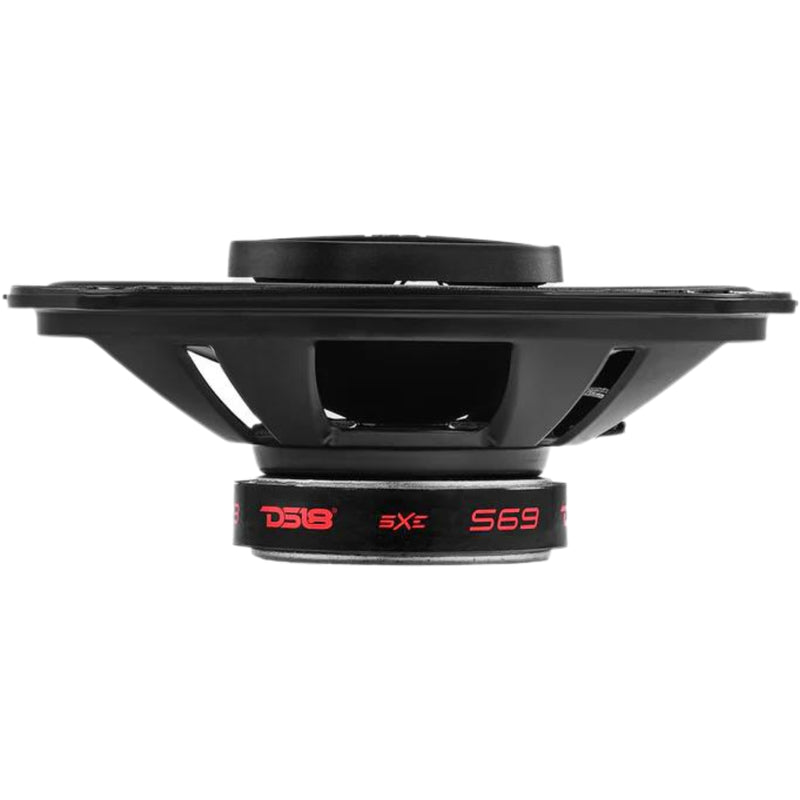

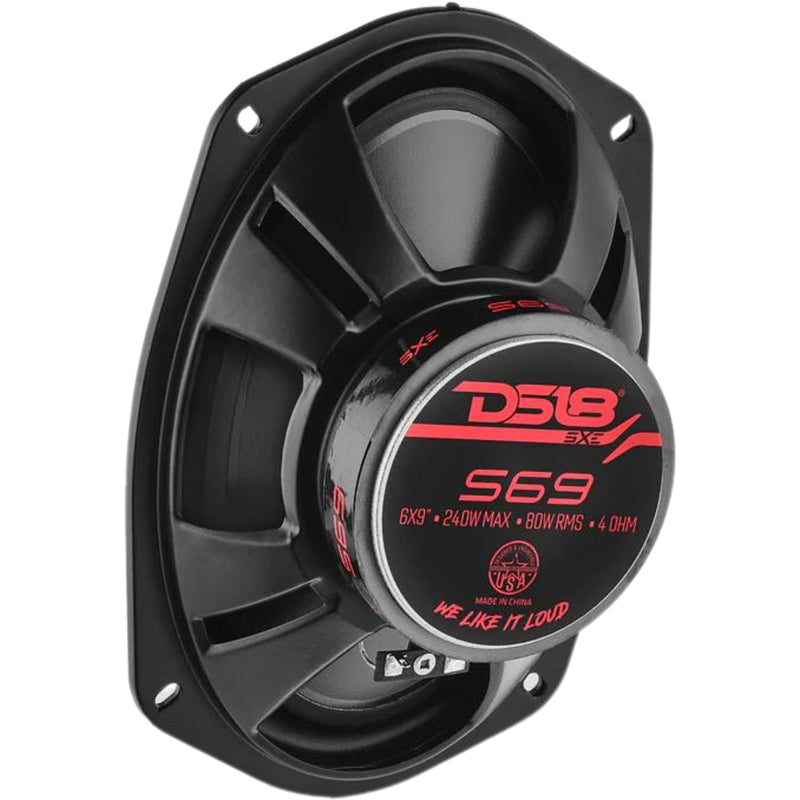

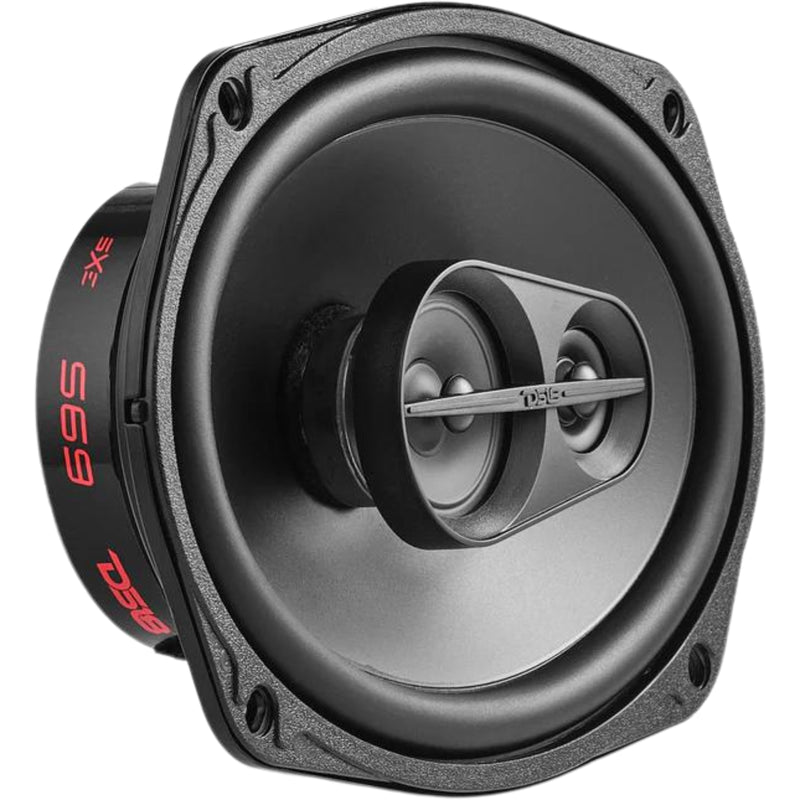

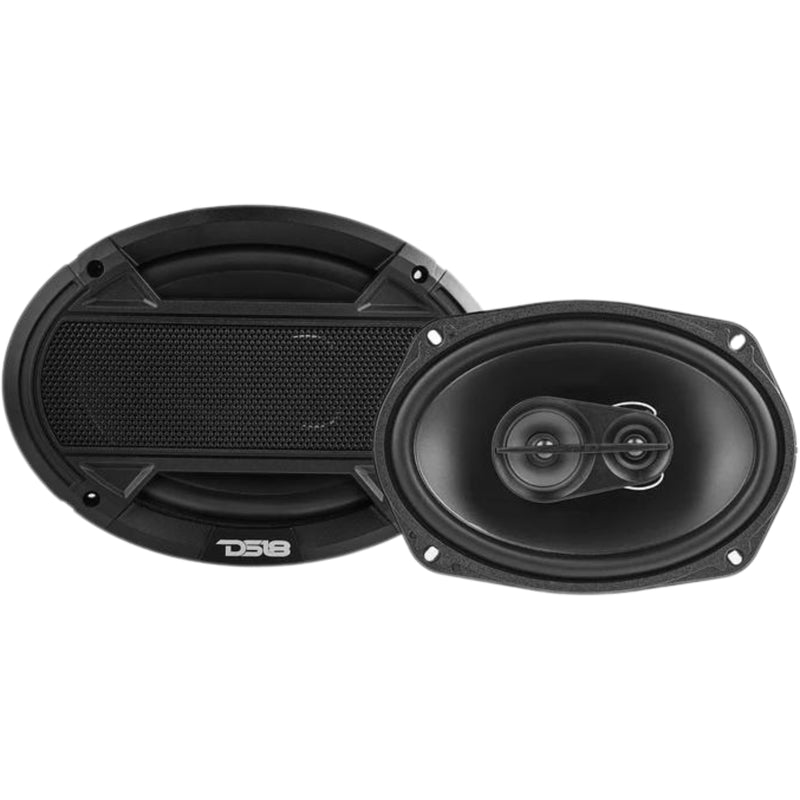

6x9" 80W RMS 4-Ohm 3-Way Coaxial Speaker Pair DS18 SELECT Series / DS-S69

6x9" 80W RMS 4-Ohm 3-Way Coaxial Speaker Pair DS18 SELECT Series / DS-S69

This Lisitng Includes:

• (2) DS-S69 Coaxial Speakers

Description:

Experience superior sound quality with the DS18 SELECT Series 6x9" 80W RMS 4-Ohm 3-Way Coaxial Speaker Pair (DS-S69). Designed for audio enthusiasts who demand excellence, these speakers deliver crystal-clear highs, rich mids, and powerful bass, transforming your listening experience. With 80W RMS power handling, they provide robust performance and can handle your music's dynamic range with ease. The 3-way design ensures optimal sound dispersion, filling your space with immersive audio. Whether you're upgrading your car's audio system or setting up a home sound system, the DS18 SELECT Series 6x9" speakers are the perfect choice for exceptional sound clarity and power. Elevate your audio experience with these top-notch speakers!

Download Owner's Manual

Features:

• 6 X 9" 3-Way Coaxial
• MAX Power: 240 Watts
• RMS Power: 80 Watts
• Impedance: 4 Ohm
• Barium Ferrite Magnet
• PPI Cone

Specifications:

• SKU: S69
• Nominal Diameter: 6X9" / 152x228mm
• Nominal Impedance: 4 Ohms
• RMS Power Handling: 80W
• MAX Power Handling: 240W
• Sensitivity (1w/1m): 90.8dB
• Frequency Response: 35Hz-20KHz
• Recommended HI Pass Crossover: 50Hz
• Number of ways: 3
• Pair or Single: Pair
• Grill Included: Yes

Woofer Specifications:

• Voice Coil Diameter: 1" / 25.5mm
• Voice Coil Former Material: ASV
• Winding Material: EISV
• Cone Material: PPI
• Surround Material: Rubber
• Basket Material: Steel
• Basket Color/Finish: Black Matte
• Magnet Material: Barium Ferrite
• Magnet Weight: 15.7Oz / 445g

Thiele & Small Parameters:

• Equivalent Volume Vas: 15.9L / 0.56ft3
• Excursion (one way) Xmax: 3.3mm
• Free Air Resonance Fs: 61Hz
• Mechanical Factor Qms: 4.86
• Electrical Factor Qes: 1.79
• Total Factor Qts: 1.31
• Mechanical Mass Mms: 24g
• Mechanical Compliance Cms: 238mm/N
• BL Factor BL: 5.2
• Voice Coil Inductance Le: 199uH
• Cone Area Sd: 217cm2
• DC Resistance Re: 3.4 Ohms
• Mechanical Mass w/o air Mmd: 20.5g

Tweeter Specifications:

• Nominal Diameter: Tw1: 2.3" / 59mm Tw2: 1.1" / 29mm
• Voice Coil Diameter: Tw1: 0.6" / 17mm Tw2: Piezo
• Voice Coil Former Material: Tw1: PESV Tw2: N/A
• Winding Material: Tw1: EISVM Tw2: N/A
• Diaphragm Material: Tw1: Mylar Tw2: Mylar
• Magnet Material: Tw1: Barium Ferrite Tw2: N/A
• Magnet Weight: Tw1: 35g Tw2: N/A

Speaker Measurement

• Overall Diameter: 6.4" x 9.2" / 163 x 234 mm
• Overall Depth: 3.15" / 80mm
• Overall Diameter (With Grill): 7.5" x 10.4" / 190 x 264 mm
• Overall Depth (With Grill): 4" / 102 mm
• Front Mount Baffle Cutout: 5.9  x8.66" / 150 x 220 mm
• Mounting Depth: 2.83" / 72mm
• Motor Diameter: 3.93" / 100mm
• Tweeter Protrusion: 0.6" / 16mm
• Gross Single Unit Weight: 2.75 lb | 1.25kg
• Single Unit Box Dimensions W x L x H: 10.85 x 4.33 x 15.35 in | 275*110*390mm
• Quantity of Units in Master Carton: 5 PRS/CTN
• Gross Master Carton Weight: 31.96 lb | 14.5kg
• Master Carton Dimensions W x L x H:  22.75 x 11.5 x 16.25 in | 575*290*410mm
