6x9" 350 W RMS 8 Ohm Mid-High Loudspeaker DS18 PROJECT360 Neo Rotating Recone

• HIGH-SENSITIVITY 6X9 PERFORMANCE: 101 dB sensitivity delivers strong mid-high output across a 95 Hz to 17 kHz frequency range
• 350W RMS POWER HANDLING: Handles 350 watts RMS and up to 700 watts max at a nominal 8-ohm impedance
• LIGHTWEIGHT NEODYMIUM MOTOR: Neodymium magnet design provides high output performance while reducing overall motor weight

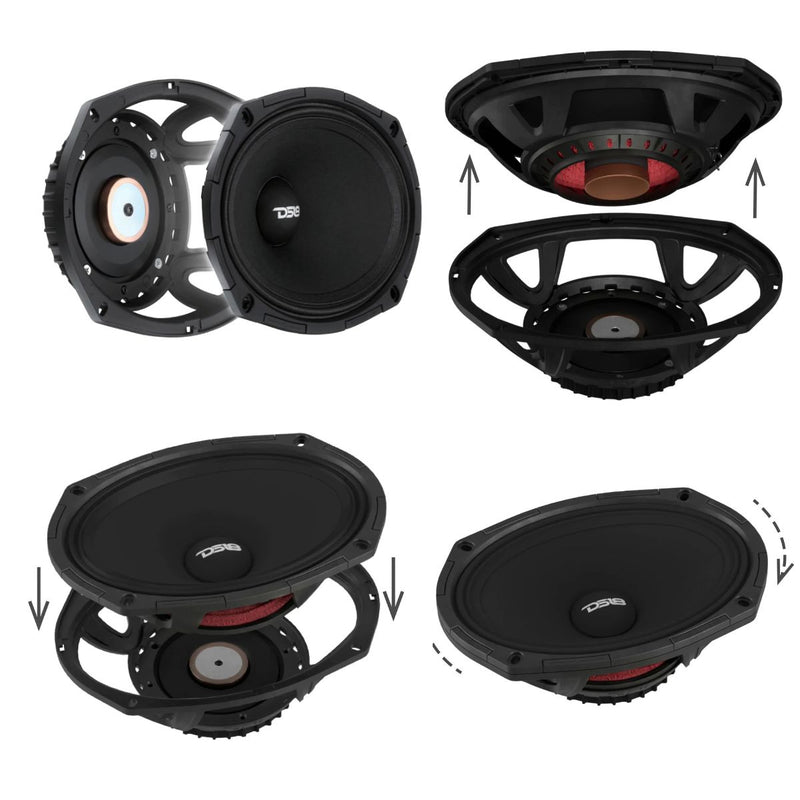

• ROTATING RECONE DESIGN: Serviceable rotating recone system allows faster replacement of moving components without traditional glue curing
• DURABLE PRO-AUDIO CONSTRUCTION: Curvilinear paper cone, aluminum basket, Kapton voice coil former, CCAW winding, and cloth surround
• COMPATIBLE REPLACEMENT RECONE: Designed for use with DS18 PROJECT360.698RCK replacement recone kit

6x9" 350 W RMS 8 Ohm Mid-High Loudspeaker DS18 PROJECT360 Neo Rotating Recone

This Listing Includes:

• (1) DS18 PROJECT360.698N 6x9" Mid-High Loudspeaker

The DS18 PROJECT360 Series is designed for high-output pro audio performance with a serviceable rotating recone system that allows the speaker's moving components to be replaced without traditional glue curing.

The PROJECT360.698N combines 101 dB sensitivity, a curvilinear paper cone, aluminum basket, and neodymium motor for strong mid-high output in a lightweight performance-focused design.

Features

• 350W RMS / 700W MAX power handling


• 8 Ohm nominal impedance


• 101 dB sensitivity


• Neodymium magnet


• Curvilinear paper cone


• Aluminum basket construction


• Rotating recone design for quick servicing


• Plug-and-play recone system with no traditional glue curing


• Demodulating rings


• Improved heat dissipation


• Spade speaker terminals


• Compatible Recone Model: PROJECT360.698RCK

Specifications

• Nominal Diameter: 6x9" / 152 x 228 mm


• Nominal Impedance: 8 Ohms


• RMS Power Handling: 350 Watts


• Max Power Handling: 700 Watts


• Sensitivity: 101 dB (1W/1m)


• Frequency Response: 95 Hz - 17 kHz


• Recommended High-Pass Crossover: 90 Hz


• Sold As: Single Unit


• Grill Included: No


• Demodulating Rings: Yes


• Improved Heat Dissipation: Yes


• Cone Shape: Curvilinear


• Speaker Terminals: Spade

Motor

• Voice Coil Diameter: 1.75" / 44.5 mm


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Cone Material: Paper


• Dust Cap Material: Paper


• Surround Material: Cloth


• Spider Diameter: 4" / 102 mm


• Leads Connection Type: Round Crossed


• Basket Material: Aluminum


• Basket Finish: Black


• Magnet Material: Neodymium


• Magnet Weight: 12.8 oz


• Replacement Recone Kit: PROJECT360.698RCK

Thiele & Small Parameters

• Equivalent Volume: 3.34 L / 0.117 ft


• Excursion, One Way: 0.85 mm


• Free Air Resonance: 168 Hz


• Mechanical Factor: 3.243


• Electrical Factor: 0.321


• Total Factor: 0.301


• Moving Mass: 19.536 g


• Mechanical Compliance: 0.052 mm/N


• BL Factor: 16.280


• Voice Coil Inductance: 0.016 mH


• Cone Area: 232.35 cm


• DC Resistance: 5.2 Ohms

Dimensions

• Overall Diameter: 6.57 x 9.45" / 167 x 240 mm


• Overall Depth: 3.59" / 91.2 mm


• Front Mount Baffle Cutout: 5.9 x 8.8" / 150 x 223 mm


• Mounting Depth: 3" / 77.3 mm


• Motor Diameter: 3.94" / 100 mm
