- MARINE GRADE PERFORMANCE IP65 water resistant design built for boats, motorcycles, ATVs, Jeeps, and outdoor vehicles.
- HYBRID COMPRESSION DESIGN Integrated compression driver delivers crisp highs with strong midrange output.
- CARBON FIBER CONE Lightweight and durable cone improves sound clarity and longevity.
- NEODYMIUM MOTOR STRUCTURE High efficiency output with reduced weight compared to ferrite speakers.
- SLIM MOUNT INSTALLATION Shallow depth design fits tight spaces without sacrificing performance.

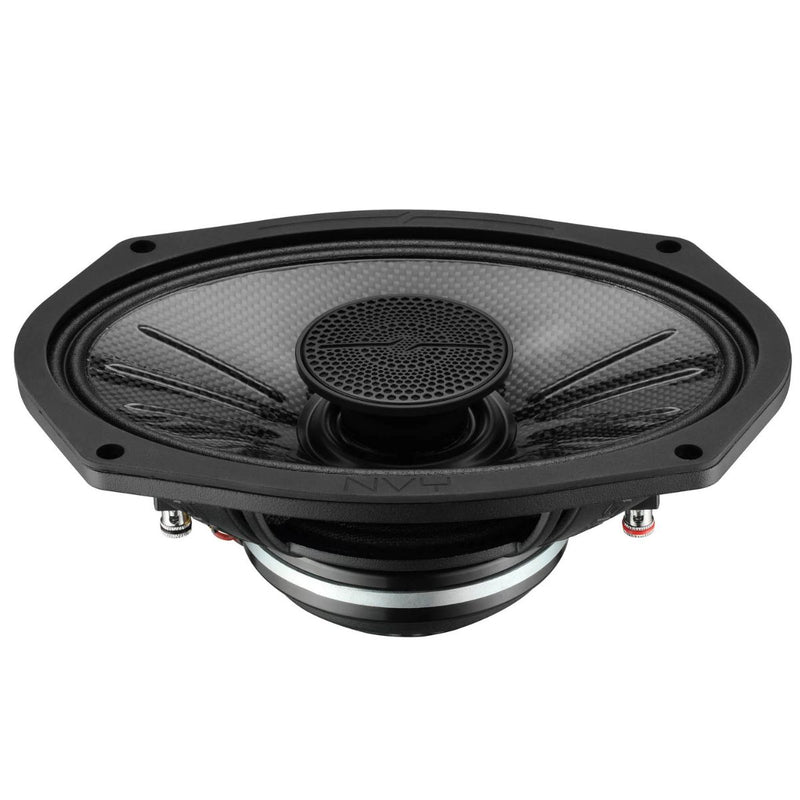

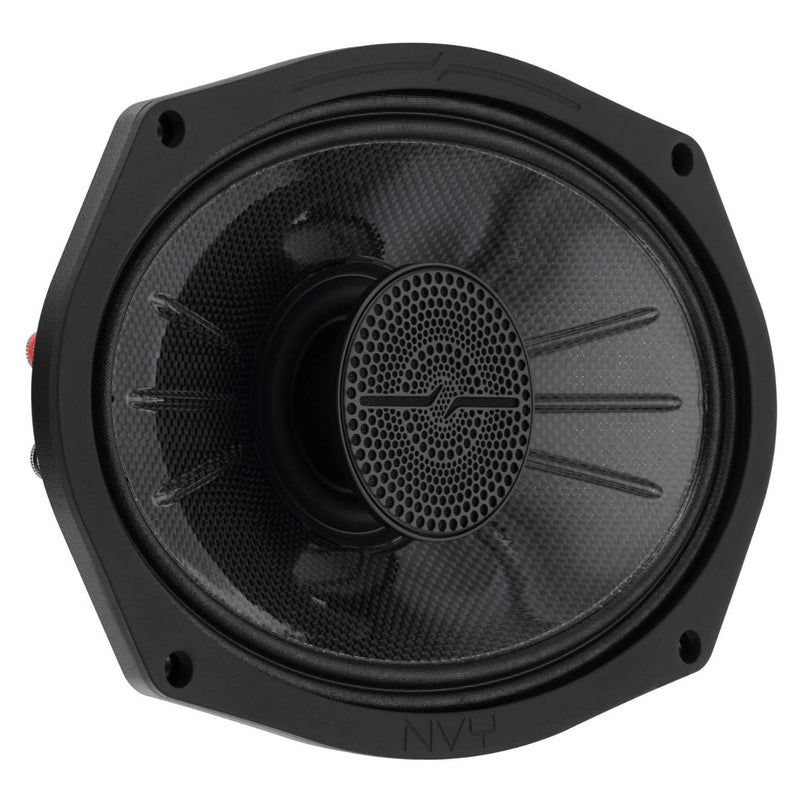

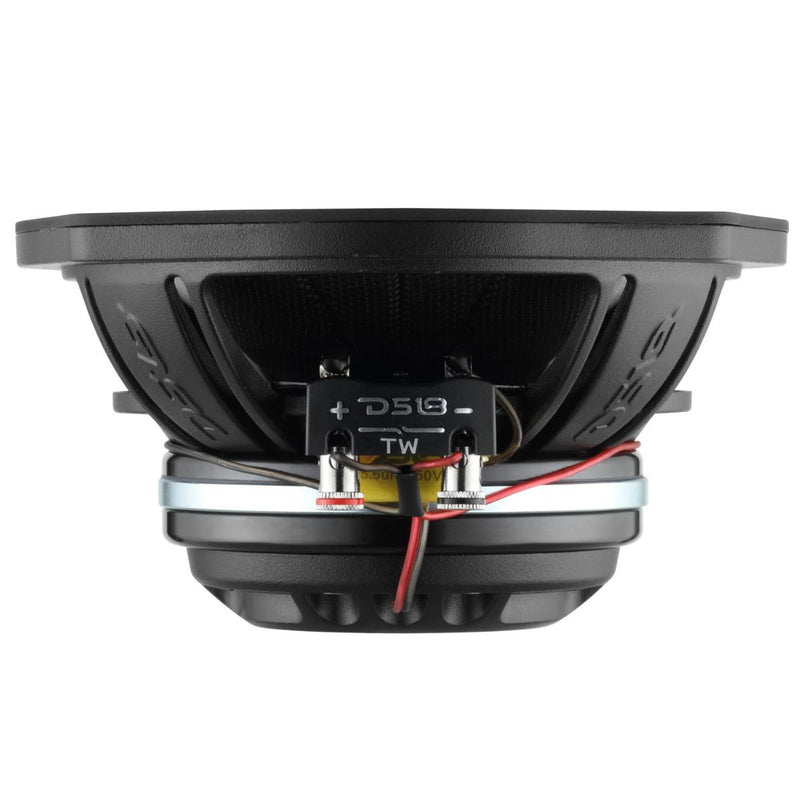

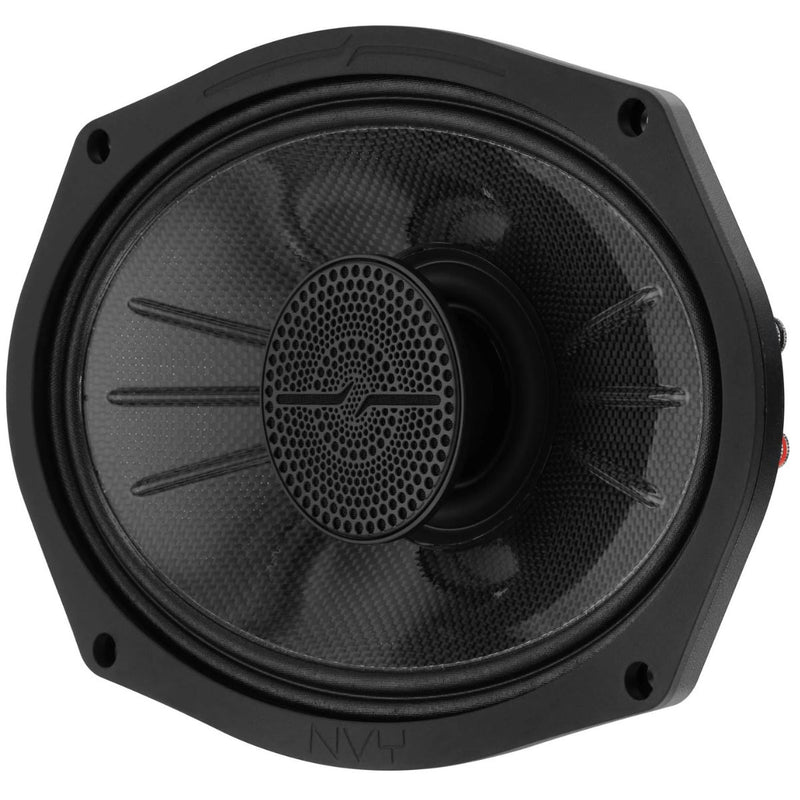

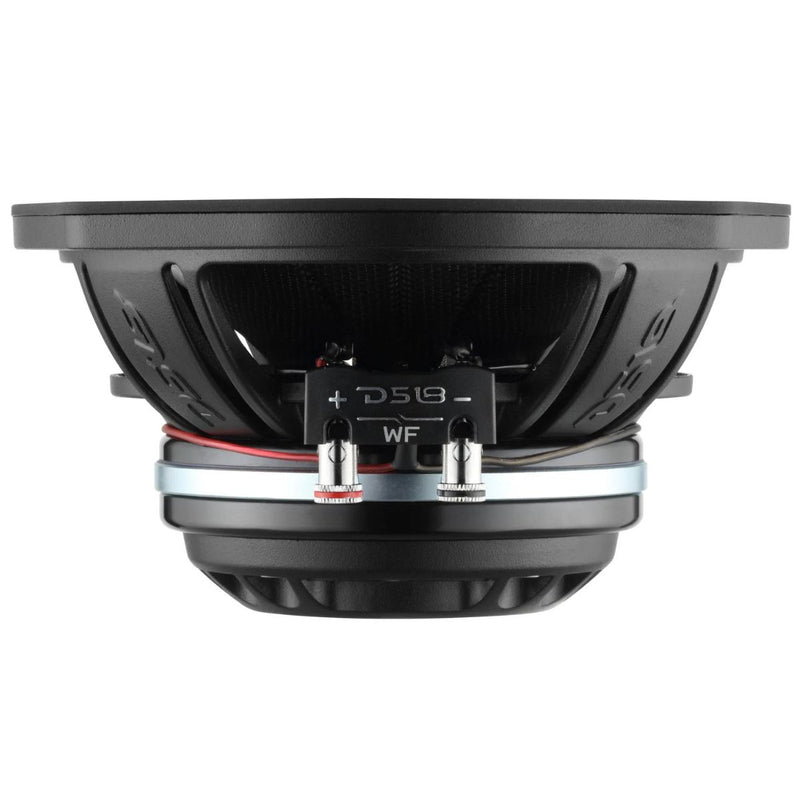

6x9" 250W RMS 4 Ohm Marine Hybrid Speakers Carbon Fiber DS18 NVY-69HDCFSL-N4
This Listing Includes:

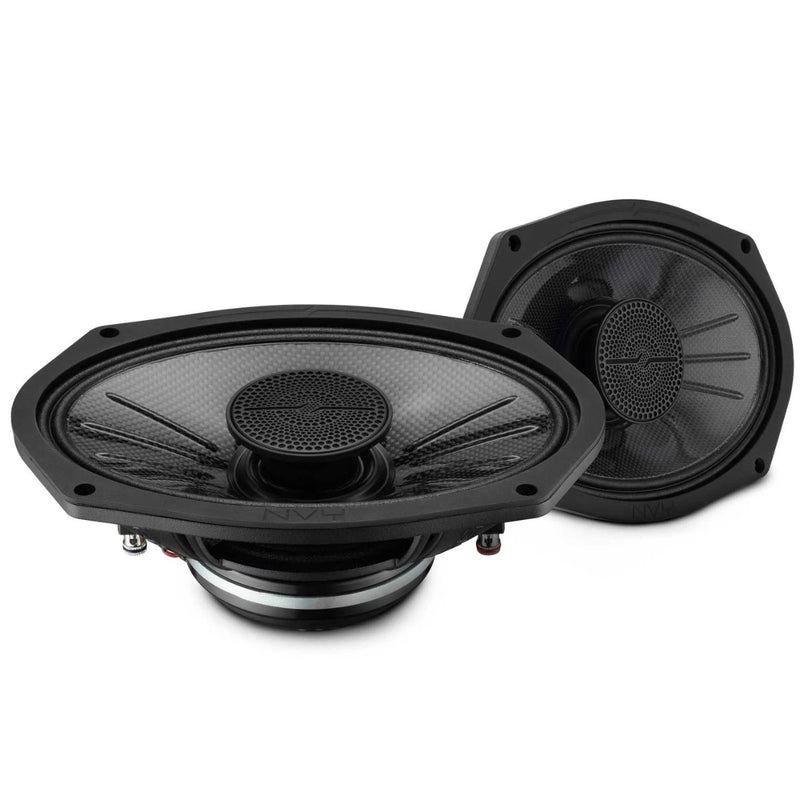

- (2) DS18 NVY-69HDCFSL-N4 6x9" Hybrid Loudspeakers
The DS18 NVY-69HDCFSL-N4 slim hybrid loudspeakers are designed for powerful, clear audio performance in marine and outdoor environments. Featuring water resistant carbon fiber cones and neodymium motor technology, these speakers deliver strong output while maintaining a slim mounting profile ideal for boats, motorcycles, ATVs, Jeeps, and custom installations.
This hybrid design combines a 6x9 midrange woofer with a built in compression driver, producing crisp highs and strong midrange response from a compact footprint. With 250 watts RMS combined power handling per pair and high efficiency performance, the NVY series delivers loud, clean sound even in open air environments.
The IP65 marine rating protects against water and dust exposure, while the aluminum basket and durable materials ensure long lasting reliability in harsh conditions.
General Specifications:
- Nominal Diameter: 6x9" (164 x 234 mm)
- Nominal Impedance: 4 Ohm
- RMS Power Handling (Combined): 250 Watts
- Max Power Handling (Combined): 500 Watts
- Sensitivity: 98 dB (1w/1m)
- Frequency Response (Combined): 80 Hz - 20 kHz
- Number of Ways: 2 Way
- Recommended High Pass Crossover: 100 Hz
- Marine Grade Rating: IP65
- Sold As: Pair
Woofer Specifications:
- Nominal Impedance: 4 Ohm
- RMS Power Handling: 200 Watts
- Max Power Handling: 400 Watts
- Frequency Response: 85 Hz - 2 kHz
- Voice Coil Diameter: 2" (52.4 mm)
- Voice Coil Former: Glass Fiber
- Winding Material: CCAW
- Cone Material: Carbon Fiber
- Surround Material: Cloth
- Magnet Material: Neodymium
- Magnet Weight: 9.26 oz
- Basket Material: Aluminum
- Basket Color: Black
Driver Specifications:
- Nominal Impedance: 4 Ohm
- AES Power Handling: 50 Watts
- Program Power Handling: 100 Watts
- Peak Power Handling: 200 Watts
- Frequency Response: 2 kHz - 20 kHz
- Voice Coil Diameter: 1.5" (37.6 mm)
- Diaphragm Material: Aluminum Alloy
- Magnet Material: Neodymium (N38H)
- Magnet Weight: 1.3 oz
Dimensions (Estimated):
- Mounting Depth: Approx. 2.9" (74 mm)
- Overall Size: Approx. 9.3" x 6.4"
- Cutout Size: Approx. 8.7" x 5.8"
