6S 5A Capacitor Active Balancer with Voltage Display LTO Battery Equalizer

• The 6S balancer has the function of full-disk equalization without distinction and automatic low-voltage sleep. The minimum voltage difference can be balanced to about 0.01V, and the maximum equalization current can reach 5A.
• The circuit board is sprayed with three-proof paint, which has excellent insulation, moisture-proof, leakage-proof, shock-proof, dust-proof, corrosion-proof,anti-aging, corona-resistant and other properties, which can effectively protect the circuit and improve the safety and reliability of the product.

This Listing Includes:

• (1) 6S 5A Capacitor Active Balancer Li-ion Lipo LTO Battery Balancing Equalizer

Product Description:

The 6S balancer ensures full-disk equalization with a minimum voltage difference of 0.01V and a max equalization current of 5A. It features automatic low-voltage sleep, over-discharge protection, and real-time battery voltage display with 5mV accuracy. Compatible with ternary lithium and lithium iron phosphate batteries, it stops operation below 2.7V. Its three-proof coated circuit board enhances safety with insulation, moisture, corrosion, and shock protection.

Technical Specifications:

• Applicable battery type: NCM/LFP/LTO


• Operating voltage range: NCM/LFP: 2.7-4.2v, LTO: 1.8-2.7v


• Balance voltage accuracy: 5mV (typical)


• Balance Mode: Active balance in which the entire battery group participates in energy conversion at the same time.


• Balance current: When the voltage difference is about 1v, the maximum balance current is 5A, and the balance current decreases as the voltage difference decreases. The minimum balance start voltage difference of the instrument is 0.01v


• Undervoltage protection: NCM/LFP: 2.7v, LTO: 1.8v


• Static working current: 20mA


• Working environment temperature: -10 Celsius to 60 Celsius (14 F to 140 F)


• External power: No external power supply is required, and the whole battery group is balanced by relying on the internal energy transfer of the battery.

Precautions for Use

1. During use, the design parameters and usage conditions must be followed. The parameters of this specification must not be violated. Otherwise, the instrument may be damaged and the battery pack may be damaged.

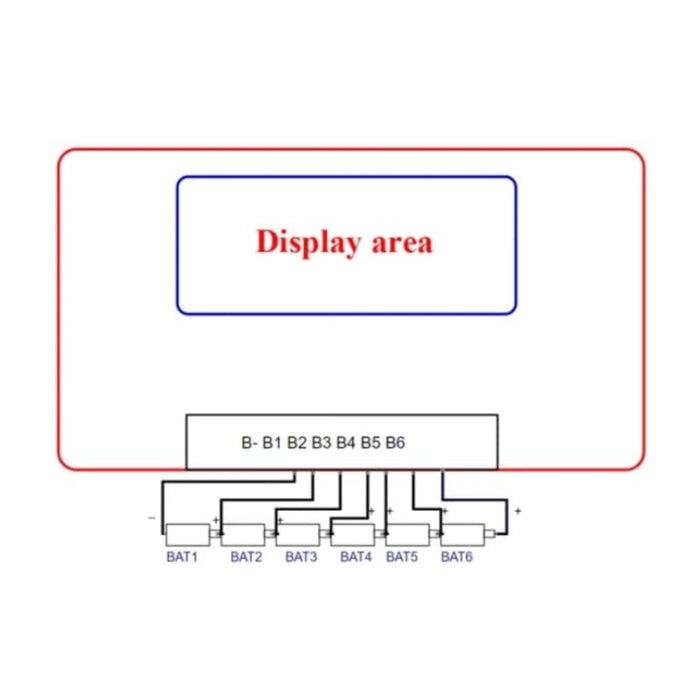

2. During use, the cables must be connected to the battery in the order of the instructions. After checking, connect the instrument.


3. The product will generate a certain amount of heat during use. Avoid using the product in a high temperature environment.


4. If any abnormality occurs during use, please stop using it immediately, return it to the original factory or ask a professional maintenance person to repair it.


5. This balancer has undergone a lot of reliability tests, and its reliability is much higher than that of general equalizers on the market. At the same time, the process of the battery cell must be guaranteed to minimize the occurrence of combustion.
