- LONG LIFE CYCLE - 10 times more than traditional lithium-ion batteries.
- HIGH CURRENT CHARGE AND DISCHARGE CAPABILTY - Fast charge only takes 6 minutes.
- LOW TEMPERATURE CHARGE AND DISCHARGE PERFORMANCE - Unlike most batteries, these are rated to perform at -22F.
- UNDER-VOLTAGE SLEEP PROTECTION - The voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1.
6 XS Power 2.3V 35 AH Lithium Batteries 66160 + 6 Cell Bank 40ah + Balancer 6S
This listing includes:
(6) XS Power Lithium Titanite Oxide LTO Battery Cell

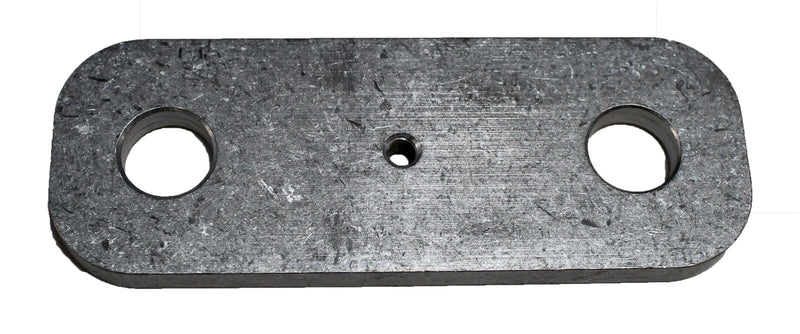

(2) Aluminum drilled end bars
(5) 2 Bank

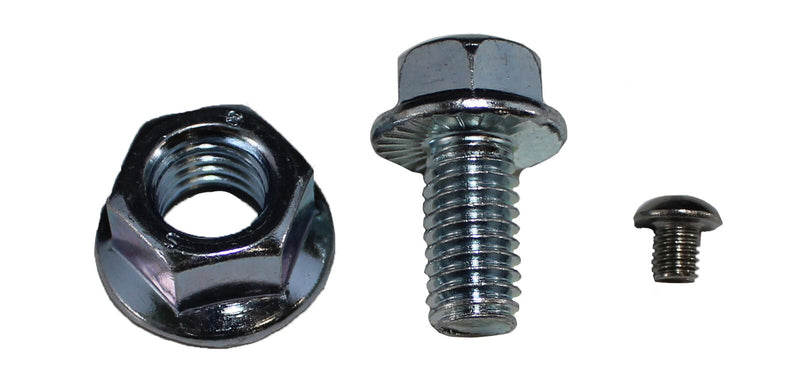

(6) Lug Bolts
(12) m12 Nuts
(7) Balancing screws
(1) Capacitance Active Balancer

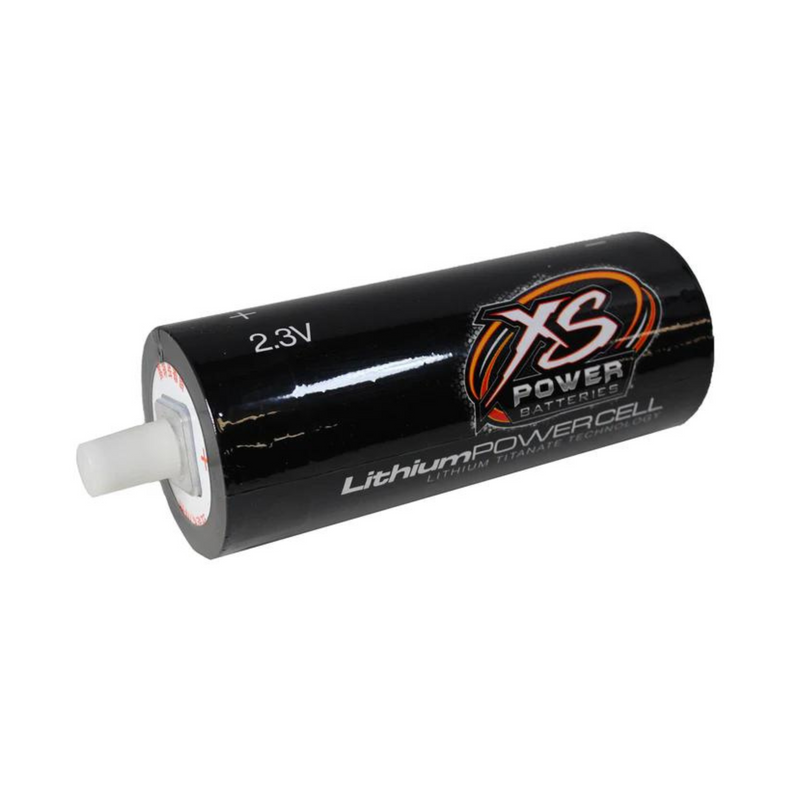

XS Power Lithium Titanite Oxide LTO Battery Cell
Long life cycle: 10 times more than traditional lithium-ion batteries. These cells can be cycled more than 30,000 times.
High current charge and discharge capability: fast charge only takes 6 minutes.
Low-temperature charge and discharge performance: unlike most batteries, these are rated to perform at -22F.
Brand Name: XS Power Batteries
Type: Lithium Titanite Oxide (LTO)
Nominal Capacity: 35Ah
Replacement Battery: Yes
Nominal Voltage: 2.3V
Internal resistance: below 1ohm
Weight: 2.6lbs (1180g)
40ah 6 Cell Bank DIY set with Lithium Economy Style Buss Bars
These bus connectors and M12 hardware are the perfect companions for your LTO cell purchase. These parts allow your Lithium Battery build to be fast and easy, with a very high current flow for extreme amounts of power.
This is a do-it-yourself set with Lithium Economy Style Buss bars to create a 40ah 6 cell bank. Includes everything you need.

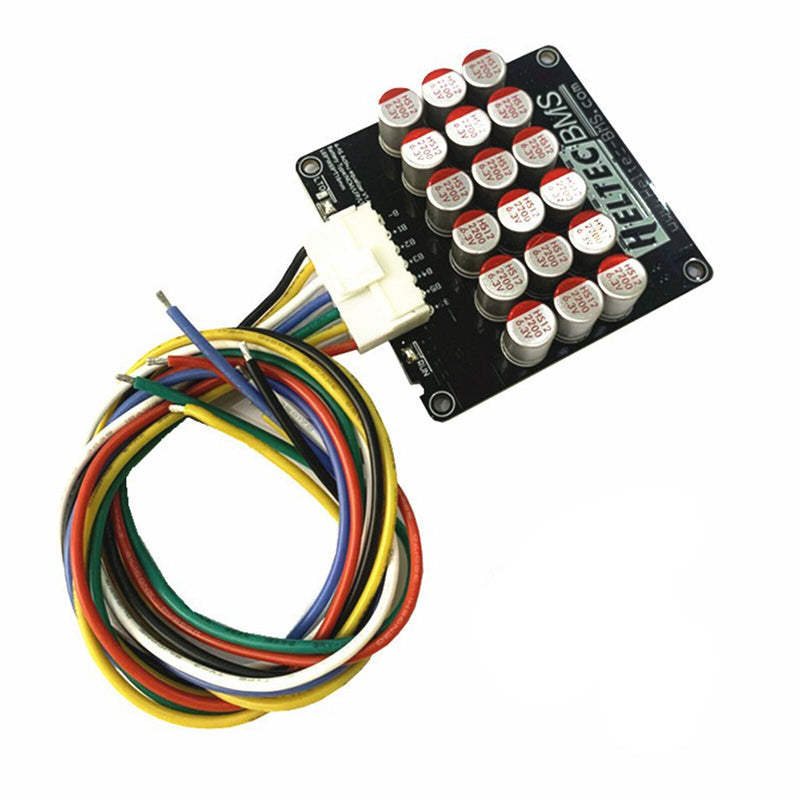

Balancer Features:
- Working voltage: 1.8V-4.5V
- Suitable for ternary lithium, lithium iron phosphate, lithium titanite.
- The whole battery participates in the active equalization of energy transfer at the same time
- 0.1V differential voltage 1A equalizing current. The differential voltage is bigger than equalizing current is bigger. The maximum allowable working current is 5.5A
- Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The original new ultra-low internal resistance MOS, 2OZ copper thickness PCB
- Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!
- The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.
- With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.
