DS18 amassed a wealth of experience in manufacturing the most elegant neodymium midranges for those seeking simple perfection. Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the voice coil. For this reason, Neo magnets have the strongest permanent magnets of all the commercially available speakers. Ranging in sizes, mounting depths, and frequency responses, we have more than 10 different models of Neo midranges to accommodate any build.
Highlights:
- High powered aluminum voice coil backed by an intense neodymium rings magnet for more volume at the highest efficiency on the market.
- Beautiful DS18 design including a DS18 Tooled aluminum brushed accented basket and high quality terminals.
- Solid cone design that slays the midrange but is best accompanied by a pro audio super tweeter.
This listing includes:

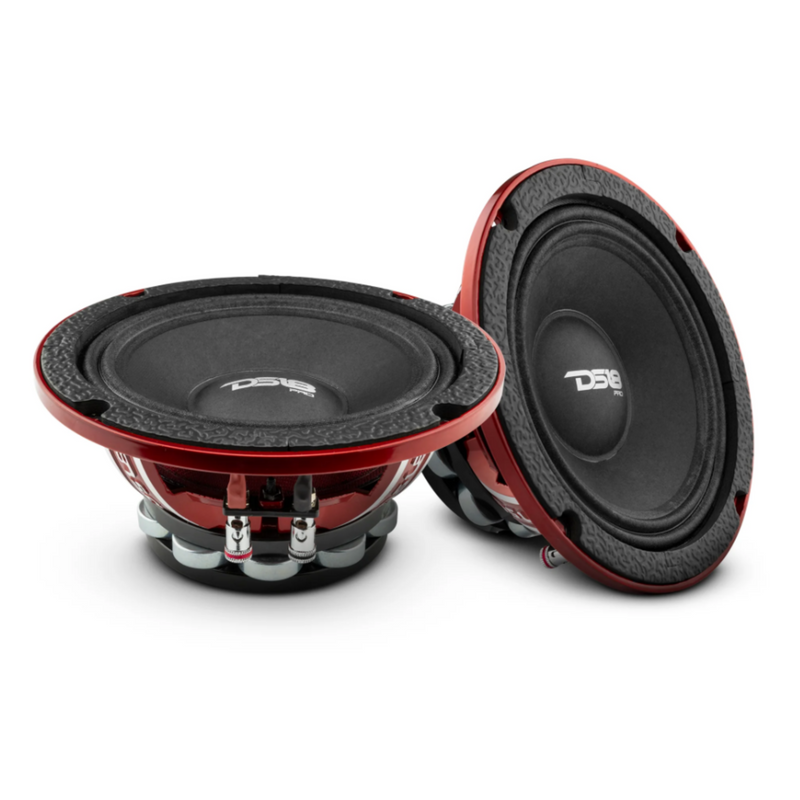

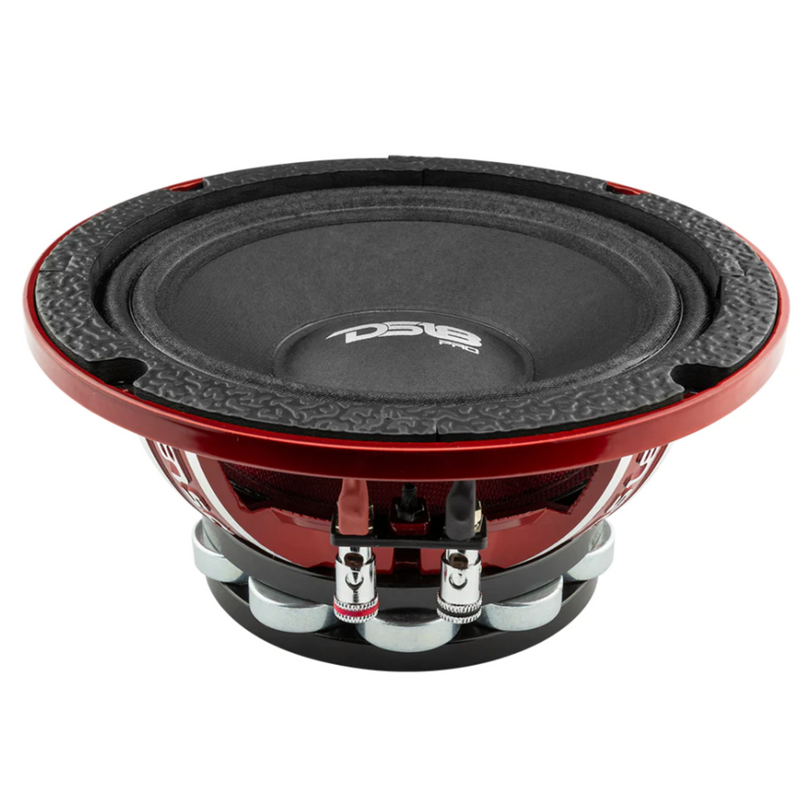

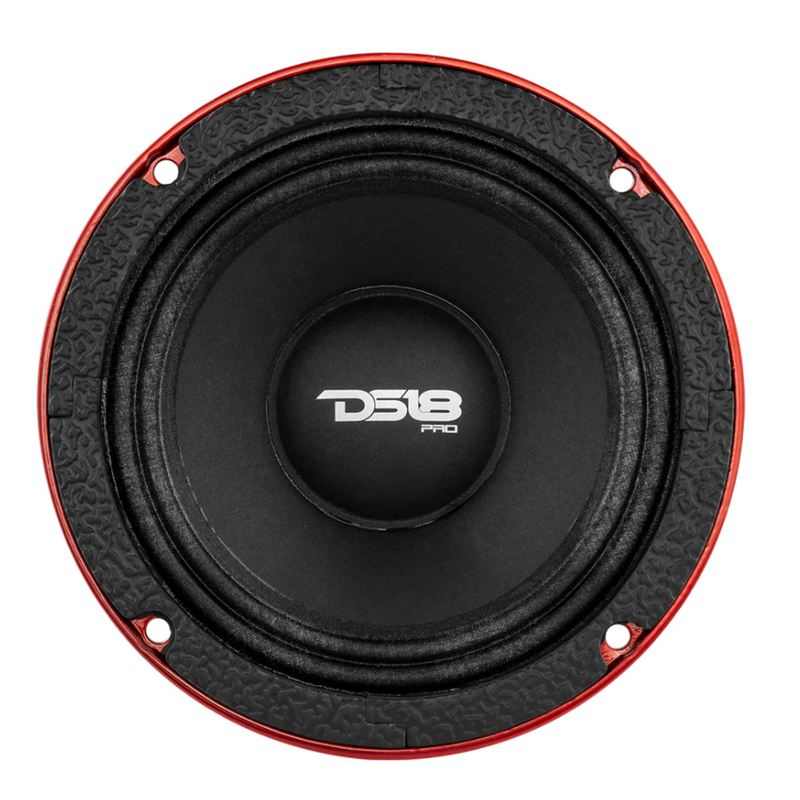

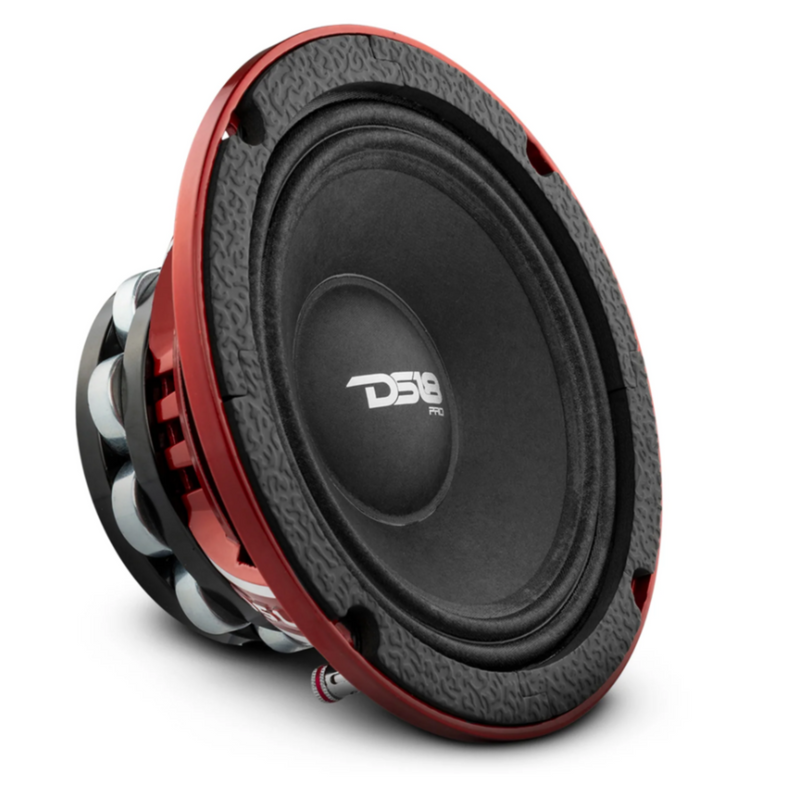

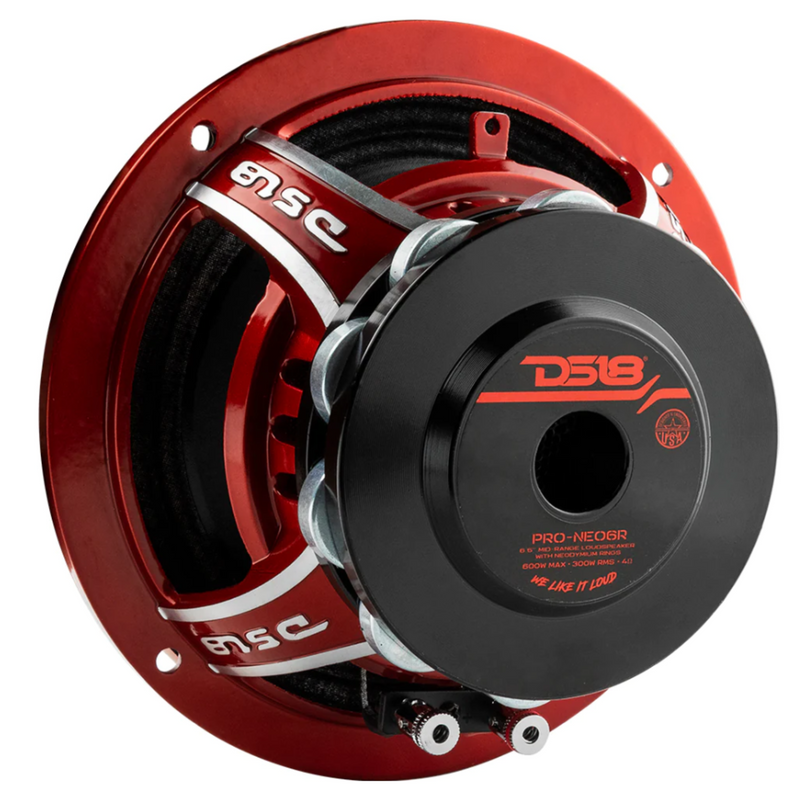

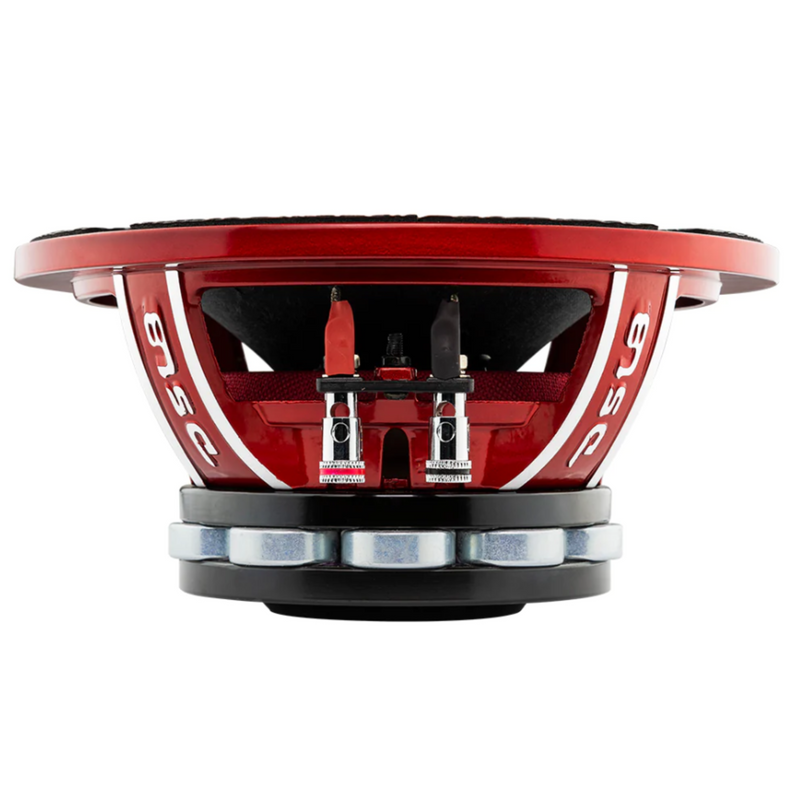

(1) DS18 6.5" Midrange Speaker PRO-NEO6R
SPECIFICATIONS:
Nominal Diameter: 6.5"
Nominal Impedance: 4 Ohm
MAX Power Handling: 600 Watts
RMS Power Handling: 300 Watts
Sensitivity (1w/1m): 96 dB
Frequency Response: 90 Hz ~ 12.5 KHz
Recommended HI Pass Crossover: 160 Hz
MOTOR:
Voice Coil Diameter: 2" (50.8mm)
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Paper
Dust Cap Material: Paper
Surround Material: Cloth
Basket Material: Aluminum
Basket Color: Red
Magnet Material: Neodymium Rings
Magnet Weight: 11.4 Oz
Displacement Volume: 0.045L
THIELE & SMALL PARAMETERS:
Equivalent Volume: Vas - 5.088L
Excursion: X-max - 3.6mm
Free Air Resonance: Fs - 99.5Hz
Mechanical Factor: Qms - 9.8
Electrical Factor: Qes - 0.237
Total Factor: Qts - 0.231
Dc Resistance: Re - 3.2 Ohm
Moving Mass: Mms - 11.449g
Compliance: Cms - 223.287 u/m/N
Force Factor: BI - 9.832
Cone Area: Sd - 145 cm
Mechanical Mass w/o Air: Mmd - 10.629g
DIMENSIONS:
Overall Diameter: 6.88" (174.8mm)
Front Mount Baffle Cutout: 5.91" (150.3mm)
Mounting Depth: 2.95" (75mm)
Overall Depth: 3.29" (83.7mm)
Motor Diameter: 4.13" (105mm)
