6.5" 65W RMS 4-Ohm 2-Way Component Speaker Set DS18 SELECT Series / DS-S65C

6.5" 65W RMS 4-Ohm 2-Way Component Speaker Set DS18 SELECT Series / DS-S65C

This Listing Includes:

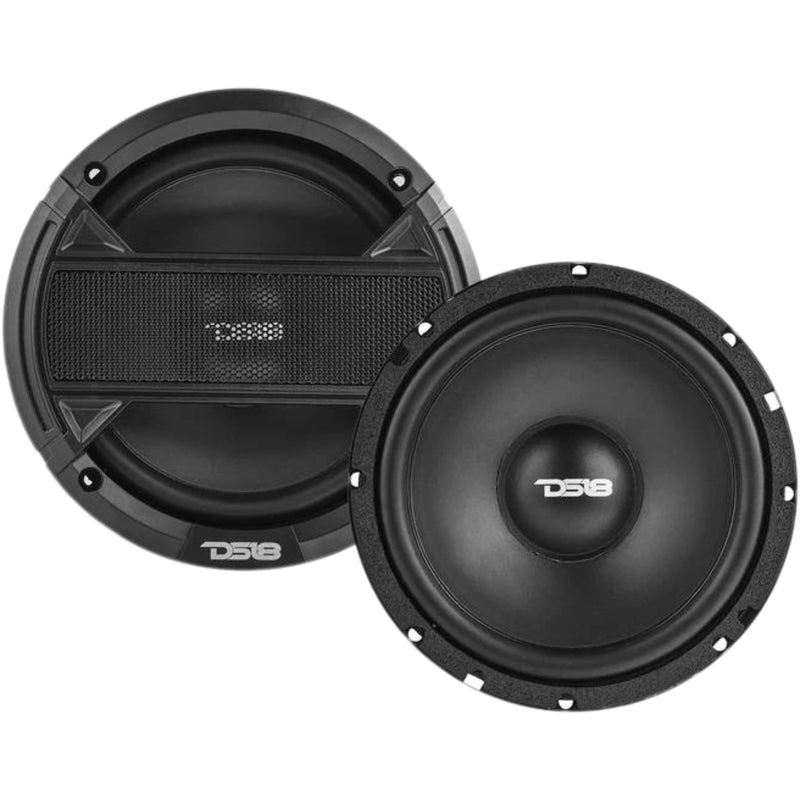

• (2) 6.5" Speakers
• (2) Tweeters
• (2) Crossovers

Description:

Elevate your audio experience with the DS18 SELECT Series 6.5" 65W RMS 4-Ohm 2-Way Component Speaker Set (DS-S65C). These speakers are engineered for those who demand superior sound quality and performance. With a powerful 65W RMS, they deliver exceptional clarity, from crisp highs to deep, rich lows. The 2-way component design ensures precise sound separation, creating a balanced and immersive audio environment. Perfect for any car audio system upgrade, these speakers combine advanced materials and engineering for durability and longevity. Transform your listening experience with the DS18 SELECT Series and enjoy your favorite music like never before.

Download Owner's Manual

Features:

• 6.5" 2-Way Component
• MAX Power: 200 Watts
• RMS Power: 65 Watts
• Impedance: 4 Ohm
• Barium Ferrite & Neodymium Magnets
• PPI Cone

Specifications:

• SKU: S65C
• Nominal Diameter: 6.5" / 165mm
• Nominal Impedance: 4 Ohms
• RMS Power Handling: 65W
• MAX Power Handling: 200W
• Sensitivity (1w/1m): 87dB
• Frequency Response: 35Hz-20KHz
• Recommended HI Pass Crossover: 60Hz
• Number of ways: 2
• Pair or Single: Pair
• Grill Included: Yes

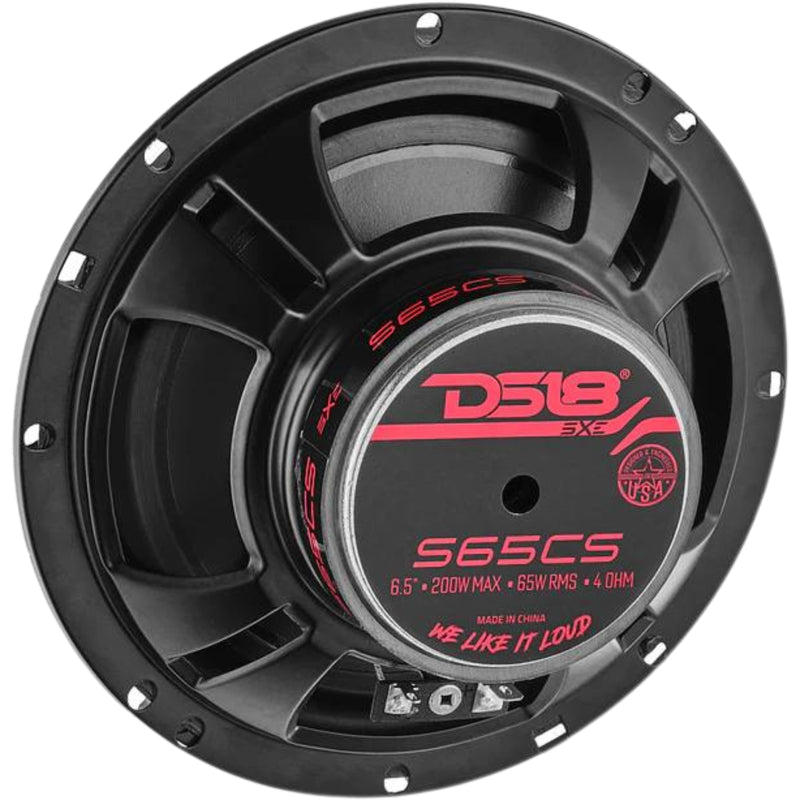

Woofer Specifications:

• Voice Coil Diameter: 1" / 25.5mm
• Voice Coil Former Material: ASV
• Winding Material: EISV
• Cone Material: PPI
• Surround Material: Rubber
• Basket Material: Steel
• Basket Color/Finish: Black Matte
• Magnet Material: Barium Ferrite
• Magnet Weight: 9.87oz / 280g

Thiele & Small Parameters:

• Equivalent Volume Vas: 8.57L / 0.3ft3
• Excursion (one way) Xmax: 2.9mm
• Free Air Resonance Fs: 75Hz
• Mechanical Factor Qms: 5.97
• Electrical Factor Qes: 1.68
• Total Factor Qts: 1.31
• Mechanical Mass Mms: 13.8g
• Mechanical Compliance Cms: 322mm/N
• BL Factor BL: 4.9
• Voice Coil Inductance Le: 193uH
• Cone Area Sd: 136.8cm2
• DC Resistance Re: 3.7 Ohms
• Mechanical Mass w/o air Mmd: 12g

Woofer Measurement:

• Overall Diameter: 6.5" / 165.5mm
• Overall Depth: 2.44" / 62mm
• Overall Diameter (With Grill): 7" / 179mm
• Overall Depth (With Grill): 3.22" / 82mm
• Front Mount Baffle Cutout: 5.6" / 143mm
• Mounting Depth: 2.24" / 57mm
• Motor Diameter: 3.15" / 80mm

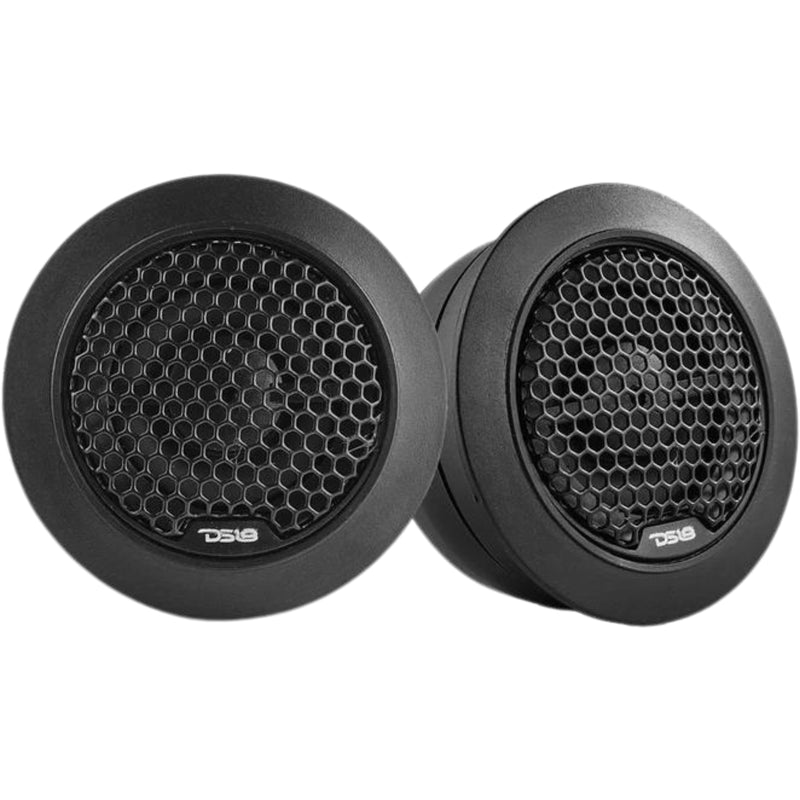

Tweeter Specifications:

• Voice Coil Diameter: 0.52" / 13mm
• Voice Coil Former Material: KAPTON
• Winding Material: EISVM
• Diaphragm Material: MYLAR
• Magnet Material: Neodymium
• Magnet Weight: 1.8g
• Overall Diameter: 1.5" / 39mm
• Overall Depth: 0.66" / 17mm
• Overall Diameter With Adapter: 1.96" / 50mm
• Overall Depth With Adapter: 0.98" / 25mm
• Front Mount Baffle Cutout With Adapter: 1.77" / 45mm
• Mounting Depth With Adapter: 0.76" / 19.5mm

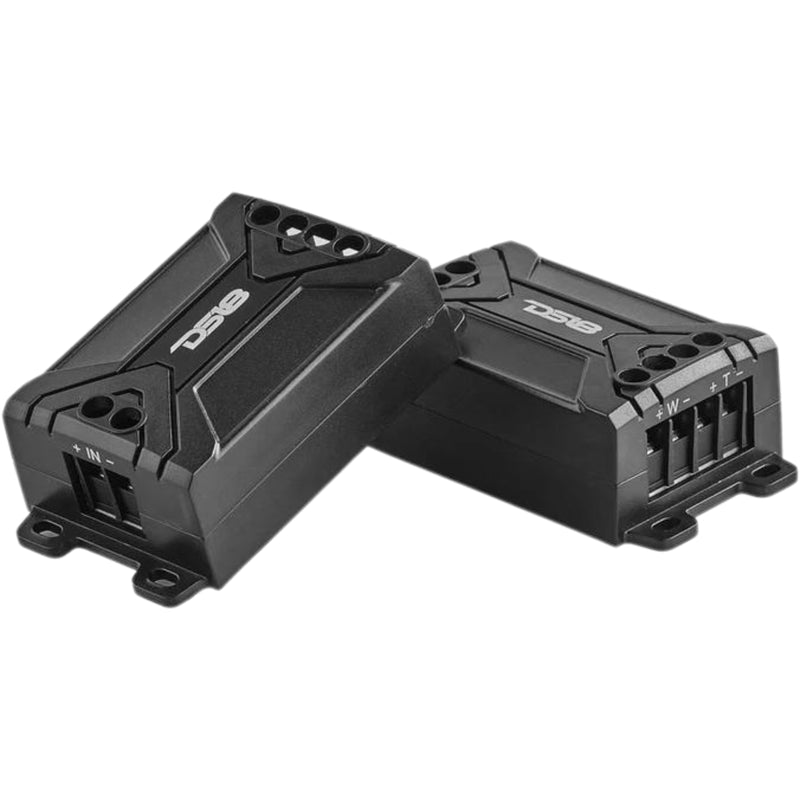

Crossover Specifications:

• Passive Crossover Ways: 2 (Woofer / Tweeter)
• Frequency Crossover point: 3.5KHz
• Cut-Off Slope: 12dB/Oct
• Tweeter Attenuation: N/A
• Capacitor Type: Metal Film
• Coil Type: Inductor
• Terminal Type: Screw
• Housing Material: ABS
• Overall Length: 1.88" / 48mm
• Overall Width: 2" / 52mm
• Overall Height: 1.18" / 30mm
• Gross Single Unit Weight: 2.87 lb | 1.3 KG
