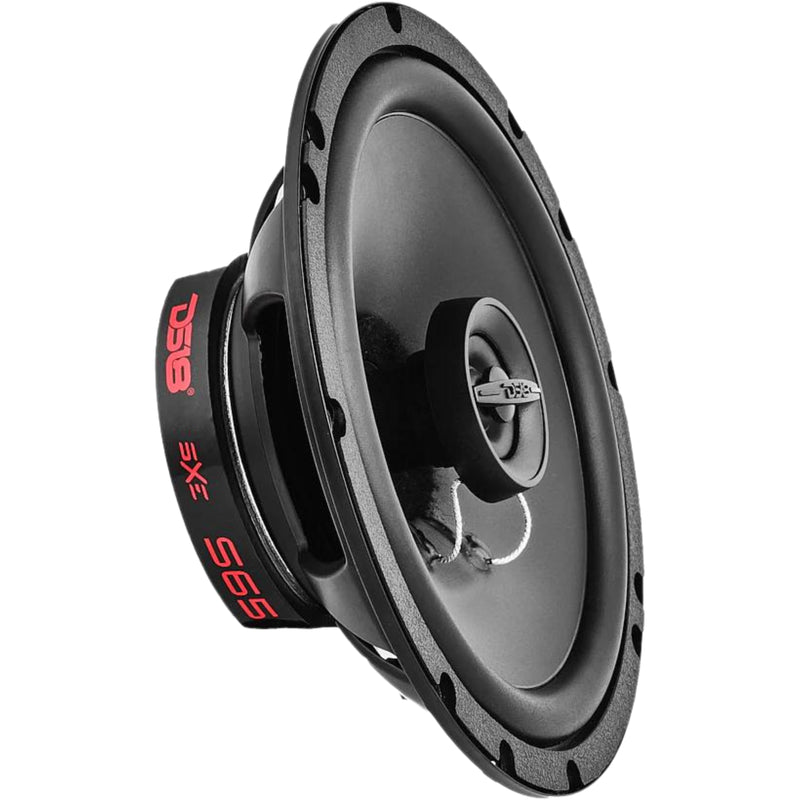

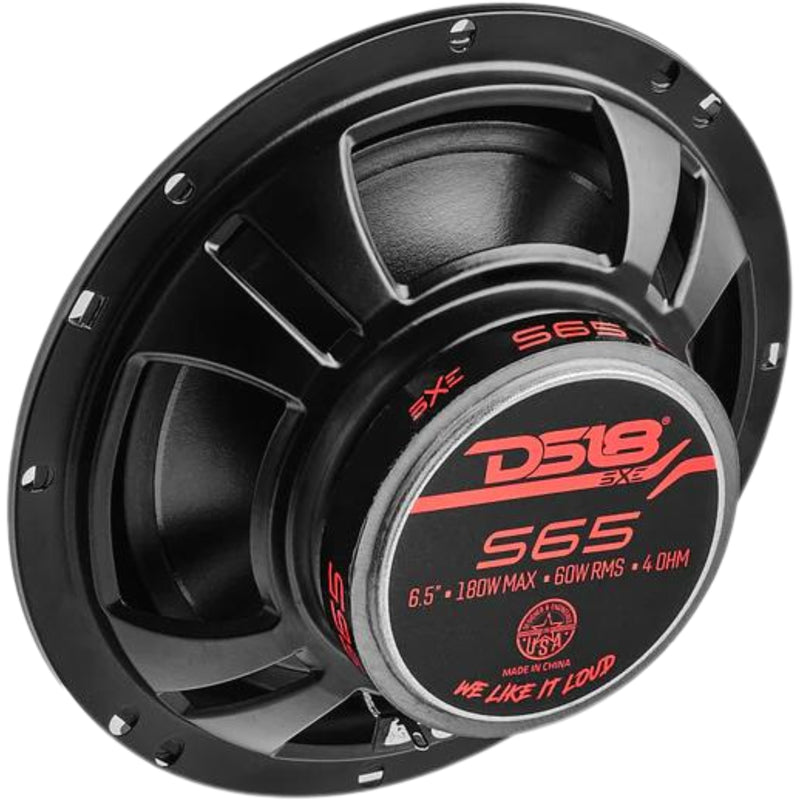

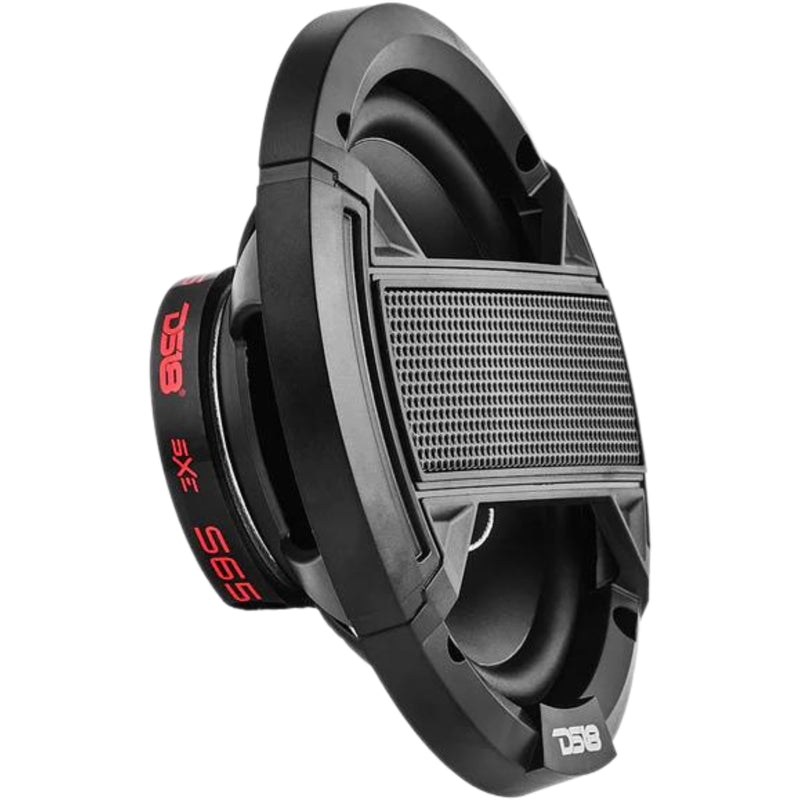

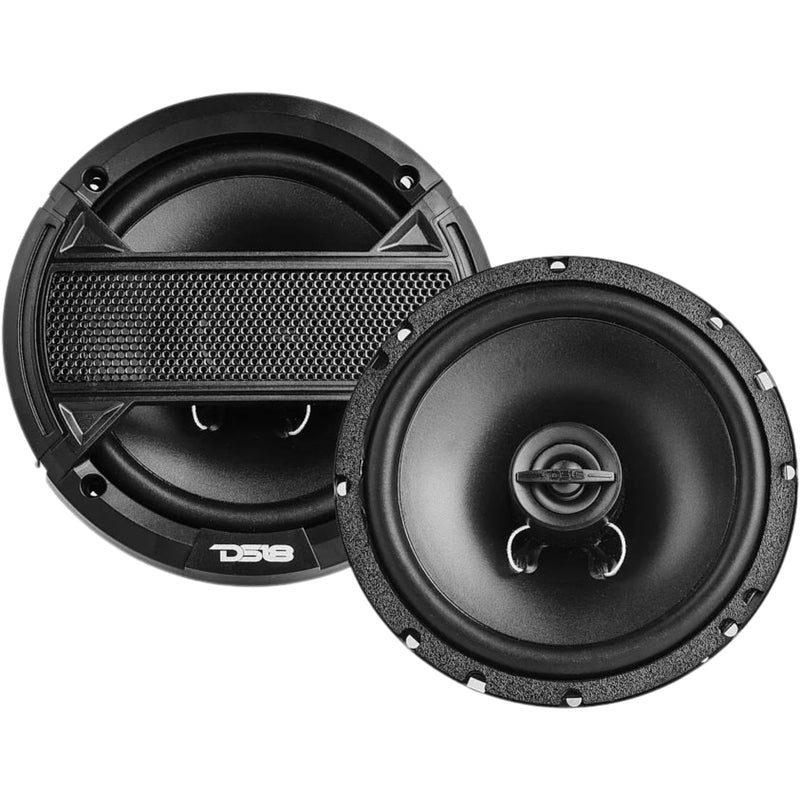

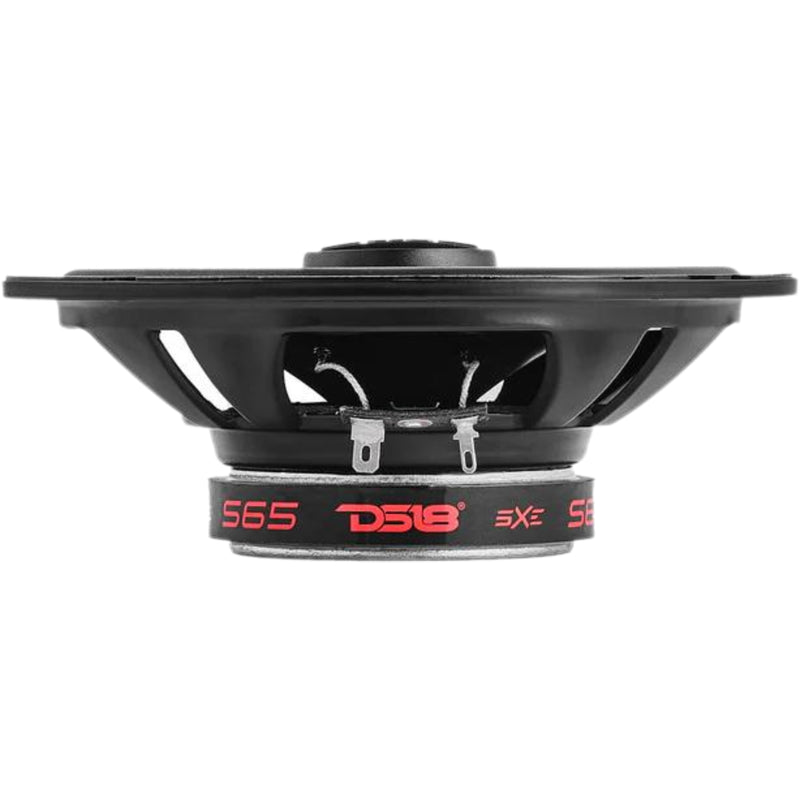

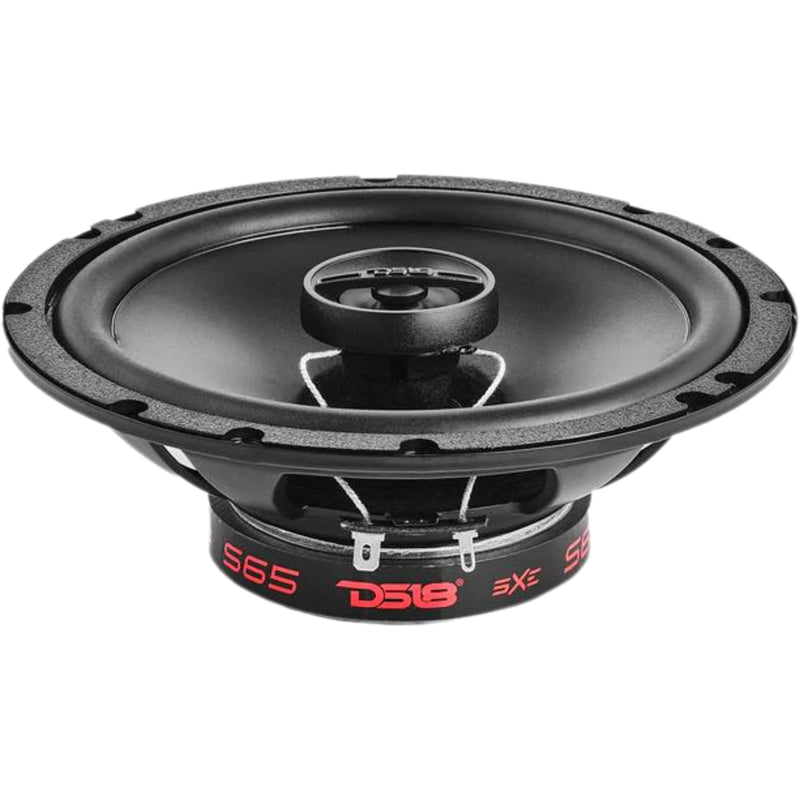

6.5" 60W RMS 4-Ohm 2-Way Coaxial Speaker Pair DS18 SELECT Series / DS-S65
This Listing Includes:
Description:
Transform your audio experience with the DS18 SELECT Series 6.5" 60W RMS 4-Ohm 2-Way Coaxial Speaker Pair (DS-S65). These speakers are designed for those who crave exceptional sound quality and powerful performance. Featuring a 2-way coaxial design, they deliver a perfect blend of crisp highs and deep lows, enhancing every note and beat. With 60W RMS power handling, you can expect robust sound that fills your space with clarity and impact. Ideal for car audio enthusiasts or anyone looking to upgrade their sound system, the DS18 SELECT Series provides both reliability and an immersive listening experience.
Download Owner's Manual
Features:
- 6.5" 2-Way Coaxial
- MAX Power: 180 Watts
- RMS Power: 60 Watts
- Impedance: 4 Ohm
- Barium Ferrite Magnet
- PPI Cone
Specifications:
- SKU: S65
- Nominal Diameter: 6.5" / 165mm
- Nominal Impedance: 4 Ohms
- RMS Power Handling: 60W
- MAX Power Handling: 180W
- Sensitivity (1w/1m): 88.5dB
- Frequency Response: 35Hz-20KHz
- Recommended HI Pass Crossover: 60Hz
- Number of ways: 2
- Pair or Single: Pair
- Grill Included: Yes
Woofer Specifications:
- Voice Coil Diameter: 1" / 25.5mm
- Voice Coil Former Material: ASV
- Winding Material: EISV
- Cone Material: PPI
- Surround Material: Rubber
- Basket Material: Steel
- Basket Color/Finish: Black Matte
- Magnet Material: Barium Ferrite
- Magnet Weight: 8Oz / 227g
Thiele & Small Parameters:
- Equivalent Volume Vas: 8.25L / 0.29ft3
- Excursion (one way) Xmax: 2.7mm
- Free Air Resonance Fs: 70Hz
- Mechanical Factor Qms: 6.09
- Electrical Factor Qes: 1.93
- Total Factor Qts: 1.47
- Mechanical Mass Mms: 11.4g
- Mechanical Compliance Cms: 320mm/N
- BL Factor BL: 3.96
- Voice Coil Inductance Le: 187uH
- Cone Area Sd: 136.8cm2
- DC Resistance Re: 3.4 Ohms
- Mechanical Mass w/o air Mmd: 12g
Tweeter Specifications:
- Nominal Diameter: 1" / 25.5mm
- Voice Coil Diameter: 0.5" / 13.25mm
- Voice Coil Former Material: ASV
- Winding Material: EISVM
- Diaphragm Material: Mylar
- Magnet Material: Neodymium
- Magnet Weight: 1.8g
Speaker Measurement:
- Overall Diameter: 6.5" / 165mm
- Overall Depth: 2.3" / 58.5mm
- Overall Diameter (With Grill): 7" / 179mm
- Overall Depth (With Grill): 3" / 77mm
- Front Mount Baffle Cutout: 5.6" / 143mm
- Mounting Depth: 2" / 53mm
- Motor Diameter: 3.15" / 80mm
- Tweeter Protrusion: 0.25" / 6.4mm
- Gross Single Unit Weight: 1.57 lb | 0.71kg
- Single Unit Box Dimensions W x L x H: 7.25 x 3.55 x 14.57 in | 185*90*370mm
- Quantity of Units in Master Carton: 10 PRS/CTN
- Gross Master Carton Weight: 37.5 lb | 17kg
- Master Carton Dimensions W x L x H: 18.75 x 15.16 x 15.35 in | 475*385*390mm
