6.5" 350 W RMS 4 Ohm Mid-High Loudspeaker DS18 PROJECT360 Neo Rotating Recone

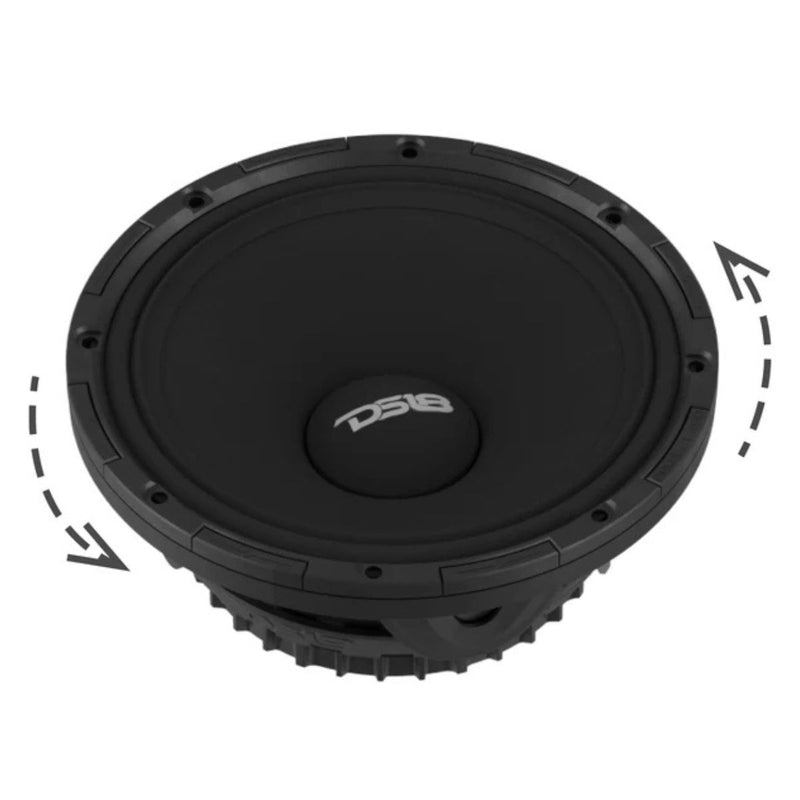

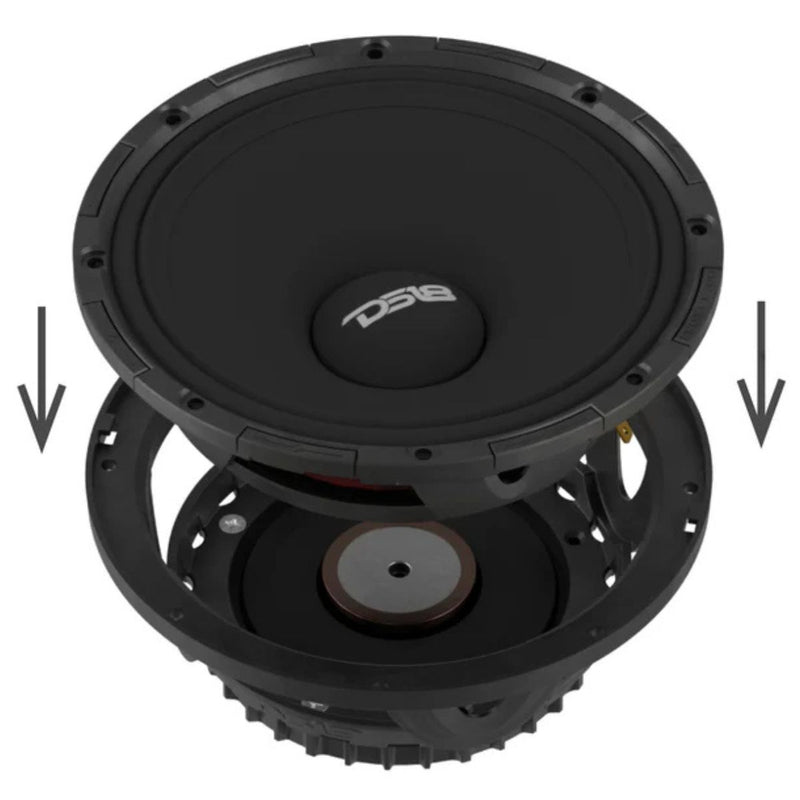

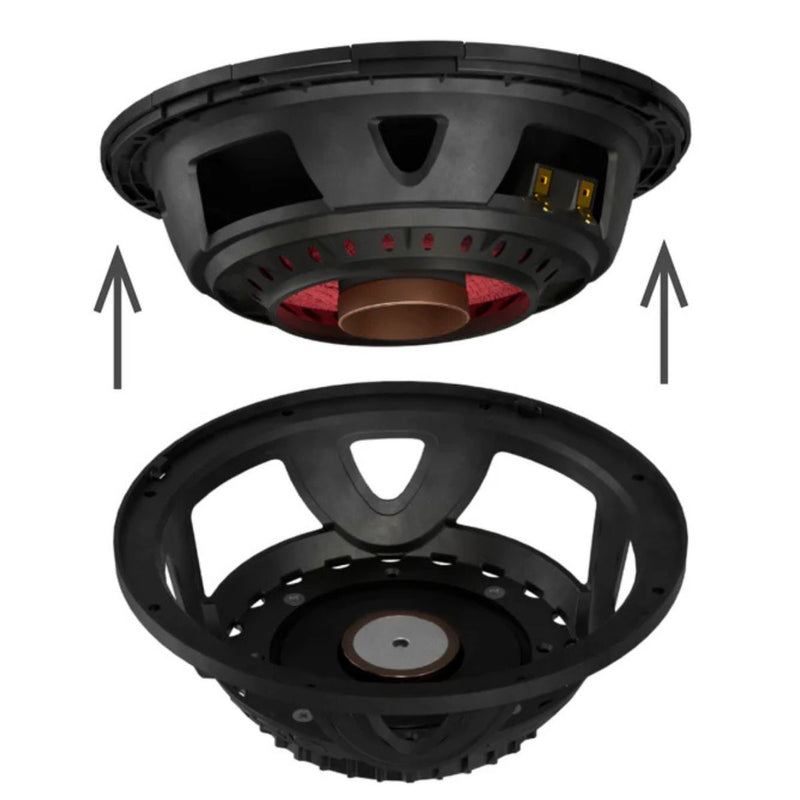

• PATENT-PENDING ROTATING RECONE DESIGN: Twist-lock recone system allows instant repairs with no glue, no downtime, and no waiting
• HIGH EFFICIENCY NEO PERFORMANCE: 100.5dB sensitivity delivers extreme output with less power for louder, cleaner sound
• 350W RMS HIGH OUTPUT POWER: Handles aggressive mid-high frequencies with clarity, punch, and control

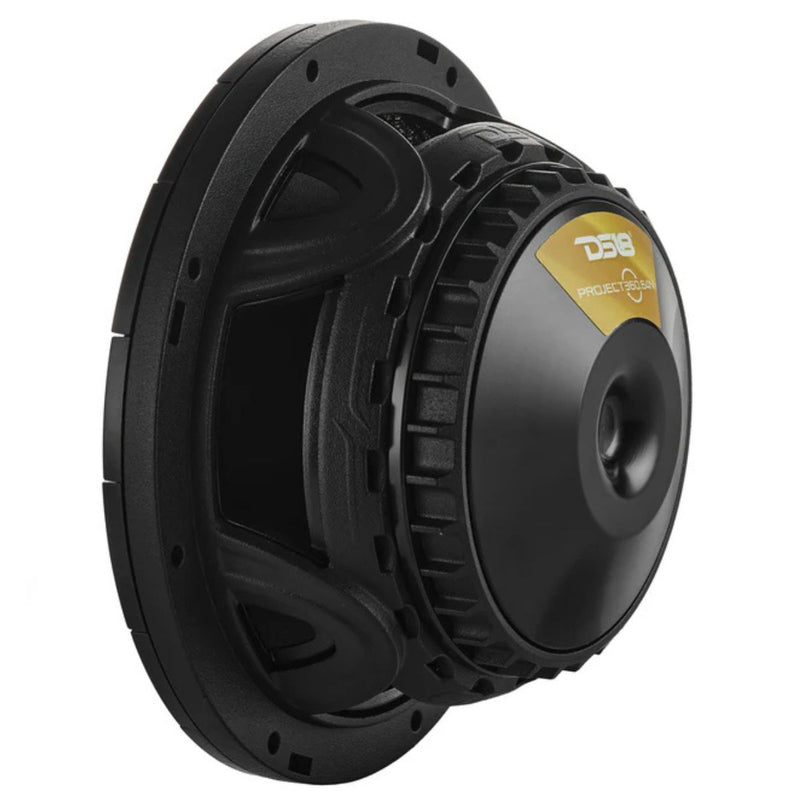

• LIGHTWEIGHT NEODYMIUM MOTOR: Reduced weight with increased efficiency, perfect for performance builds and tight installs
• PLUG-AND-PLAY SERVICEABILITY: Fast recone replacement keeps your system playing without interruption
• PRO-GRADE BUILD QUALITY: Aluminum basket, Kapton voice coil, and cloth surround ensure durability and heat resistance

6.5" 350 W RMS 4 Ohm Mid-High Loudspeaker DS18 PROJECT360 Neo Rotating Recone

This Listing Includes

• (1) DS18 PROJECT360.64N 6.5" Mid-High Loudspeaker

The DS18 PROJECT360 Series is a new generation of pro audio loudspeakers engineered for extreme output and instant serviceability. Featuring a patent-pending rotating recone design, these speakers allow for fast, glue-free repairs—so your system stays loud with zero downtime.

With high-sensitivity output, a curvilinear cone for improved response, and a rugged aluminum basket, PROJECT360 delivers aggressive mid-high clarity while standing up to real-world abuse.

Equipped with a high-efficiency neodymium motor, this version delivers increased output with less power and significantly reduced weight. Ideal for performance-focused builds where loudness, clarity, and efficiency are the priority.

Features

• 350W RMS / 700W MAX power handling / Neodymium Magnet


• Curvilinear cone for improved response


• Aluminum basket construction


• Plug-and-play recone system – no glue required

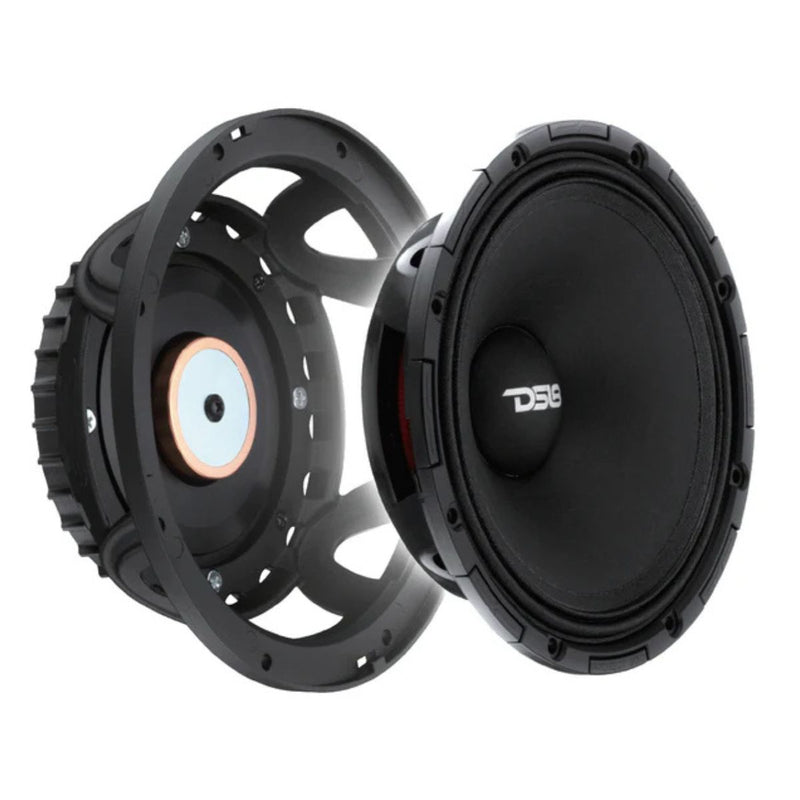

• Patent-Pending rotating recone design for instant repairs


• Compatible recone model PROJECT360.694RCK

Specifications

• Nominal Diameter: 6x9" (152x228mm)


• RMS Power Handling: 350 Watts


• Max Power Handling: 700 Watts


• Nominal Impedance: 4 Ohms


• Sensitivity: 101 dB


• Frequency Response: 100Hz - 17kHz


• Recommended High Pass Crossover: 90 Hz


• Sold As: Single


• Grill Included: No


• Cone Shape: Curvilinear

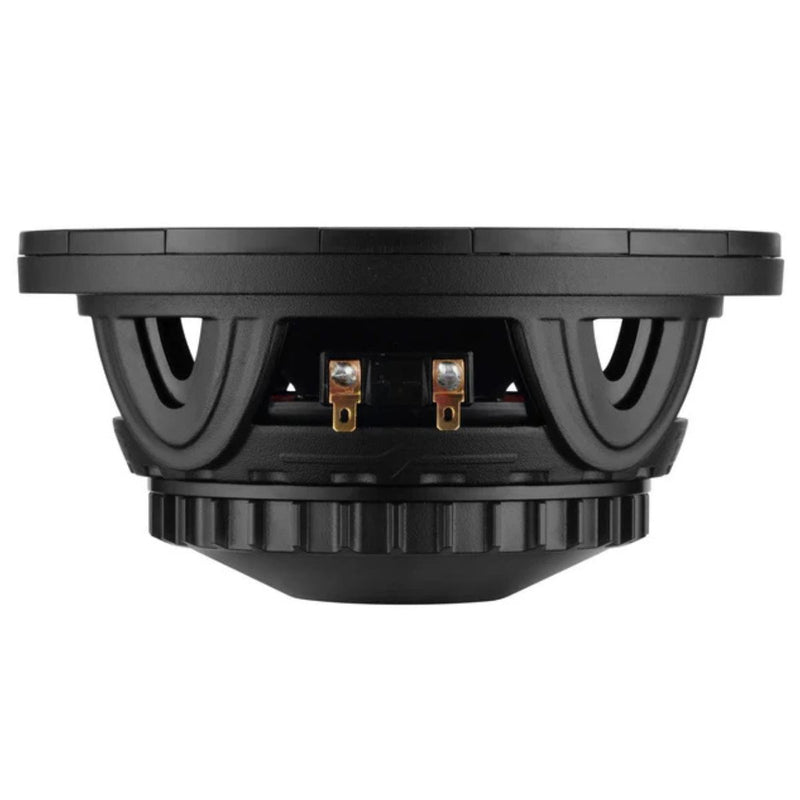

• Speaker Terminals: Spade


• Easy Recone Design: Yes


• Demodulating Rings: Yes


• Improved Heat Dissipation: Yes


• Voice Coil Diameter: 1.75"


• Voice Coil Former: Kapton


• Winding Material: CCAW


• Magnet Type: Neodymium


• Magnet Weight: 12.8 oz


• Basket Material: Aluminum


• Basket Finish: Black


• Cone: Paper


• Dust Cap: Paper


• Surround: Cloth

THIELE AND SMALL PARAMETERS

• Fs: 160 Hz


• Qms: 2.667


• Qes: 0.264


• Qts: 0.240


• Vas: 2.78 L


• Xmax: 0.3 mm


• BL: 12.708


• Mms: 14.523 g


• Le: 0.035 mH


• Re: 3.4 Ohms


• Sd: 176.71 cm

Dimensions:

• Overall Diameter: 6.85"


• Mounting Depth: 2.72"


• Overall Depth: 3.27"


• Cutout Diameter: 5.83"


• Motor Diameter: 3.94"
