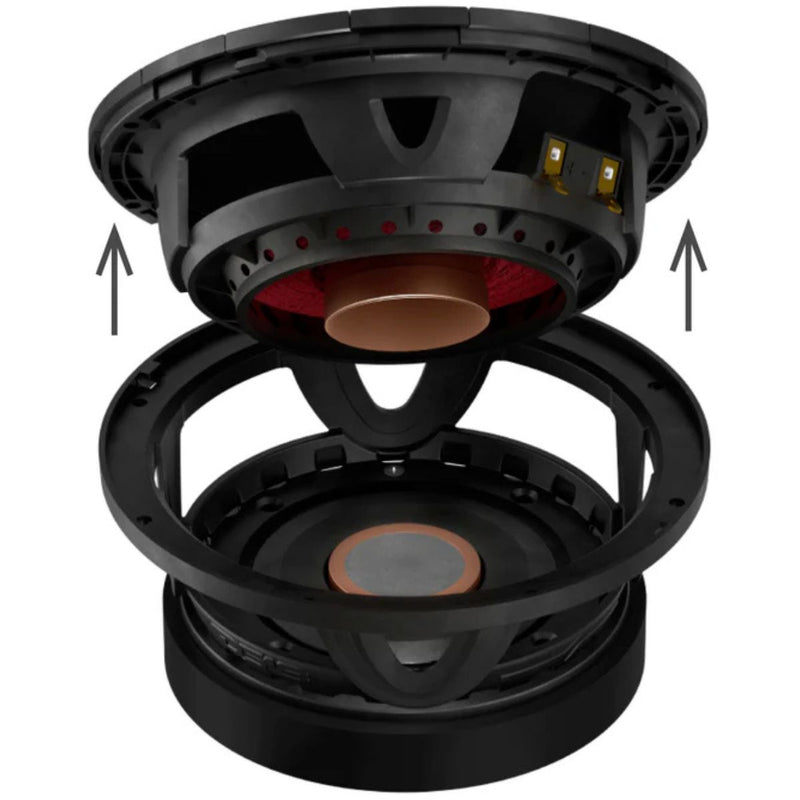

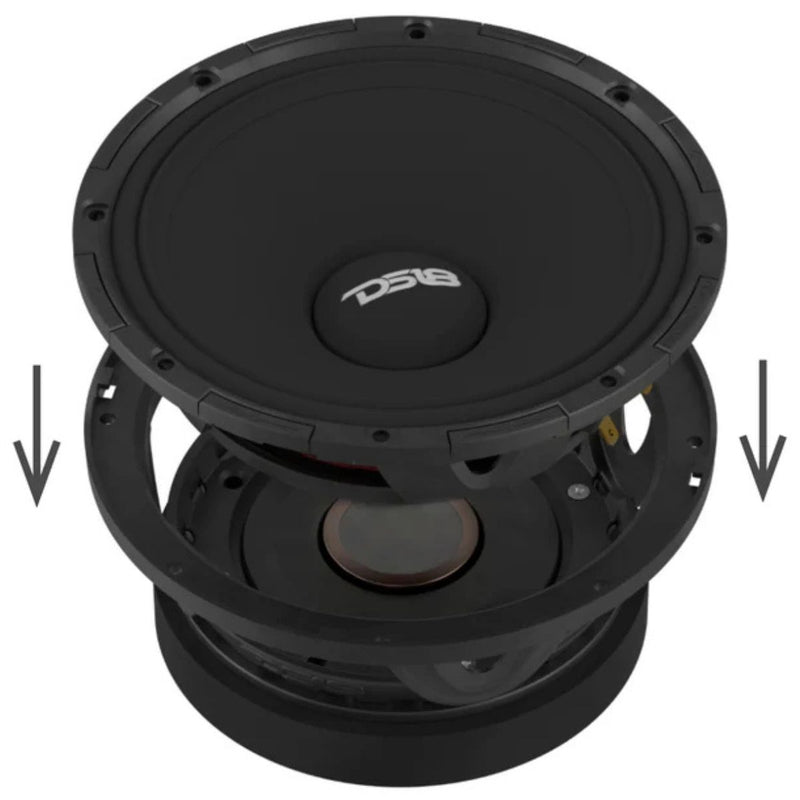

- REVOLUTIONARY ROTATING RECONE DESIGN: Patent-pending twist-lock recone system allows instant cone replacement with no glue, no downtime, and no waiting
- HIGH OUTPUT MID-HIGH PERFORMANCE: 300W RMS power handling delivers aggressive vocals and crystal-clear mid-high frequencies that cut through any system
- HIGH SENSITIVITY EFFICIENCY: 98dB sensitivity provides loud, clean output with less power, maximizing performance in any build
- BUILT FOR DAILY ABUSE: Ferrite motor structure offers strong thermal stability and long-term durability for consistent performance
- CURVILINEAR CONE RESPONSE: Engineered for smooth frequency transition and improved clarity across the mid-high range
- PRO-GRADE CONSTRUCTION: Aluminum basket, Kapton voice coil, and cloth surround ensure strength, heat resistance, and reliability

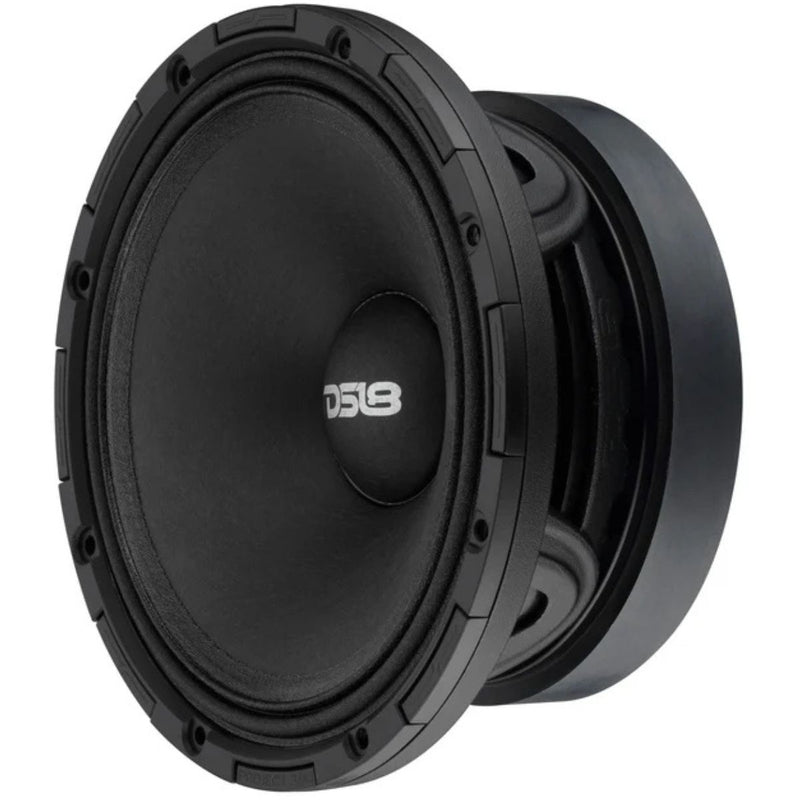

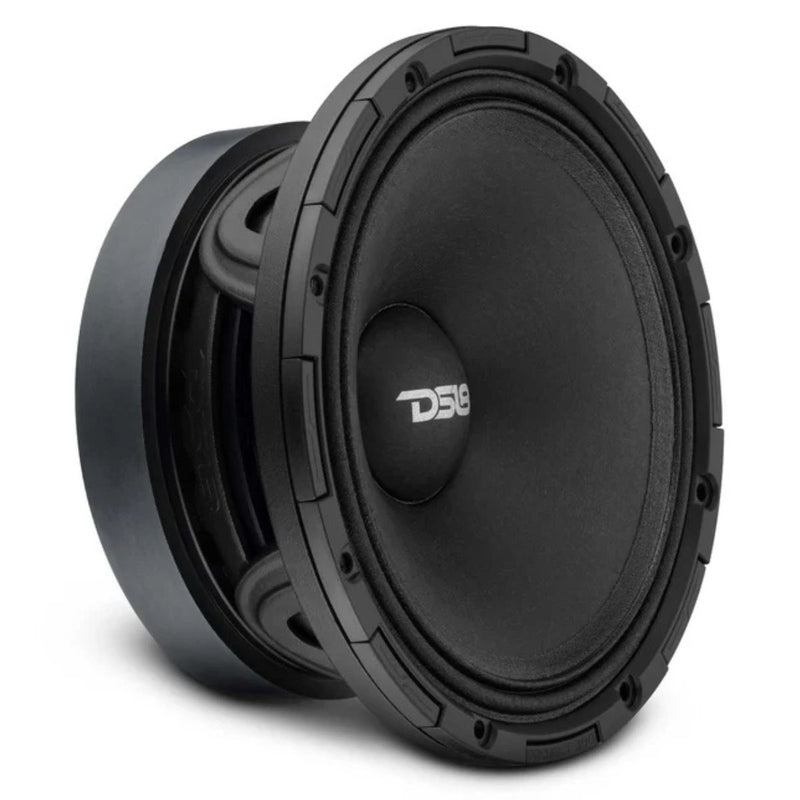

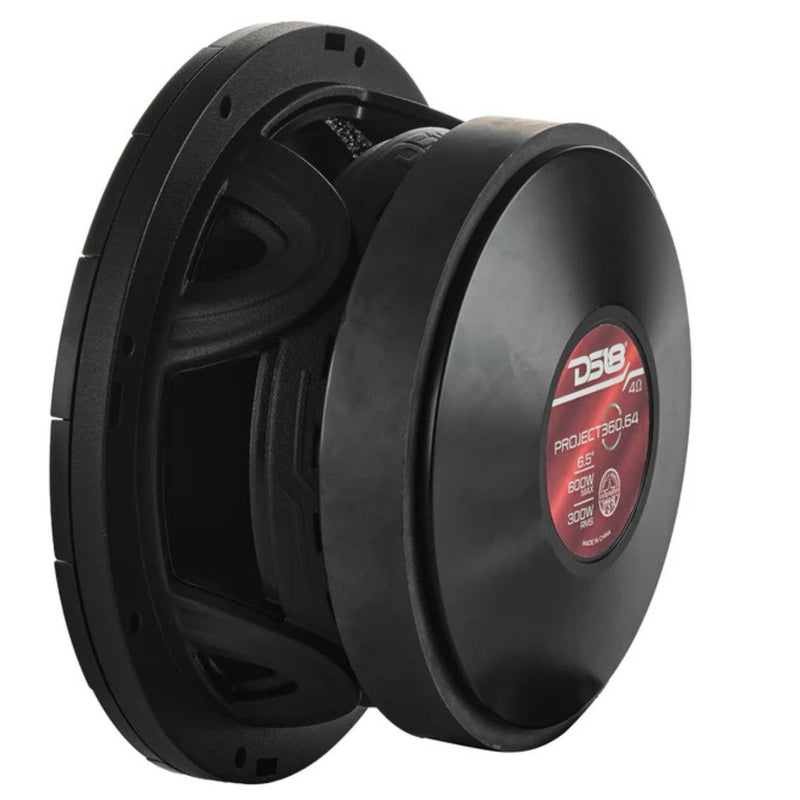

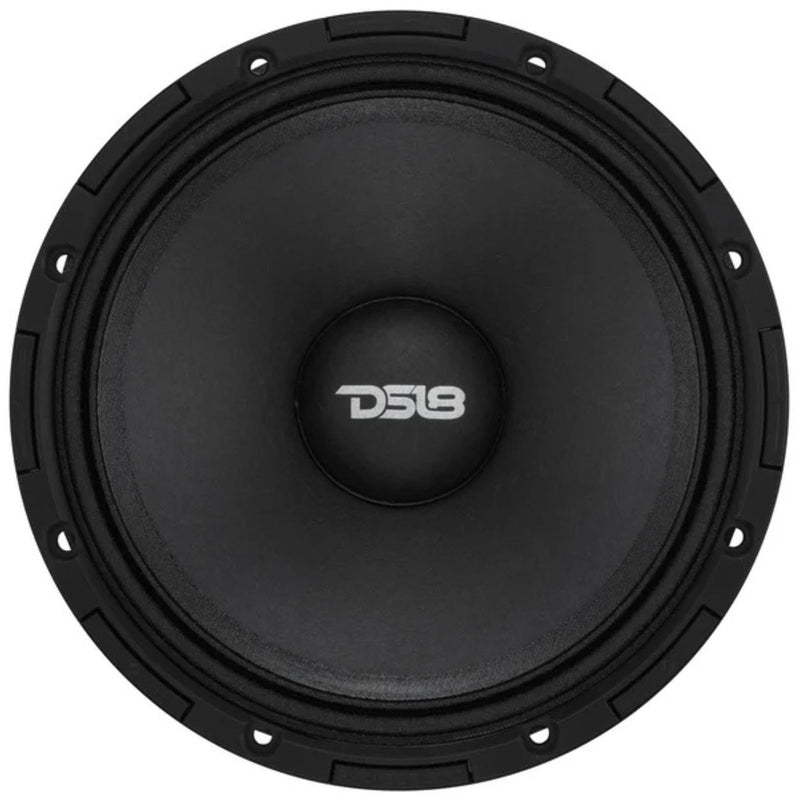

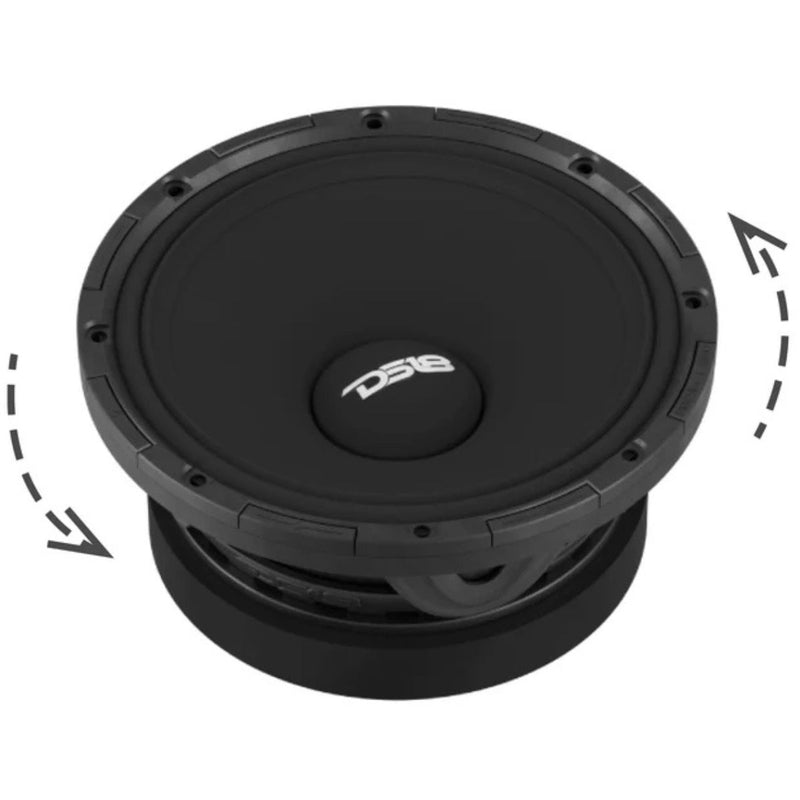

6.5" 300 W RMS 4 Ohm Mid-High Loudspeaker DS18 PROJECT360 Rotating Recone Design
This Listing Includes
- (1) DS18 PROJECT360.64 6.5" Mid-High Loudspeaker
The DS18 PROJECT360 Series is a new generation of pro audio loudspeakers engineered for extreme output and instant serviceability. Featuring a patent-pending rotating recone design, these speakers allow for fast, glue-free repairs—so your system stays loud with zero downtime.
With high-sensitivity output, a curvilinear cone for improved response, and a rugged aluminum basket, PROJECT360 delivers aggressive mid-high clarity while standing up to real-world abuse.
Powered by a traditional ferrite motor, this version is built for strength, consistency, and heat resistance. It’s designed to handle long play times and aggressive use without performance drop-off, making it perfect for daily-driven systems and heavy demo builds.
Features
- 300W RMS / 600W MAX power handling / Ferrite Magnet
- Curvilinear cone for improved response
- Aluminum basket construction
- Plug-and-play recone system – no glue required

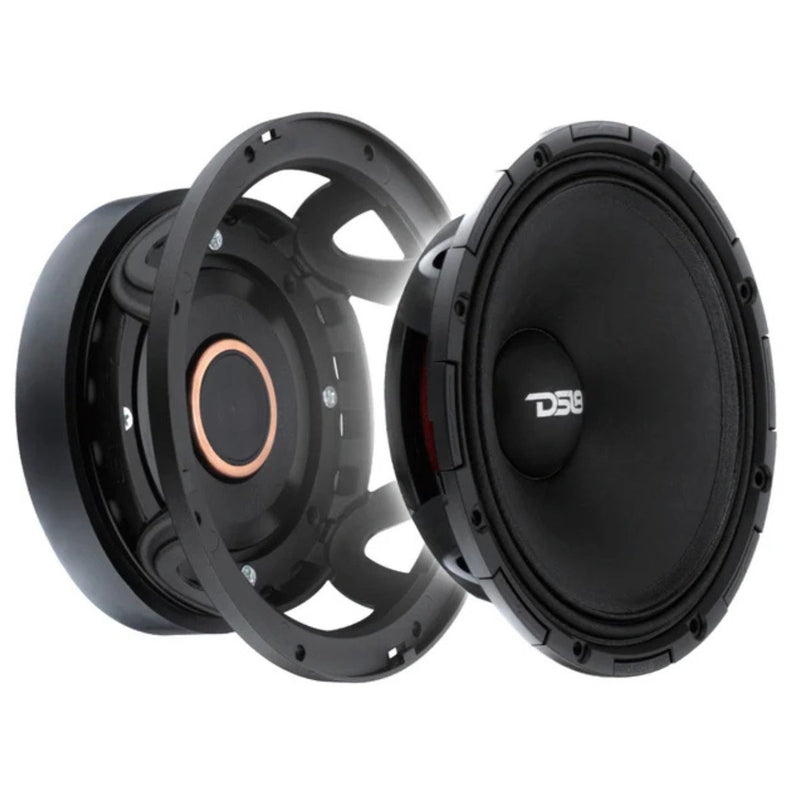

- Patent-Pending rotating recone design for instant repairs
- Compatible recone model PROJECT360.64RCK
Specifications:
- Nominal Diameter: 6.5 Inch (152mm)
- RMS Power Handling: 300 Watts
- Max Power Handling: 600 Watts
- Nominal Impedance: 4 Ohm
- Sensitivity: 98 dB
- Frequency Response: 95Hz - 17kHz
- Recommended High Pass Crossover: 140 Hz
- Sold As: Single
- Grill Included: No
- Cone Shape: Curvilinear

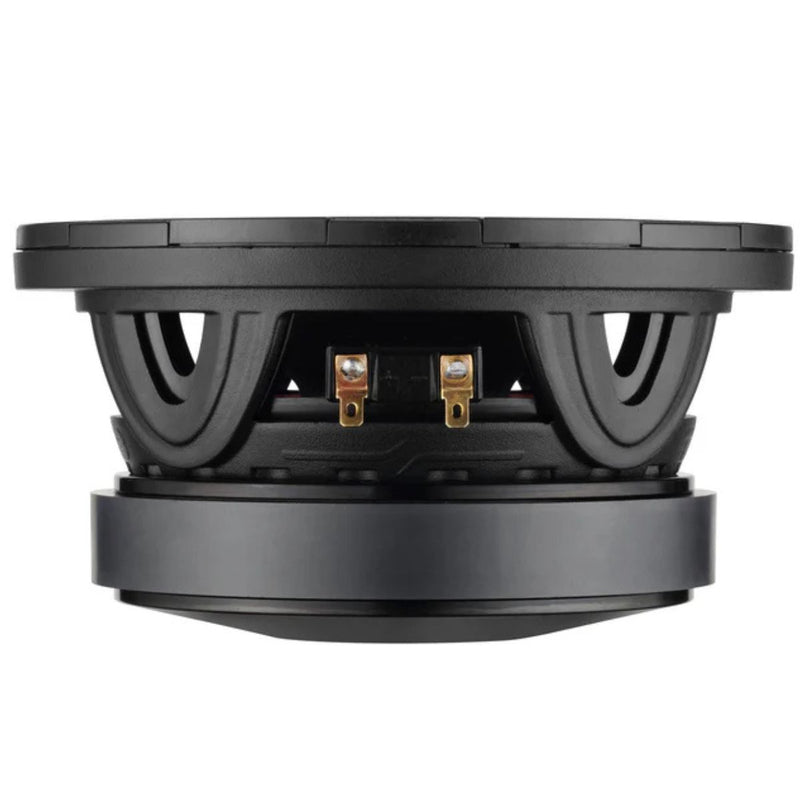

- Speaker Terminals: Spade
- Easy Recone Design: Yes
- Demodulating Rings: Yes
- Voice Coil Diameter: 1.75 Inch (44.5mm)
- Voice Coil Former: Kapton
- Winding Material: CCAW
- Magnet Type: Ferrite
- Magnet Weight: 48 oz
- Basket Material: Aluminum
- Basket Finish: Black
- Cone: Paper
- Dust Cap: Paper
- Surround: Cloth
THIELE AND SMALL PARAMETERS:
- Fs: 170 Hz
- Qms: 3.145
- Qes: 0.514
- Qts: 0.442
- Vas: 2.72 L
- Xmax: 0.3 mm
- BL: 9.133
- Mms: 13.867
- Le: 0.042 mH
- Re: 3.3 Ohms
- Sd: 176.71 cm
Dimensions:
- Overall Diameter: 6.85"
- Mounting Depth: 3"
- Overall Depth: 3.57"
- Cutout Diameter: 5.83"
- Motor Diameter: 5.5"
