5MP HDCVI IR-Fisheye Camera The 5MP HDCVI fisheye camera adopts a panoramic fisheye lens and high-performance image sensor, as well as a 10m IR range, enabling a full overview and superior image details with 5MP resolution. That makes it easy to collect evidence at any time for effective playback and analysis. With the use of advanced algorithms, more than 10+ dewarping modes are available on the XVR (select models) and mobile client. Its panoramic view and 5MP resolution make the camera an ideal choice for large size businesses and places such as airports, stadiums, parking lots, and shopping malls.
Key Features: 1/2.8 5Megapixel progressive scan CMOS - Max. 20fps@5MP - Built-in Mic - 120db true WDR, Starlight, 2D&3D NR - Max. IR length 10m, Smart IR - DC12V
Specifications: Camera Image Sensor 1/2.8" 5MP CMOS Effective Pixels 2592(H)1944(V),5MP Scanning System Progressive Electronic Shutter Speed PAL:1/4s~1/100,000s NTSC:1/3s~1/100,000s Minimum Illumination 0.005Lux/F2.0 (Color), 30IRE,0lux IR on S/N Ratio More THan 65dB IR Distance 10m IR On/Off Control Auto (ICR)/Color/B/W IR LEDs 3
Lens
Lens Type Fixed lens / Fixed iris Mount Type Board-in Focal Length 1.4mm Max Aperture F2.0 Angle of View H: 180, V:180 Focus Control N/A Close Focus Distance 0.2m(7.87'')
DORI
Distance Note: The DORI distance is a general proximity of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test results according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

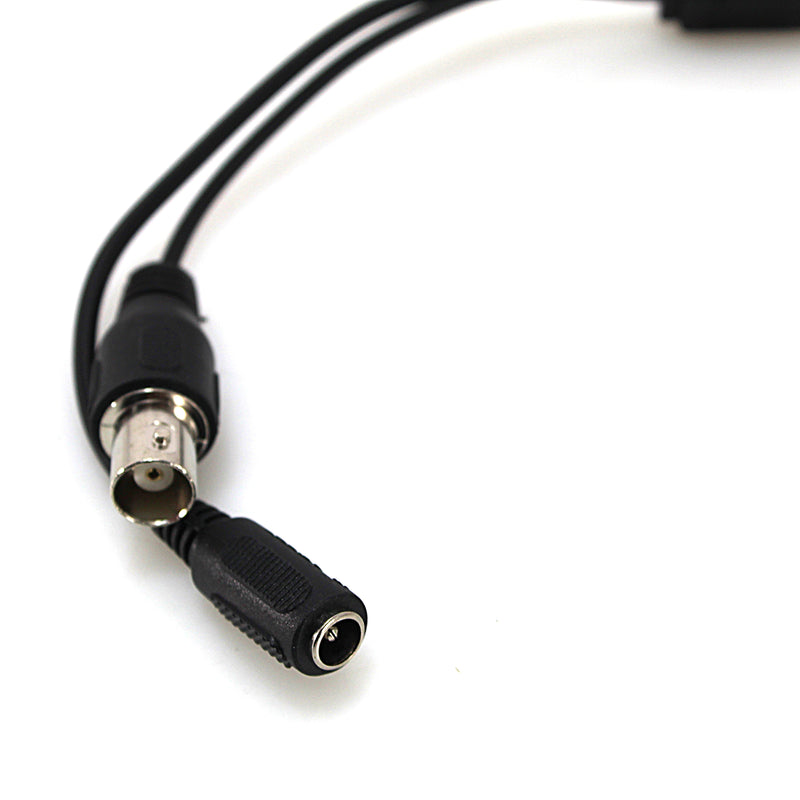

Video Video Resolution: 5MP (25921944) Frame Rate: 20fps@5MP,25/30fps@4MP Video Output: 1-channel BNC high definition video output. Day/Night: Auto (Electronic) / Manual OSD Menu: Multi-Language BLC Mode: BLC / HLC / WDR WDR: 120dB Gain Control: AGC Noise Reduction: 2D/3D White Balance: Auto / Manual Smart IR: Auto / Manual
Certifications CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface Audio Built-in mic
Electrical Power Supply DC12V 30% Power Consumption 7.3W (IR ON)
Environmental
Operating Conditions -30C ~ +60C (-22F ~ +140F) / Less than 95% RH * Start up should be done at above-30C (-22F) Storage Conditions -30C ~ +60C (-22F ~ +140F) / Less than 95% RH Ingress Protection & Vandal Resistance N/A
Construction
Casing Aluminium + Plastic Dimensions 126.2mm x 40.6mm(4.97"x 1.6") Net Weight 0.24kg (0.53lb) Gross Weight 0.42kg (0.93lb)
